Gaming LED Clock

by dylanisgod01 in Circuits > Arduino

151 Views, 1 Favorites, 0 Comments

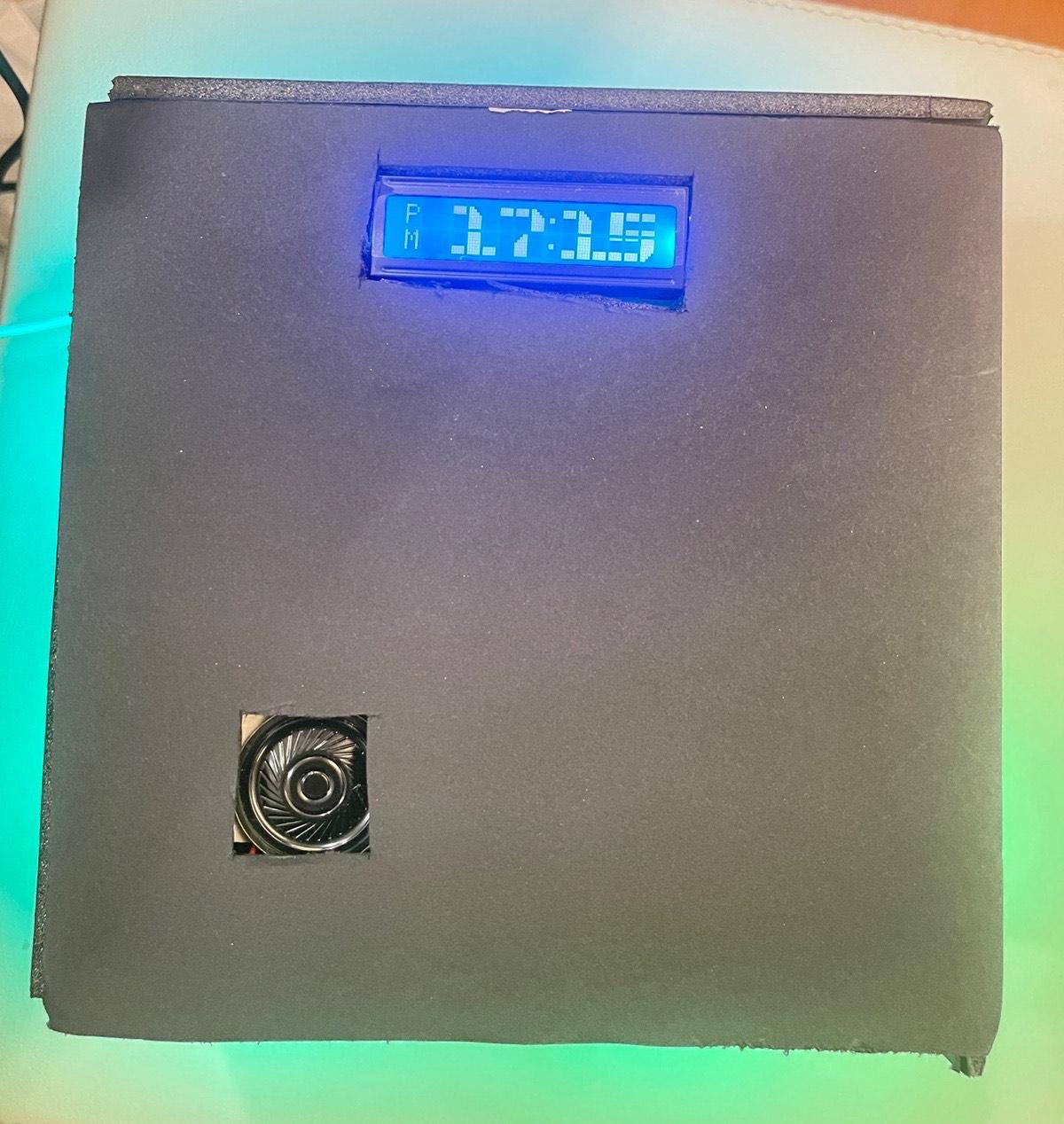

Gaming LED Clock

image_6483441 (35).JPG
image_6487327 (8).JPG

I've been waking up late everyday. So, I want to make a machine that wakes me up. So, I know that the only way to wake me up is to let me have time to play video games. I us Minecraft as a example to open it to let me play. You guys can use different games or apps to test!


Note

In this project you don't need laser cutter or 3D printer. You just need welding torch, hot glue gun. You must need welding torch, if you don't have hot glue gun, you can use glue and something that is sticky.

Supplies

Materials:

  • LCD screen
  • Buzzer
  • Pearl Board
  • WS2812 LED (from a 60 LEDs/m strip) x 32 pieces.
  • DS1302
  • Arduino Leonardo
  • Bread board
  • DuPont line

Pearl Board Cutting

Cut the pearl board. The top of the bread board is 20 x 20 cm. The side of it is 10 x 20cm. Cut a rectangular hole on one 20 x 20cm board the hole is 2.5 x 7cm, also cut a square hole 3 x 3cm. Then, skick them together into a box.

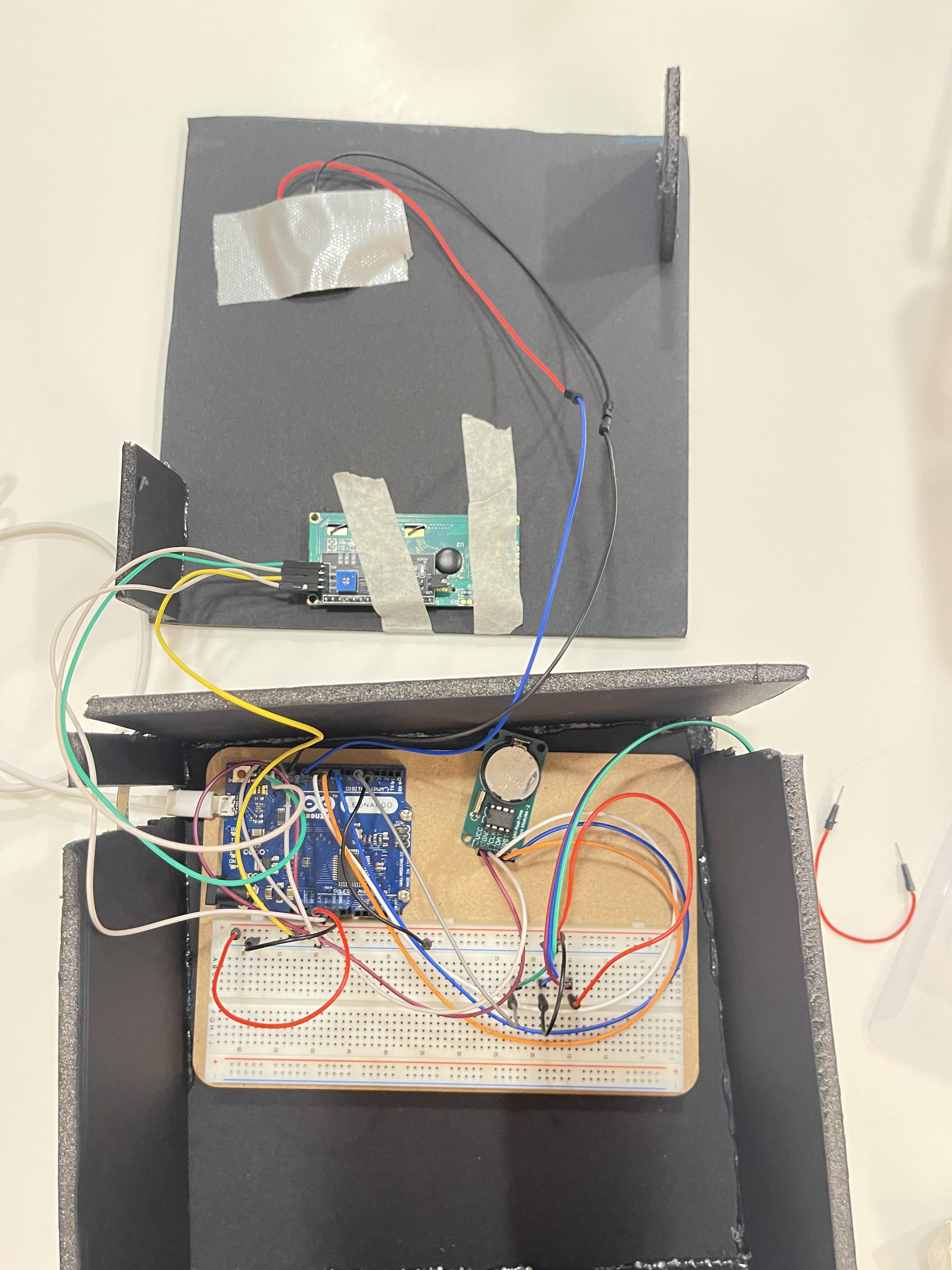

Circuit


This is the circuit of it.

The picture's url above:https://blog.jmaker.com.tw/ds1302/

Code

// This program includes several libraries that are needed for this project
#include <Wire.h> // This library allows communication with I2C devices
#include <Keyboard.h> // This library allows the Arduino to simulate keyboard input
#include <LiquidCrystal_PCF8574.h> // This library allows communication with the PCF8574-based LCD display
#include <ThreeWire.h>
#include <RtcDS1302.h>
#include <FastLED.h>


#define NUM_LEDS 64
#define DATA_PIN 5
#define CLOCK_PIN 13
CRGB leds[NUM_LEDS];


ThreeWire myWire(9, 10, 8);
RtcDS1302<ThreeWire> Rtc(myWire);


LiquidCrystal_PCF8574 lcd(0x27);


int DylanHtime;
int DylanMtime;


const char custom[][8] PROGMEM = {                        // Custom character definitions
  { 0x1F, 0x1F, 0x1F, 0x00, 0x00, 0x00, 0x00, 0x00 }, // char 1
  { 0x18, 0x1C, 0x1E, 0x1F, 0x1F, 0x1F, 0x1F, 0x1F }, // char 2
  { 0x1F, 0x1F, 0x1F, 0x1F, 0x1F, 0x0F, 0x07, 0x03 }, // char 3
  { 0x00, 0x00, 0x00, 0x00, 0x00, 0x1F, 0x1F, 0x1F }, // char 4
  { 0x1F, 0x1F, 0x1F, 0x1F, 0x1F, 0x1E, 0x1C, 0x18 }, // char 5
  { 0x1F, 0x1F, 0x1F, 0x00, 0x00, 0x00, 0x1F, 0x1F }, // char 6
  { 0x1F, 0x00, 0x00, 0x00, 0x00, 0x1F, 0x1F, 0x1F }, // char 7
  { 0x03, 0x07, 0x0F, 0x1F, 0x1F, 0x1F, 0x1F, 0x1F }  // char 8
};


const char bigChars[][8] PROGMEM = {
  { 0x20, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, // Space
  { 0xFF, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, // !
  { 0x05, 0x05, 0x20, 0x20, 0x00, 0x00, 0x00, 0x00 }, // "
  { 0x04, 0xFF, 0x04, 0xFF, 0x04, 0x01, 0xFF, 0x01 }, // #
  { 0x08, 0xFF, 0x06, 0x07, 0xFF, 0x05, 0x00, 0x00 }, // $
  { 0x01, 0x20, 0x04, 0x01, 0x04, 0x01, 0x20, 0x04 }, // %
  { 0x08, 0x06, 0x02, 0x20, 0x03, 0x07, 0x02, 0x04 }, // &
  { 0x05, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, // '
  { 0x08, 0x01, 0x03, 0x04, 0x00, 0x00, 0x00, 0x00 }, // (
  { 0x01, 0x02, 0x04, 0x05, 0x00, 0x00, 0x00, 0x00 }, // )
  { 0x01, 0x04, 0x04, 0x01, 0x04, 0x01, 0x01, 0x04 }, // *
  { 0x04, 0xFF, 0x04, 0x01, 0xFF, 0x01, 0x00, 0x00 }, // +
  { 0x20, 0x05, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, //
  { 0x04, 0x04, 0x04, 0x20, 0x20, 0x20, 0x00, 0x00 }, // -
  { 0x20, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, // .
  { 0x20, 0x20, 0x04, 0x01, 0x04, 0x01, 0x20, 0x20 }, // /
  { 0x08, 0x01, 0x02, 0x03, 0x04, 0x05, 0x00, 0x00 }, // 0
  { 0x01, 0x02, 0x20, 0x04, 0xFF, 0x04, 0x00, 0x00 }, // 1
  { 0x06, 0x06, 0x02, 0xFF, 0x07, 0x07, 0x00, 0x00 }, // 2
  { 0x01, 0x06, 0x02, 0x04, 0x07, 0x05, 0x00, 0x00 }, // 3
  { 0x03, 0x04, 0xFF, 0x20, 0x20, 0xFF, 0x00, 0x00 }, // 4
  { 0xFF, 0x06, 0x06, 0x07, 0x07, 0x05, 0x00, 0x00 }, // 5
  { 0x08, 0x06, 0x06, 0x03, 0x07, 0x05, 0x00, 0x00 }, // 6
  { 0x01, 0x01, 0x02, 0x20, 0x08, 0x20, 0x00, 0x00 }, // 7
  { 0x08, 0x06, 0x02, 0x03, 0x07, 0x05, 0x00, 0x00 }, // 8
  { 0x08, 0x06, 0x02, 0x07, 0x07, 0x05, 0x00, 0x00 }, // 9
  { 0xA5, 0xA5, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, // :
  { 0x04, 0x05, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, // ;
  { 0x20, 0x04, 0x01, 0x01, 0x01, 0x04, 0x00, 0x00 }, // <
  { 0x04, 0x04, 0x04, 0x01, 0x01, 0x01, 0x00, 0x00 }, // =
  { 0x01, 0x04, 0x20, 0x04, 0x01, 0x01, 0x00, 0x00 }, // >
  { 0x01, 0x06, 0x02, 0x20, 0x07, 0x20, 0x00, 0x00 }, // ?
  { 0x08, 0x06, 0x02, 0x03, 0x04, 0x04, 0x00, 0x00 }, // @
  { 0x08, 0x06, 0x02, 0xFF, 0x20, 0xFF, 0x00, 0x00 }, // A
  { 0xFF, 0x06, 0x05, 0xFF, 0x07, 0x02, 0x00, 0x00 }, // B
  { 0x08, 0x01, 0x01, 0x03, 0x04, 0x04, 0x00, 0x00 }, // C
  { 0xFF, 0x01, 0x02, 0xFF, 0x04, 0x05, 0x00, 0x00 }, // D
  { 0xFF, 0x06, 0x06, 0xFF, 0x07, 0x07, 0x00, 0x00 }, // E
  { 0xFF, 0x06, 0x06, 0xFF, 0x20, 0x20, 0x00, 0x00 }, // F
  { 0x08, 0x01, 0x01, 0x03, 0x04, 0x02, 0x00, 0x00 }, // G
  { 0xFF, 0x04, 0xFF, 0xFF, 0x20, 0xFF, 0x00, 0x00 }, // H
  { 0x01, 0xFF, 0x01, 0x04, 0xFF, 0x04, 0x00, 0x00 }, // I
  { 0x20, 0x20, 0xFF, 0x04, 0x04, 0x05, 0x00, 0x00 }, // J
  { 0xFF, 0x04, 0x05, 0xFF, 0x20, 0x02, 0x00, 0x00 }, // K
  { 0xFF, 0x20, 0x20, 0xFF, 0x04, 0x04, 0x00, 0x00 }, // L
  { 0x08, 0x03, 0x05, 0x02, 0xFF, 0x20, 0x20, 0xFF }, // M
  { 0xFF, 0x02, 0x20, 0xFF, 0xFF, 0x20, 0x03, 0xFF }, // N
  { 0x08, 0x01, 0x02, 0x03, 0x04, 0x05, 0x00, 0x00 }, // 0
  { 0x08, 0x06, 0x02, 0xFF, 0x20, 0x20, 0x00, 0x00 }, // P
  { 0x08, 0x01, 0x02, 0x20, 0x03, 0x04, 0xFF, 0x04 }, // Q
  { 0xFF, 0x06, 0x02, 0xFF, 0x20, 0x02, 0x00, 0x00 }, // R
  { 0x08, 0x06, 0x06, 0x07, 0x07, 0x05, 0x00, 0x00 }, // S
  { 0x01, 0xFF, 0x01, 0x20, 0xFF, 0x20, 0x00, 0x00 }, // T
  { 0xFF, 0x20, 0xFF, 0x03, 0x04, 0x05, 0x00, 0x00 }, // U
  { 0x03, 0x20, 0x20, 0x05, 0x20, 0x02, 0x08, 0x20 }, // V
  { 0xFF, 0x20, 0x20, 0xFF, 0x03, 0x08, 0x02, 0x05 }, // W
  { 0x03, 0x04, 0x05, 0x08, 0x20, 0x02, 0x00, 0x00 }, // X
  { 0x03, 0x04, 0x05, 0x20, 0xFF, 0x20, 0x00, 0x00 }, // Y
  { 0x01, 0x06, 0x05, 0x08, 0x07, 0x04, 0x00, 0x00 }, // Z
  { 0xFF, 0x01, 0xFF, 0x04, 0x00, 0x00, 0x00, 0x00 }, // [
  { 0x01, 0x04, 0x20, 0x20, 0x20, 0x20, 0x01, 0x04 }, // Backslash
  { 0x01, 0xFF, 0x04, 0xFF, 0x00, 0x00, 0x00, 0x00 }, // ]
  { 0x08, 0x02, 0x20, 0x20, 0x00, 0x00, 0x00, 0x00 }, // ^
  { 0x20, 0x20, 0x20, 0x04, 0x04, 0x04, 0x00, 0x00 }  // _
};
byte col, row, nb = 0, bc = 0;                            // general
//int bb[8];
byte bb[8];


void setup () {
  Serial.begin(9600);
  Serial.begin(57600);
  Serial.println("resetting");
  FastLED.addLeds<WS2812, DATA_PIN, RGB>(leds, NUM_LEDS);
  FastLED.setBrightness(84);


  lcd.begin(16, 2);
  lcd.setBacklight(255);
  // lcd.begin(20, 4);
  // This line sets up the backlight for the LCD display


  for (nb = 0; nb < 8; nb++ ) {
    for (bc = 0; bc < 8; bc++) bb[bc] = pgm_read_byte( &custom[nb][bc] );
    lcd.createChar ( nb + 1, bb );
  }
  // This loop is creating custom characters to be displayed on the LCD screen
  // It reads each character from a predefined array, and saves it as a custom character


  lcd.clear();
  writeBigString("JMKAER", 0, 0); // This function writes the string "JMKAER" in large text on the first line of the LCD display
  delay(800);


  Serial.print("compiled: ");
  Serial.print(__DATE__);
  Serial.println(__TIME__);

  Rtc.Begin();


  RtcDateTime compiled = RtcDateTime(__DATE__, __TIME__);
  printDateTime(compiled);
  Serial.println();


  if (!Rtc.IsDateTimeValid()) {
    Serial.println("RTC lost confidence in the DateTime!");
    Rtc.SetDateTime(compiled);
  }
  // This if statement checks if the RTC is valid. If it isn't, it sets the RTC to the date and time when the code was compiled


  if (Rtc.GetIsWriteProtected()) {
    Serial.println("RTC was write protected, enabling writing now");
    Rtc.SetIsWriteProtected(false);
  }


  if (!Rtc.GetIsRunning()) {
    Serial.println("RTC was not actively running, starting now");
    Rtc.SetIsRunning(true);
  }


  RtcDateTime now = Rtc.GetDateTime();
  if (now < compiled) {
    Serial.println("RTC is older than compile time!  (Updating DateTime)");
    Rtc.SetDateTime(compiled);
  }
  else if (now > compiled) {
    Serial.println("RTC is newer than compile time. (this is expected)");
  }
  else if (now == compiled) {
    Serial.println("RTC is the same as compile time! (not expected but all is fine)");
  }
  // This block of code checks if the RTC is running properly, and if it isn't, it sets it up with the correct date and time.


}


void fadeall() {
  for (int i = 0; i < NUM_LEDS; i++) {
    leds[i].nscale8(250);
  }

Downloads

clock4.ino
