Gameboy Using MSP430

this is a gameboy developed by me, using msp430g2553, and 2 shift registers, 74595... it includes 8x8 led matrix, which is build on the board....
watch the video at....

www.youtube.com/watch?v=lU2uQQPu3wM

Downloads

MSP430 Gameboy.mp4

Material Needed

for this you will need...
1] dotted pcb
2] 70 led [coloured]
3] MSP430G2553
4] 2x 74595 shift register
5] 2x DPDT switch
6] 4x micro switch
7] ic bases
8] potientiometer 4k7
9] decoupling capacitors [104]
10] on\off switch
11] 8x BC547
12] 8x 1k res.
13] 5x 10k res.
14] 4v battery
15] ti launchpad
16] ti Code Composer Studio

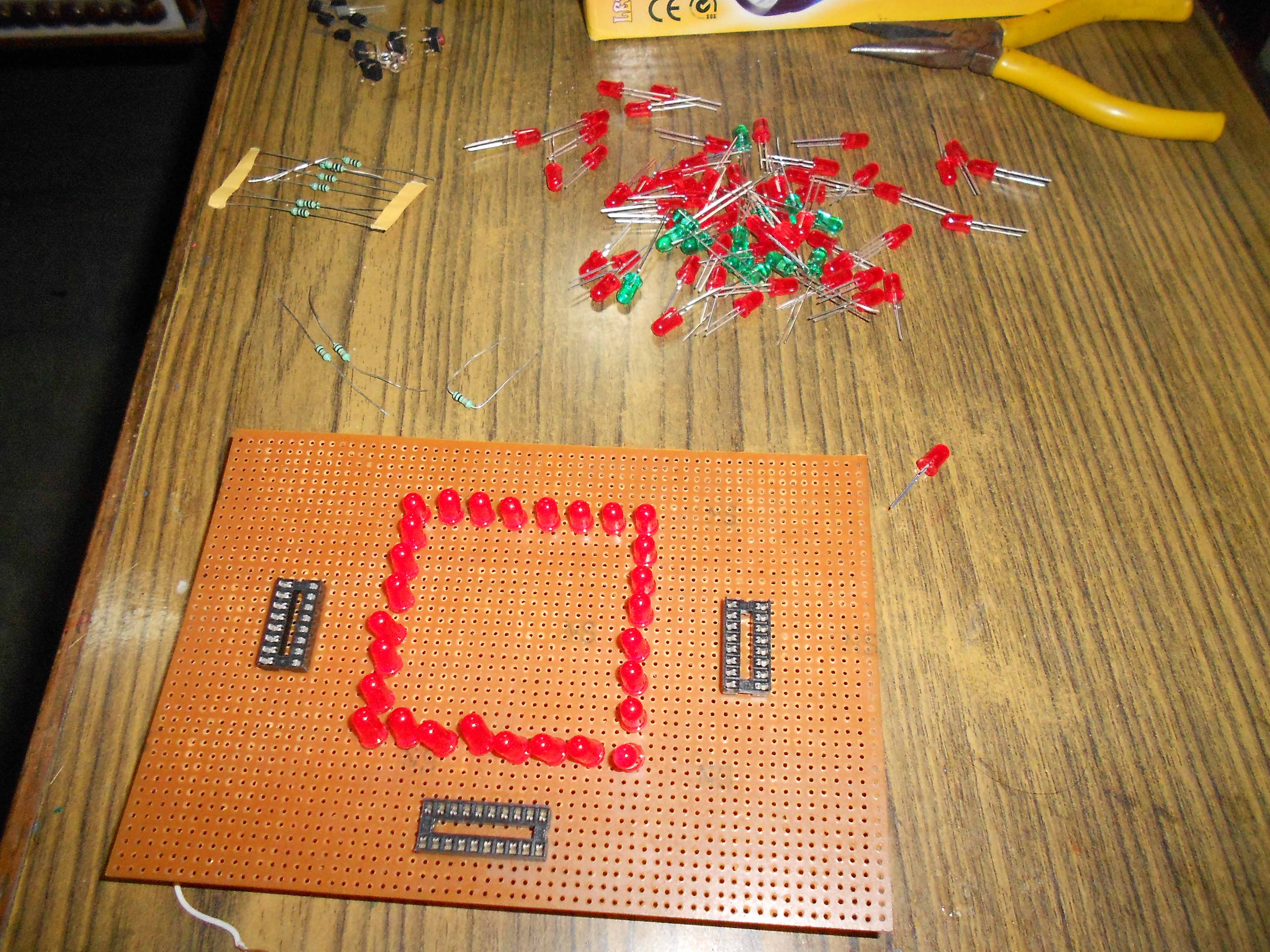

Layout

then you have to select the positioning of your 8x8 led matrix and all other components according to your PCB...

Building the 8x8 Med Matrix

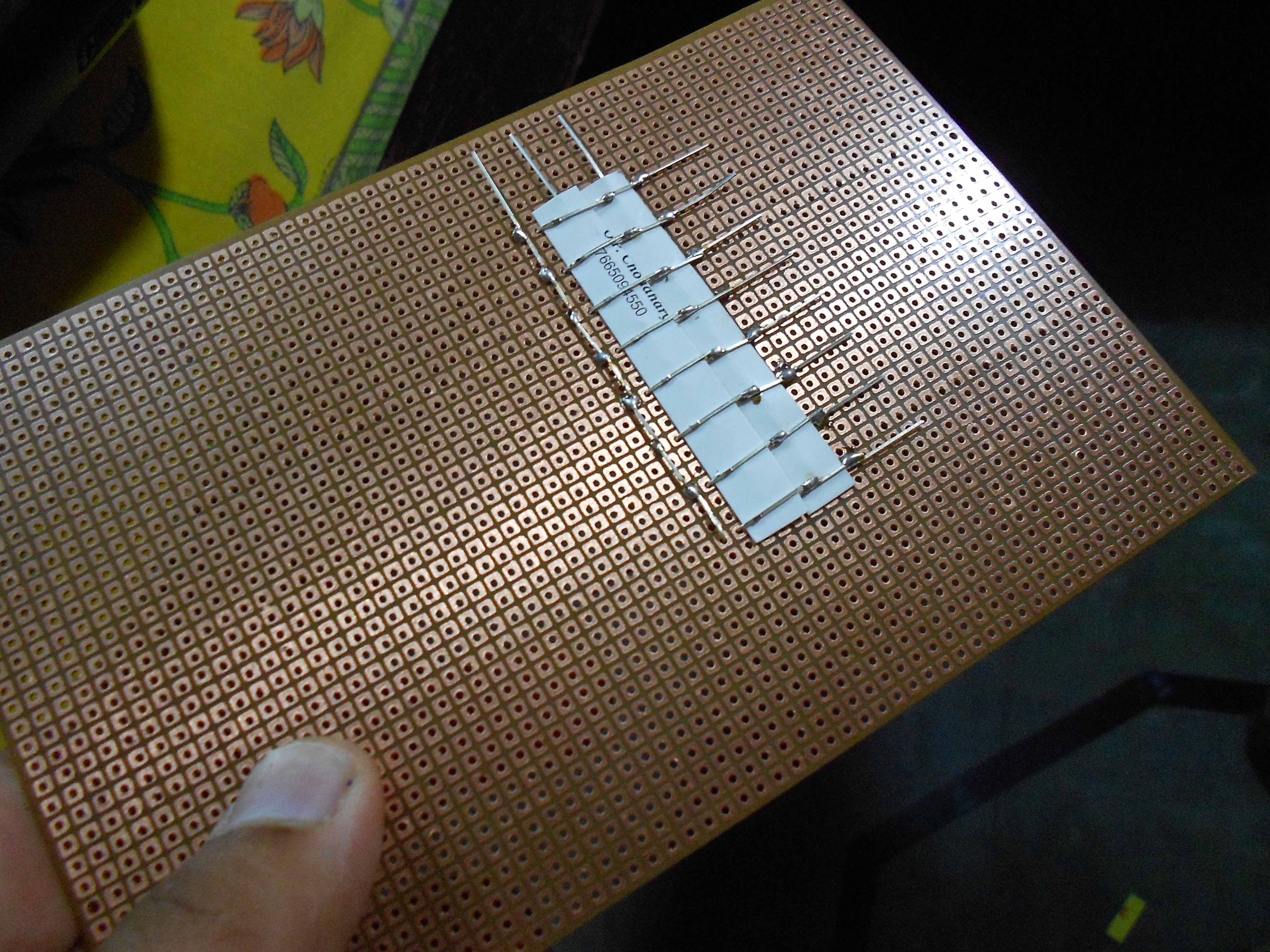

you can get instructions how to build an LED matrix on many pages on the internet, here is the process, by which i made it....

Making Connections

its the hardest part of building the hardware, and you must be careful about making the exact same connections as i made, otherwise the code wont work on it, i have uploaded an eagle's schematic file, with the diagram which shows the essential connections which are to be made EXACTLY the same way...

some important connections of IC 74595

pin10-vcc-10k

pin9-cascade data, pin 14 74595 or open if its the last IC in cascade

pin11-shift clock-pin7 msp

pin12-latch clock -pin 6 msp

pin13 - gnd-10k

pin14 - data - msp15 or 74595-pin9

pin15- data bit 0
