Gadget Charge Station

Christmas has been and gone, the gadgets quota has increased.
Every spare power socket has a phone, tablet or e-reader connected to it.
I had to come up with a solution that would free up power sockets.
So here it is.

The Bits

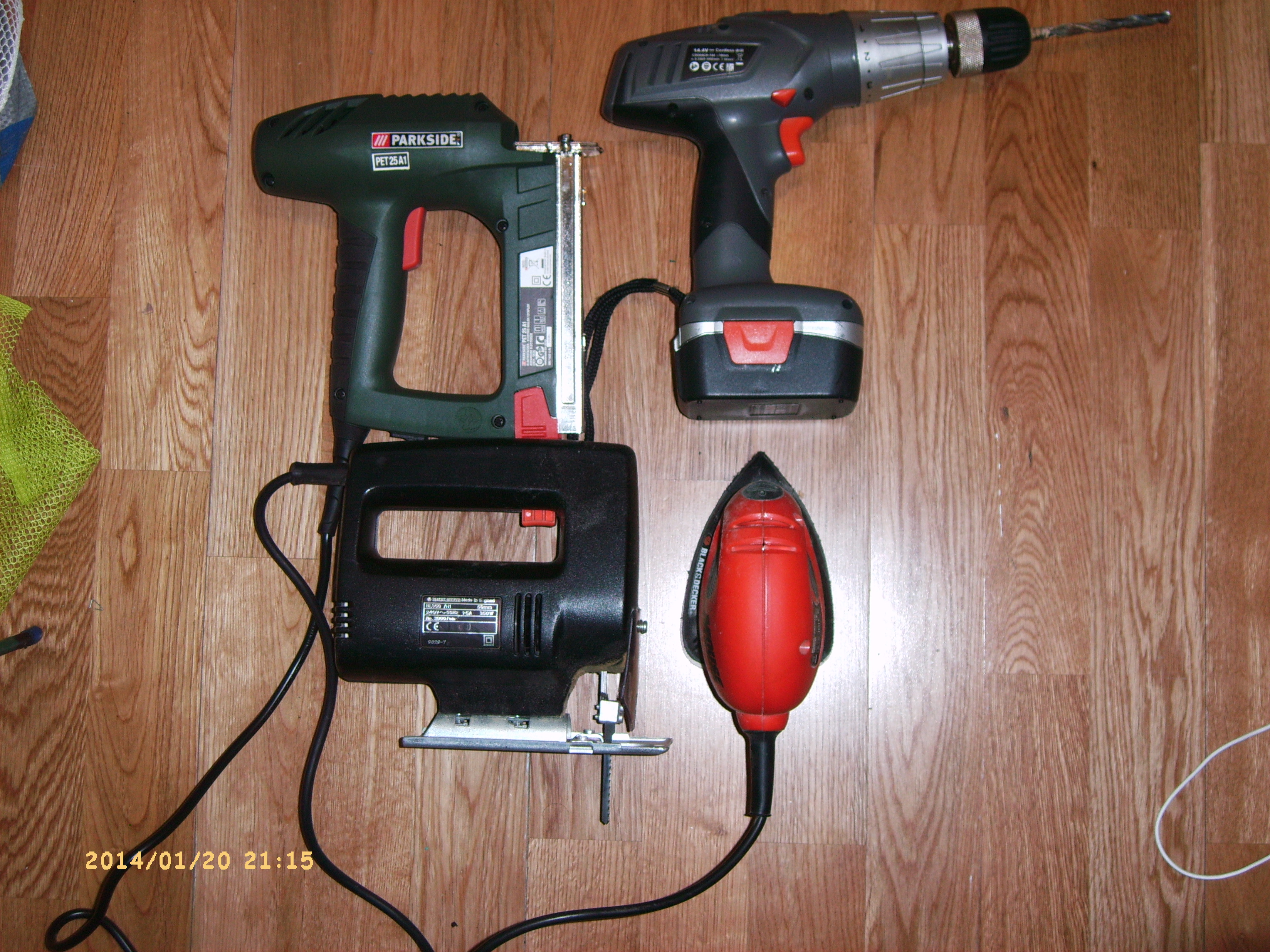

I cut out  1/4" Hardboard (6mm) MDF sides and front using a jigsaw.
the base and socket back plate were 3/4" hardboard (18mm) MDF.
The socket back plate Patress box hole was cut out and the edges planed at 30 and 60 degrees.

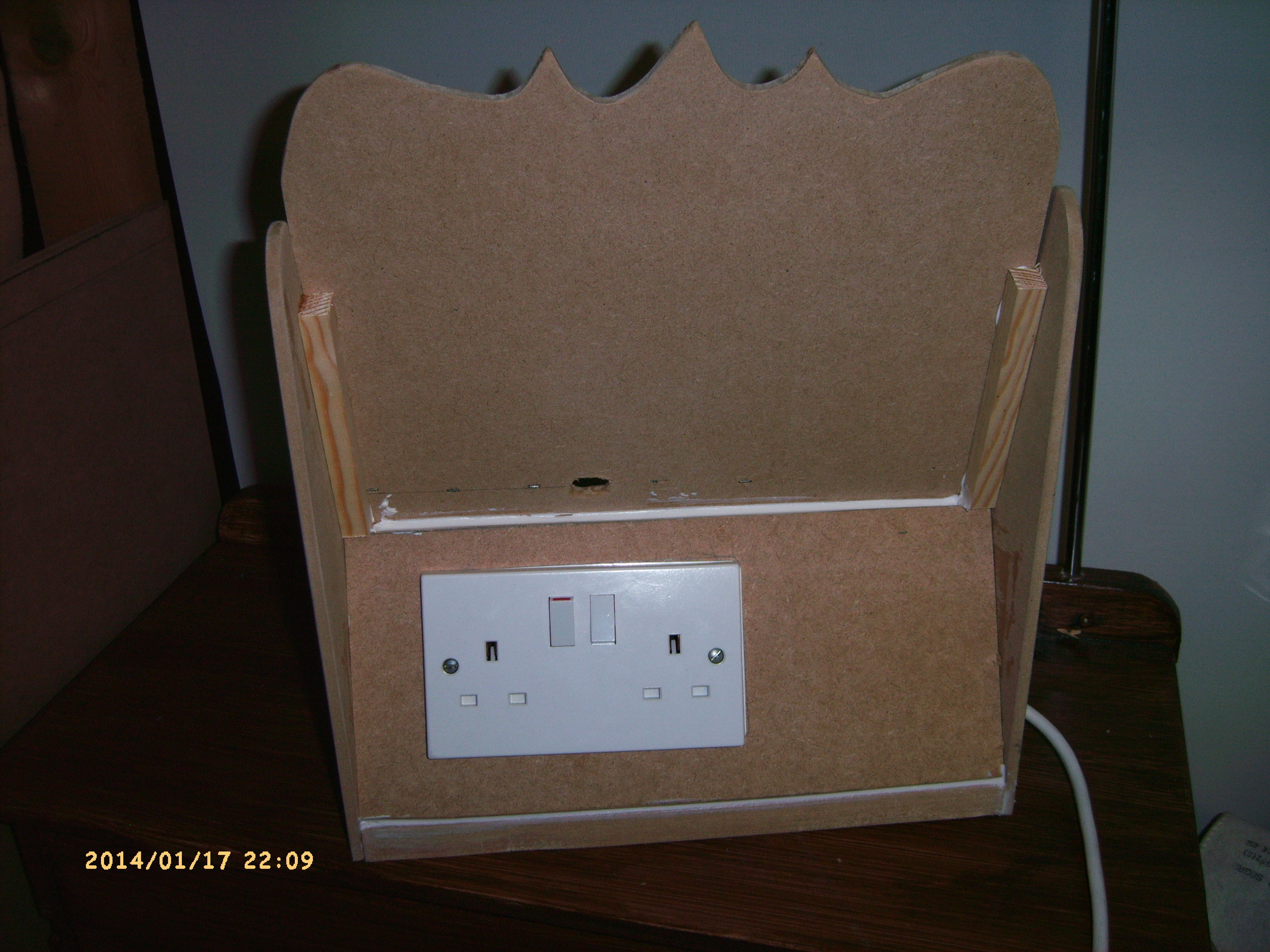

The Build

The sides, base and front were glued and stapled together.
The sockets were wired, and the unit was sealed.

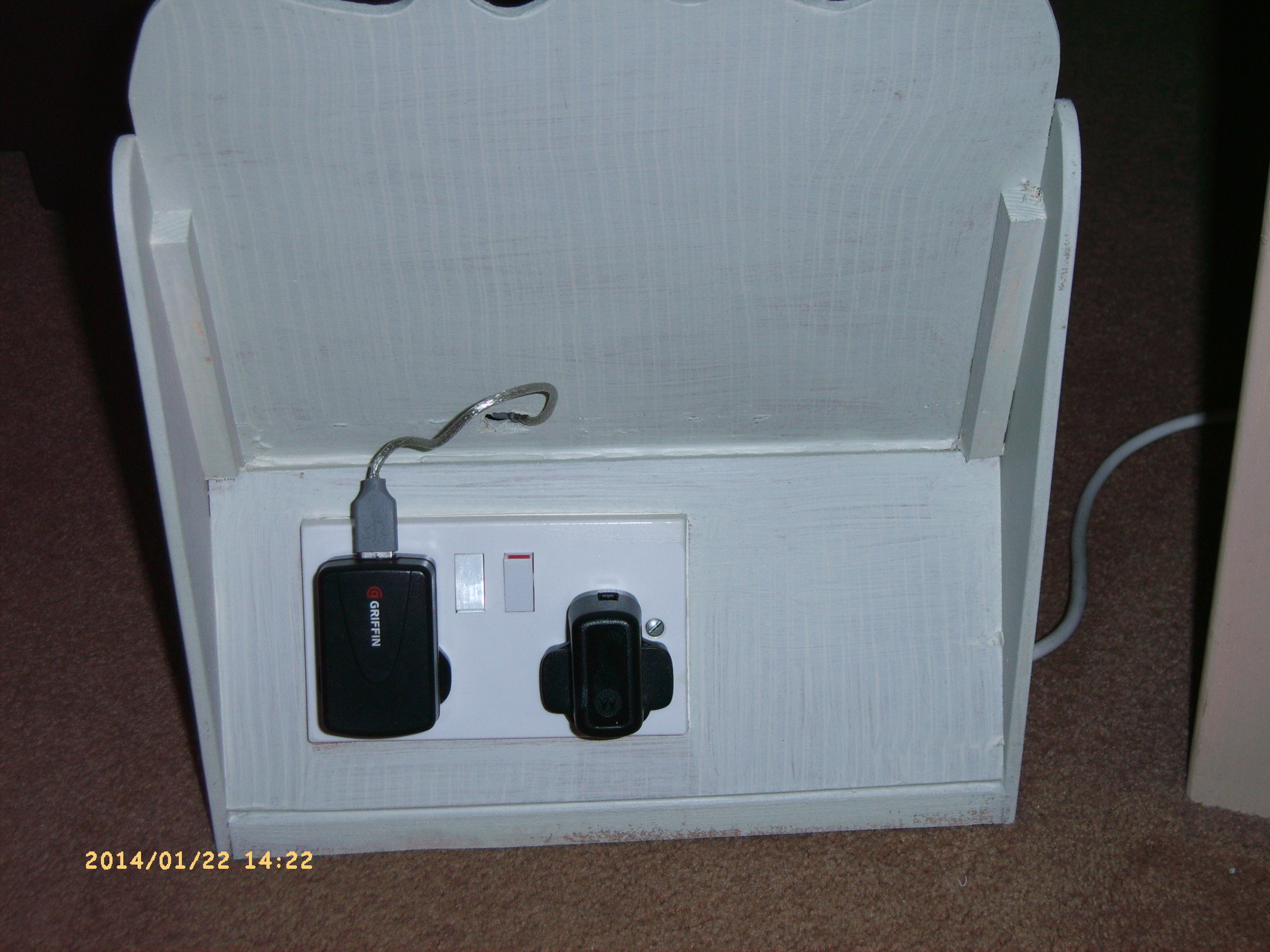

The Paint Job

The unit was painted with a base coat, when dried a top grain coat was added.
The unit needs a couple of tweaks, some padding on the edges and a couple of cable slots cut into the rails.
A multi lead connector was added with a high rated USB plug.

Job Done

This has freed up loads of power sockets, it's visible and used by everyone in the house.
