GOBO Projector #phablabs

Make a slide projector that could also be used as a gobo projector. With such a projector you can project a still image on a surface. Change the distance between the two lenses in the system in order to create a good image.

Properties of this workshop:

Timeplanning: Total: 1h

1. Understanding 'lenses' and introduction: 15 minutes
2. Soldering and assembling the handle of the art projector: 15 minutes
3. Assembling the sliding part: 15 minutes
4. Assembling the image part: 15 minutes

Target audience: Young students (10-14 years old)

Estimated cost: € 12,5

DISCLAIMER: By using this information you agree to be legally bound by these terms, which shall take effect immediately on your first use of the information. PHABLABS 4.0 consortium and its member organizations give no warranty that the provided information is accurate, up-to-date or complete. You are responsible for independently verifying the information. VUB cannot be held liable for any loss or damage that may arise directly or indirectly from the use of or reliance on the information and/or products provided. PHABLABS 4.0 consortium and its member organizations disclaim all responsibility to the maximum extent possible under applicable laws: All express or implied warranties in relation to the information and your use of it are excluded. All liability, including for negligence, to you arising directly or indirectly in connection with the information or from your use of it is excluded. This instruction is published under the Creative Commons licence CC-BY-NC.

The working of optical system based on lenses is explained during this workshop. Two lenses are used to make a slide projector.

Photo 1: The first lens is to make the divergent light coming from the led into parallel light (collimation). This done to make sure the slide gets enough light evenly distributed over the slide. The next figure shows the lens system that is used in the Gobo slide projector.

Photo 2: As you can see in the next figure the first lens should be placed with the flat side towards the LED to make the divergent light parallel. The second lens should be placed with the convex or bulb side towards the slide to make the enlargement of the image possible.

Photonics parts:

*2 Spherical lenses, focal length = 106 mm
*1 High power LED, 12V, 10W

Other parts:

*MT3608 DC-DC Step up converter
*Aluminium heatsink with adhesive (10mm x 10mm)
*USB A cable
*1 rocker switch button (13x19mm)
*Aluminium tape
*USB power bank

Tools (for example in Fab Labs):

*Laser cutter
*Soldering iron
*Rubber/plastic hammer

Don't find the material you are looking for? Via this link you could buy all the material needed for this workshop in one toolkit. http://b-photonics.eu/photonics-toolkit/photonics-gobo-slide-projector

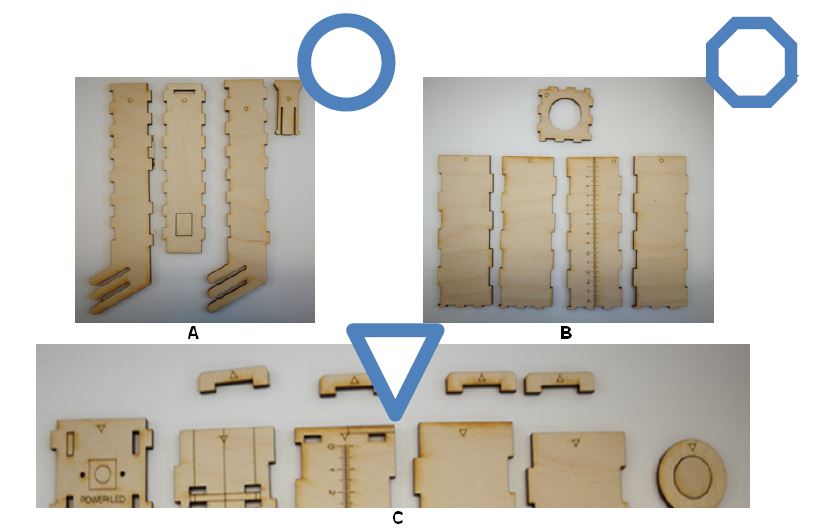

The GOBO projector consist out of 3 parts. Photo 1 First cut them out with a lasercutter, file attached.

All the parts that belong together are marked with symbols to easily recognise them.

Photo 2: The coding system used during the construction of the GOBO projector: the circle for part 1, the pentagram for part 2, and the triangle for part 3.

The collimator

A collimator is needed to collimate the light that is coming from the LED. In photo 3 there are two rings displayed; take some glue and attach these two circles to each other. Take the PVC tube and place aluminium tape of the inside of the tube, with the help of a pencil or your finger.

hint: if it’s to hard to fix the aluminium tape inside the tube try to make strips of aluminium tape and stick them to the inside of the tube one by one.

Take the PVC tube and a hammer to take the tube inside of the circle with a soft rubber/plastic hammer.

The LED & circuit

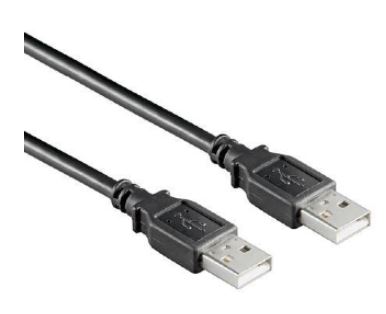

First ensemble the electrical parts before you start with the construction of the Art projector. You need some parts from group A indicated with a cylinder for this. Start with stripping the USB cable (photo 4). Cut the cable in half and use the wire stripper and utility knife to take of some centimeters from the black outer jacket to release the red and black wire from the inside.

Photo 5:

• 1 - Solder a red wire to the plus of the LED and a black wire to the minus of the LED. (the heat sink can be glued to the LED in a later phase!)
• 2 - slide the wires coming from the led through the holes (seen in picture A and C)
• 3 - Take the DC-to-DC converter and solder the red wire coming from the led to the Vout+ plus and the black wire to the Vout- minus of the LED.
• 4 - slide the red wire from the USB cable through the hole of the switch (see picture B)
• 5 - Take the stripped USB cable and solder the red cable to the switch, solder the black to the Vin- of the DC-to-DC converter.
• 6 - Take an extra cable and solder the red or orange cable to the switch and solder the other end to the the Vin+ of the DC-to-DC converter.
The assembled electronics parts should look like photo 6.

The handle of the art projector

As you have probably seen in the example pictures, the circuit was build with parts from group A indicated with a circle.

• Fix the heatsink in place at the back of the LED.
• Fix the ring fitting the LED on the front indicated by the dotted line circle of the wood with wood glue.

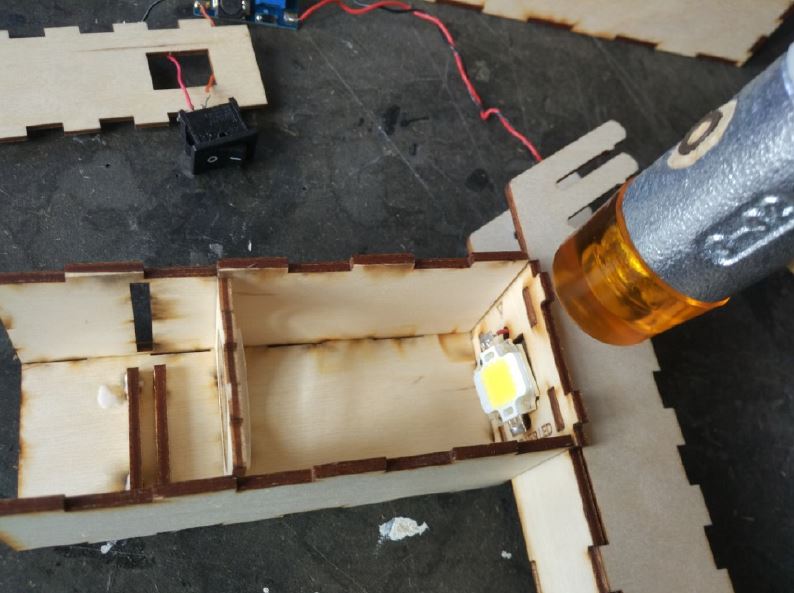

• If you haven’t done yet you can fix the sides of the handle (with the “ears”) on the piece with LED gently with a rubber hammer.
Take the power bank for indication to see where the power bank should be situated in between the LED, switch and the DC-DC converter.
• Optional: fix the DC-DC converter in place with double sided tape or hot glue.
The result should now look like photo 7.

The sliding part

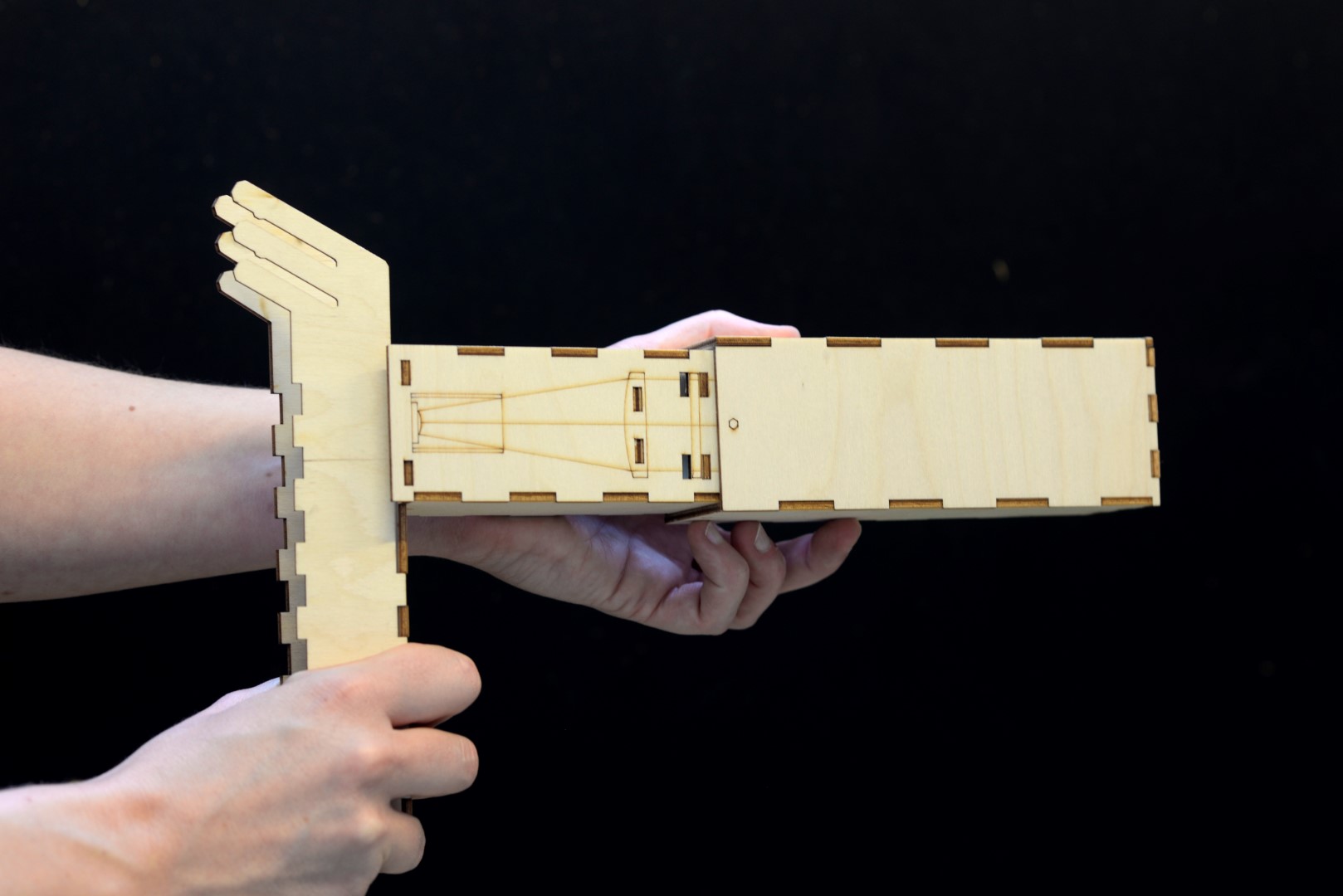

The sliding part of the Gobo projector will be constructed out of the hexagon components. Sort out all the component with the hexagon and put them together, as shown in photo 8. In the figure you can see the four plates, take the part without print as bottom, and the parts showing the centimeters on the side (numbers facing up). The logo should be on the top. The last plate is the other side. Place the plates as shown in photo 9. Place the final plate to make an open box as shown. Place the lens on the top of the “box“ the sliding first part of the Gobo projector.

The image part

The first part of the Gobo projector is finished, to start with the second part sort out all the components with a triangle engraved on them. Photo 10: The small components on the left top side are going to be used to hold a slide.

Photo 11: Take the two plates with the holes in them and the small components to hold the slide. Place them in the holes and hammer lightly to fit them. If needed use wood glue. Then assemble the top part, the centimeter part and the bottom part.

Photo 12: Take the handle that you have constructed before and place the handle as shown in the figure below. Take the first lens and place it in front of the slide holders with the flat side towards the lens. Take the final plate with and insert it on the only place that is left. Check if your engravings line up nicely with the sliding part and if they are facing up (not upside down).

Now you just need to create the image you want to project! Take one of the acrylic slides and draw onto it with a permanent marker. The image projected is in the very centre of the slide, so don’t use the whole slide to draw onto.

If you don’t have a lasercutter, you can also make these slides with transparant plastic foil where you draw someting on top of it. Make sure the dimensions of the slide fit into the image part.

TIP: You can also cut an acrylic slide with the protective foil on top. By leaving the foil on or using one part as a mask to color the rest, you can make vector graphic slides.

Congratulation you have now a final Gobo projector that allow you to use your grandpa slide or make your own design to project your sign as Batman does! Connect the USB to a USB power bank and you are set to go!
