GET LIVE WEATHER DATA FROM THE INTERNET TTGO ESP32

In this tutorial we will learn how to get the weather data based on location from the internet using TTGO ESP32 and Visuino.

Watch the Video!

• TTGO ESP32
• WiFi connection
• A Free API account on the openweathermap.org (also Explained in the Next Step)
• Visuino program: Download Visuino

Go to https://home.openweathermap.org/users/sign_up and create an account then navigate to API page to copy the API Key

You can find more documentation about the API on this link
https://openweathermap.org/current#data

The Visuino: https://www.visuino.eu also needs to be installed. Download Free version or register for a Free Trial.

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "TTGO T-Display ESP32" as shown on Picture 2

Select TTGO T-Display ESP32 board and in the properties window expand "Modules>WiFi>Connect To Access Points

• Click on the Connect To Access Points 3 Dots
• In the AccessPoints window drag "WiFi Access Point" to the left side
• In the properties window set SSID (name of your WiFi hotspot or router)
• In the properties window set Password (password of your WiFi hotspot or router)
• Close AccessPoints window

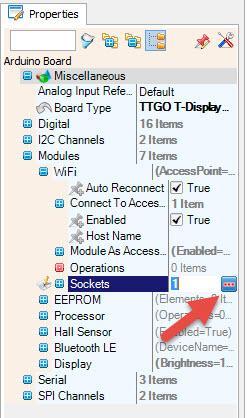

Select TTGO T-Display ESP32 board and in the properties window expand "Modules>WiFi>Sockets

• Click on the Sockets 3 Dots
• In the "Sockets window" drag TCP/IP Secure Client (SSL) to the left
• In the properties window set Host to: api.openweathermap.org/
• Close the "Sockets window"

Select TTGO T-Display ESP32 board and in the properties window expand "Modules>Display>Orientation

Set Orientation to:goRight

Select TTGO T-Display ESP32 board and in the properties window expand "Modules>Display>Elements

Click on the Elements 3 Dots

• In the Elements window drag Draw Bitmap to the left In the properties window:

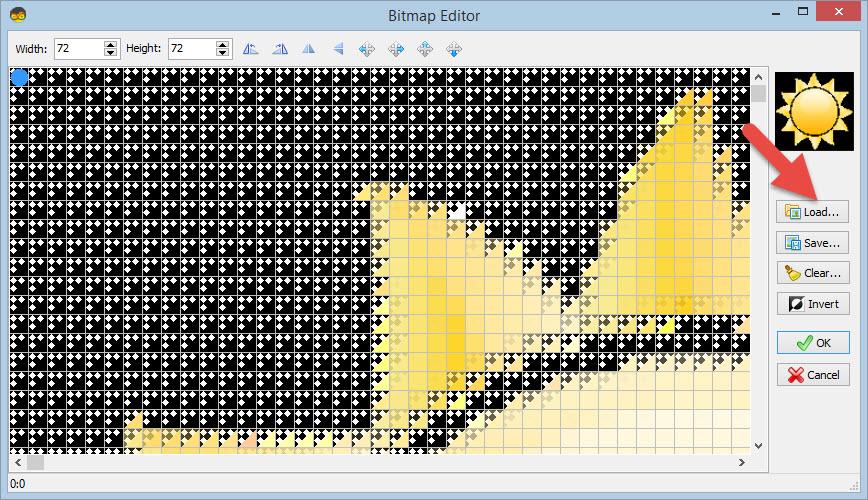

• Click on the Bitmap 3 Dots In the Bitmap Editor Load the Weather bitmap (picture 6) and close the Bitmap editor

• In the "elements window" drag "Draw Text" to the left side and in the properties window set size to 3, "x" to 80 and in the text put your location, in our case its "Berlin"
• In the "elements window" drag "Text Field" to the left side and in the properties window set size to 3, "x" to 80 and "y" to 30
• In the "elements window" drag "Text Field" to the left side and in the properties window set size to 2, "x" to 90 and "y" to 60 and color to "aclYellow"
• In the "elements window" drag "Text Field" to the left side and in the properties window set size to 2, "x" to 60 and "y" to 80 and color to "aclYellowGreen"
• In the "elements window" drag "Draw Text" to the left side and in the properties window set size to 2, "y" to 80 and text to "WIND"
• In the "elements window" drag "Draw Text" to the left side and in the properties window set size to 2, "y" to 100 and text to "HUMIDITY"

• In the "elements window" drag "Text Field" to the left side and in the properties window set size to 2, "x" to 110 and "y" to 100 and color to "aclTurquoise"

Close the Elements window

• Add "HTTP Client" component

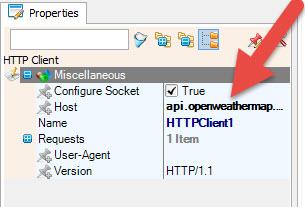

• Select "HTTPClient1" and in the properties window set Host to api.openweathermap.org
• Click on the Requests 3 Dots
• In the "Requests window" drag "GET" to the left side
• In the properties window set URL to: /data/2.5/weather?q=Berlin&units=metric&APPID=123456
  Important!: above in the URL replace 123456 at the end with your API key
  Also replace "Berlin" with the name of your city
• Close the requests window
• Add "Char To Text" component
• Select "CharToText1" and in the properties window se Max Length to 2000
• Add "Start" component
• Add "Clock Generator" component
• Select "ClockGenerator1" and in the properties window set frequency to 0.0016
  This is around 10min, so the data will be refreshed every 10min, you can change the frequency if you want
• Add "Delay" components and in the properties window set "Interval (uS)" to 2000000

With the mouse right click on the "SplitJSON1" and in the menu click on the "Parse JSON Object.."
In the "JSON Object" window paste this sample code(avalible on https://api.openweathermap.org/data/2.5/weather?q=Berlin&units=metric&APPID=YOURAPIKEY
Replace YOURAPIKEY with your API key that you got in your account

Or copy paste the following:

{"coord":{"lon":13.4105,"lat":52.5244},"weather":[{"id":800,"main":"Clear","description":"clear sky","icon":"01d"}],"base":"stations","main":{"temp":25.91,"feels_like":25.5,"temp_min":24.99,"temp_max":27.16,"pressure":1010,"humidity":36},"visibility":10000,"wind":{"speed":1.79,"deg":303,"gust":7.15},"clouds":{"all":0},"dt":1624722776,"sys":{"type":2,"id":2011538,"country":"DE","sunrise":1624675484,"sunset":1624736011},"timezone":7200,"id":2950159,"name":"Berlin","cod":200}

Close the "JSON Object" window

"SplitJSON1" component will now create new pins

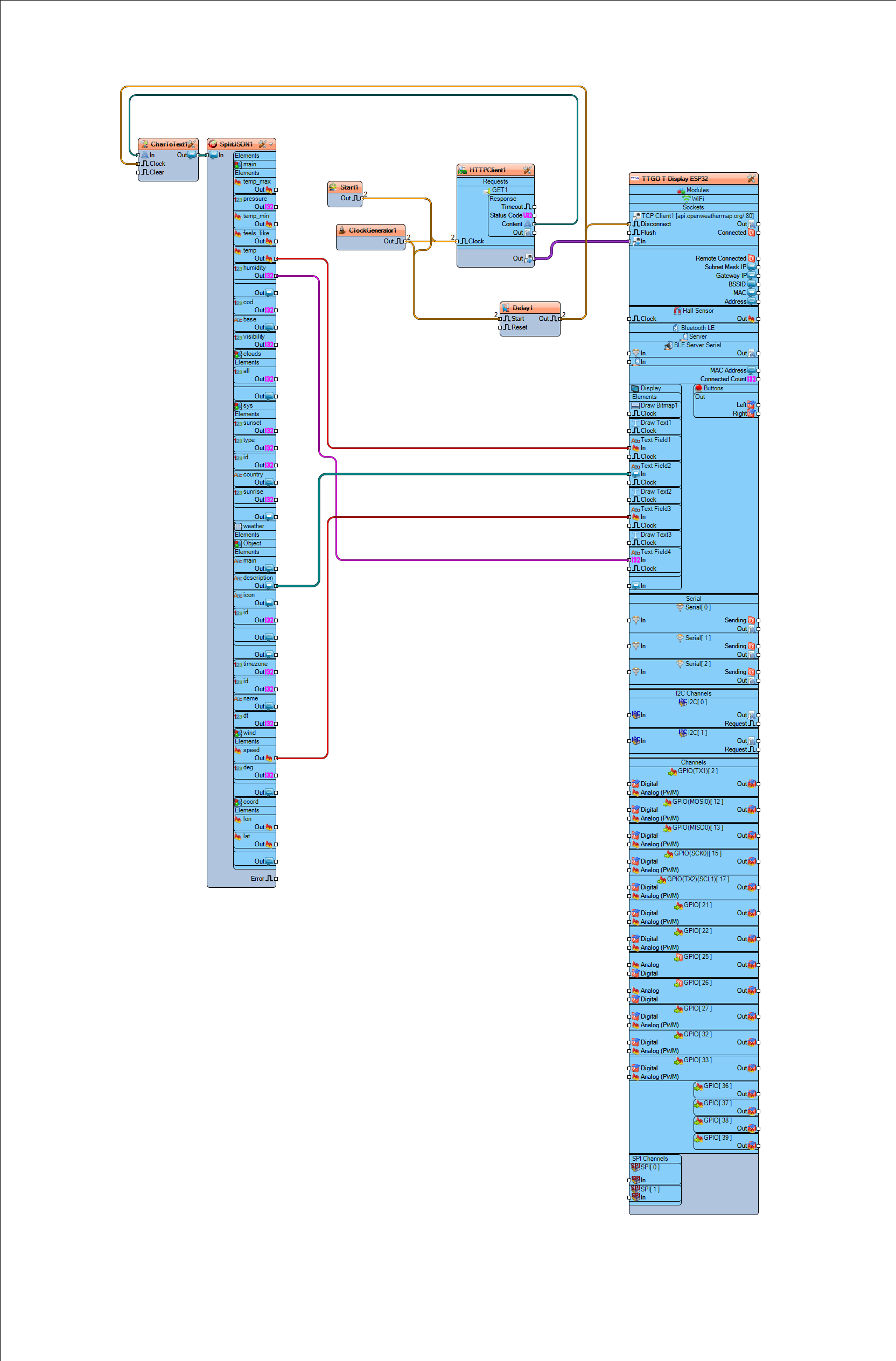

• Connect "ClockGenerator1" pin Out to "HTTPClient1" pin Clock and "Delay1" pin Start
• Connect "Start1" pin [Out] to "HTTPClient1" pin Clock and "Delay1" pin Start
• Connect "HTTPClient1" pin Content to "CharToText1" pin In
• Connect "HTTPClient1" pin to TTGO T-Display ESP32 > WiFi>TCP Secure Client1 pin In
• Connect "Delay1" pin Out to "CharToText1" pin Clock and TTGO T-Display ESP32 > WiFi>TCP Secure Client1 pin Disconnect
• Connect "CharToText1" pin Out to "SplitJSON1" pin In
• Connect "SplitJSON1> temp to TTGO T-Display ESP32>Text Field1 pin In
• Connect "SplitJSON1> description to TTGO T-Display ESP32>Text Field2 pin In
• Connect "SplitJSON1> speed to TTGO T-Display ESP32>Text Field3 pin In
• Connect "SplitJSON1> humidity to TTGO T-Display ESP32>Text Field4 pin In

Note: you can also play with the other pins from "SplitJSON1" component

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

If you power the TTGO ESP32 module it will connect to the network and display the current weather data.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable, you can download it and open it in Visuino: https://www.visuino.eu

Note: In the File Project when you open it in Visuino, change the WiFi settings (Access point and password) to your settings AND Add the API KEY at the end of the URL
