Fuzz Collider
This is going to consist of two normal particle accelerators, these obviously smaller, that are going to be connected by a tube, where in the tube they will collide, and the data will be recorded.
Supplies
- 20 copper coils
- A small wifi cam
- Two large tubes and a small tube (recomendable in 8x12 mm, 3 meters)
- Protoboard
- male-male wires
- An Arduino Uno
- A magnet
- A cardboard
To make the prepared fuzzes you need:
- A fuzz
- A magnet
You also need a Silicon gun.
Recolect the Fuzzes and Prepare It
To Collider needs two prepared fuzzes to collide It, if you want to collide again, you have to take other two prepares fuzzes.
Paste the Tube, the Coils and the Magnet
Use the silicon gun to paste the tubes, the magnet and the coils (on the cardboard) making two circles like in the picture.
In these picture, you can see 20 coils, representated as orande points (The conection pin is down the coils, the arrows seems that un this directons go the pins, for example the next coil to 0 on the arrows directons is 1)
The white line is the tuve, and the blue points is a magnet.

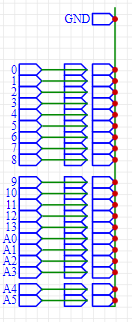

You have to conect one coil's pin to the Arduino especificated pin, an the other to Arduino GND (Ground)
Then make a opening to put into the fuzzes, put one near coil 0, other near coil 8, an the last near the magnet.
Make the Conections
Upload the Arduino Code
Download Arduino IDE and upload this code in your Arduino Uno.
Downloads
Wifi Cam
Put a small Wifi cam in front of the magnet, or a other good position to see the collide.
