Funky Metal Lamp Shade
![both.jpg](/proxy/?url=https://content.instructables.com/FQ1/Z4KO/KLI0Q2AI/FQ1Z4KOKLI0Q2AI.jpg&filename=both.jpg)
![noshade.jpg](/proxy/?url=https://content.instructables.com/FOS/QU6M/KLI0Q2AF/FOSQU6MKLI0Q2AF.jpg&filename=noshade.jpg)
![plan.jpg](/proxy/?url=https://content.instructables.com/FCD/LT66/KLI0Q2AG/FCDLT66KLI0Q2AG.jpg&filename=plan.jpg)

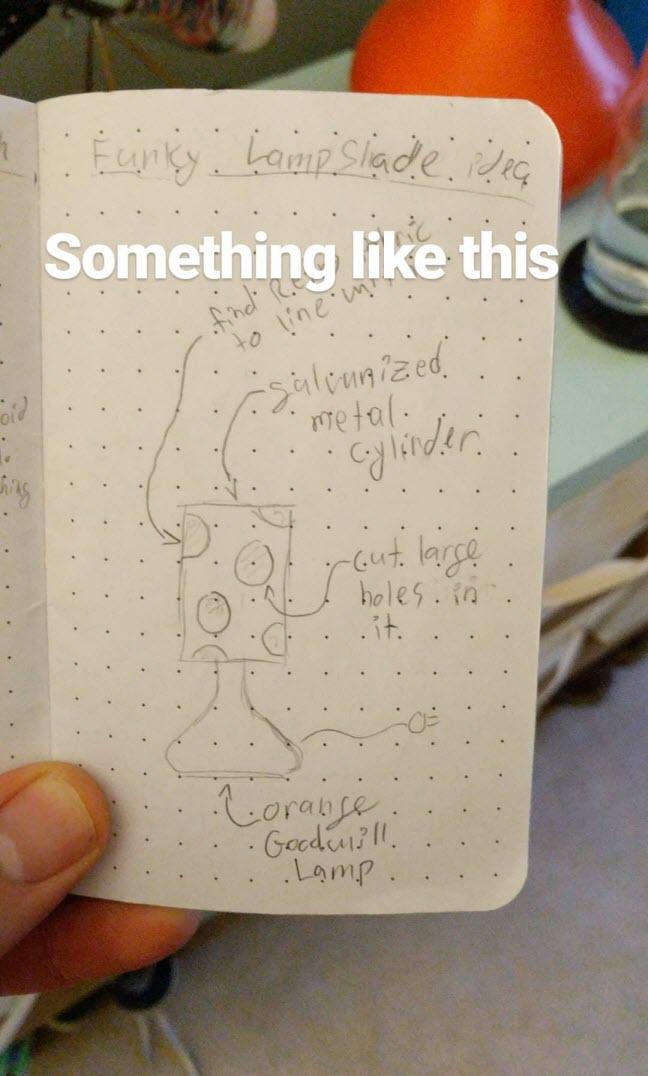

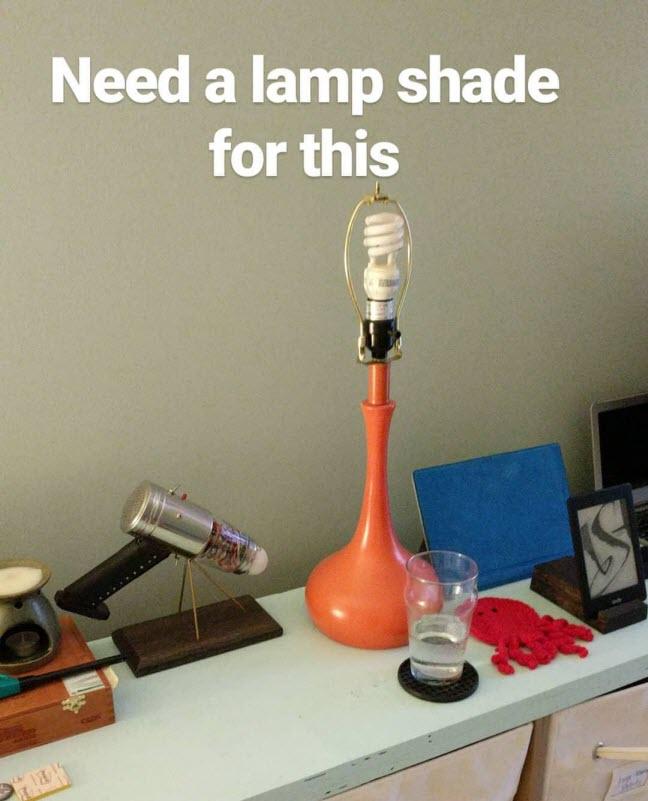

I found this cool orange lamp at Goodwill for $3, and figured it needed an equally funky shade. I had the idea to use galvanized sheet metal for the shade and cut holes it in to let the light out, with fabric underneath.
Shade Structure
![woodenframe.jpg](/proxy/?url=https://content.instructables.com/FXR/KFFN/KLI0Q2AH/FXRKFFNKLI0Q2AH.jpg&filename=woodenframe.jpg)
The first thing I did was use some paper to make a cylinder, and figure out how large I wanted the shade to be. I then made a wooden frame that I would attach the metal to.
Metal Exterior
![foldedges.jpg](/proxy/?url=https://content.instructables.com/FHI/OCHH/KLI0Q2AK/FHIOCHHKLI0Q2AK.jpg&filename=foldedges.jpg)
![drillholes.jpg](/proxy/?url=https://content.instructables.com/FXX/37F1/KLI0Q2AJ/FXX37F1KLI0Q2AJ.jpg&filename=drillholes.jpg)
I used the paper shade to mark and cut my sheet metal. I left enough material so that I could fold over the edges and have an overlapping seam when I rolled it into a cylinder. I used a sheet metal folding tool like this to fold the edges most of the way, then a rubber mallet to give them a nice crease.
I used my drill press and a whole saw to cut all the holes, make sure to use plenty of 3-IN-One oil to lubricate and cool my cuts.
I used a Dremel tool and lots of sanding drums to grind down the burs and jagged edges inside the holes.
Attaching the Fabric
![Funky Lamp Shade - attaching the fabric](/proxy/?url=https://content.instructables.com/FSC/B363/KLI0Q2HC/FSCB363KLI0Q2HC.jpg&filename=Funky Lamp Shade - attaching the fabric)
The fabric I used came from a blouse I also got at Goodwill. I first used spray adhesive to hold it to the metal, but that wasn't enough. I ended up drilling holes in between the polka-dots and using pop rivets to attach small backing plates. This held the fabric securely.
Attaching to the Frame
![Funky Lamp Shade - 2](/proxy/?url=https://content.instructables.com/F5A/AJNP/KLI0Q2K7/F5AAJNPKLI0Q2K7.jpg&filename=Funky Lamp Shade - 2)
I used screws to hold the metal to the wooden frame, and pop rivets to hold the seam together.
Adding a Switch
![Funky Lamp Shade - new switch](/proxy/?url=https://content.instructables.com/F99/6N8C/KLI0Q2LB/F996N8CKLI0Q2LB.jpg&filename=Funky Lamp Shade - new switch)
I found a switch that was rated for 125v 20a and put it in the base.
![lightsoff2.jpg](/proxy/?url=https://content.instructables.com/FD3/40KD/KLI0Q2AA/FD340KDKLI0Q2AA.jpg&filename=lightsoff2.jpg)
![lightson.jpg](/proxy/?url=https://content.instructables.com/FSS/FH1X/KLI0Q2AB/FSSFH1XKLI0Q2AB.jpg&filename=lightson.jpg)
![lightsoff.jpg](/proxy/?url=https://content.instructables.com/F5C/1THR/KLI0Q2A9/F5C1THRKLI0Q2A9.jpg&filename=lightsoff.jpg)

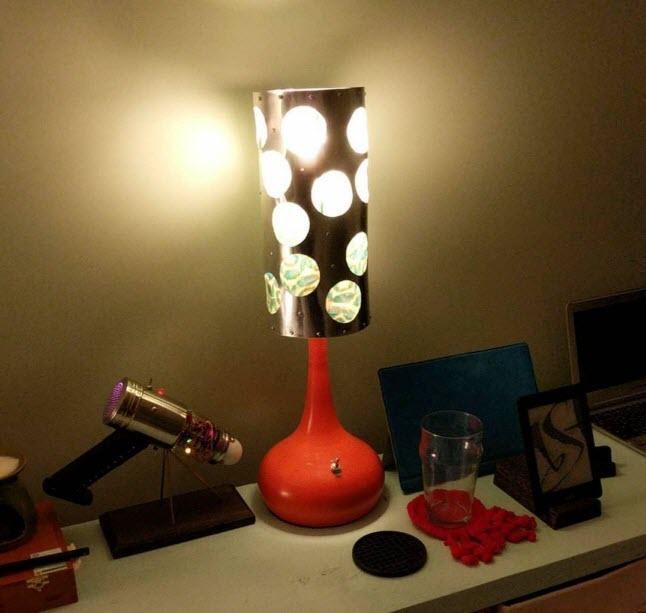

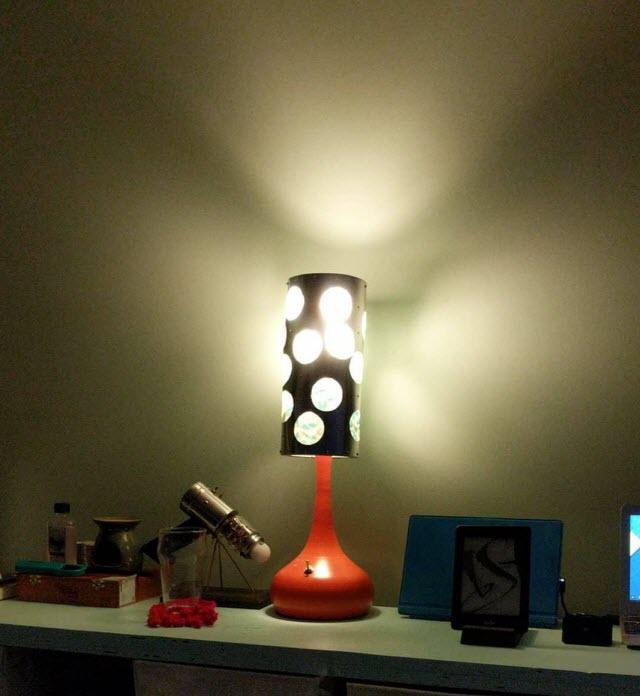

And there we go. I'm using a LED bulb to make sure nothing gets too hot.
View this project on Instagram
This project was finished on March 11, 2018.
