Fun With IKEA Lamp

Nothing special.
Nothing new.
It's just my own version of mood light with famous IKEA Mylonit lamp.

Leave bottle alone.
We are going to play with bulb socket.

Let's bring some parts back into the business

Small piece of plastic will serve as a base.

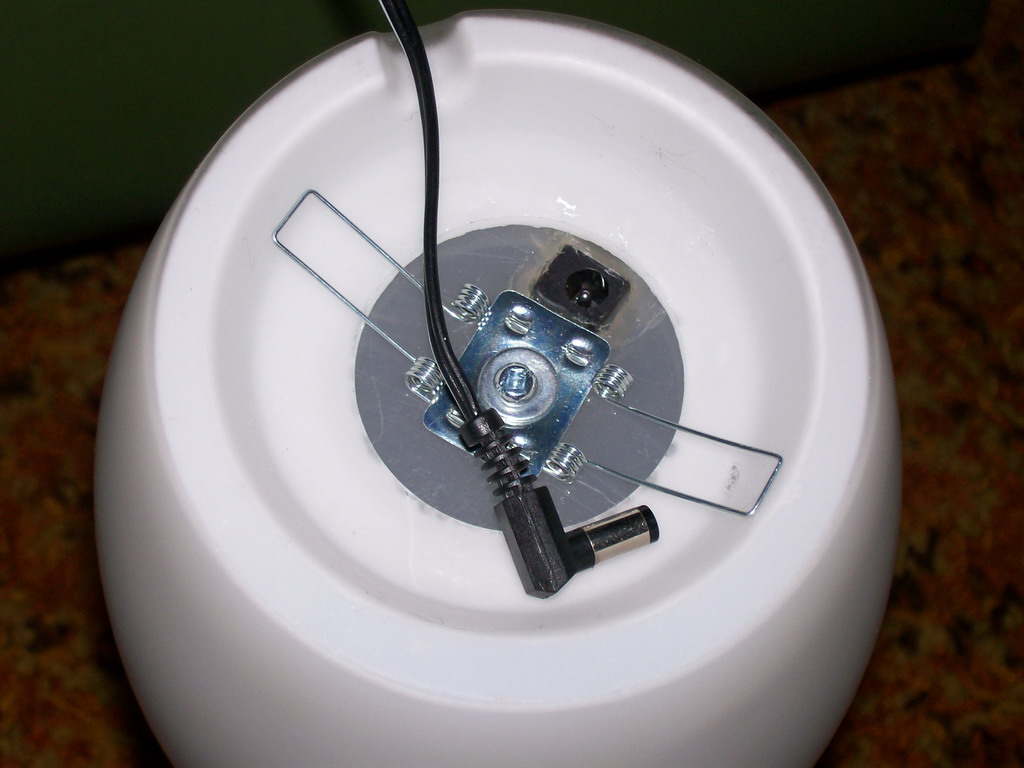

Attach spring loaded bracket to the base.

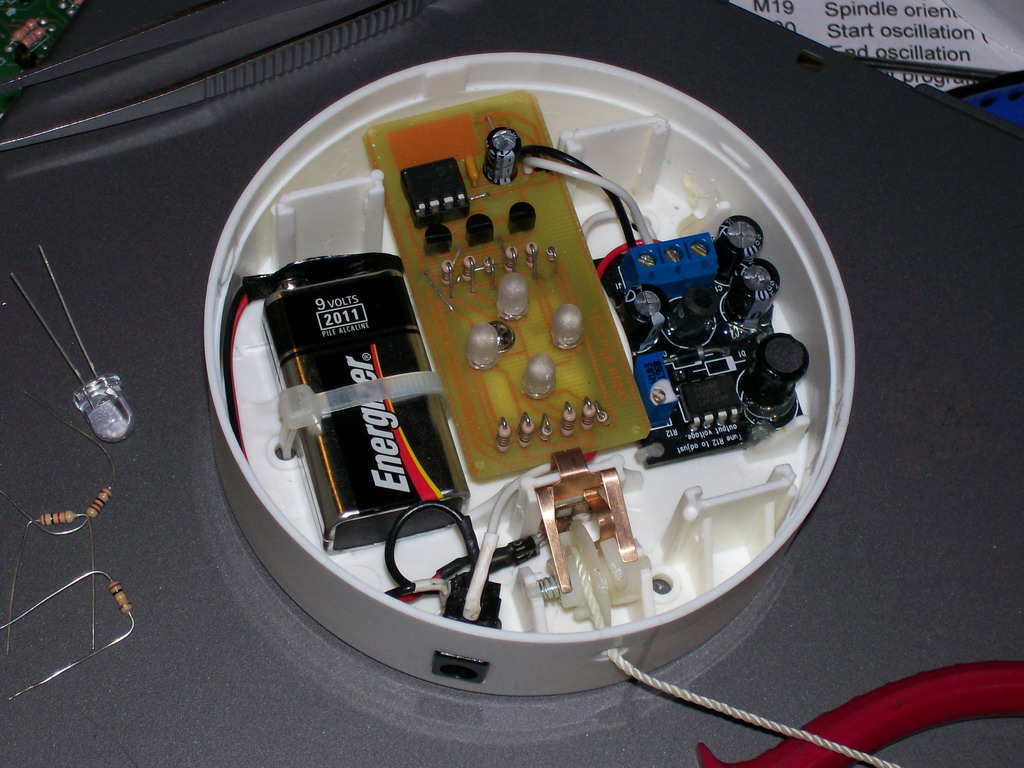

Now it will be easy to remove electronic guts if you have to change broken glass .
I've already had bad experience. ;-(

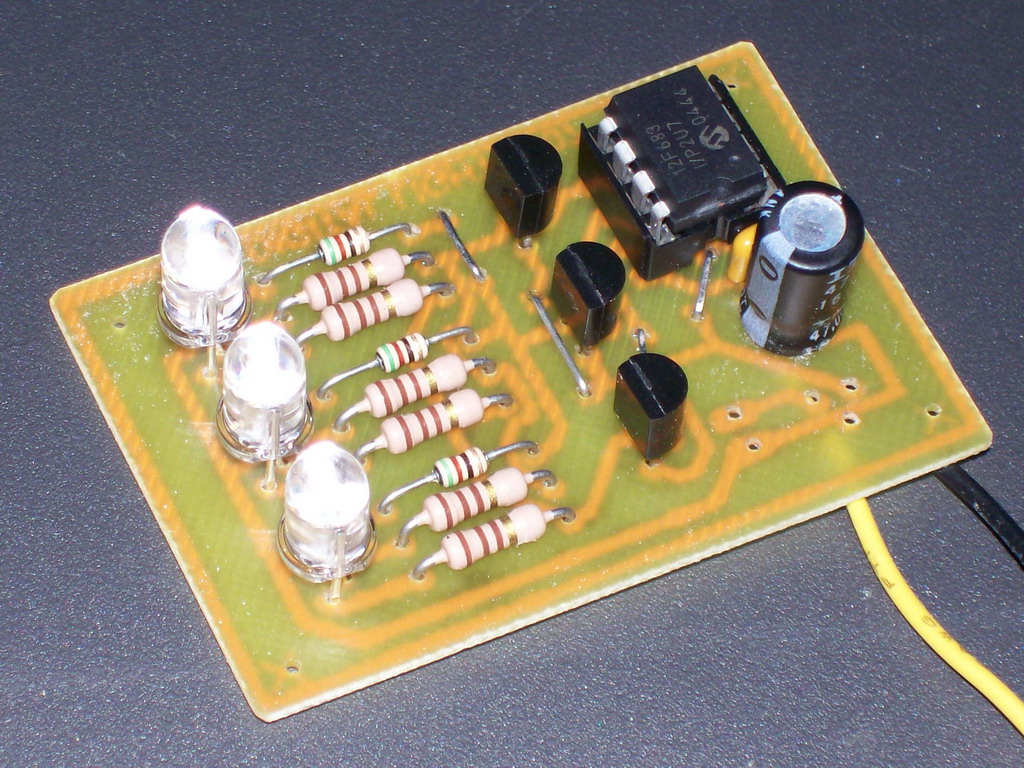

My little boy PIC12F683 does all job.

Basically this device is programmed as three channel PWM oscillator.

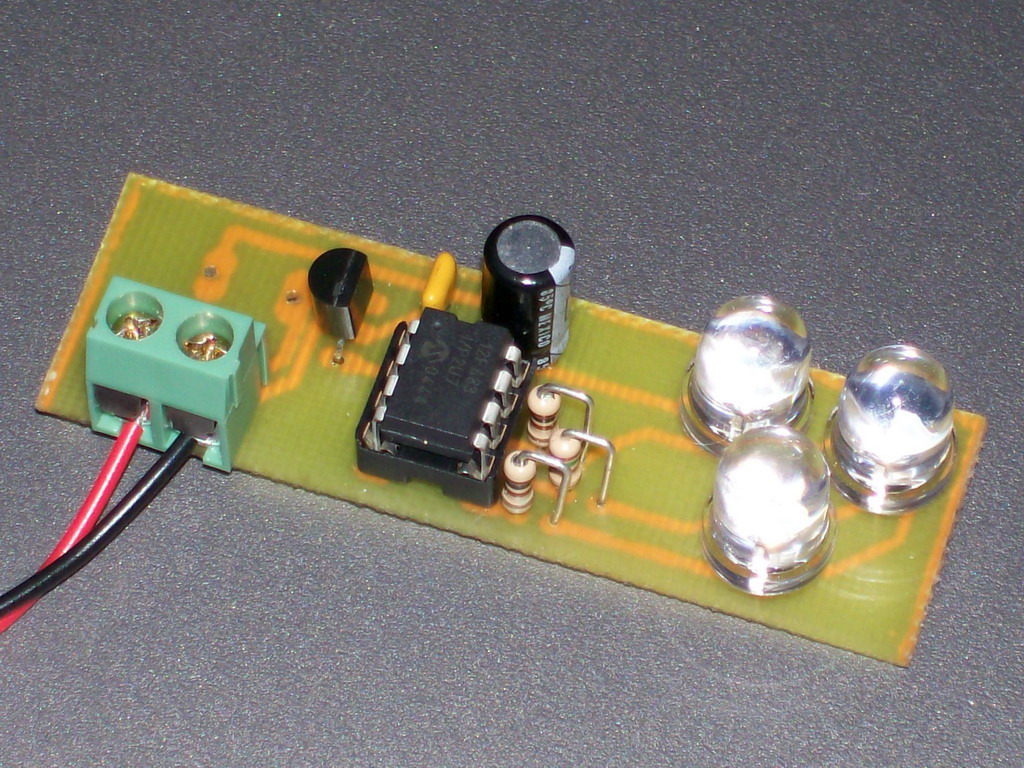

Output of each channel can be connected directly to LED or to power transistor which drives chain of LEDs.
Channels corresponds to Red, Green and Blue colors.
PWM duty determines brightness of LED.
Duty value is randomly calculated and current data is stored in internal EEPROM

There are four different working modes
- slow fading;
- slow switching;
- fast fading;
- fast switching.

Device continuously cycling through modes.
Upon powering up last stored data is used to calculate new duty values so color sequence is always new.

...
Preprogrammed chip available upon request.
...

Fasten board to the base, glue power jack on its place and solder it to the board.

Finally!!!

Get some beer from the fridge, grab a chair and just relax and watch :-)
...
