Fun Robot Toy

Hello friends, in this Instructable we are going to make a toy bot :- Fun Robot

This robot can be made easily at home with simple components. Make your's and have fun with it.

1. 300rpm DC motor * 3

2. Clamp * 3

3. Screw

4. Switch

5. 3.7v Li-ion Battery * 3

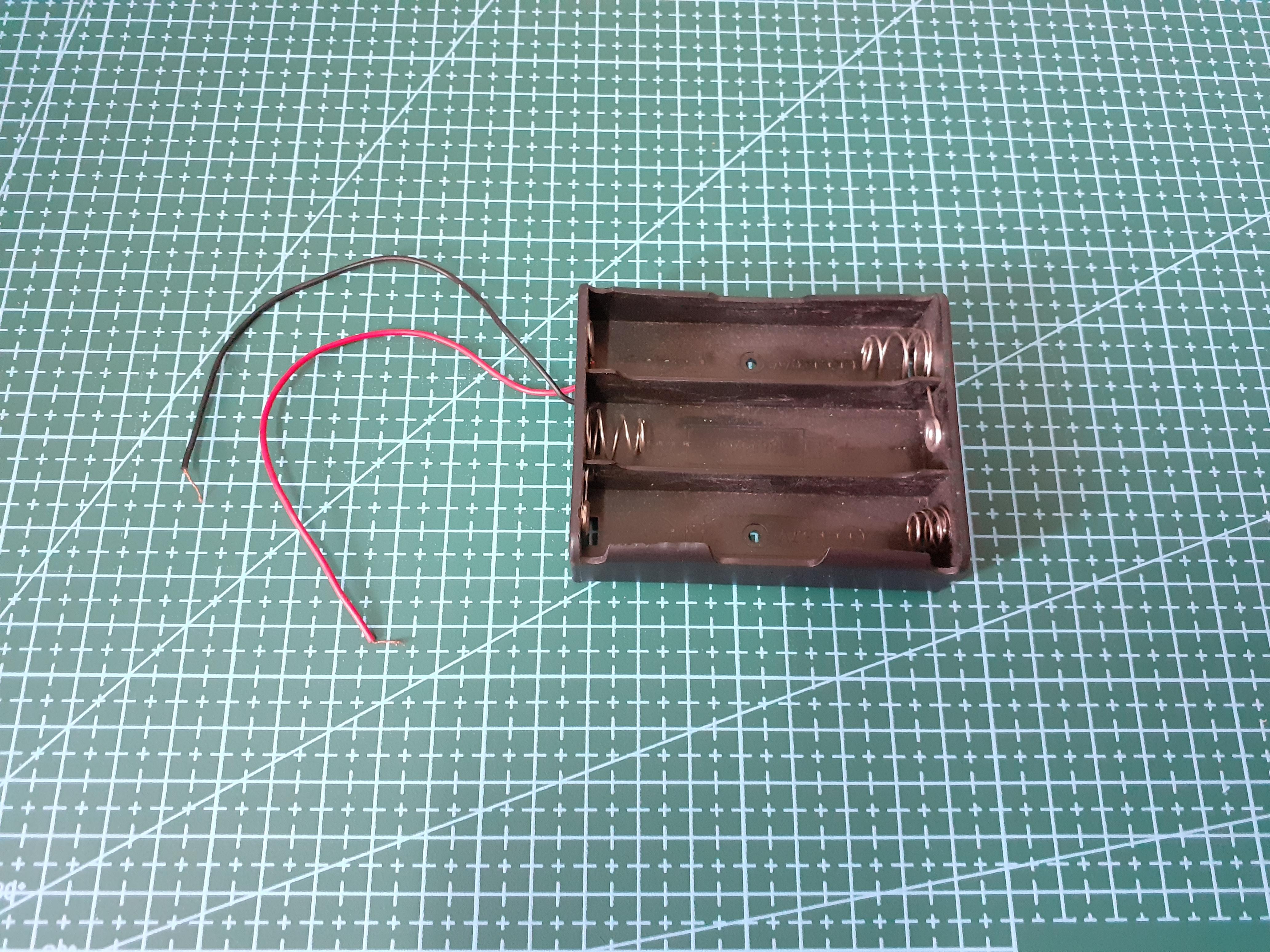

6. Battery Holder

7. Cardboard(Mount Board)

8. Moto Wheels * 3

9. Some Wires

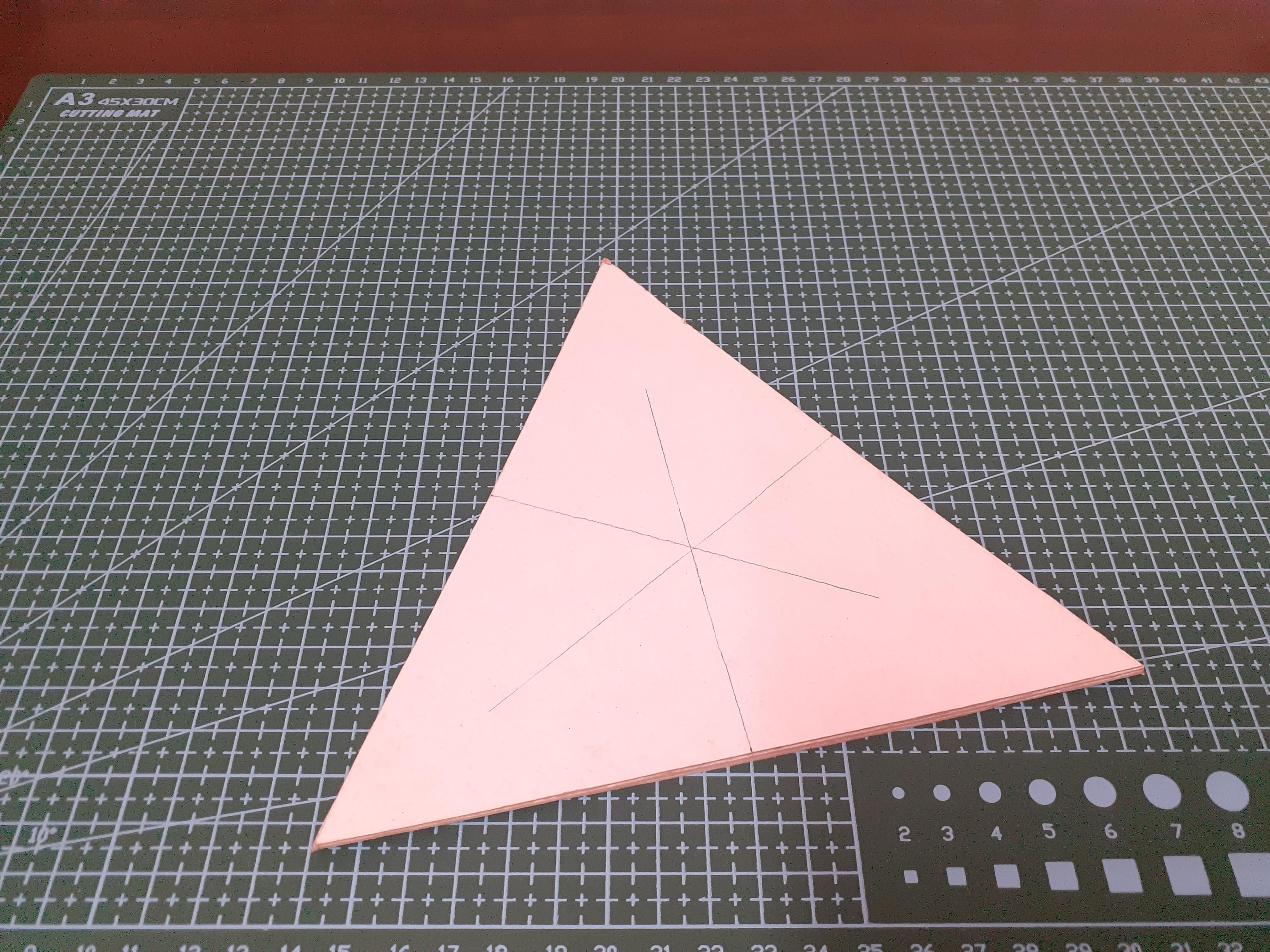

Cut out any shape you want for your toy and for this Instructable we are using Triangle shape.

Mark the center on the board and make holes on side by side of the lines for clamp holding.

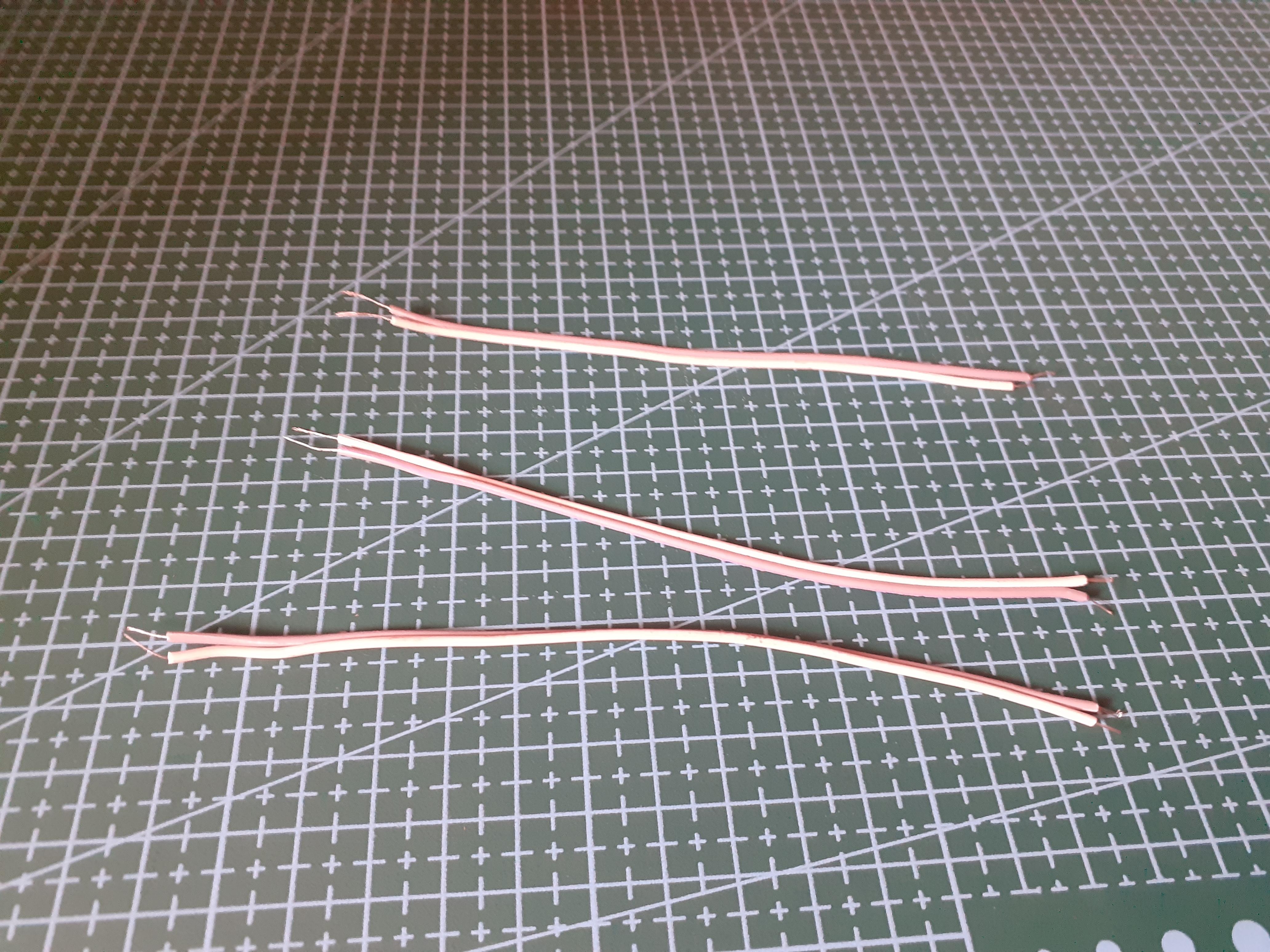

Take motor and solder wires to it.

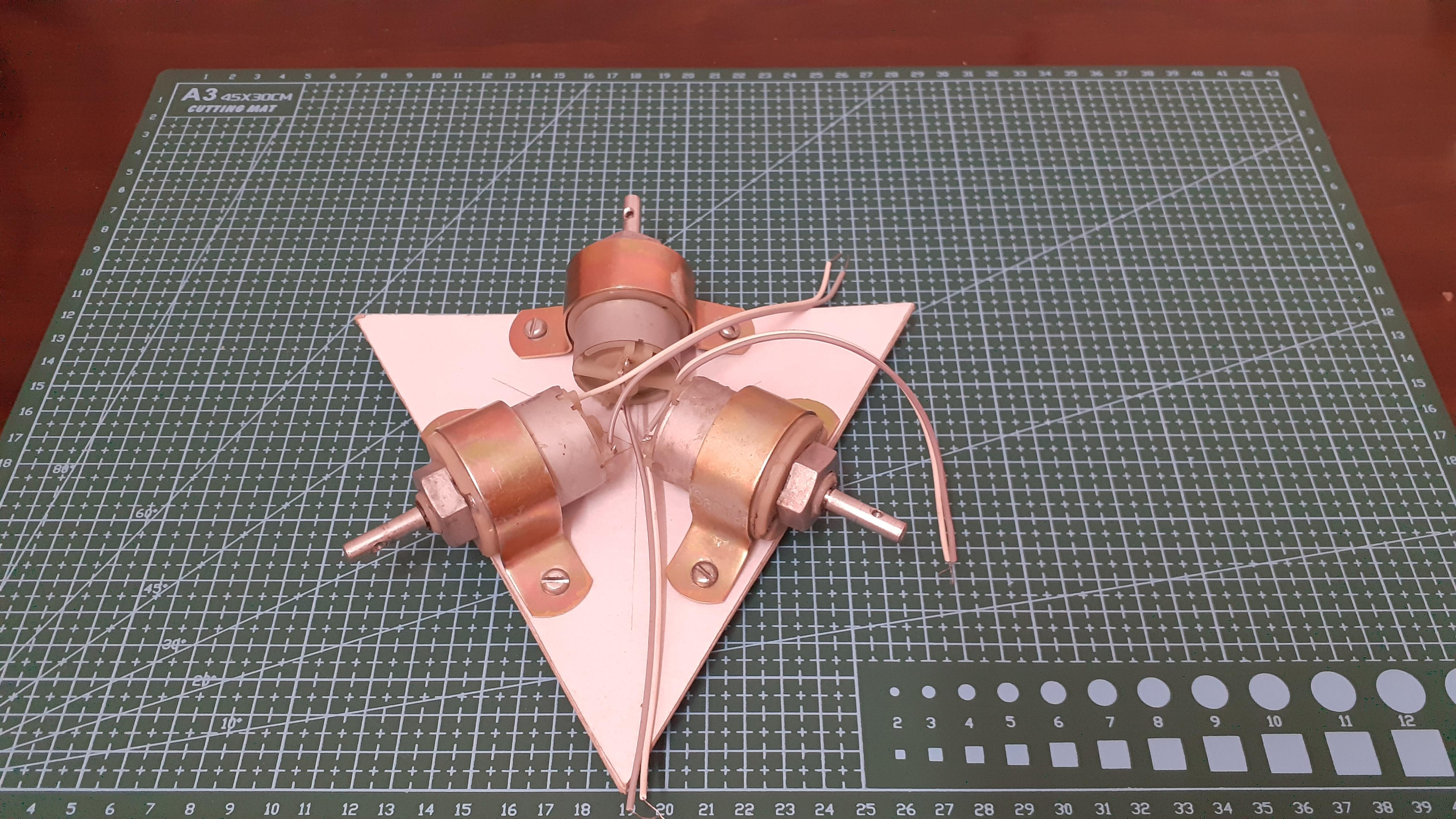

Attach those motors on the board using clamp and screws.

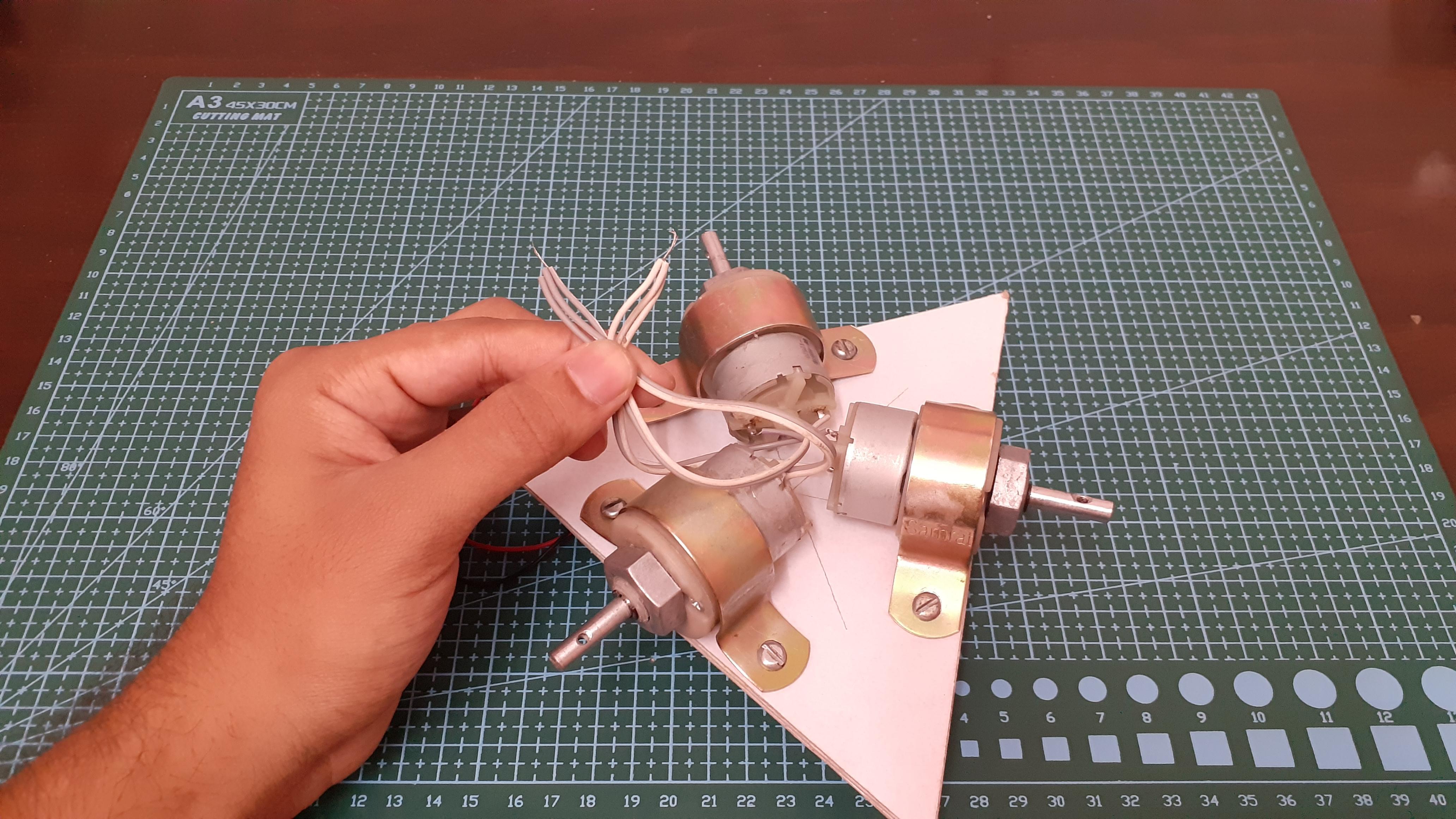

Connect all 3 negative terminals together and all 3 positive terminals together and solder them properly.

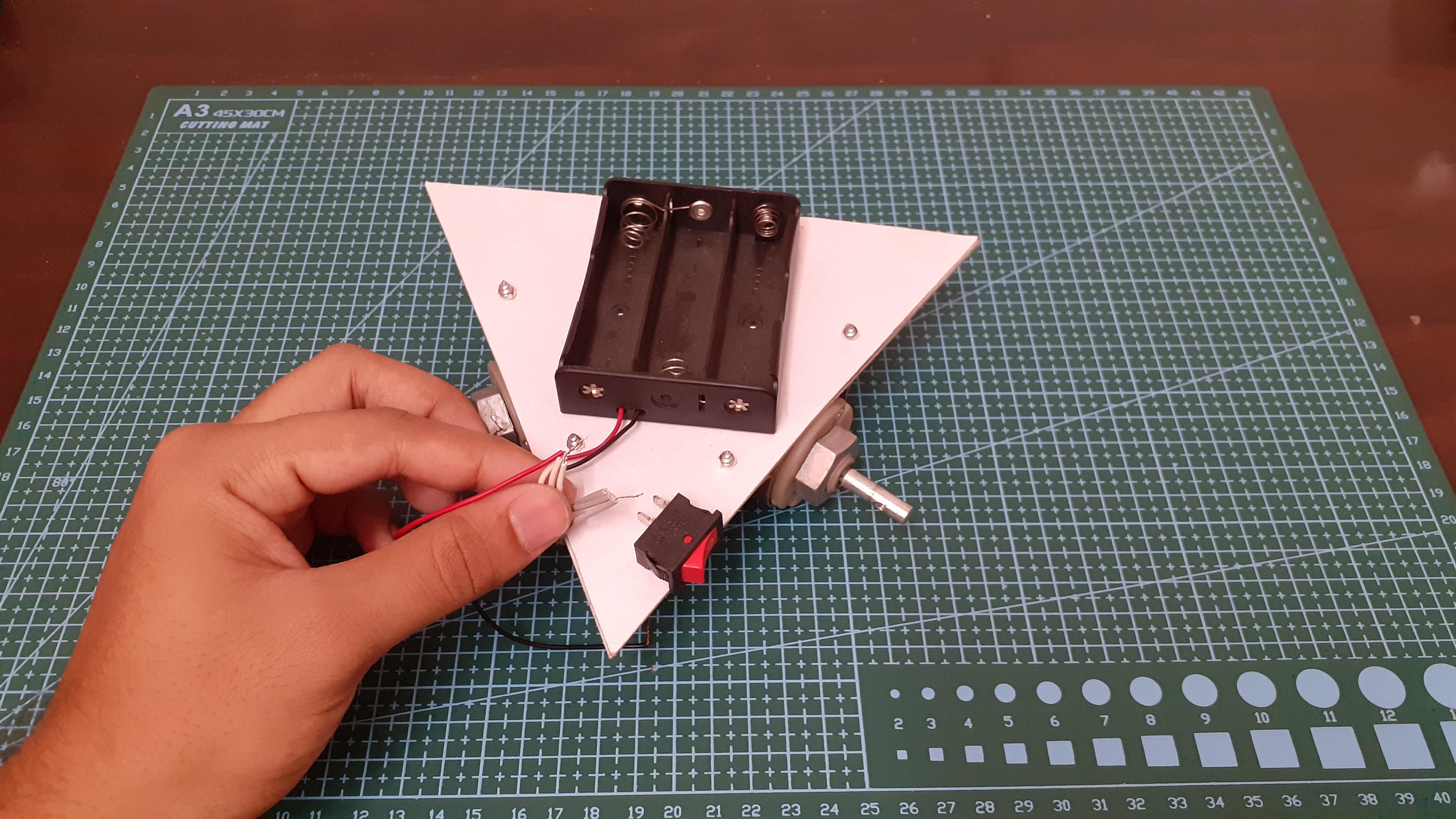

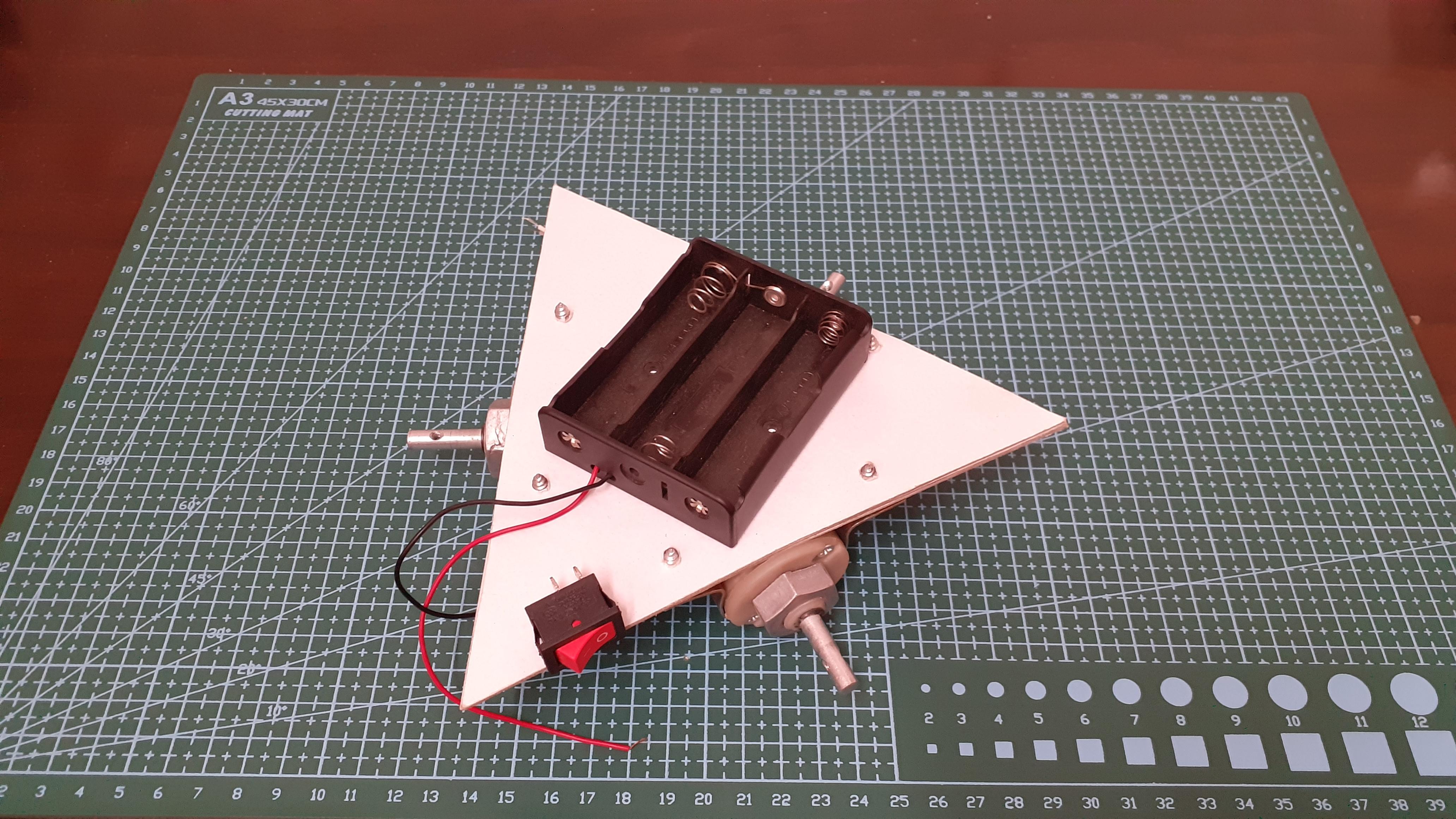

Place the battery holder and switch on the board.

Connect the red wire with positive wire terminal.

Connect the black wire with switch terminal.

Connect the motors ground wire with another terminal of switch.

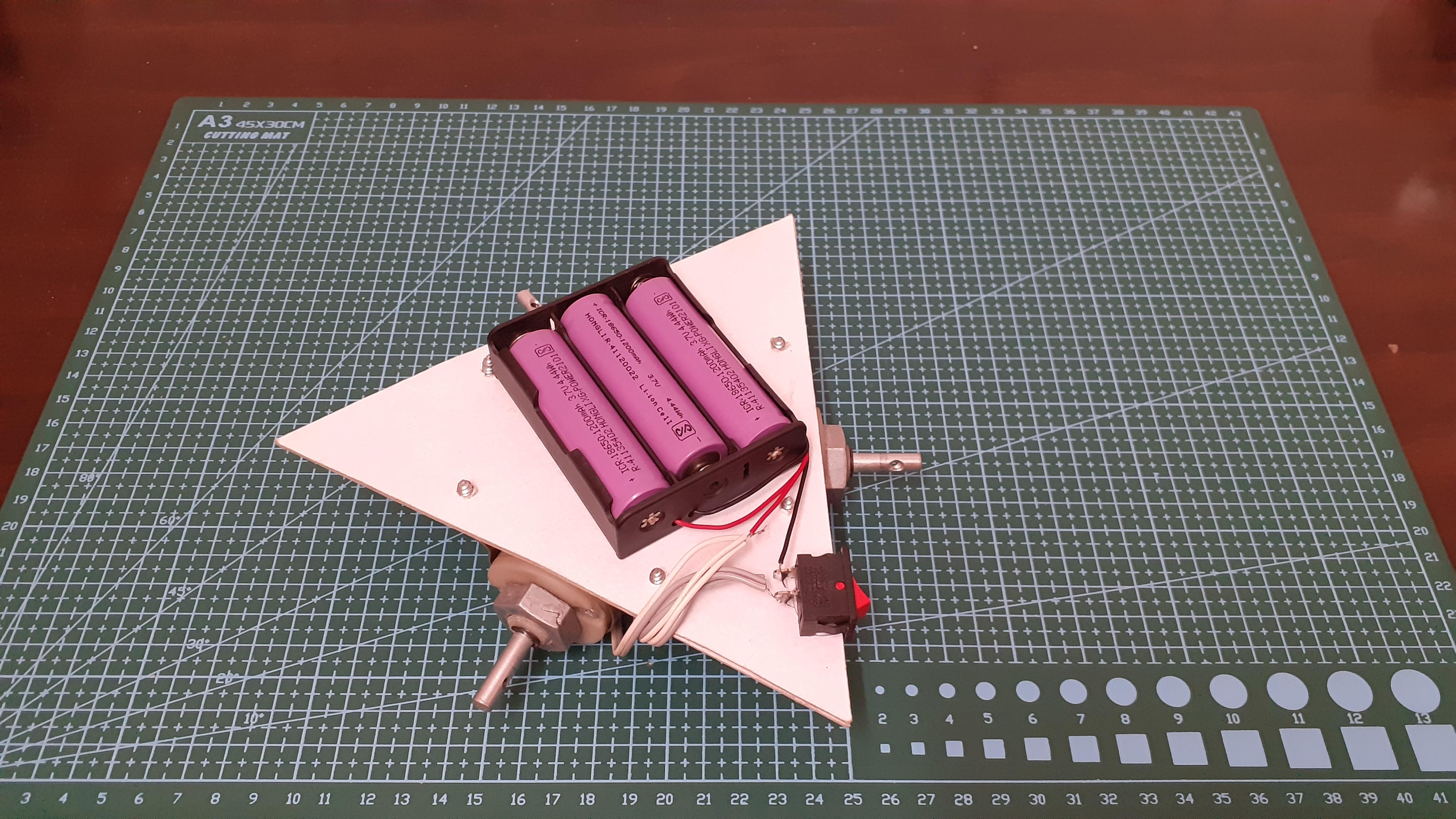

Insert the 3.7v Li-ion cells in battery holder.

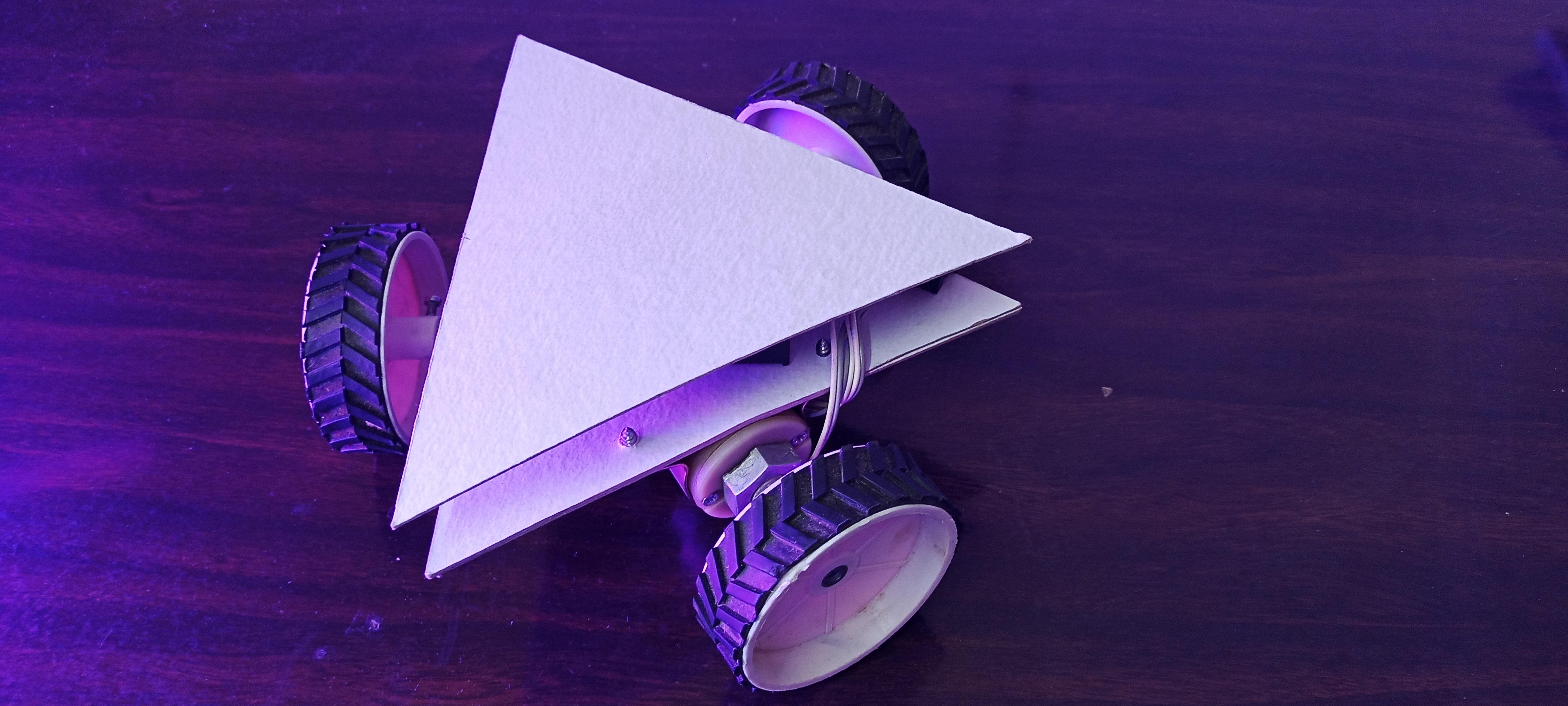

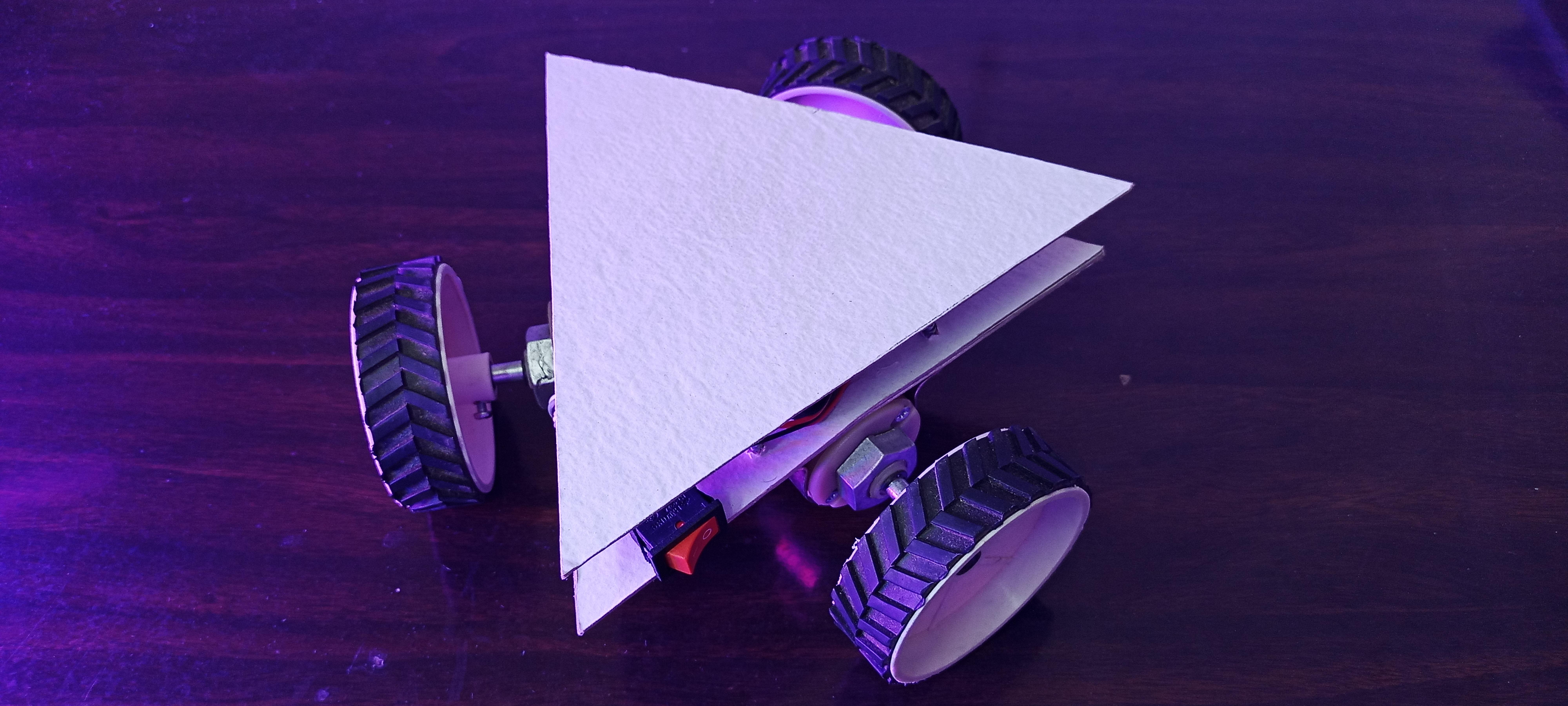

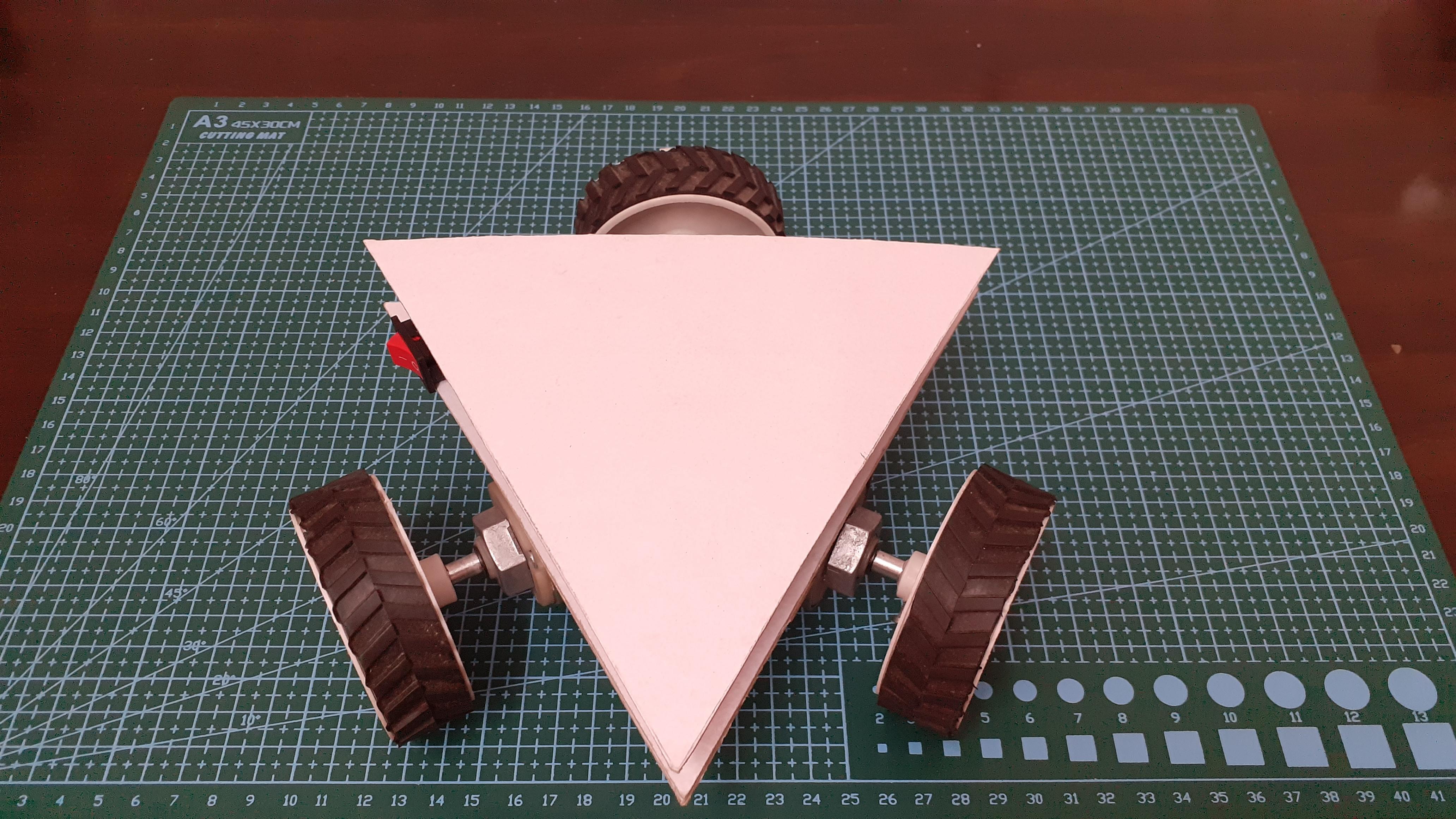

Connect wheels to it and place another triangular piece on it and its ready to play.

Watch the full DIY making video at the top if you have any doubt in making.

Thanks for reading.
