Fun Projects With Elegoo Uno R3 Super Start Kit - Joystick Control for DC Motor

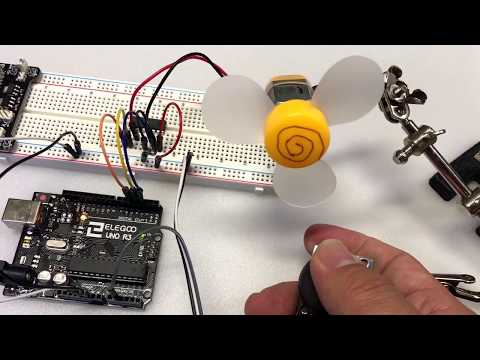

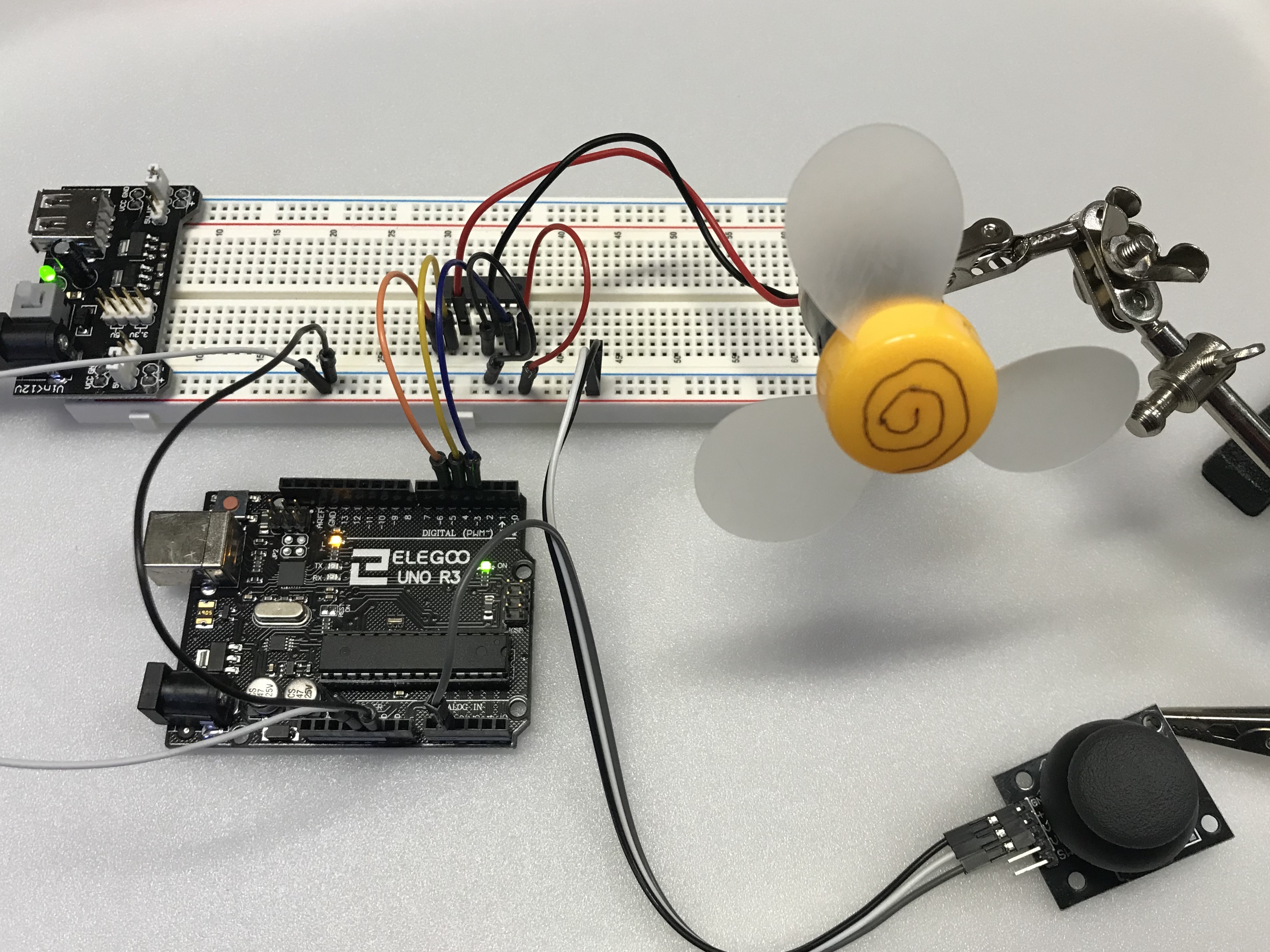

In this Instructables, I'm going to try to control the direction and speed of a DC motor by a joystick with the help of Arduino, use the components from the Elegoo Uno R3 Super Start Kit available from Amazon.com.

There are many Arduino learning kit on the market with various flavors. The Elegoo Uno R3 kit has a cloned Arduino Uno 3 very similar to the original, as well as a good collection of common components and a comprehensive manual with 24 fun Arduino projects with sketches. The objective of this project is to apply the joystick control to the DC motor which has a lot of real-world application.

• Arduino Uno
• L293D
• DC Motor
• Joystick Module
• Breadboard with DC Power supply
• Jumper Wires

Refer to the documentation supplied with the Elegoo kit for a detailed explanation functional diagram for the L293D IC and the joystick. In particular:

• Lesson 12 Analog Joystick Module
• Lesson 21 DC Motors
