Fume Extractor Powered by Bench Top Power Supply

Hi there, in this instructable I am gonna show how to make a simple fume extractor that can be powered from a benchtop power supply.

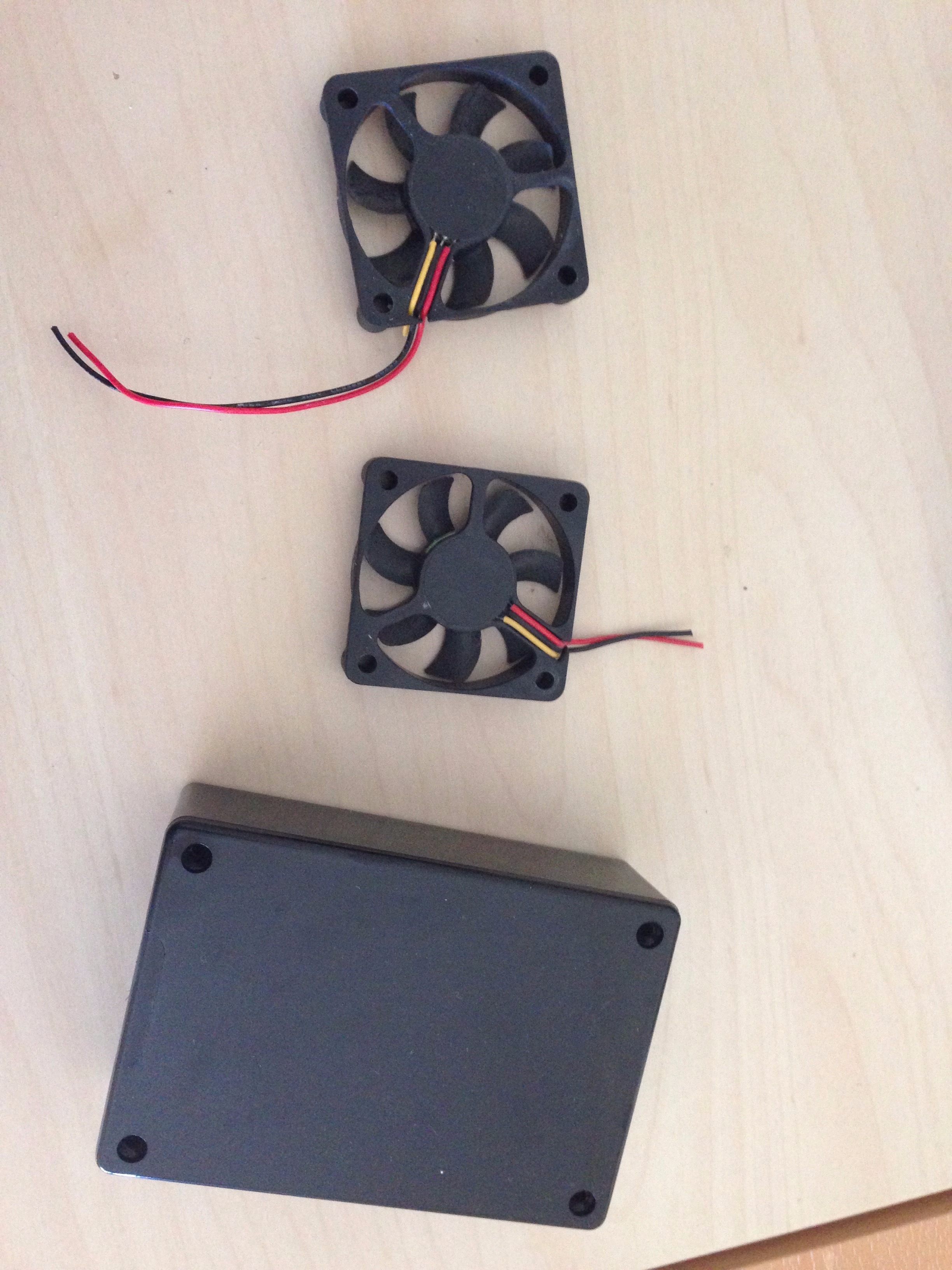

here is the parts list

2x 12volt fan

plastic box

2x bullet connector

filter

leftover metal mesh

and some wire

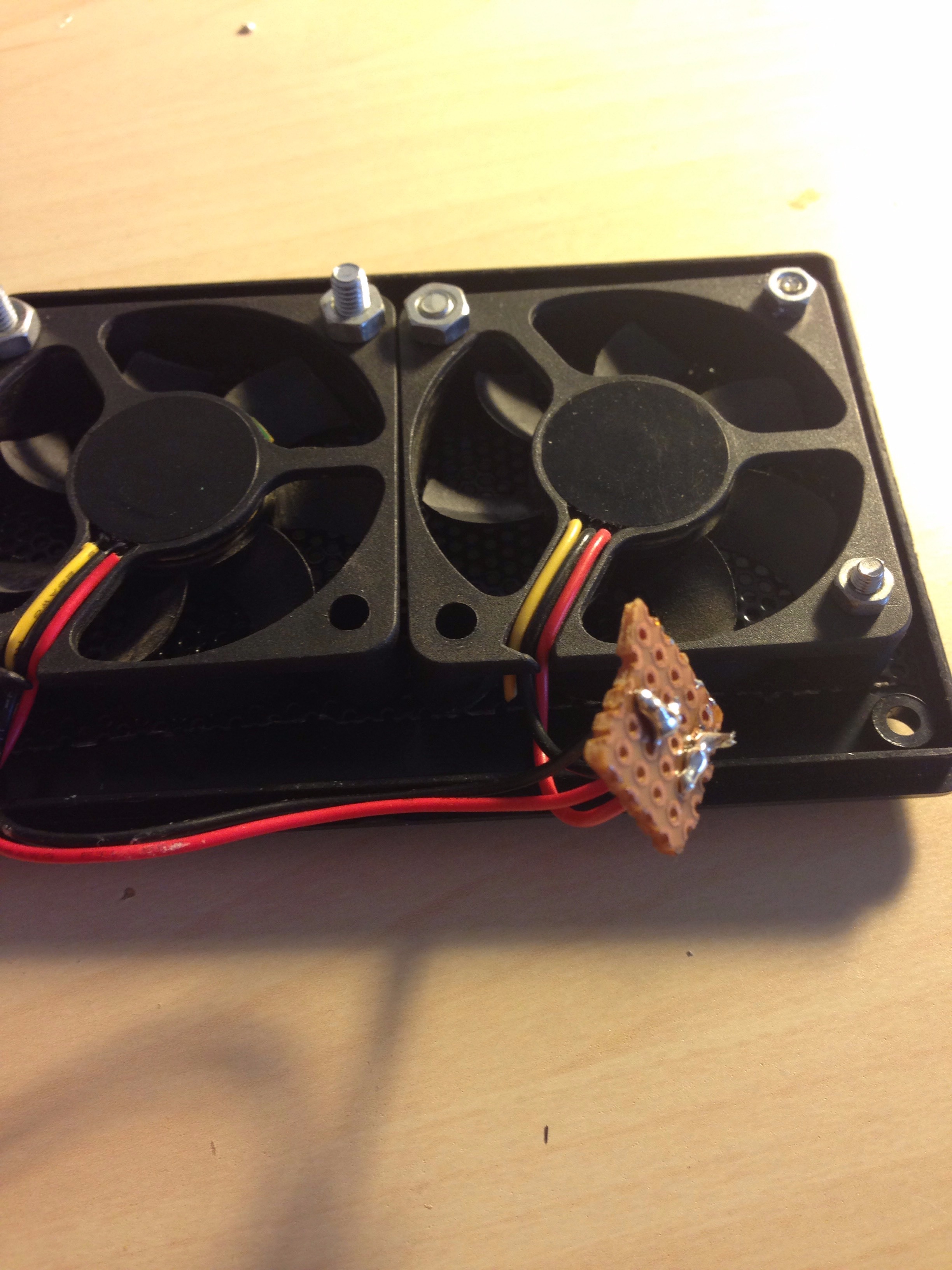

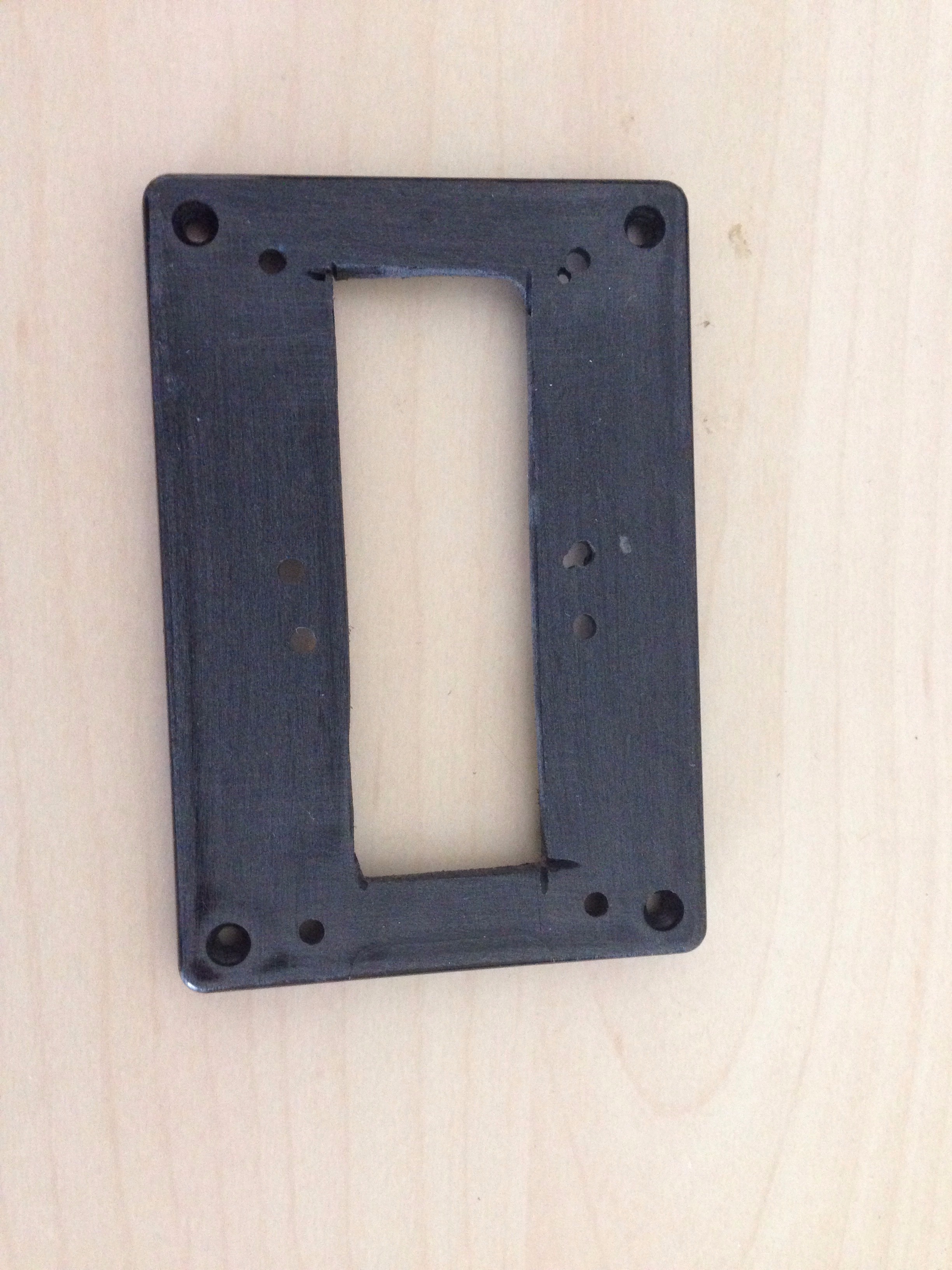

I drilled a hole for the fans and screws. then I placed metal mesh and placed screws on it. After I placed the mesh, fan blades made a noise because of the contact with the mesh. Later, I soldered two 12v fans in parallel on a small piece of perfboard.

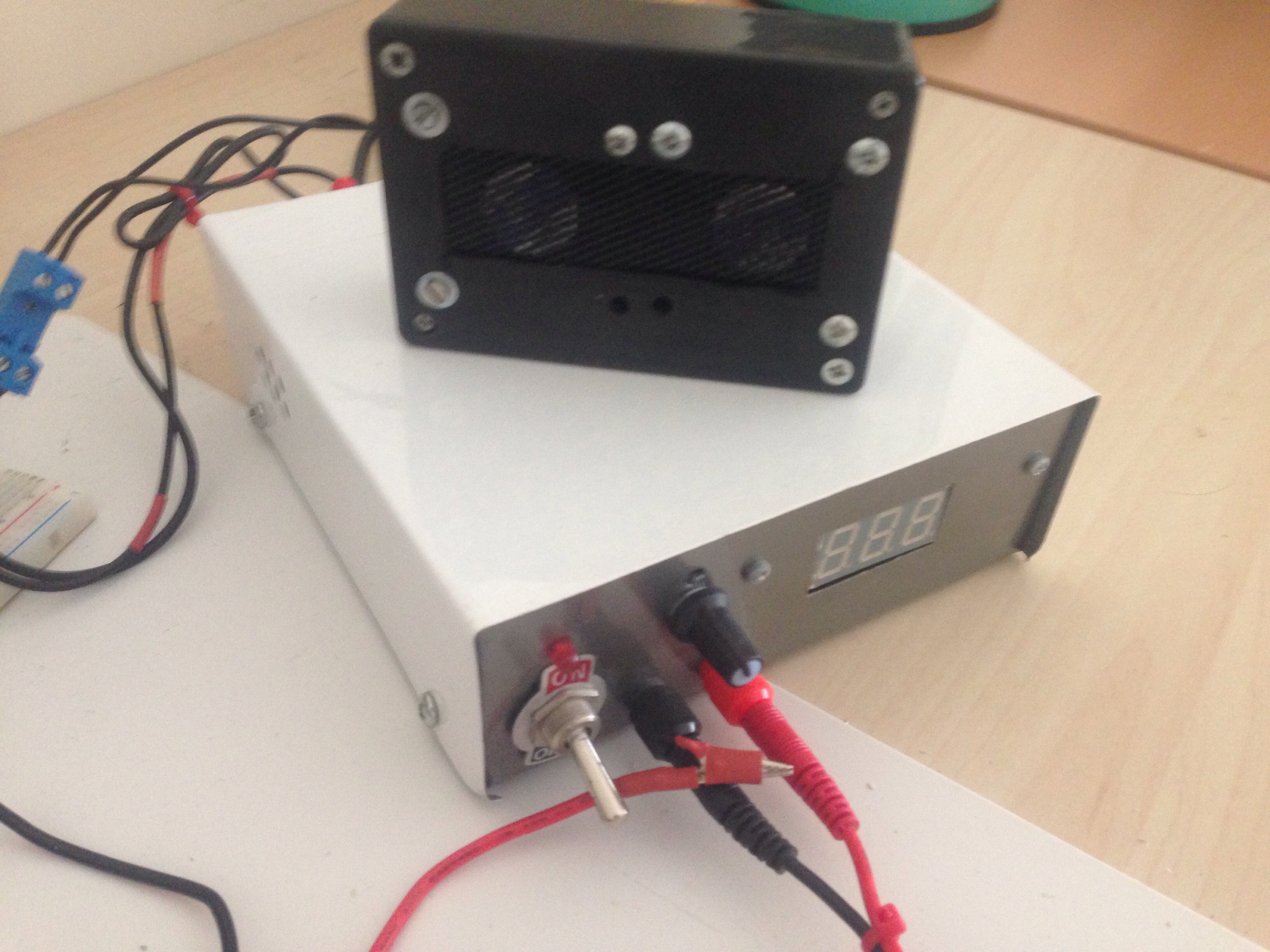

I placed filters, closed the box and soldered two wires to the bullet connectors. Finally I attached the bullet connectors to the stable 12v aux ports to my power supply.
