Hi first,I'm a maker from China.

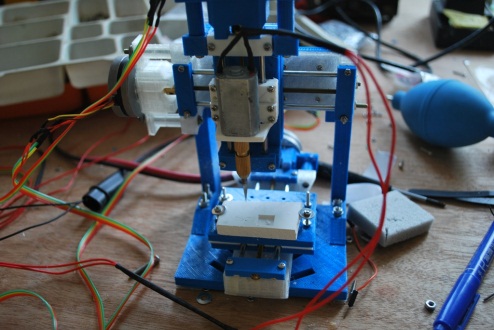

This project is a 3D Printed Mini CNC. All parts are printable. You can build your own at a low cost. All parts were printed on a traditional FDM 3d printer. It would takes about 40 hours gets all parts printed.

Besides the printeds parts. You only need 3 step motors to move 3 axis, a small brushed motor ,some cutting knife.An arduino UNO and 4 Easydrivers as the controller.

Thogh it's small, it can still work well with forms and soft plastics.

Hardware Design


The CNC frame was designed with 3dsmax.

The frame include a the gantry structure and a X axis.the the gantry structure include the Y axis and Z axis .We use three high speed step motor(0.9º) to drive X,Y,Z axis.To make the CNC as small as possible,A 80 mm M3 screw were used as the silding screw. A brused motor was designed work with the carving knife.

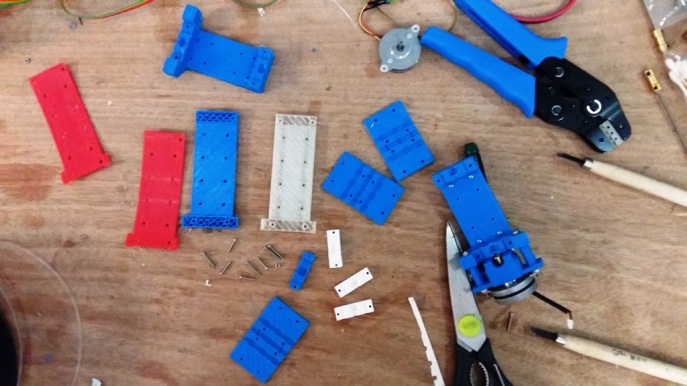

Aafter days of printing (with an ultimaker2),we finally get all parts of the frame.

Electronic Control

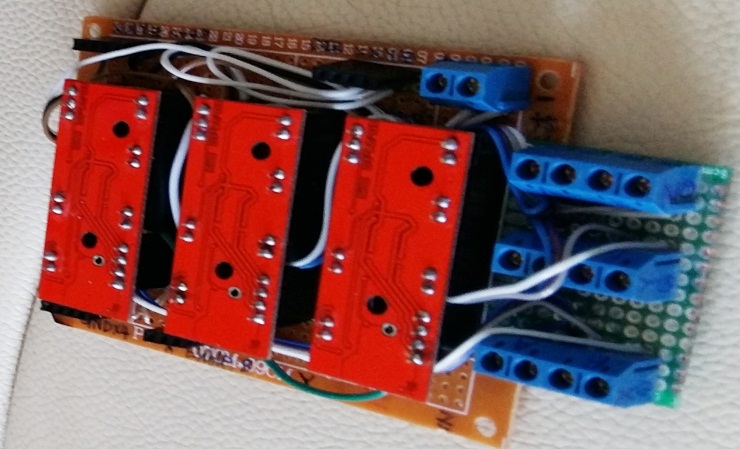

The cnc uses an Arduino nano as the controller. 4 easy drivers were used in order to drive the step motors.And a L293D moudle to drive the brushed motor.

Using the GRBL firmware to control the movement of the cnc.

(https://github.com/grbl/grbl)

Test Carving

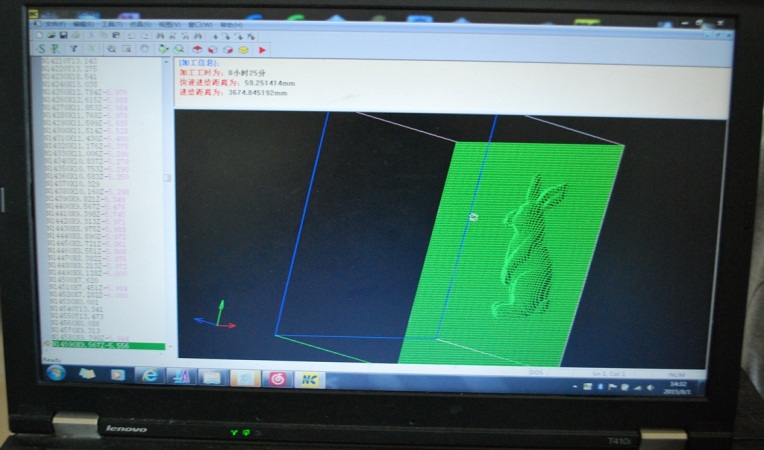

Using ARTCAM to generate the G code and control the CNC.

This machine can get a good result on cutting forms and soft plastic.

There're two examples which craved a "test" and a rabbit on an ABS plastic.

Thanks for watching and feel free to leave your comment :)
