Fridge Magnet for Cutting Boards
by keith204 in Workshop > Home Improvement
8803 Views, 26 Favorites, 0 Comments
Fridge Magnet for Cutting Boards
![Fridge Magnet Copy.png](/proxy/?url=https://content.instructables.com/F5J/0MUQ/K5R378JI/F5J0MUQK5R378JI.png&filename=Fridge Magnet Copy.png)
![IMG_3385.JPG](/proxy/?url=https://content.instructables.com/F2A/66K2/K5R37DM8/F2A66K2K5R37DM8.jpg&filename=IMG_3385.JPG)
![IMG_3388.JPG](/proxy/?url=https://content.instructables.com/FPL/03NO/K5R37DKS/FPL03NOK5R37DKS.jpg&filename=IMG_3388.JPG)
This is a very simple project. Breakdown:
- Put a carriage bolt through a magnet
- Glue on some rubber
- (optional) Sand blast to remove shine.
Assumptions - Your cutting board:
- has a hole in it
- is reasonably lightweight
Here's the 3.5 minute video. I don't say much, but I do make a fridge magnet.
Supplies
- Roll of thin rubber
- 3" Ceramic CUP Magnets
- CA Glue
- 1/4 x 20 carriage bolts & nuts: (shop local!) LENGTH: For my 5/8" board, I used 1.25" carriage bolts. Adjust to match your
- Cheap sandblaster (optional) - For these size of projects, you don't need a huge air compressor.
These are affiliate links. Read my stance on them here: https://www.keithstestgarage.com/affiliate-usage/
Stick on the Rubber
![MAIN 2.00_01_05_25.Still004.jpg](/proxy/?url=https://content.instructables.com/FW4/E9YB/K5R37DV5/FW4E9YBK5R37DV5.jpg&filename=MAIN 2.00_01_05_25.Still004.jpg)
![MAIN 2.00_01_20_00.Still006.jpg](/proxy/?url=https://content.instructables.com/FRW/06FC/K5R37DVA/FRW06FCK5R37DVA.jpg&filename=MAIN 2.00_01_20_00.Still006.jpg)
![MAIN 2.00_01_51_16.Still008.jpg](/proxy/?url=https://content.instructables.com/FTE/B23O/K5R37DVL/FTEB23OK5R37DVL.jpg&filename=MAIN 2.00_01_51_16.Still008.jpg)
![MAIN 2.00_01_24_21.Still007.jpg](/proxy/?url=https://content.instructables.com/F7V/SRQS/K5R37DVC/F7VSRQSK5R37DVC.jpg&filename=MAIN 2.00_01_24_21.Still007.jpg)
![MAIN 2.00_01_44_26.Still009.jpg](/proxy/?url=https://content.instructables.com/FSV/0BFC/K5R37DVF/FSV0BFCK5R37DVF.jpg&filename=MAIN 2.00_01_44_26.Still009.jpg)
![MAIN 2.00_01_15_22.Still005.jpg](/proxy/?url=https://content.instructables.com/FGD/LYU0/K5R37DV8/FGDLYU0K5R37DV8.jpg&filename=MAIN 2.00_01_15_22.Still005.jpg)

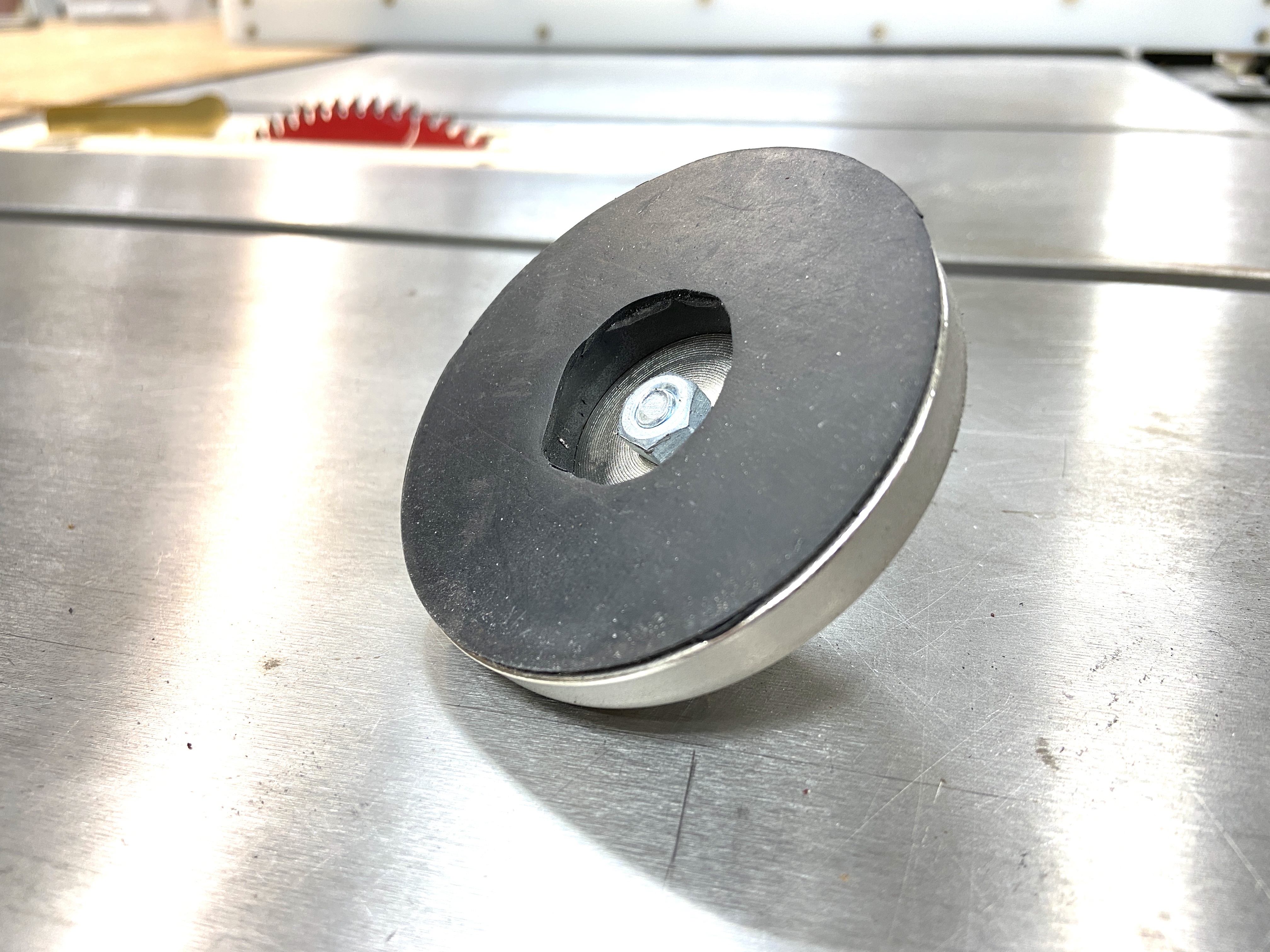

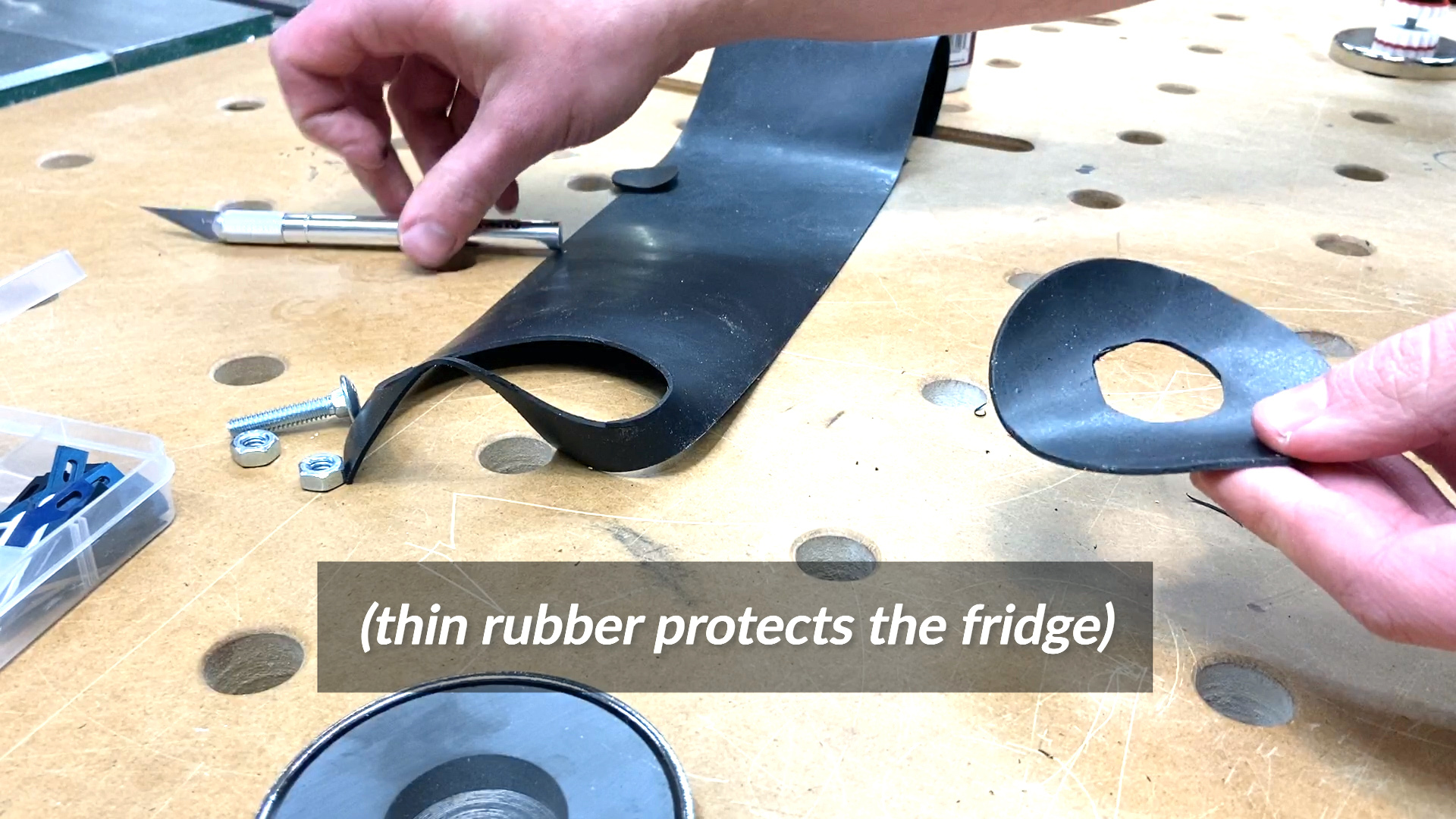

This will protect your refrigerator and give a bit more friction.
Cut & Attach Rubber

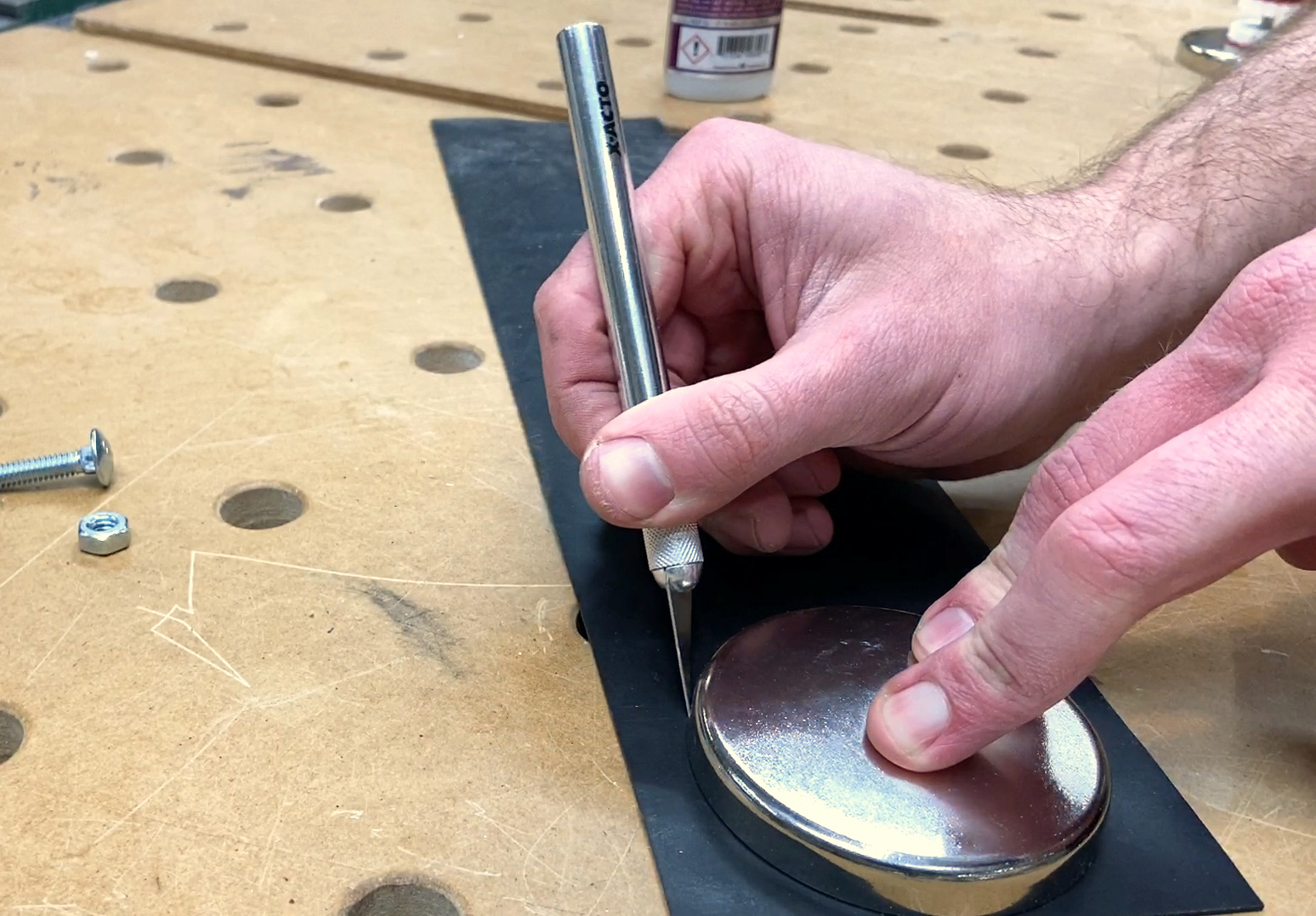

- Using an X-Acto knife (affiliate link), place the magnet on the rubber, then cut a disc w/ a hole in it to match the ceramic portion of the magnet.
- Use CA glue to stick the rubber on the magnet.
- Put some weight on it, and let it dry for about 1 minute.
Tip: Cure any uncured blobs of CA-glue squeeze-out using baking soda. Just shake it around in the magnet area and dump the baking soda out. See my video at timestamp 1:42 to see what I'm talking about.
Assemble the Hardware
![IMG_3389.JPG](/proxy/?url=https://content.instructables.com/F7S/89MF/K5R37DLJ/F7S89MFK5R37DLJ.jpg&filename=IMG_3389.JPG)
![IMG_3387.JPG](/proxy/?url=https://content.instructables.com/FOG/D89D/K5R37DIQ/FOGD89DK5R37DIQ.jpg&filename=IMG_3387.JPG)
On the carriage bolt,
- Install first nut, leaving about 1/2" of bolt sticking through
- Add the magnet
- Install second nut
Check this: be sure the bolt doesn't protrude past the business end of the magnet.
Verify the length works for your cutting board, then tighten things up.
Optional: Sand Blast
![MAIN 2.00_02_43_23.Still011.jpg](/proxy/?url=https://content.instructables.com/F2D/0XER/K5R37DWH/F2D0XERK5R37DWH.jpg&filename=MAIN 2.00_02_43_23.Still011.jpg)
![IMG_3385.JPG](/proxy/?url=https://content.instructables.com/FE1/NTX4/K5R37DIO/FE1NTX4K5R37DIO.jpg&filename=IMG_3385.JPG)
![IMG_3384.JPG](/proxy/?url=https://content.instructables.com/FTL/KN66/K5R37DIN/FTLKN66K5R37DIN.jpg&filename=IMG_3384.JPG)

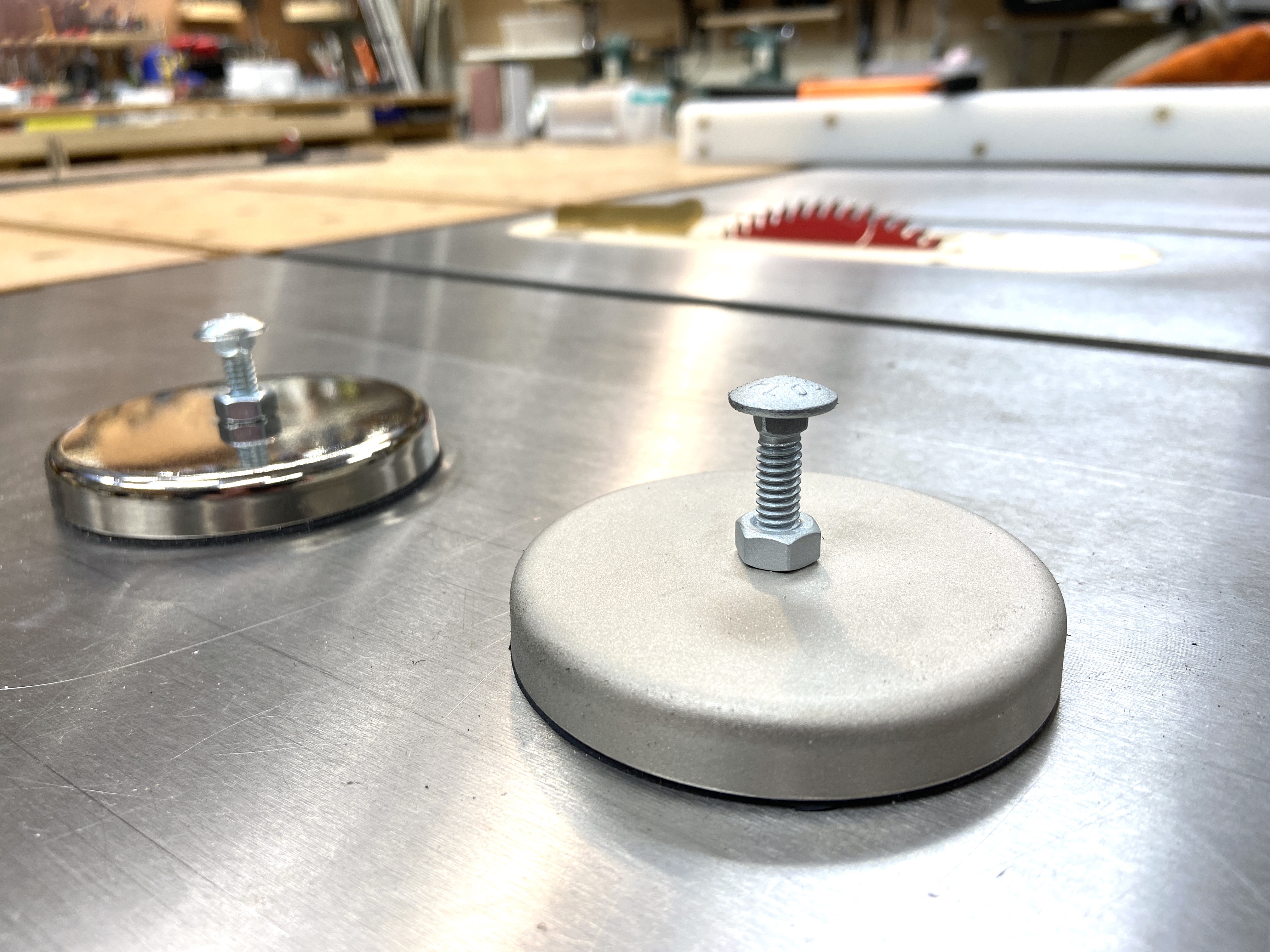

I'm not a fan of shiny chrome-y-ness, so I sandblasted it using this cheap $25ish sand blaster.
You don't need a huge air compressor for small projects like this.
Tips:
- Use fine sandblasting media. You can get this from your local monument shop. Fine sand works better in the cheap sand blaster, and it provides more of a matte (rather than pitted) finish.
- Don't blast the bottom of the magnet.
- Clean sand off the bottom of the magnet before using on your fridge. (unless you want scratches on your fridge)
Done.
![MAIN 2.00_02_58_26.Still013.jpg](/proxy/?url=https://content.instructables.com/FZN/LG9A/K5R37DWL/FZNLG9AK5R37DWL.jpg&filename=MAIN 2.00_02_58_26.Still013.jpg)
![MAIN 2.00_02_12_07.Still010.jpg](/proxy/?url=https://content.instructables.com/FWD/ODI2/K5R37DWE/FWDODI2K5R37DWE.jpg&filename=MAIN 2.00_02_12_07.Still010.jpg)
![MAIN 2.00_02_56_24.Still012.jpg](/proxy/?url=https://content.instructables.com/FQH/R5W0/K5R37DWJ/FQHR5W0K5R37DWJ.jpg&filename=MAIN 2.00_02_56_24.Still012.jpg)
What else can be hung? Pizza peels? Small pots & pans?
--
