Frequency Counter With Arduino
by kiran.bholiyan in Circuits > Arduino
8749 Views, 37 Favorites, 0 Comments

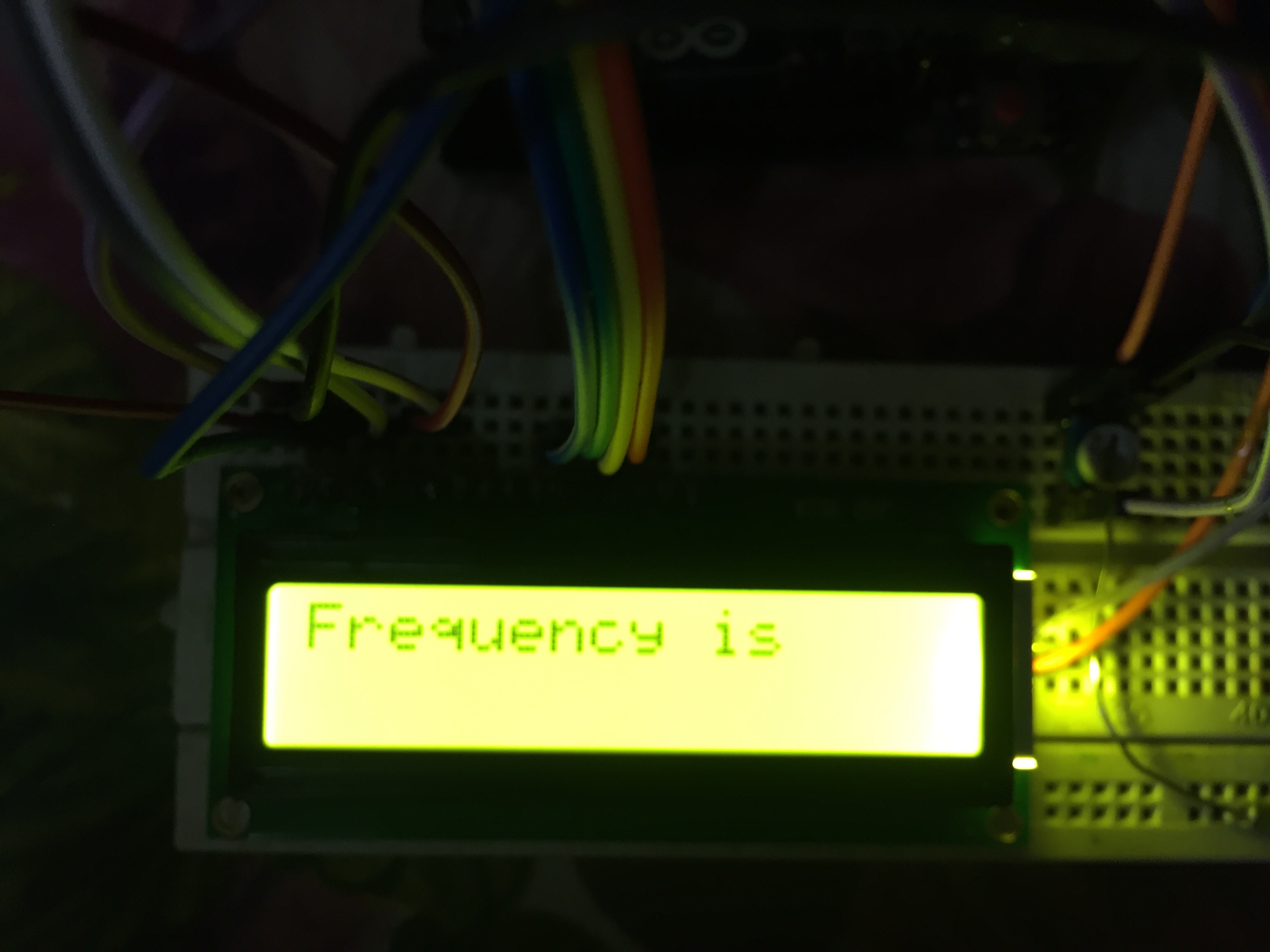

Frequency Counter With Arduino
![IMG_E1397[1].JPG](/proxy/?url=https://content.instructables.com/FPZ/4036/J8OR4USU/FPZ4036J8OR4USU.jpg&filename=IMG_E1397[1].JPG)
This is a simple and cheap arduino based frequency Counter cost less than 4$ it been very useful to measure small circuits
Parts for the Project

2. Jumper cables
3. 16*2 lcd
4. Ic 555
5. 1uf cap

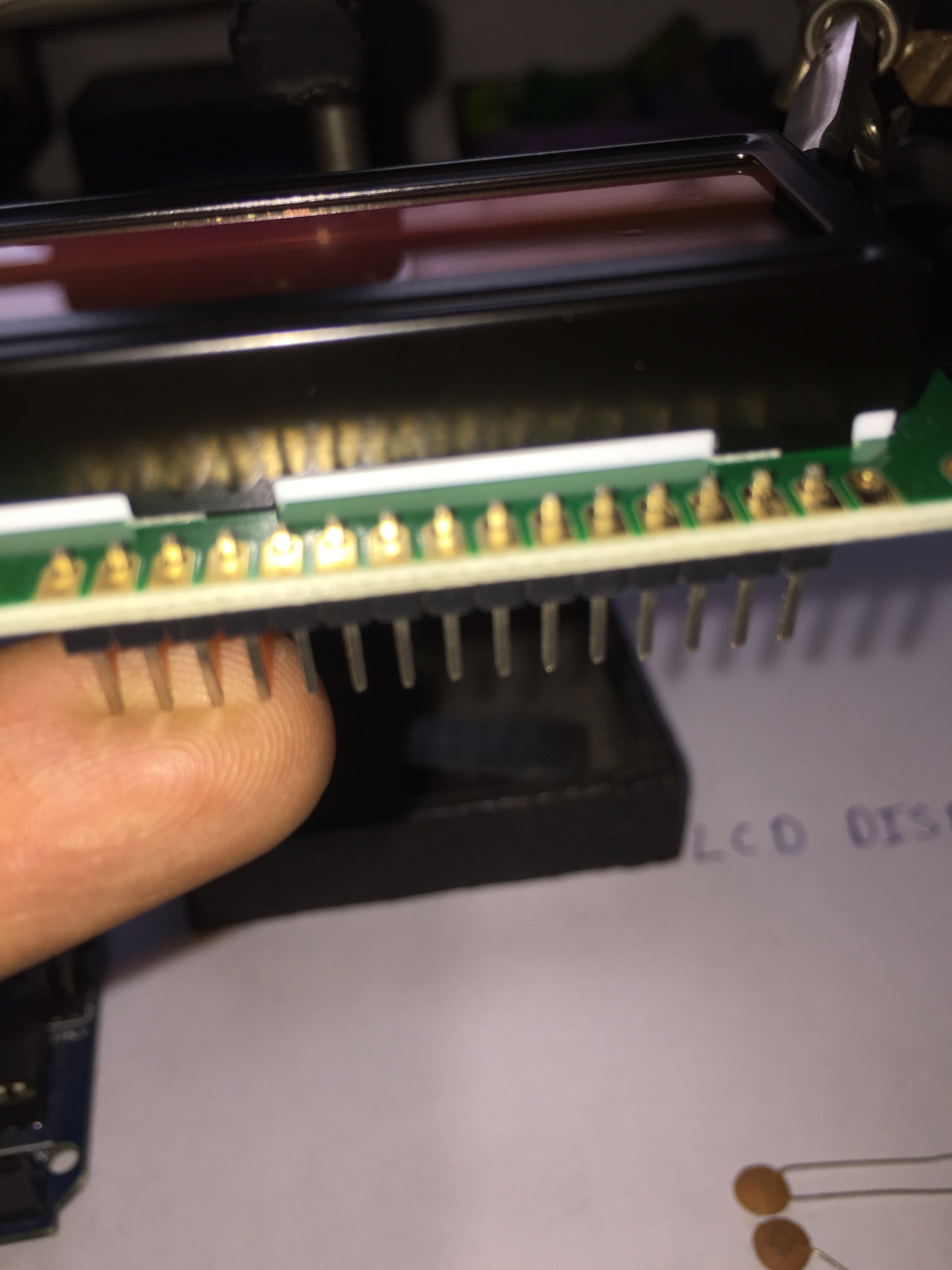

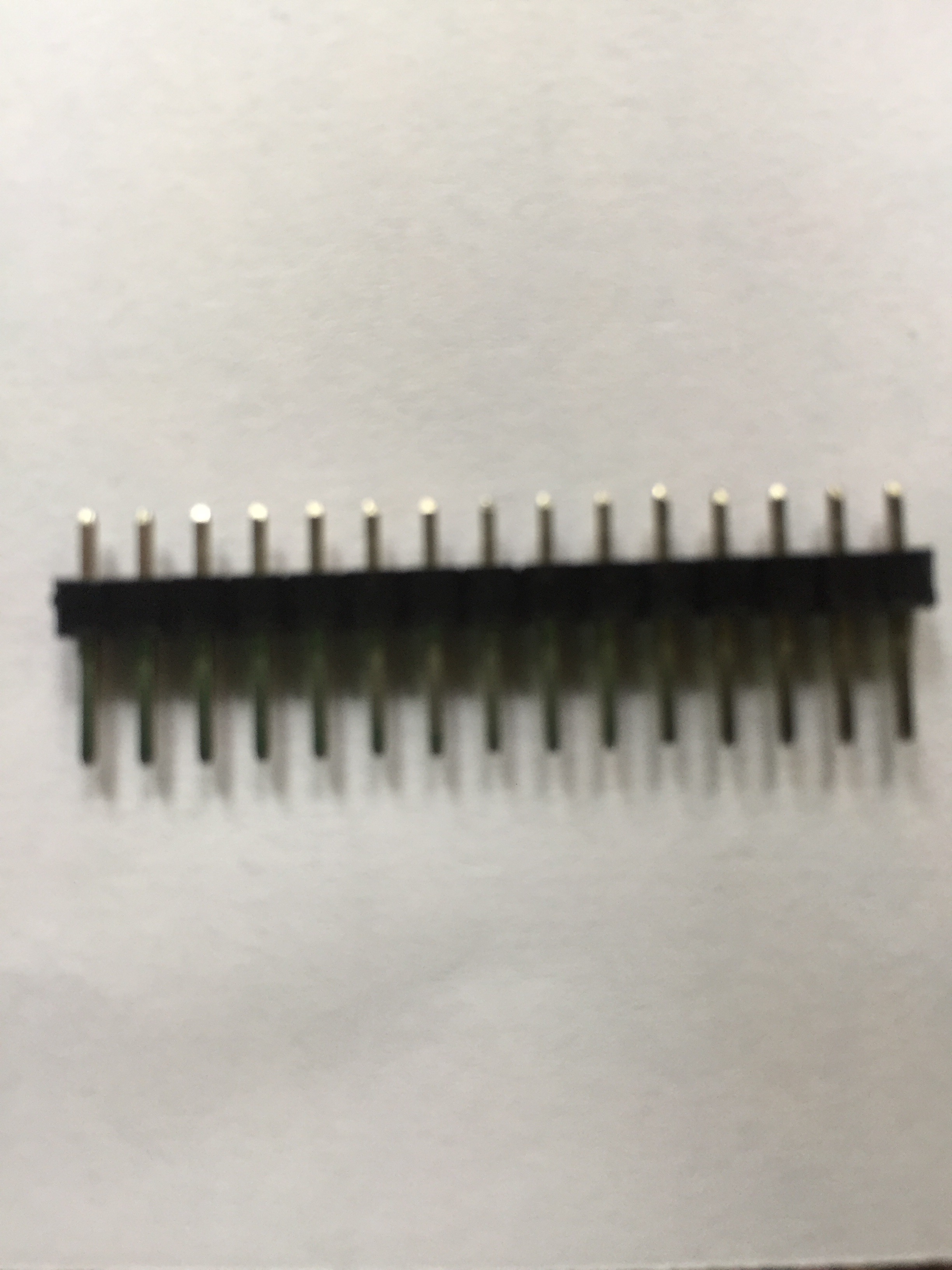

Solder Pins to Lcd


Connection to Arduino

Copy the Same Code to the Adruino Sketch and Upload
#include ,
LiquidCrystal lcd(2, 3, 4, 5, 6, 7);
const int pulsePin = 8; // Input signal connected to Pin 8 of Arduino
int pulseHigh; // Integer variable to capture High time of the incoming pulse
int pulseLow; // Integer variable to capture Low time of the incoming pulse
float pulseTotal; // Float variable to capture Total time of the incoming pulse
float frequency; // Calculated Frequency
void setup() { pinMode(pulsePin,INPUT);
lcd.begin(16, 2);
lcd.setCursor(0,0);
lcd.print("stark labs");
lcd.setCursor(0,1);
lcd.print(" Freq Counter ");
delay(5000); }
void loop() { lcd.setCursor(0,0);
lcd.print("Frequency is ");
lcd.setCursor(0,1);
lcd.print("stark labs ");
pulseHigh = pulseIn(pulsePin,HIGH);
pulseLow = pulseIn(pulsePin,LOW);
pulseTotal = pulseHigh + pulseLow; // Time period of the pulse in microseconds frequency=1000000/pulseTotal; // Frequency in Hertz (Hz)
lcd.setCursor(0,1);
lcd.print(frequency);
lcd.print(" Hz");
delay(500); }
Downloads
Making of Frequency Generator
![IMG_E1380[1].JPG](/proxy/?url=https://content.instructables.com/FSI/EJYY/J8OR4ULP/FSIEJYYJ8OR4ULP.jpg&filename=IMG_E1380[1].JPG)
simple follow this schematic and connect those connections properly many people have problem in that 1uf capacitor will give 800hz-40khz and 101 capacitor will give 50hz-4khz
Finalizing the Project
![IMG_E1398[1].JPG](/proxy/?url=https://content.instructables.com/F2R/3L6E/J8OR4UC8/F2R3L6EJ8OR4UC8.jpg&filename=IMG_E1398[1].JPG)
After you make the 2 schematic connect them together as shown in schematic and this is link for demo of the device https://www.youtube.com/watch?v=t25wPzo6lWc
