Free IPod Touch Dock

All the parts you need come with the iPod and it is very easy to construct. Basically, you cut a hole in the box and put the dock adapter in the hole.

You can also make a dock for other iPods but you would have to make your own template. If you do, post your template.

Supplies:
iPod Touch Retail Box (just the top)
iPod Touch Dock Adapter

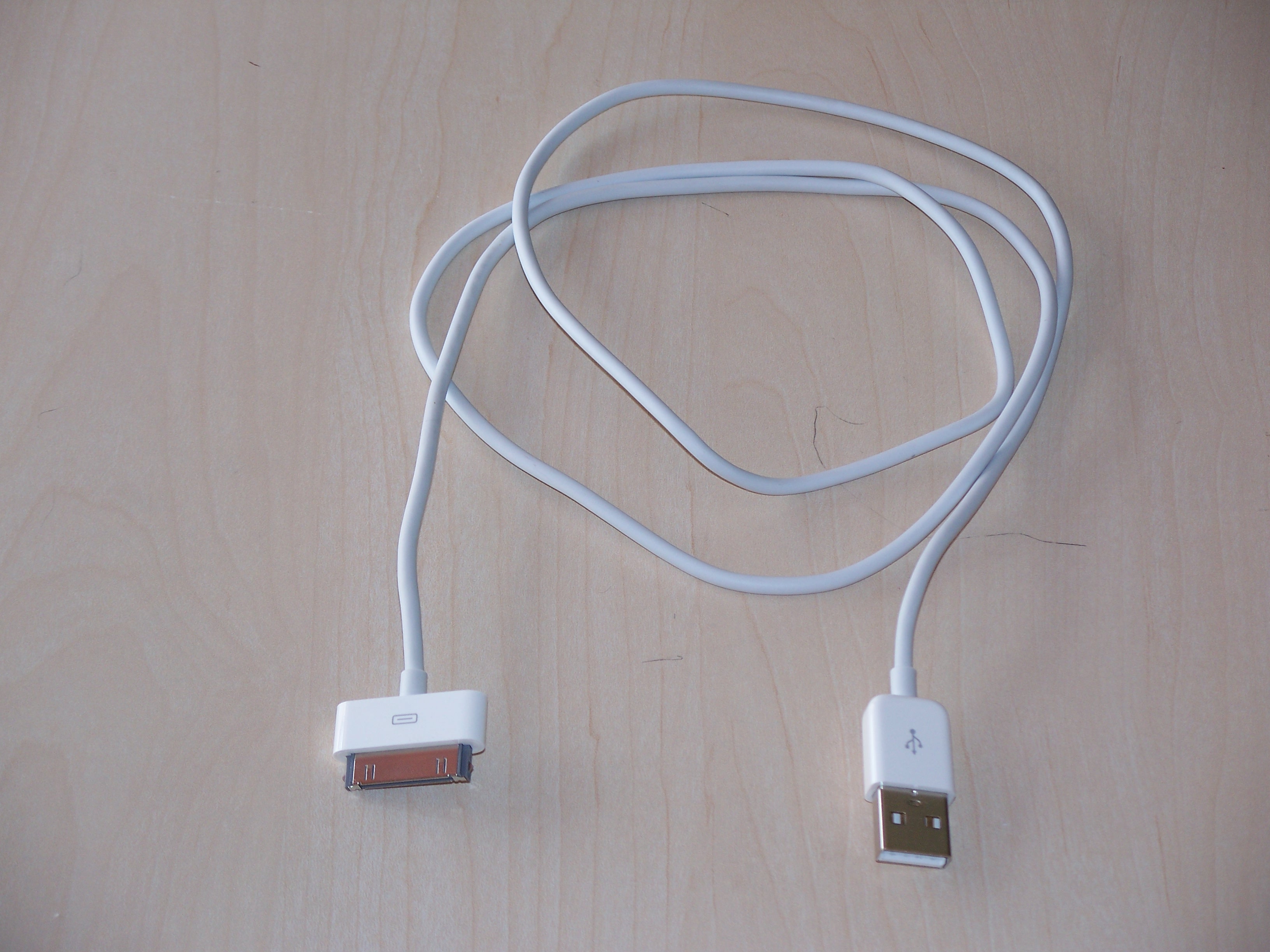

iPod Touch USB Cable

Single Sided Tape
Double Sided Tape

Hole Template

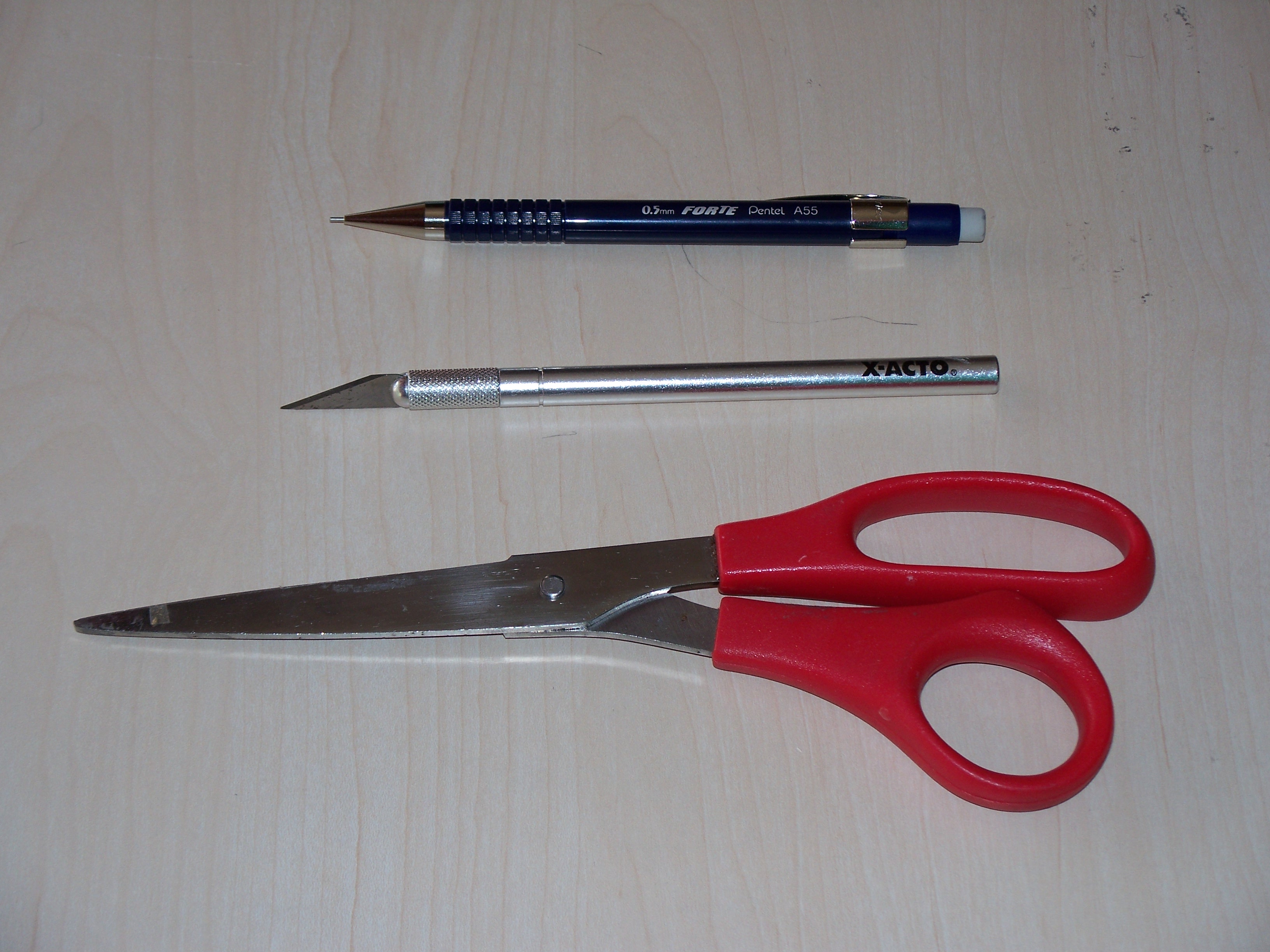

Tools:
Matte (or X-acto) Knife
Scissors
Pencil

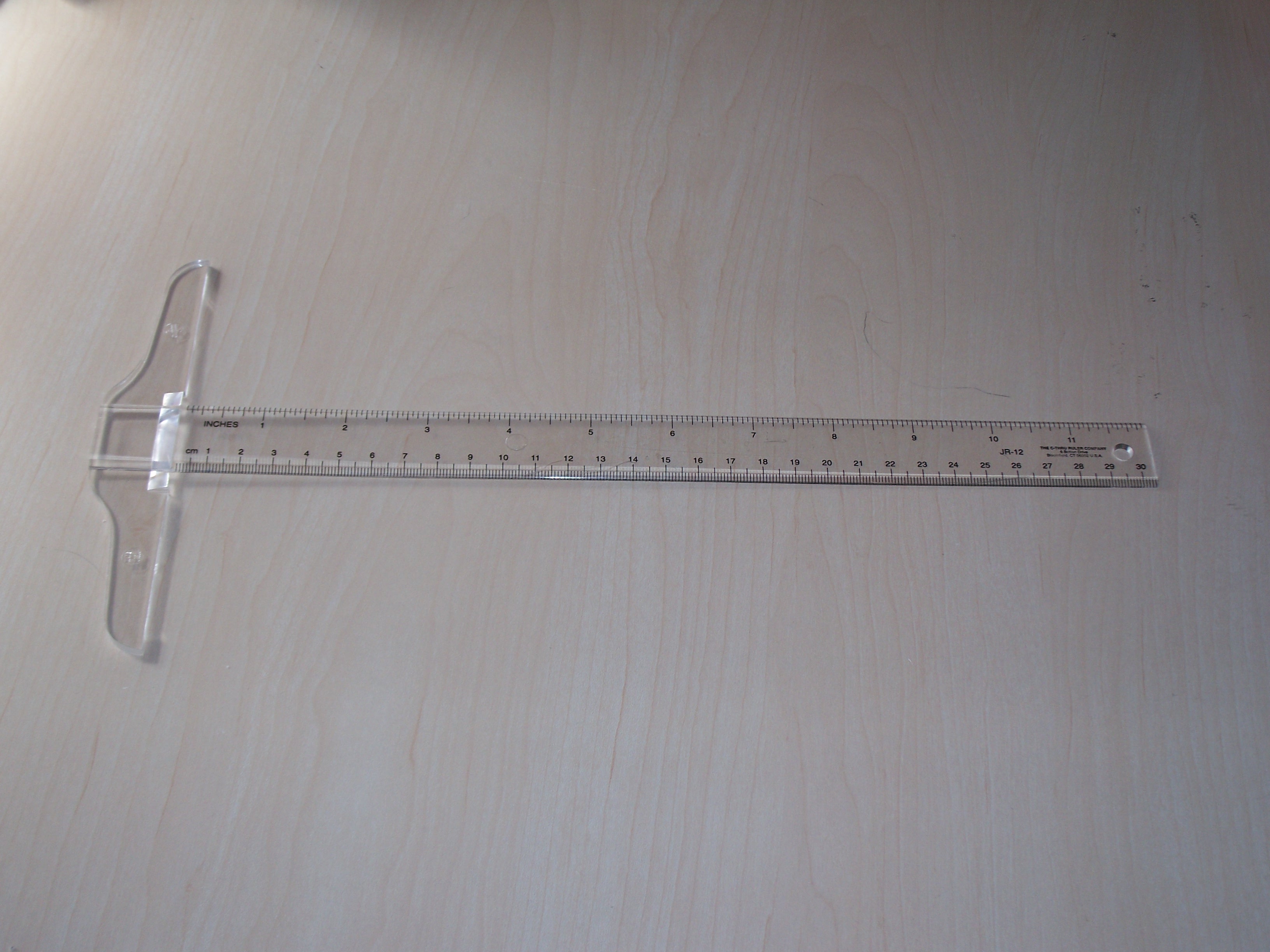

Ruler or Marked T-Square

1. Tear out foam inside the box
2. Print template (the PDF)
3. Cut out template
4. Center template on box (4 cm from the left and right side, 3.2 cm from the top and bottom)

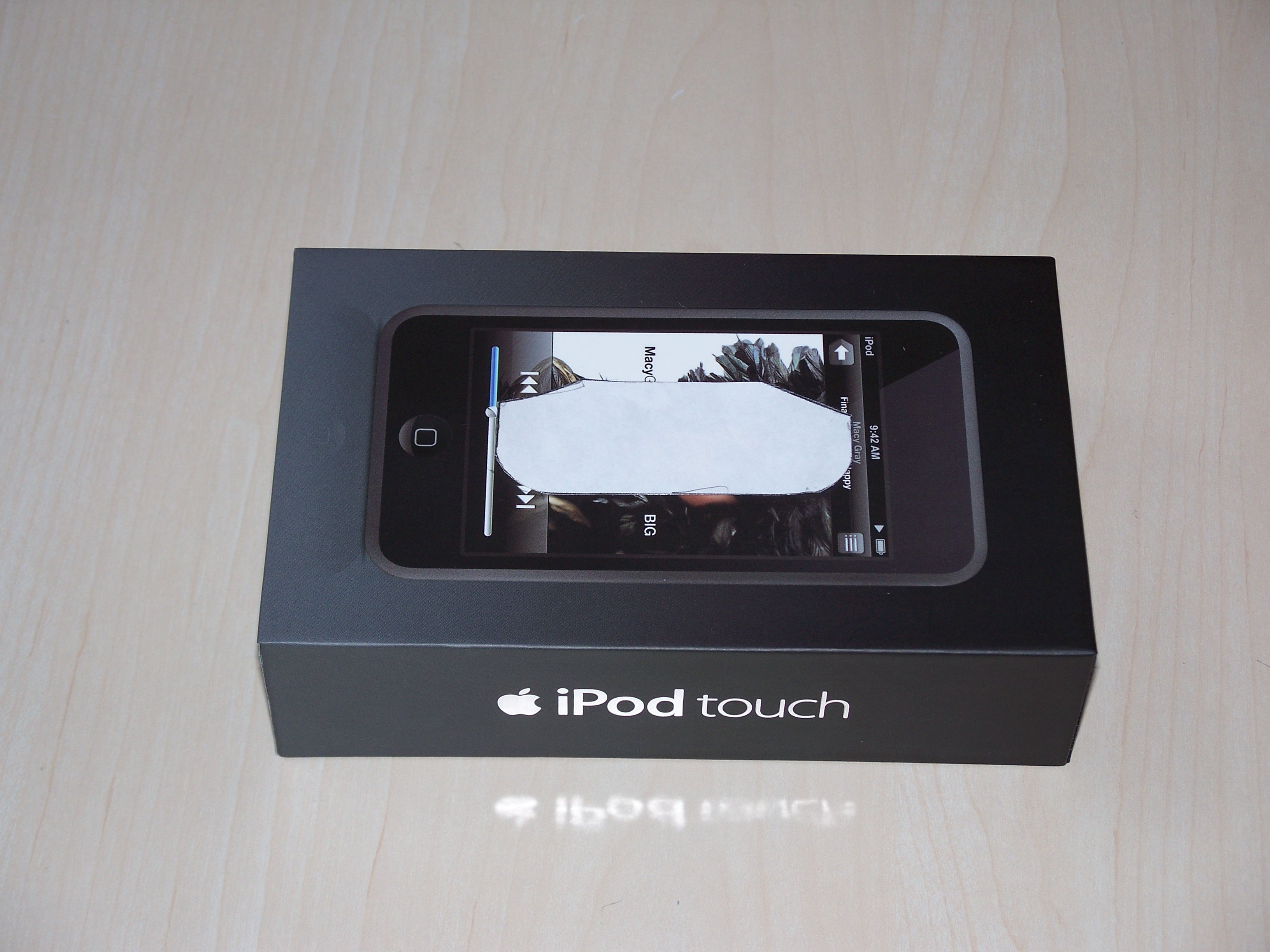

5. Tape template to box (the long flat side of the template is the front)

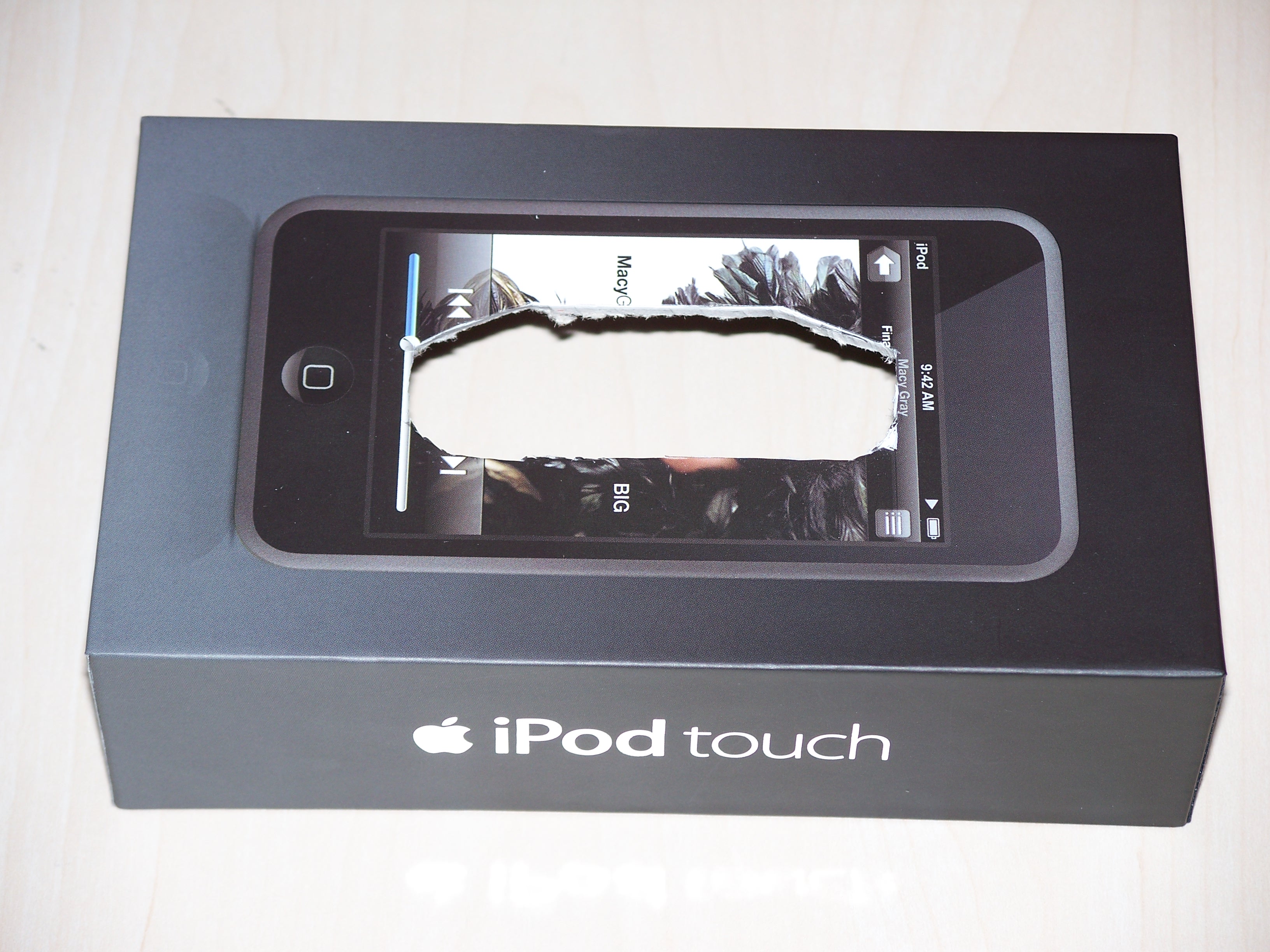

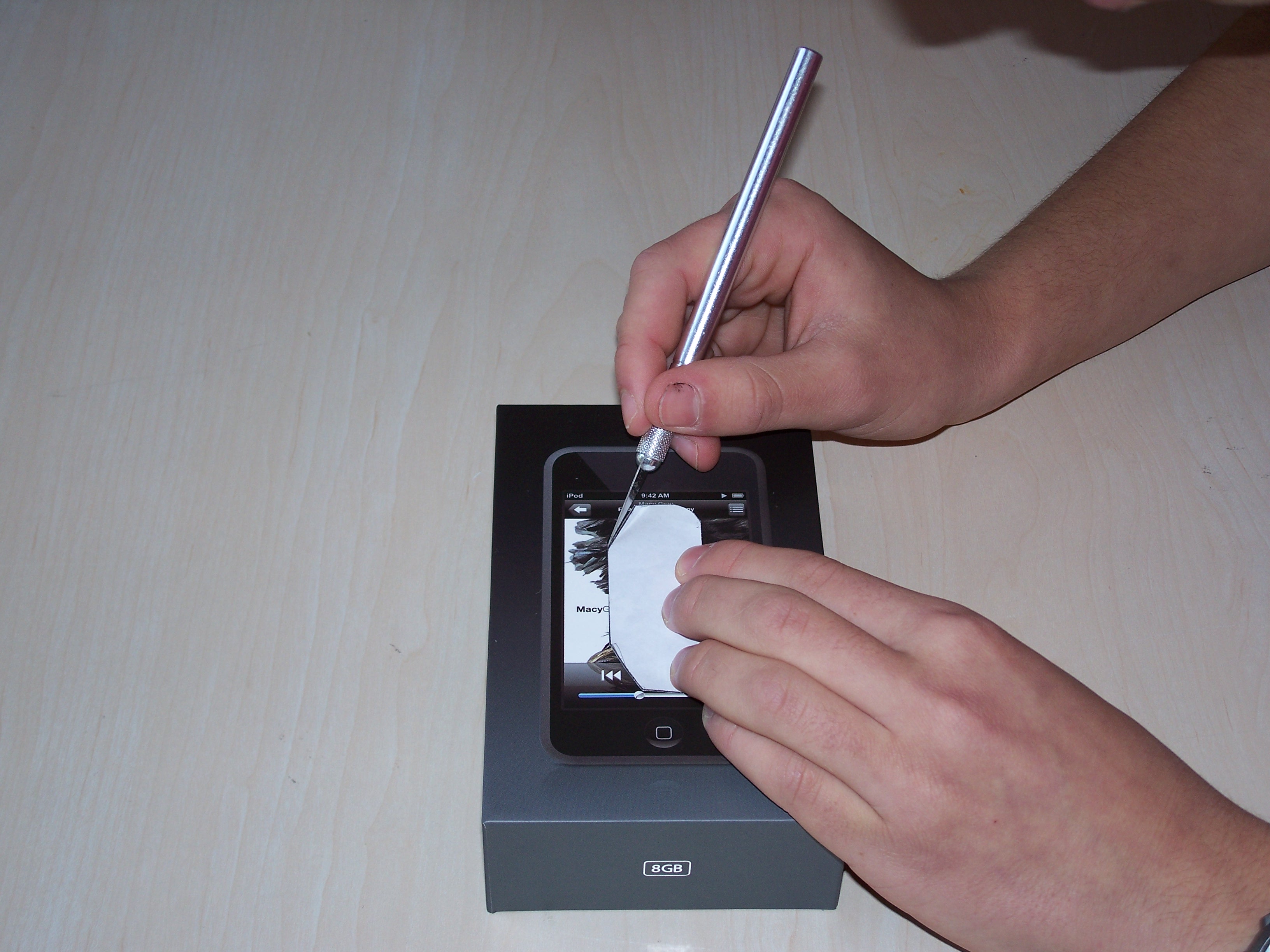

6. Cut out hole
7. Cut out small hole in the center of the bottom edge of the back side of the box for the USB cable

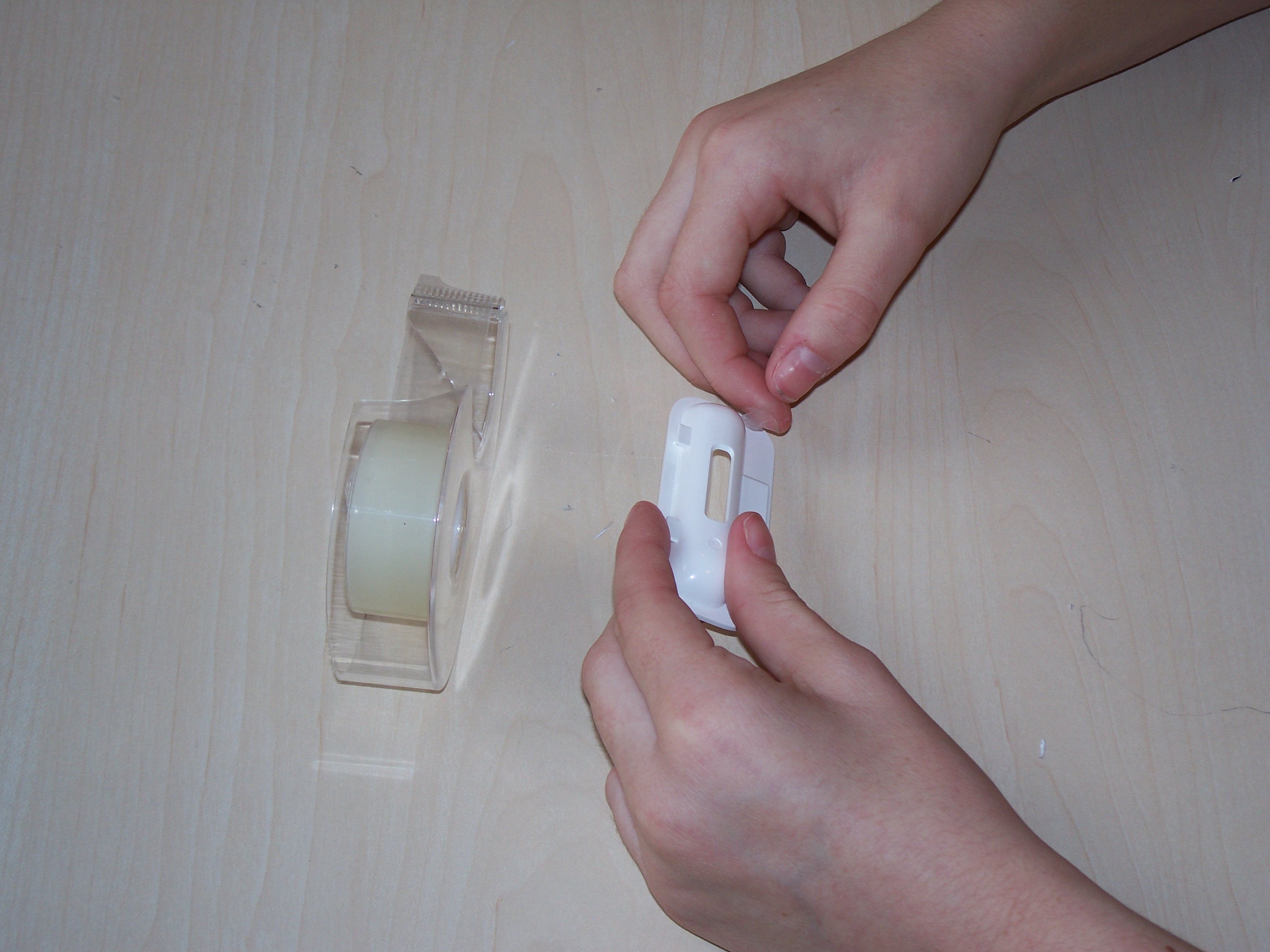

1. Place double sided tape on back of dock adapter

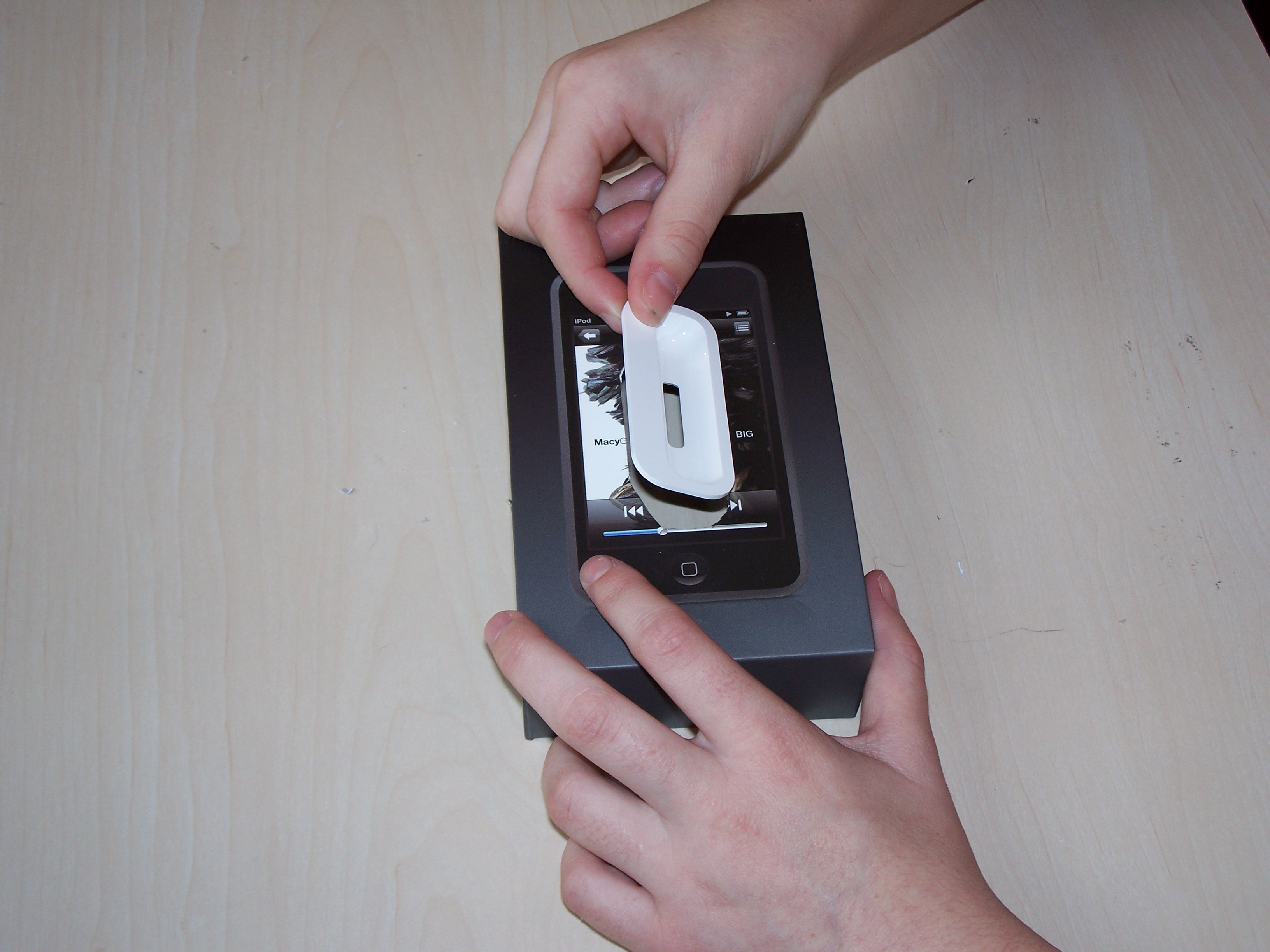

2. Place dock adapter in hole

1. Tape USB Cable into place (the gray logo faces front)
2. Place USB into notch in the back

1. Run USB cable out the whole on the back of the box
2. Attach USB port to computer

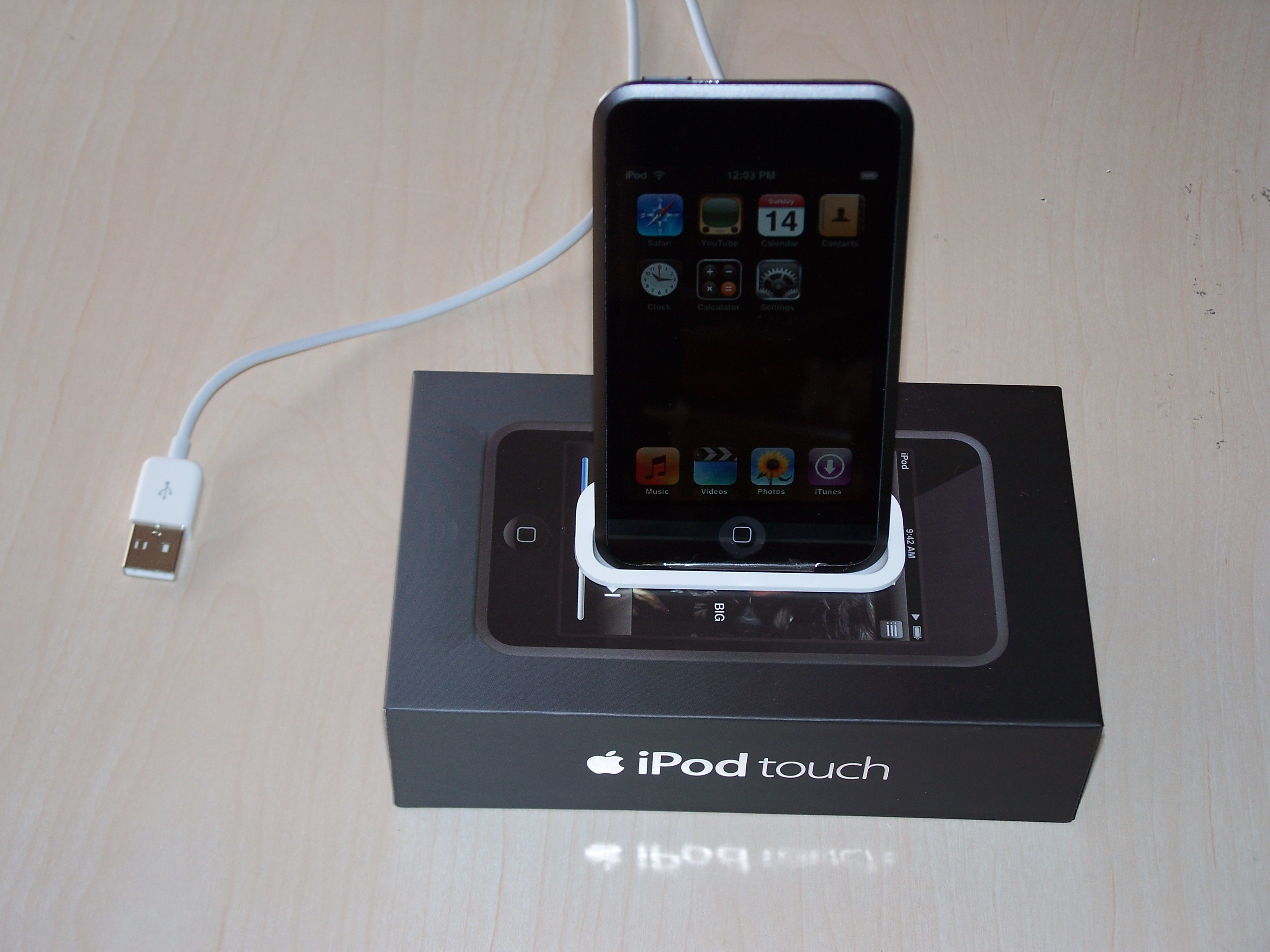

3. Place iPod in dock
