Free Tv Wall Mount
Here is a quick and free way to wall mount a tv.
Free if you already have the wood and bolts laying around*
Supplies
Length of pine board at least 19mm thick.
Bolts to fit tv wall mount holes.
Dyna bolts (if mounting to a brick wall)
Tools:
Saw
Drill
Cut Wood Into Strips (skip This Step If Mounting to Drywall)
Cut the pine board into 2 strips.

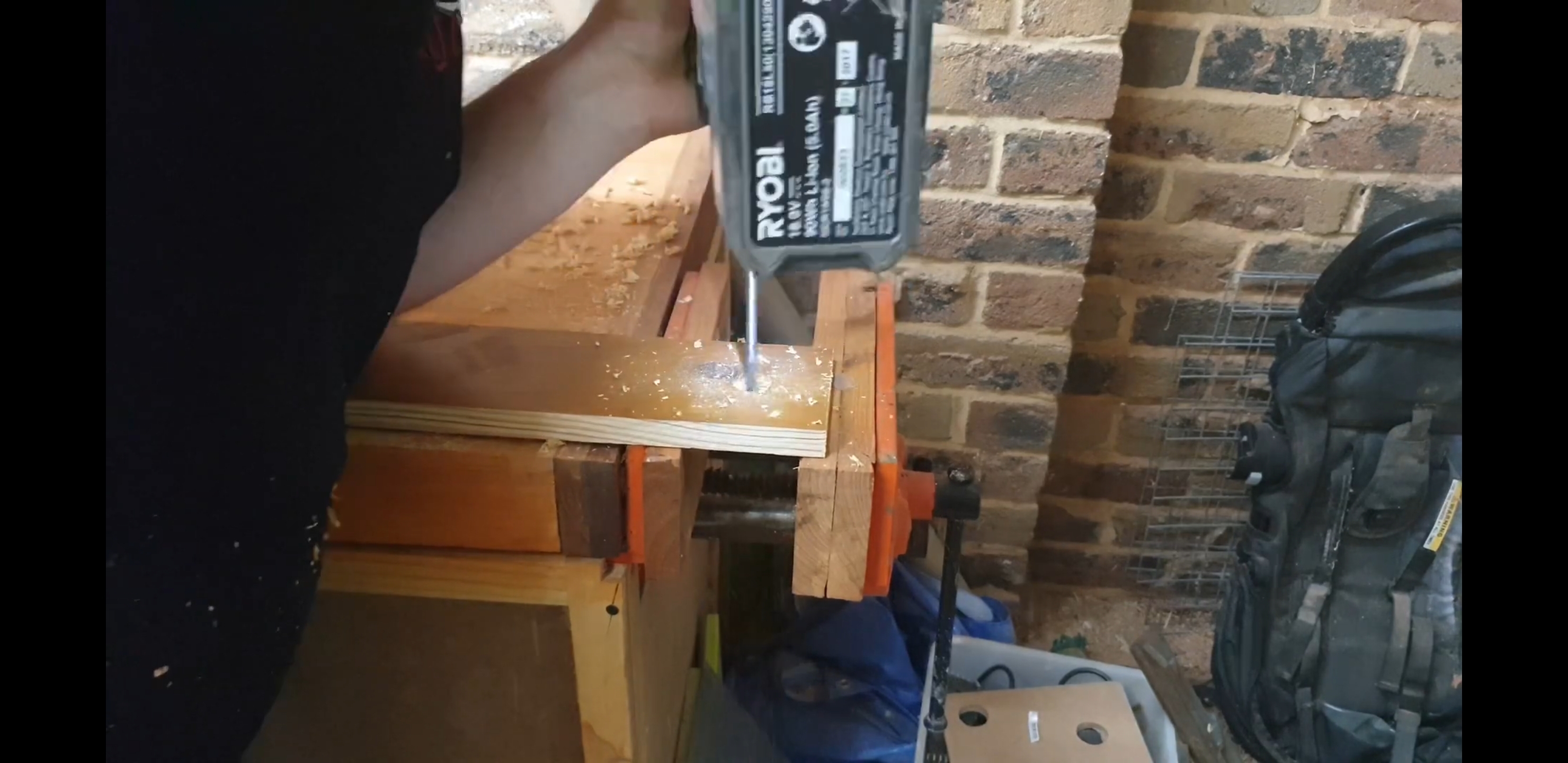

Pre-drill Wall Board for Dyna Bolts.(skip This Step If Mounting to Drywall)
Drill a hole at each end of this board to mount to the bricks.
Drilling a recess big enough to fit a socket in, around the bolts head and deep enough for the bolts head to be bellow the surface.
followed by a through hole for the dyna bolts thread.

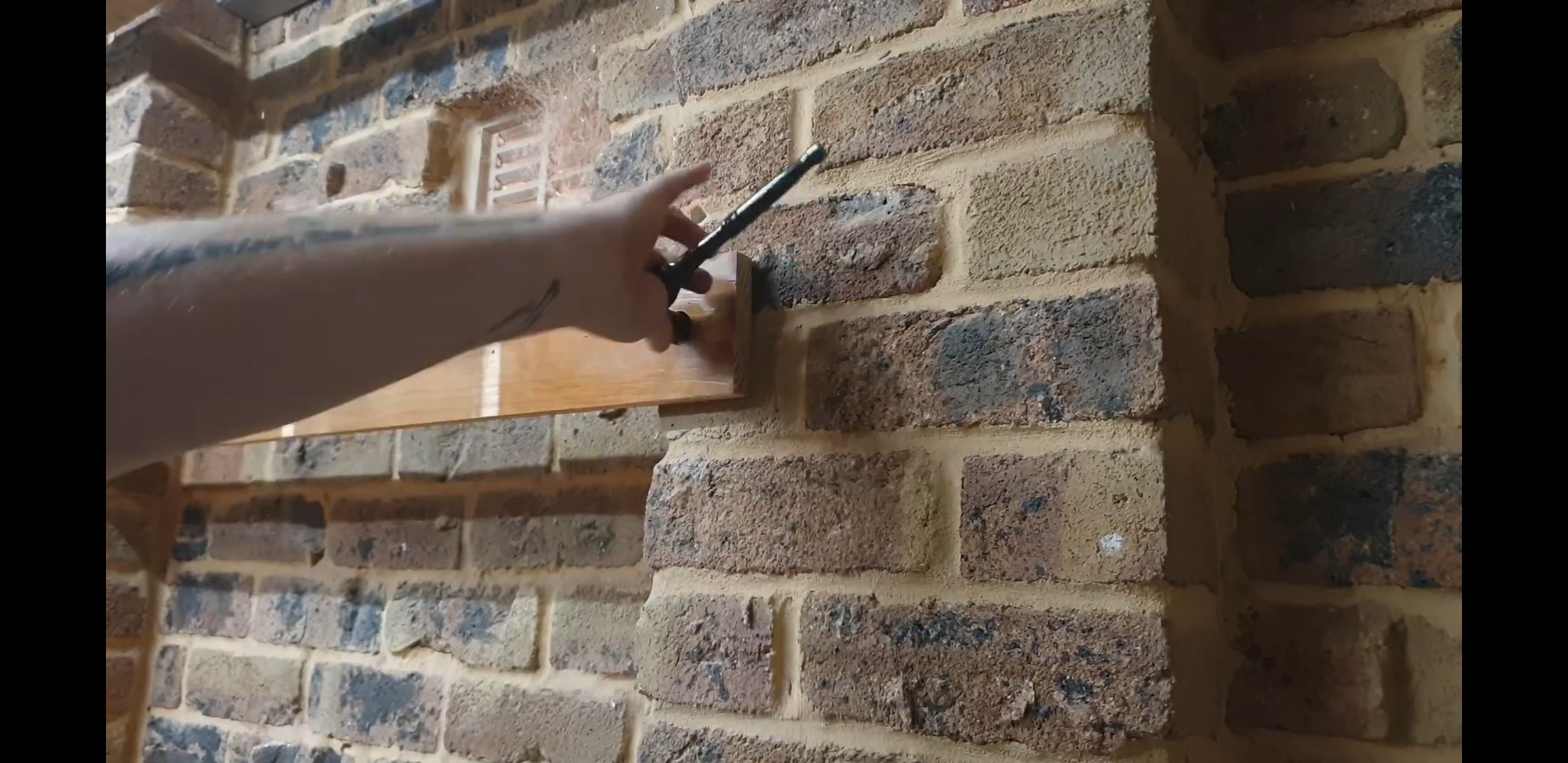

Drill Into Brick Work and Hammer in Dyna Bolt (skip This Step If Mounting Onto Drywall)

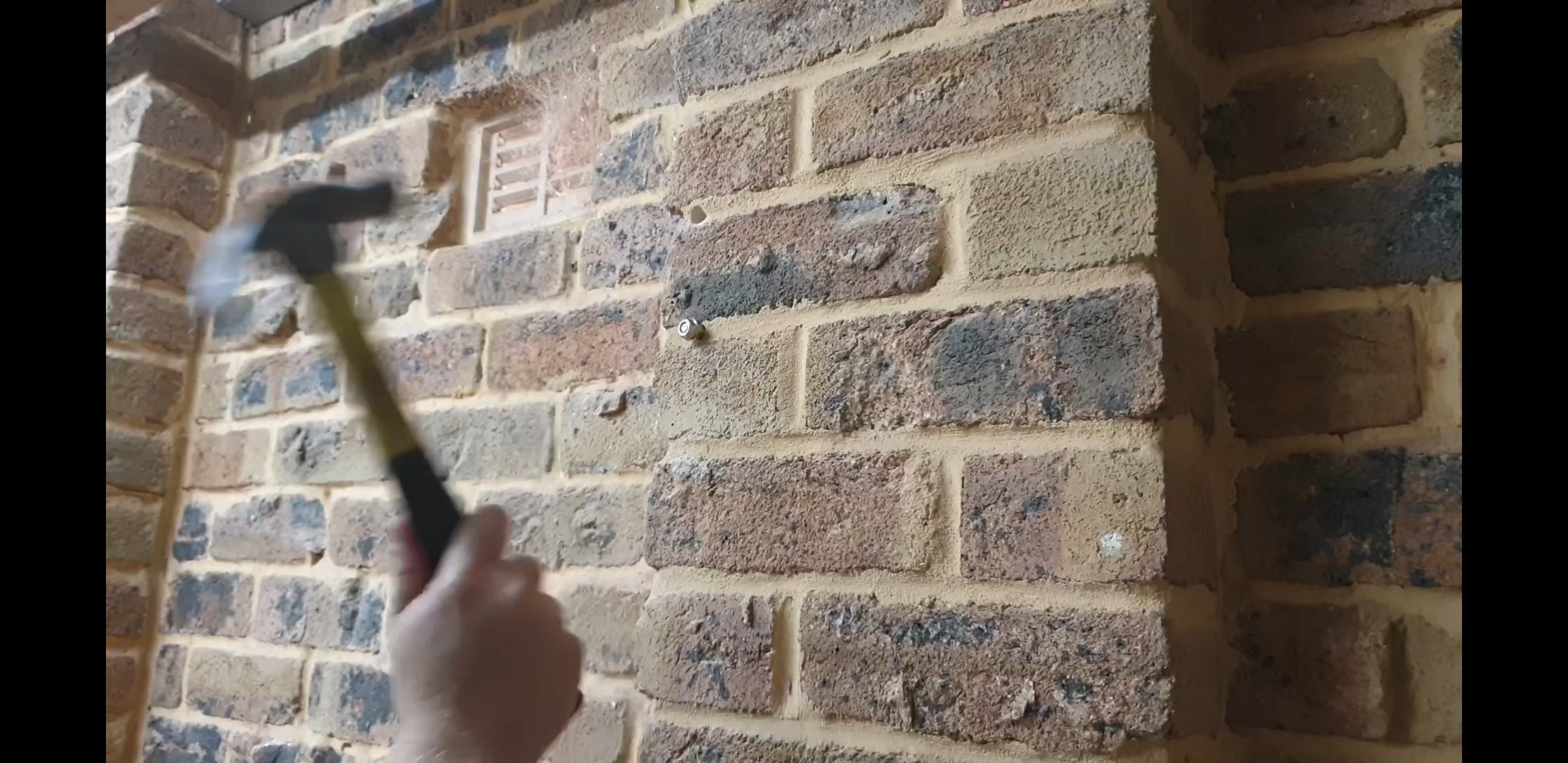

Drill a hole into the mortar and install Dyna bolts with a hammer.
Install Board With Dyna Bolt Bolts. (skip This Step If Mounting Onto Drywall)
Add board onto the wall and bolt down.
Cut French Cleat (start Here If Mounting to Drywall)
Set your saw to 45 degress and rip the strip in half.
*this can be accomplished with a table saw or circular saw even a hand saw.
Drill Mounting Holes in Wall French Cleat Half.
I drilled holes along the board as I was mounting it to the board I put up on the wall, but if you are mounting to drywall you will need to line up your holes with the studs behind the drywall.
Mount French Cleat to Wall
Attach french cleat to the wall using a level to assure the cleat is level.
If mounting to drywall assure holes line up with studs.
Drill Holes in Tv French Cleat
Using masking tape to mark out the holes drill holes into the french cleat for the tv again drilling a recess for the bolt head to be under the surface.
Bolt French Cleat to Tv
Bolt the french cleat to the tv assuring the bolts are tight.

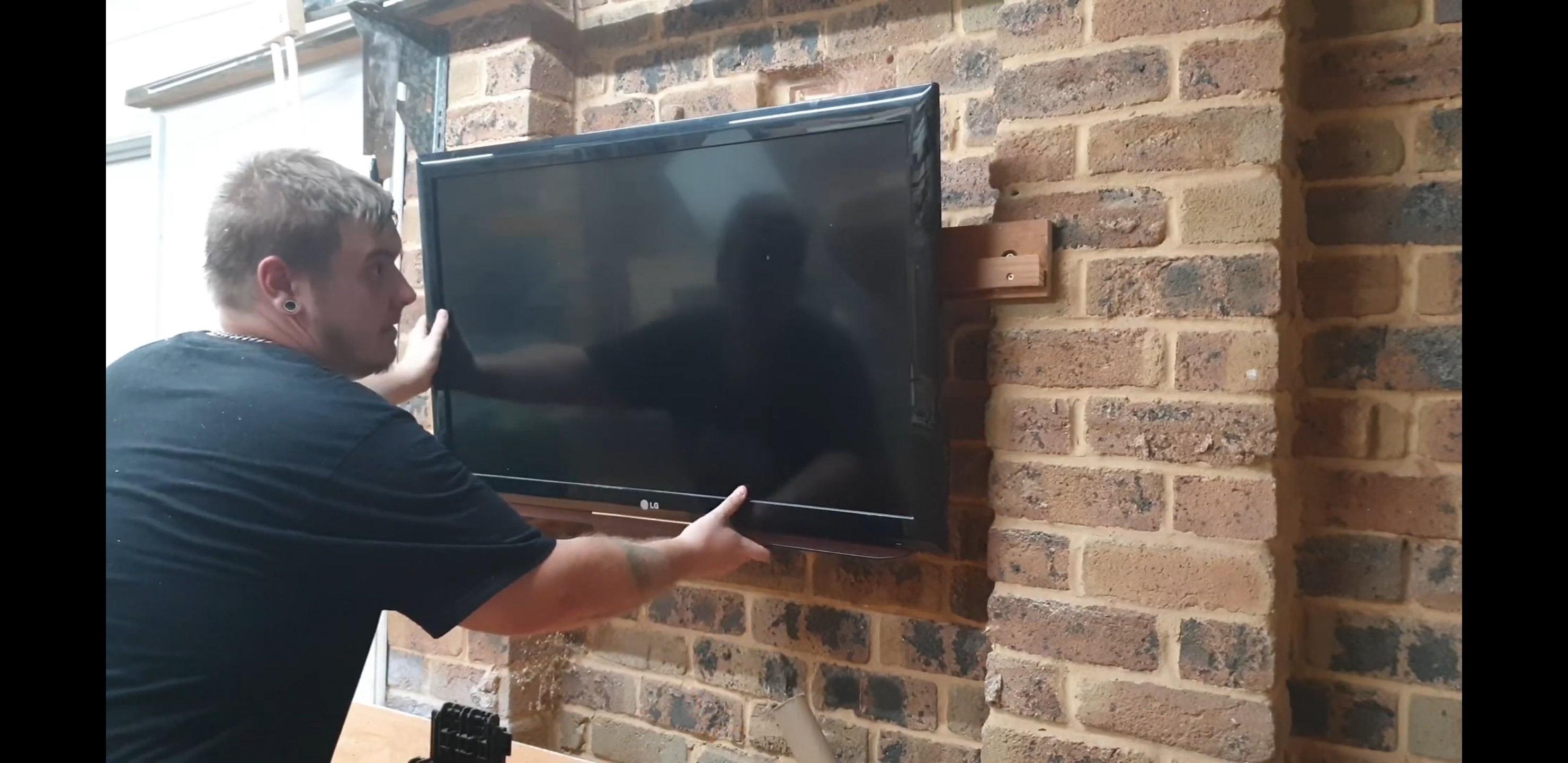

Lift Tv Onto Wall
CELEBRATE
