Free Energy/ Cellphone Detector (From Cellphone Antenna)

by slimjed in Circuits > Wireless

25054 Views, 83 Favorites, 0 Comments

Free Energy/ Cellphone Detector (From Cellphone Antenna)

LW 541C-AWDW-6K9L-0-20-BULK-I.jpg
This simple circuit is able to detect signal from your cellphone antenna and converts it to electricity to power an LED ( the best thing about this is that its completely passive and doesn't require batteries ) this circuit requires: RF diode ( search ebay for: RF diode or microwave diode) LED Peace of wire Solder I have Noticed that it only detects phones working on (EDGE), ocasionally works on 3G I have a low knowledge about RF but I think it has to de with the shape and/or length of antennas. So if you can contribute to make it work better please do so. ( this is based on a video i saw a long time ago on you tube ) the video had no instructions. here is the link http://www.youtube.com/watch?v=CNJVhzOjWgU&playnext=1&list=PL8ACFDE47FA548451 (RF energy, LED, tesla, passive, electricity)

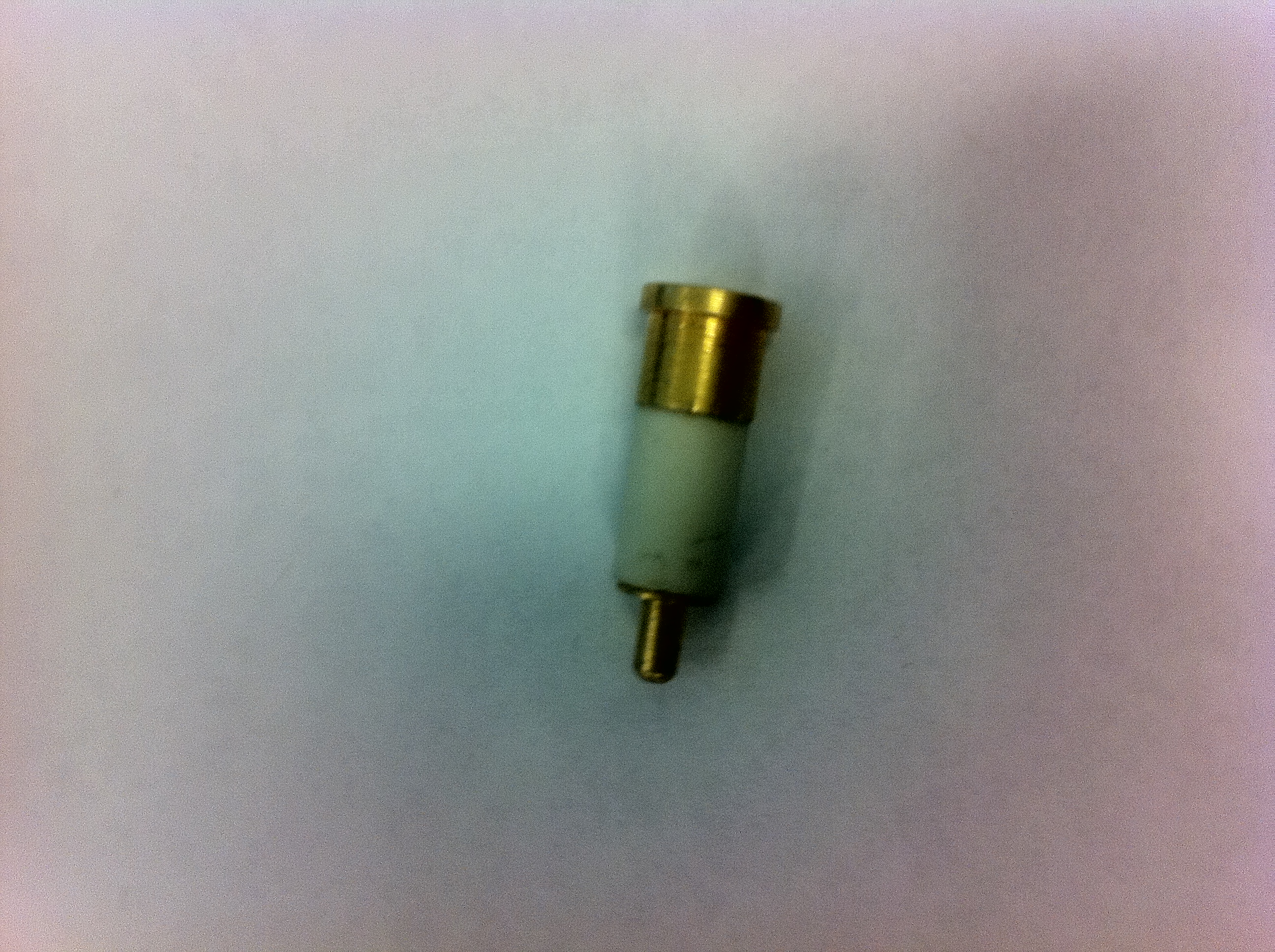

LED+RF Diode

LW 541C-AWDW-6K9L-0-20-BULK-I.jpg
First Solder the led parallel to the Rf diode


RF Diode+ LED+ Wires


Solder One peace of wire to each end of the RF diode which will work as antenna

Make a Call and Put the Circuit Next to Phone

The LED should Light up if the circuit is close enough to the phone while making a call.
I noticed that this works only if you are on EDGE .
If you are on 3G it only works occasionaly and the LED is very DIM
