Four Strand Braiding Jig

By using a jig you can make a very tight braid. Depending in the initial set up the braid can be straight or spiral.

Because the cords are in fixed positions on the jig you can leave the braiding without fear of losing your place.

4 strand braiding jig 001.JPG

I started with a 5" square piece if cardboard (size not critical). Mark one side A and using a scissors make a 1/2" slit in the middle. Across from that make two 1/2" slits about one inch apart.

The side clockwise from side A is side B. Make similar slits on side B and across

4 strand braiding jig 002.JPG
4 strand braiding jig 006.JPG

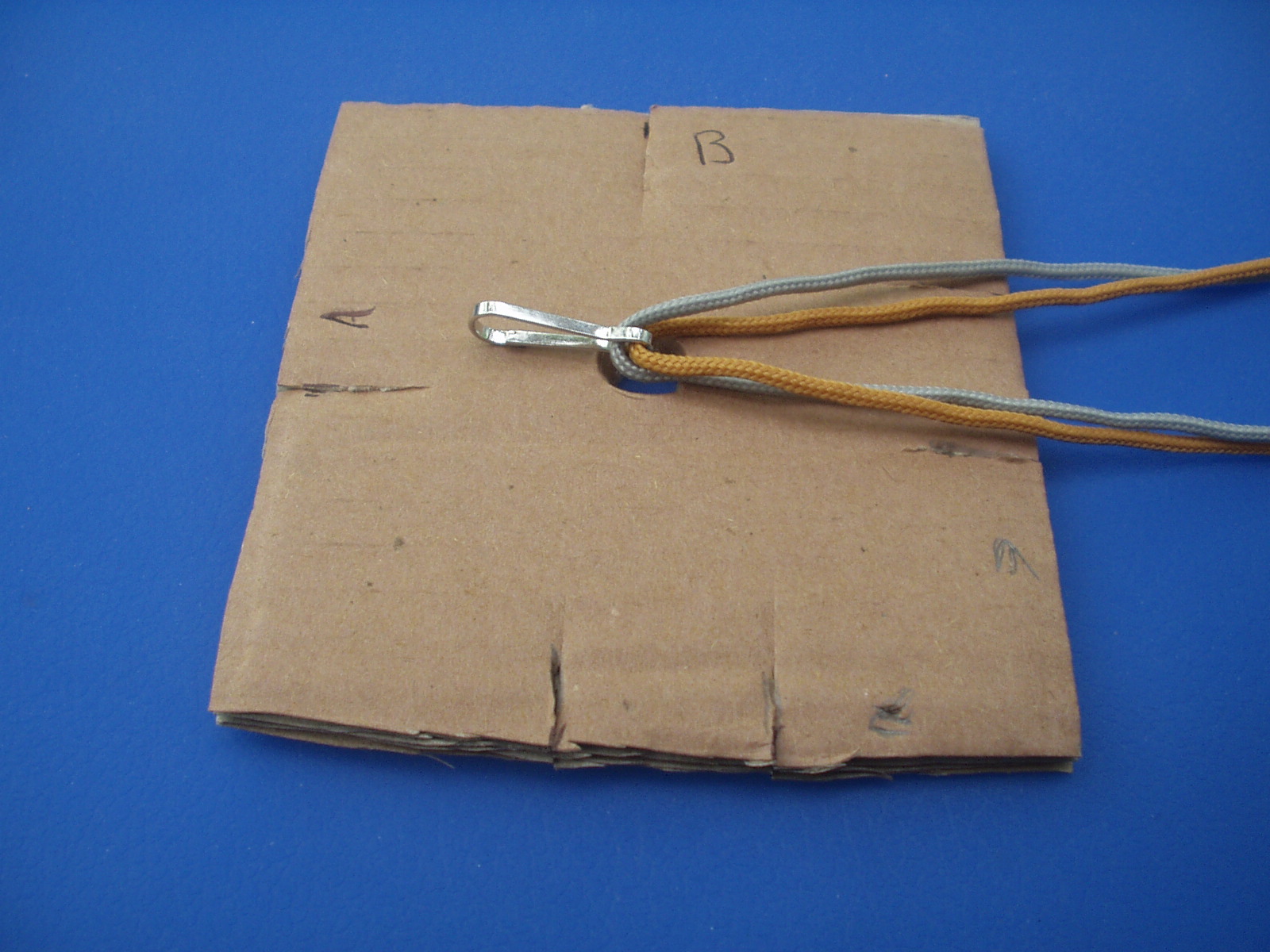

Middle two strands and attach them to a clip or ring. You may also tie four strands together with an overhand knot. Put the four strands in the jig as shown

4 strand braiding jig 004.JPG

Now begins a simple sequence starting with side A at top

Bring top strand down

4 strand braiding jig 012.JPG

Bottom strand up

4 strand braiding jig 013.JPG

Bottom strand to right (cords are back in starting position)

4 strand braiding jig 014.JPG
4 strand braiding jig 016.JPG

Place side B on top. Bring Top strand down

4 strand braiding jig 017.JPG

Bottom strand up

4 strand braiding jig 018.JPG

Bottom strand to left (restores starting position)

4 strand braiding jig 019.JPG

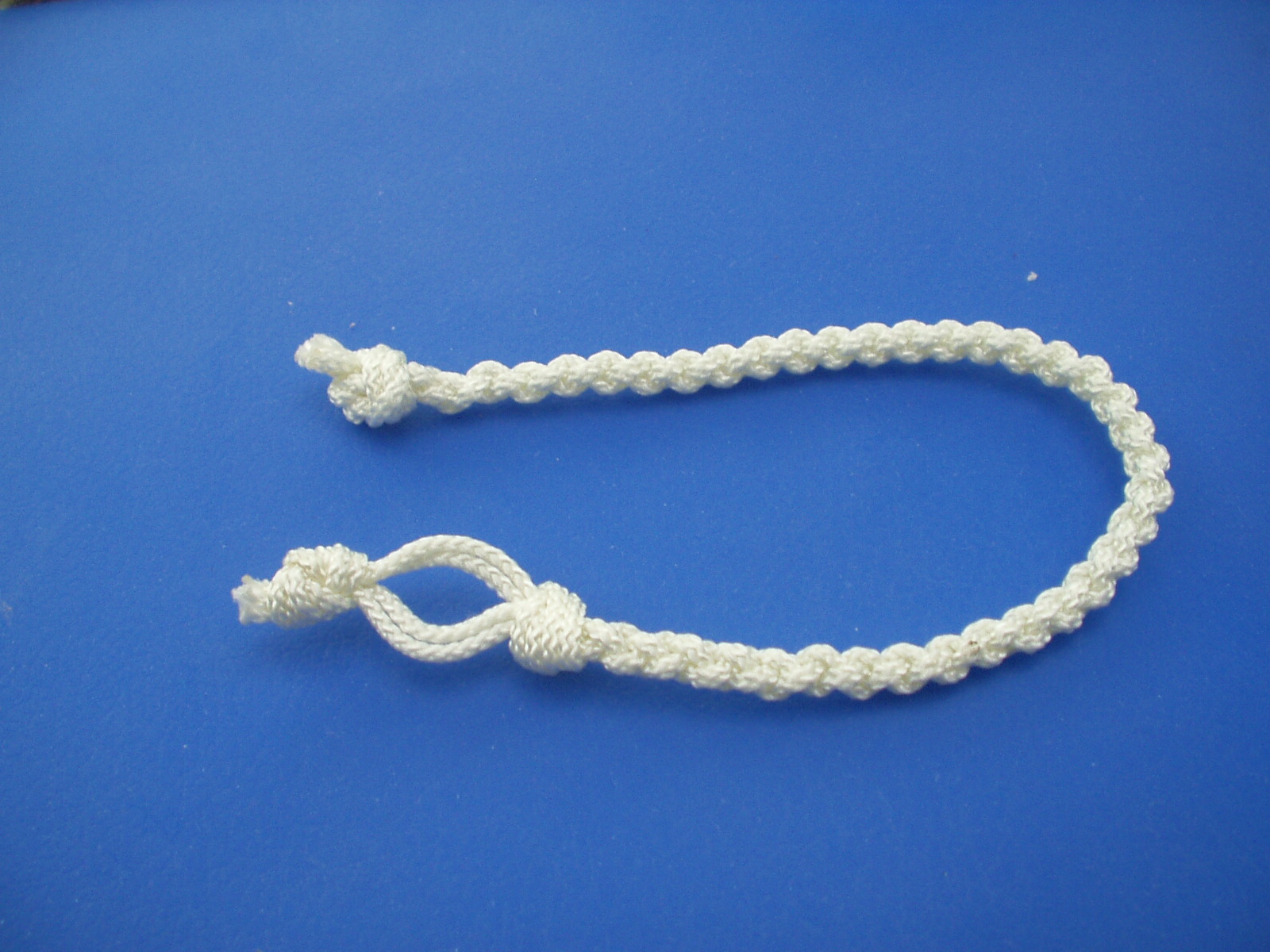

Repeat steps 4 - 9.. After several sequences your braid will look like this

4 strand braiding jig 020.JPG
4 strand braiding jig 021.JPG

Simple variation.

Start with the same color cords adjacent to rather than opposite each other.

Follow the same sequence as described above

This results in a spiral braid.

Experiment with different colors for other effests
