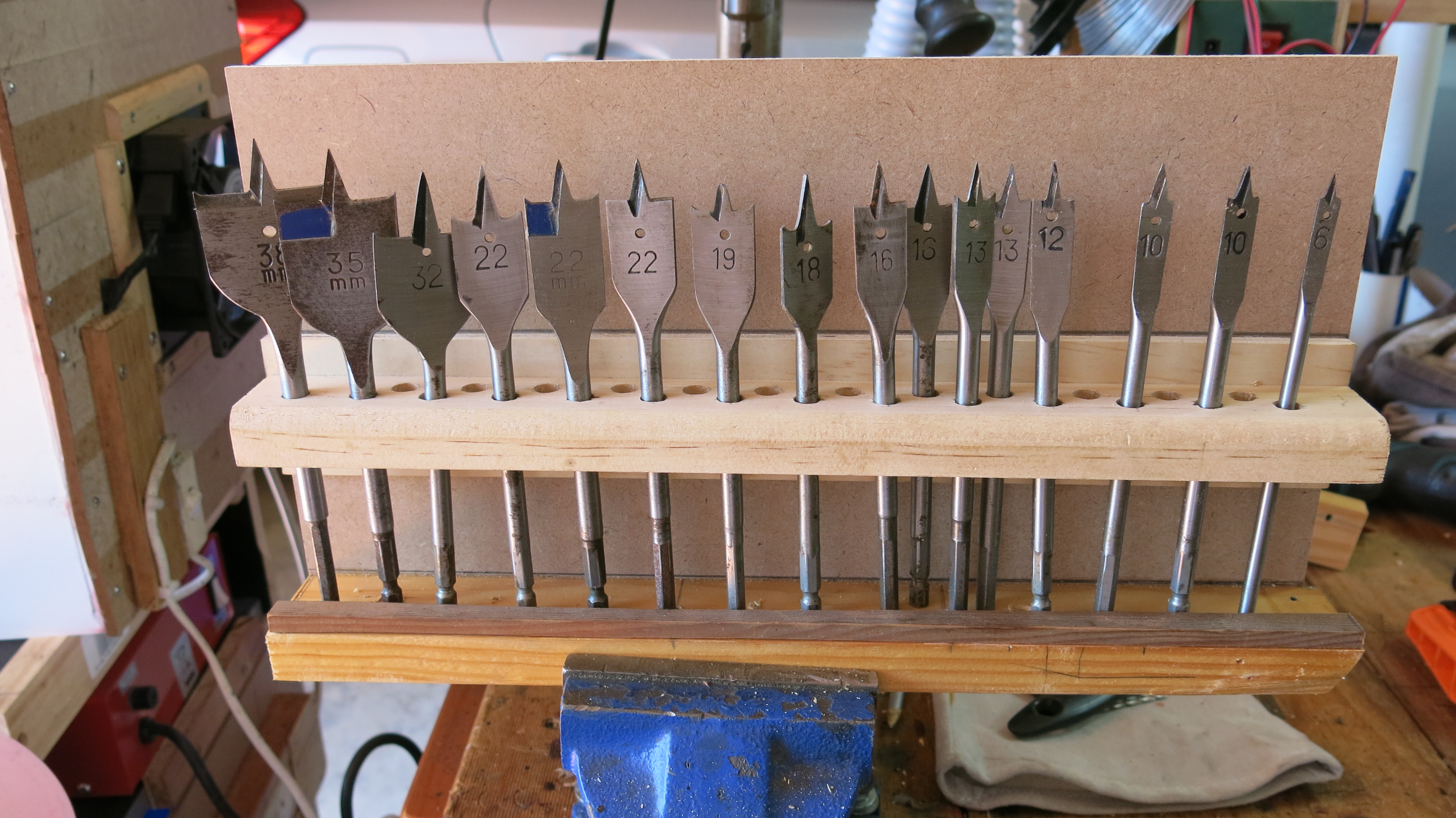

Flat Wood Drill Bits Organizer

if you keep your drill bits and alike in a box. it takes forever to find the correct one....

so i made a nice Holder to keet all in one place nice and organized.

one piece of pine wood 1 1/2" by 13" long by 1/2" Tool Holder or Body

one piece of MDF 1/4 " by 10" by 9" back

one piece of Ply 2" by 13" by 1/8" for the back of the tool holder

one piece of Ply 2" by 13" by 1/4" Base

one piece of wood 13" by 1/8" by 1/4" Trim

Circular table, Drill,Drill bits, Glue, Screws, Clamps,

Bench Drill,

Drill holes on the outside edge of the wood. 1 1/2" apart

then drill holes on the inner part of the wood see picture.

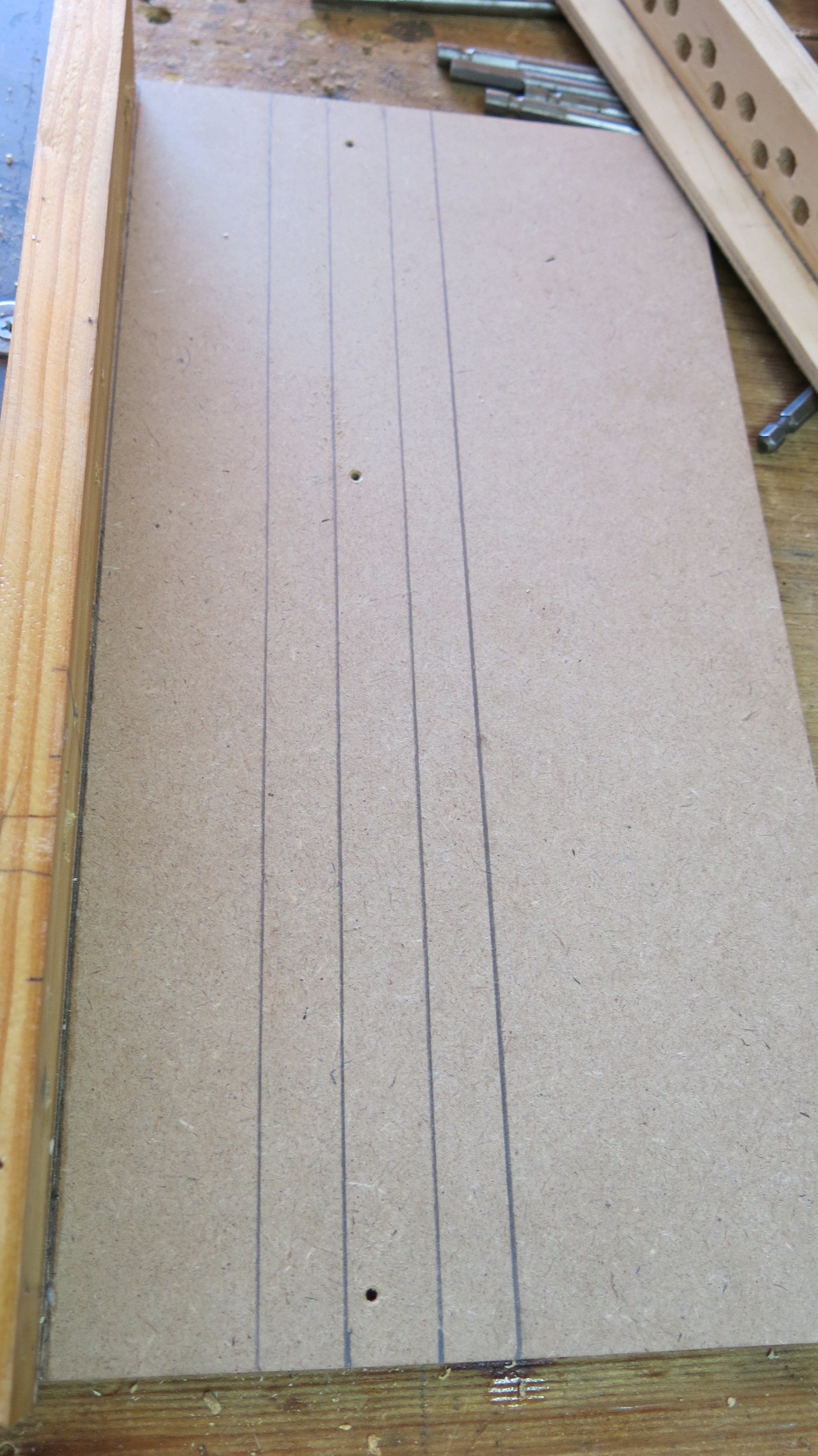

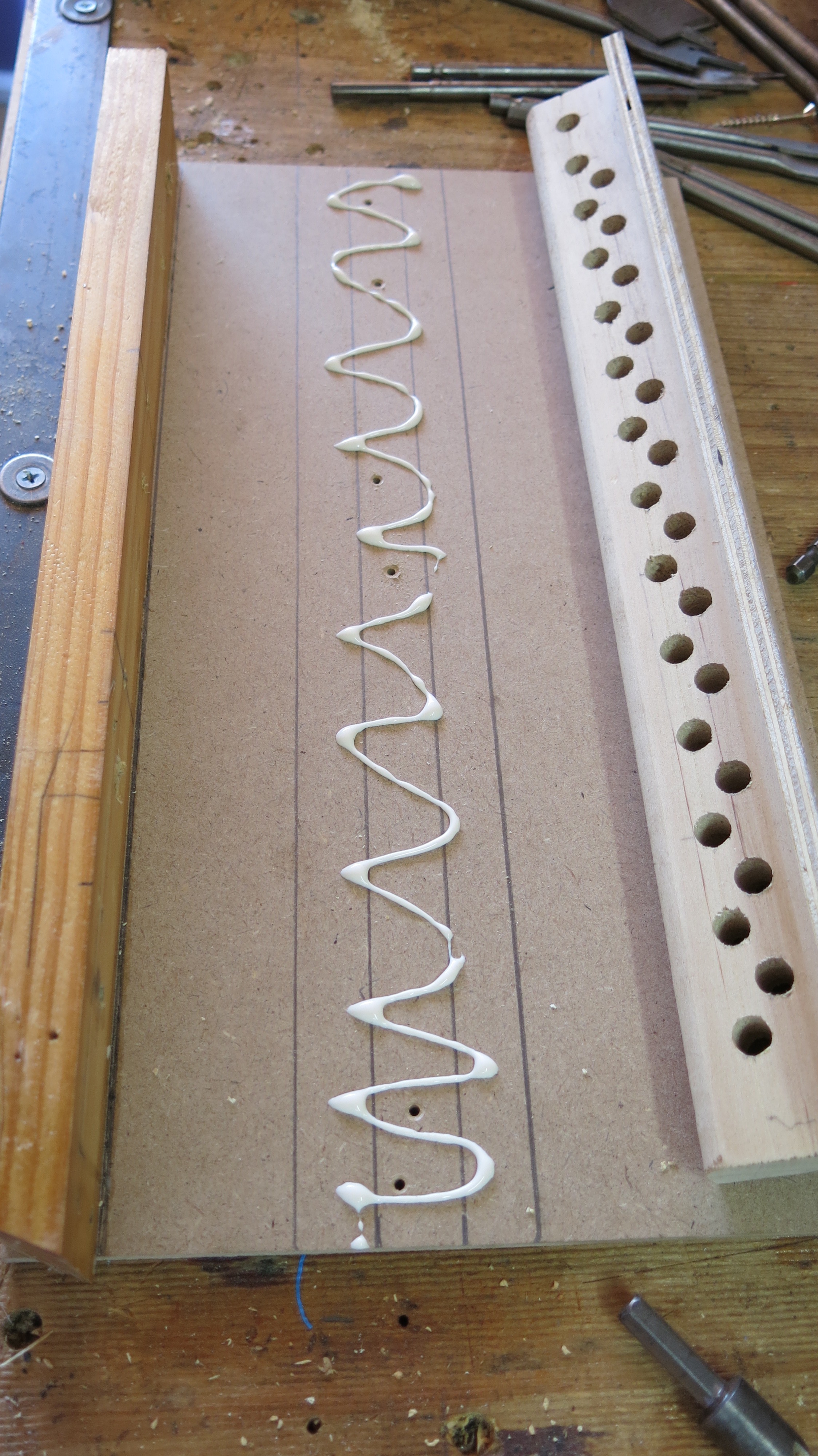

Glue Base to bottom of MDF

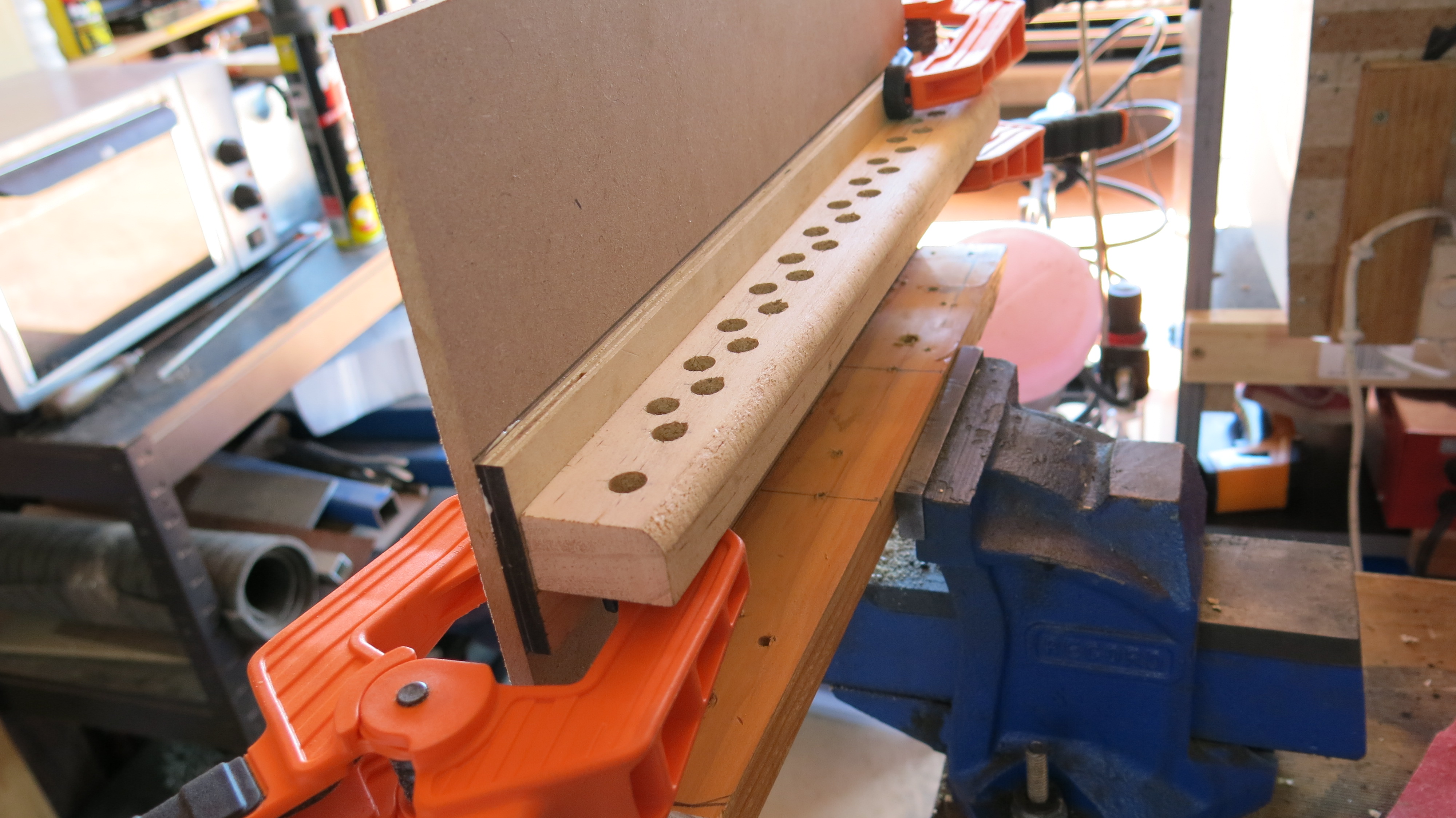

glue the 2"x13" to the back of the tool holder. the wood with all the holes......

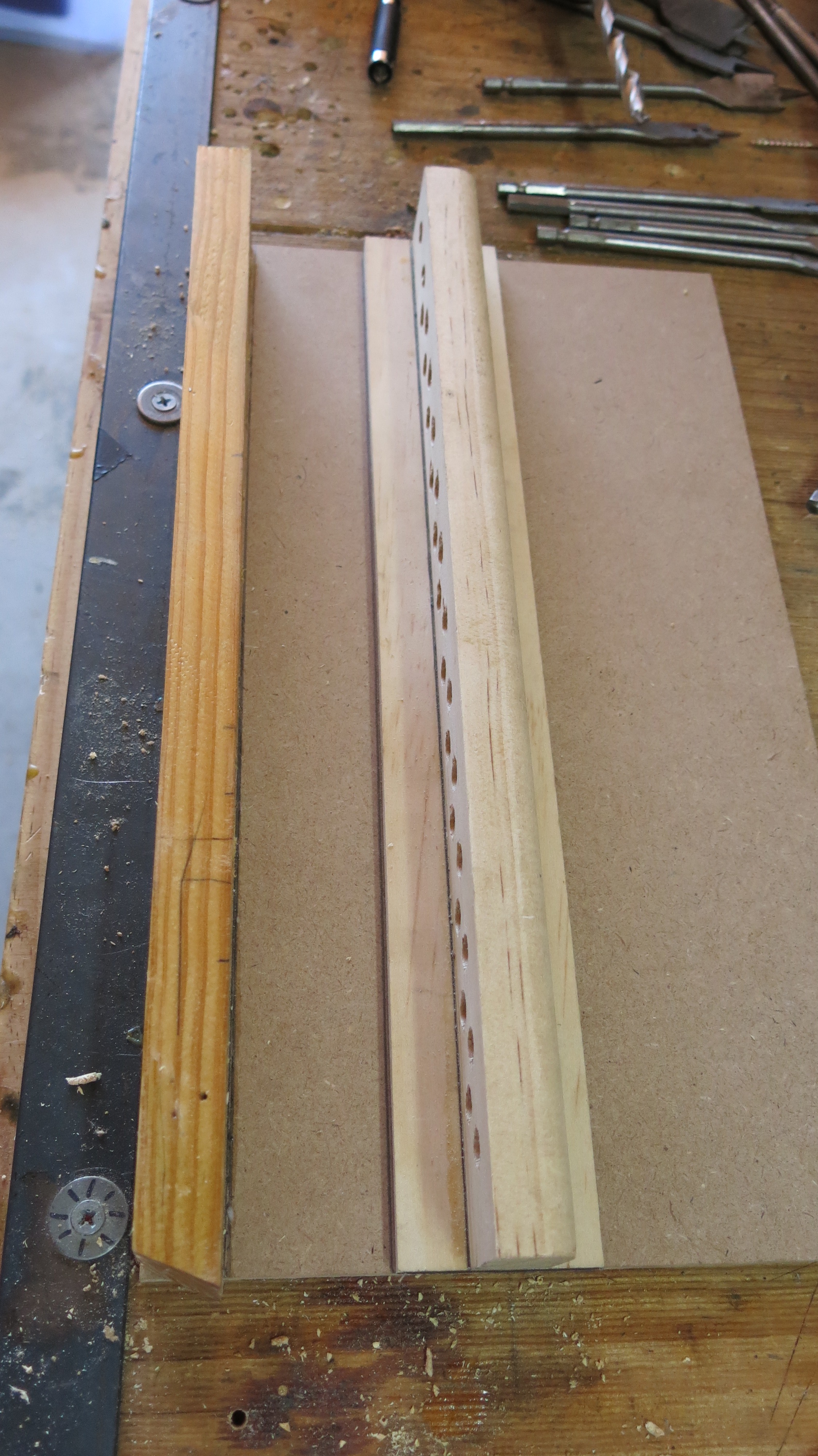

Place theTool Holder or Body in this case, somewhere in the middle of the MDF and glue it in place.

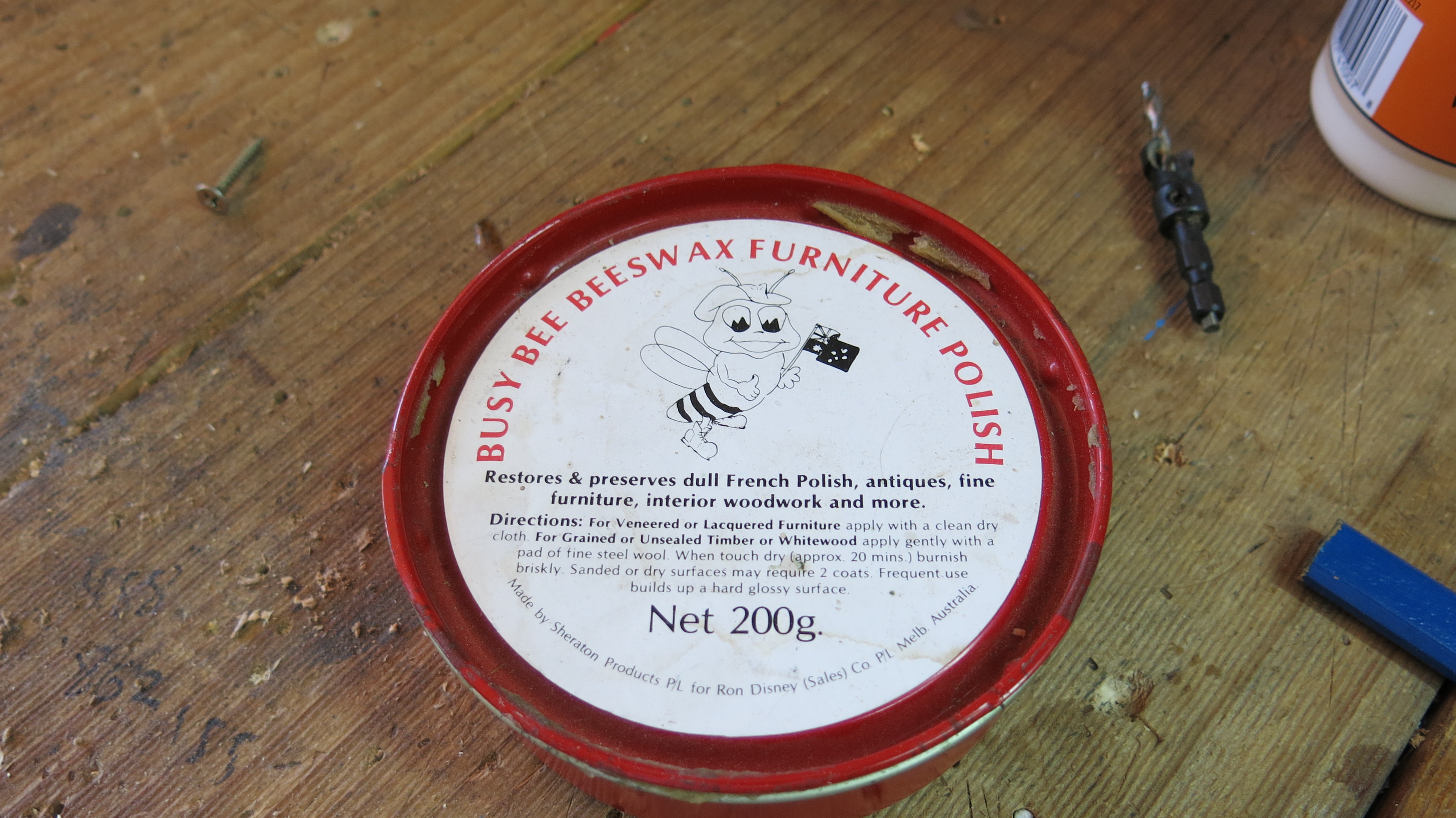

Note the tool holder has a round edge. clean and cover tools with a light coating of bee wax

this will protect them from moisture and corrosion.

Go and make something.
