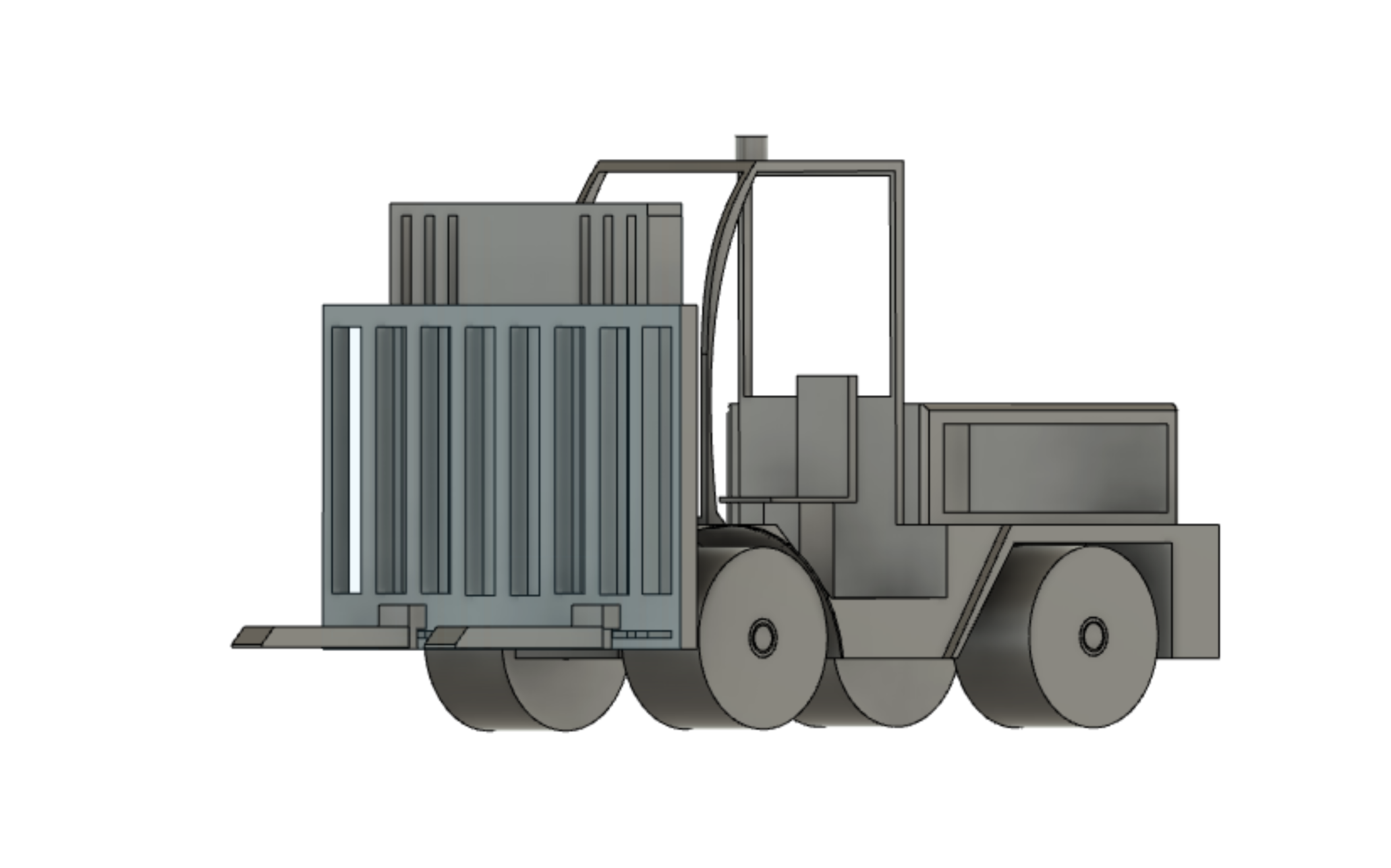

forklift picture front side.png

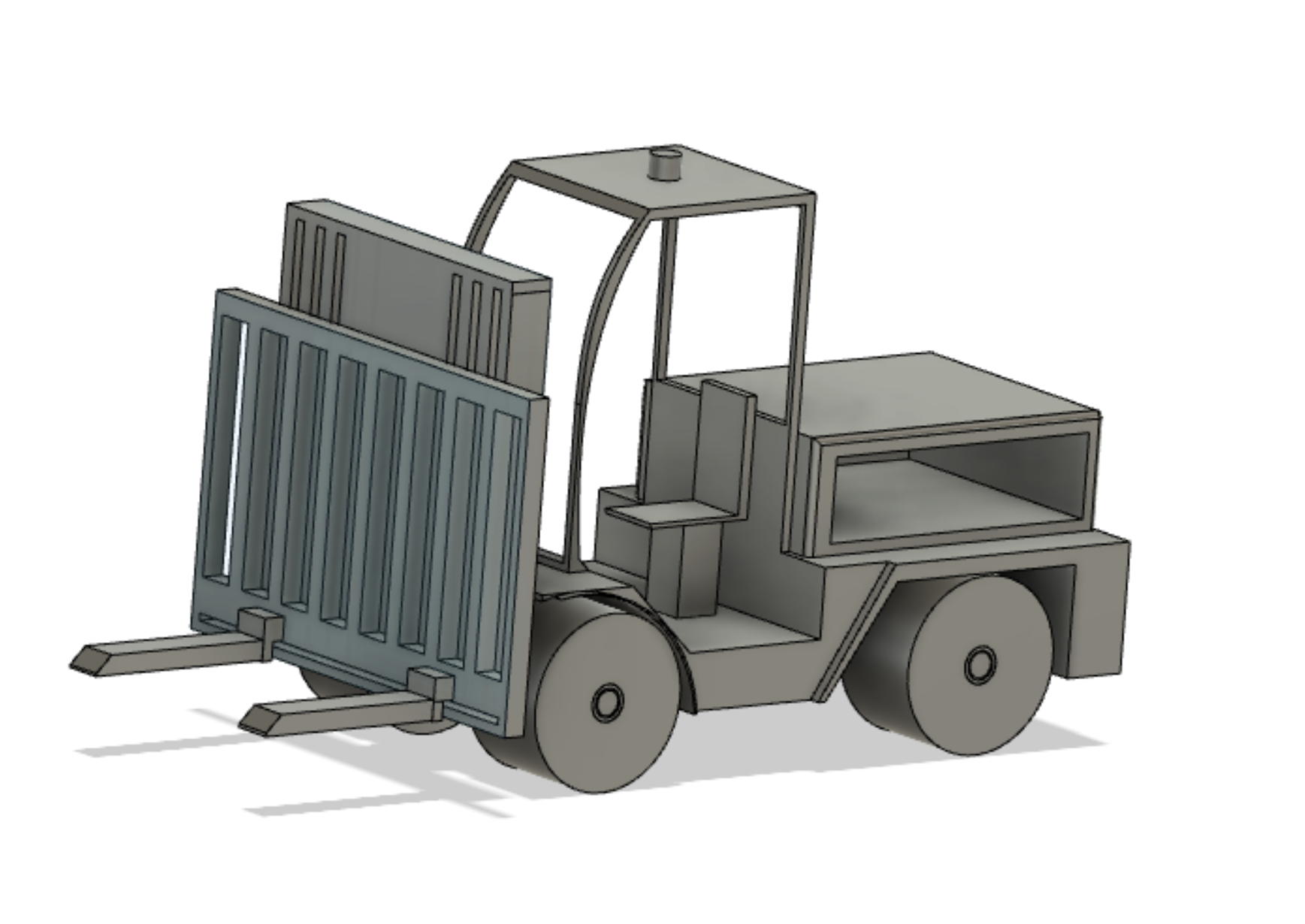

Forklift nice picture.png
Forklift other side.png
forklift picture with open storage unit.png
Fortlift cover.png

I am a Cal Poly Pomona student and the software I used was fusion 360. When creating the forklift I started with the body by creating a box by sketching and extruding it. On top of the box, I placed two other boxes. Once I created the boxes. I extruded cut to make the insides. The wheels, lift, and seat I made from a different tab. The wheels were created by making a circle and extruded extend. The lift was just making rectangles on top of another rectangle and extruded cut small rectangles. Once they were made I inserted them into the body so that I could begin to assemble the forklift. Controlling the forklift would be easy using the power of the hologram computer screen.


The portion of the lift.


How I created the seat was basically just rectangles on top of rectangles.

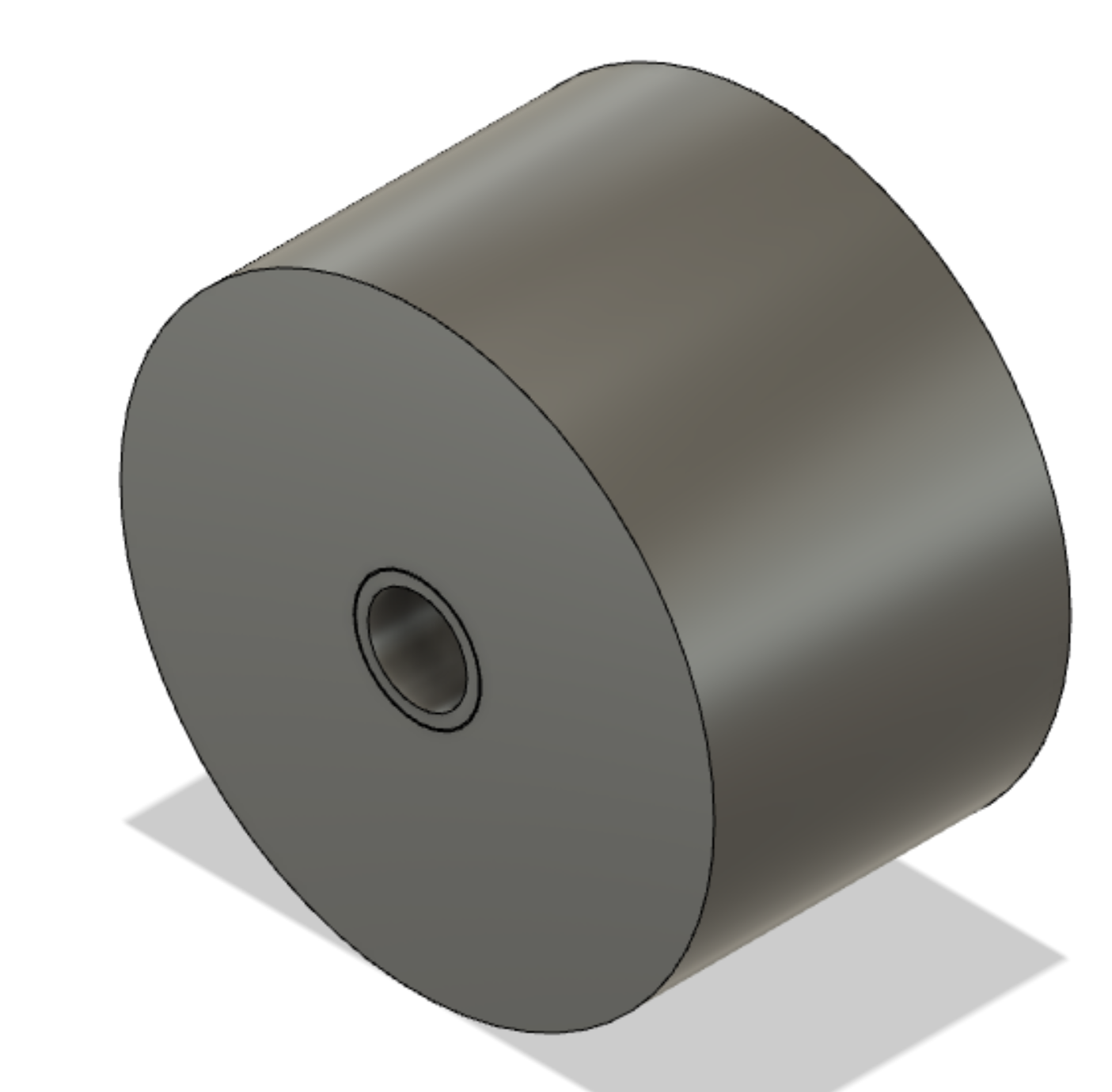

Just create one wheel then copy and paste the wheels.
