Ford FCOM Trouble Codes Freeze Frame Function Guide

FCOM supports so called DTC Freeze frames. Every DTC is assigned variable set of environment data (such as mileage, battery voltage, engine speed, etc) at time of first DTC occurence. If multiple DTCs are present, ECU may record only first DTC freeze frame or only a subset of DTCs may contain freeze frame.

Please note that pre-UDS (ISO14229) ECU freeze frame is mostly limited only to petrol engines. All ISO14229 UDS ECUs usually support freeze frames. Freeze frame contents is determined by ECU for each DTC. The article shows how to read freeze frame for fault codes stored in BCM ECU. Freeze frame is available only for the first DTC displayed.

Preparations:

FCOM Ford OBD2 Diagnostic Software Download

How to Install FCOM Diagnostic Software on Window/Linux

Connection

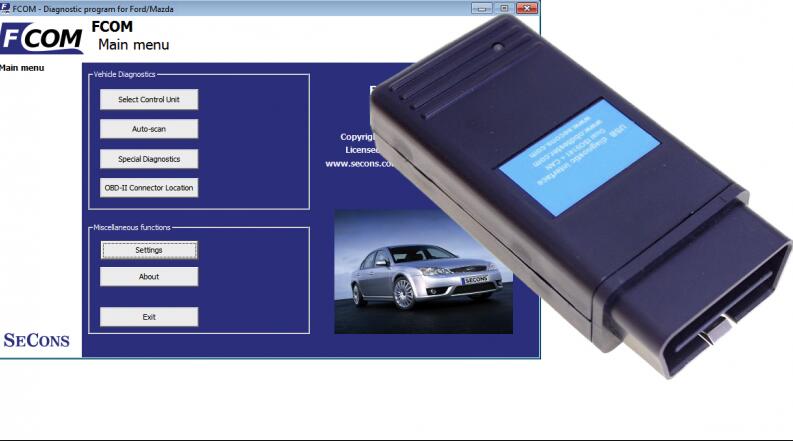

Plug your FCON interface to vehicle,then run FCOM software

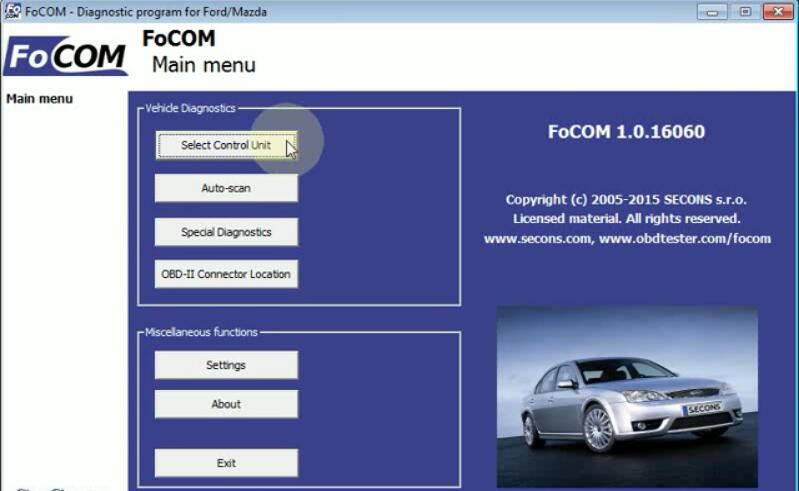

Click “Select Control Unit”

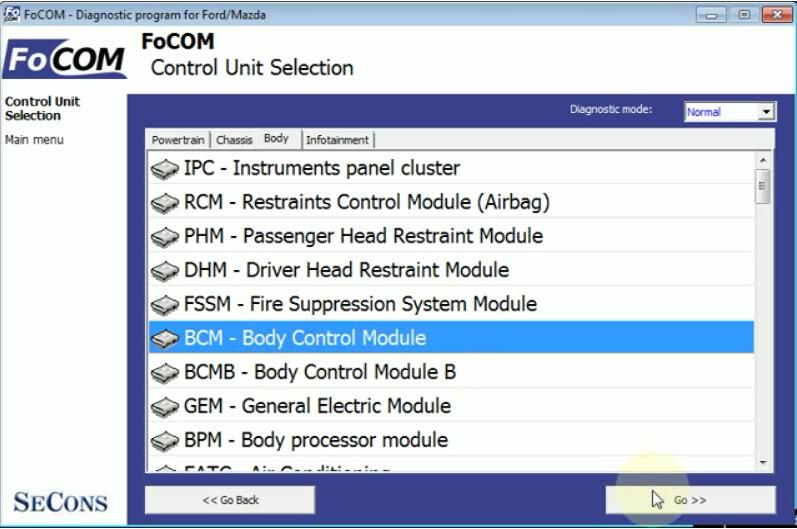

BCM Selection


Click “Body” label and select “BCM-Body Control Module”,then click “Go” to continue

Click “Read Fault Code Memory”

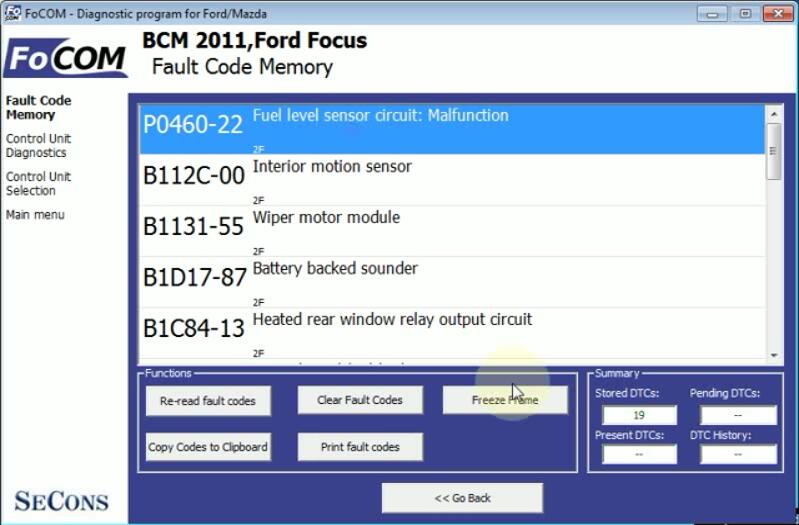

Read diagnostic trouble codes

Freeze Frame Function

Select a stored diagnostic trouble code,then click “Freeze Frame”

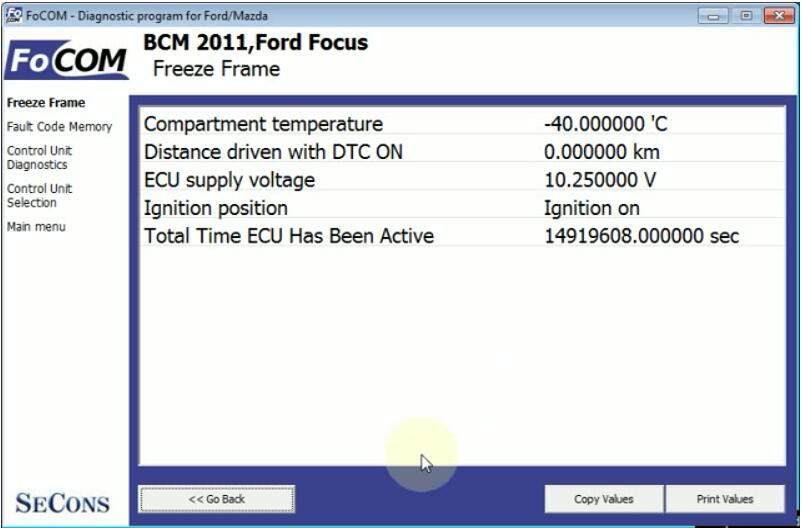

Freeze Data Detail


Now you can view the freeze data
