Foot Pedal Pcb Drill Press
![1.jpg](/proxy/?url=https://content.instructables.com/F3I/7954/J3OPYVR5/F3I7954J3OPYVR5.jpg&filename=1.jpg)
![DIY pcb drill press with foot pedal](/proxy/?url=https://content.instructables.com/FLD/7GC3/J3OPYWA5/FLD7GC3J3OPYWA5.jpg&filename=DIY pcb drill press with foot pedal)
a very useful pcb driil press with foot pedal
i use 3 555 timers to adjust up,down and drill speed

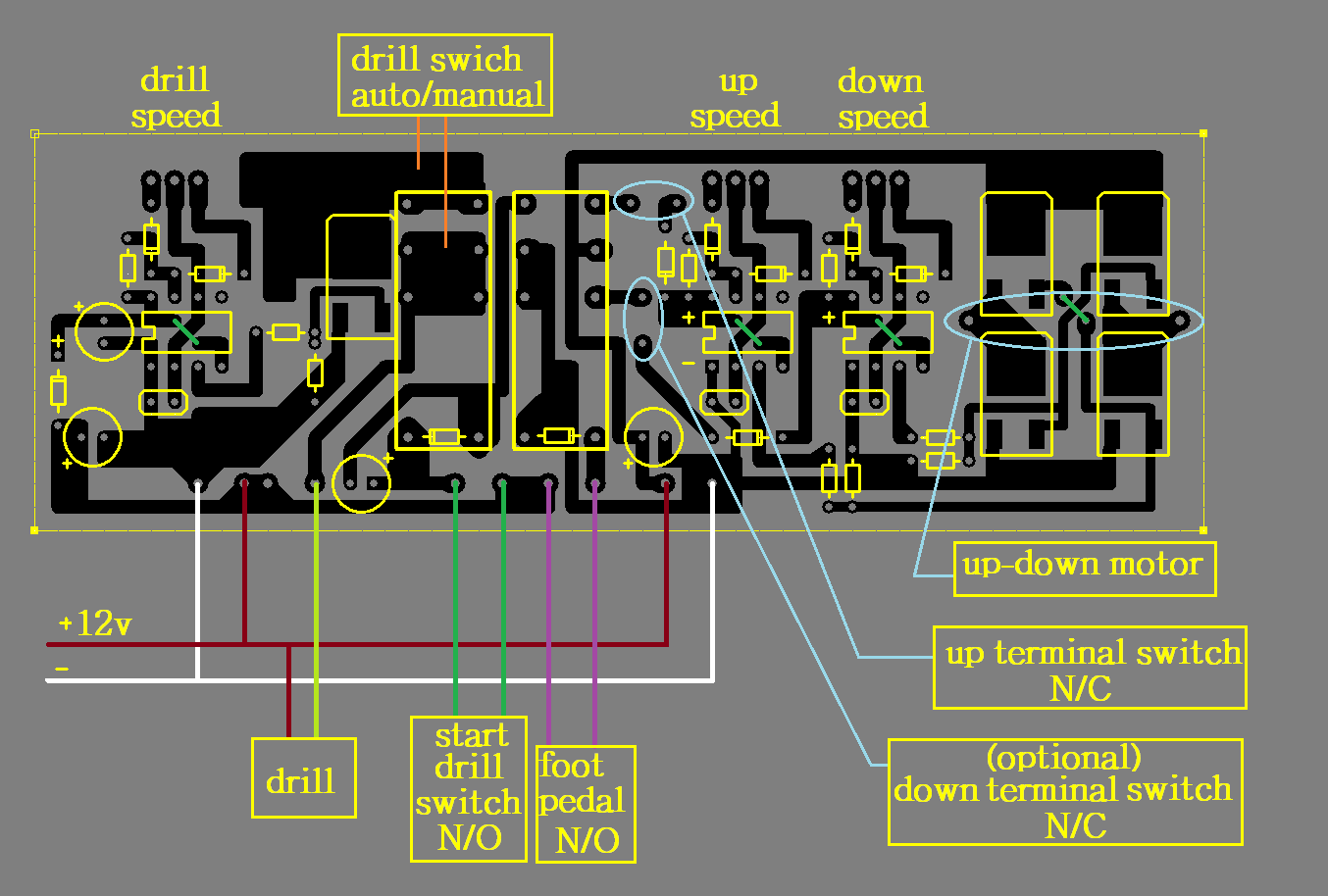

Pcb Layout & Connection Diagram
![3.png](/proxy/?url=https://content.instructables.com/FZM/4GTE/J3OPYVZ6/FZM4GTEJ3OPYVZ6.png&filename=3.png)
![4.png](/proxy/?url=https://content.instructables.com/F8W/1ODM/J3OPYVZR/F8W1ODMJ3OPYVZR.png&filename=4.png)
![mosfets 1.png](/proxy/?url=https://content.instructables.com/FO6/AVD7/J3OPYW8D/FO6AVD7J3OPYW8D.png&filename=mosfets 1.png)
![mosfets 2.png](/proxy/?url=https://content.instructables.com/F88/QMAK/J3OPYW8E/F88QMAKJ3OPYW8E.png&filename=mosfets 2.png)
![items 1.png](/proxy/?url=https://content.instructables.com/F97/SPB6/J3OPZ6MM/F97SPB6J3OPZ6MM.png&filename=items 1.png)
i use expesspcb, its a free and easy program to make pcb's
the mosfets are from an old PC motherboard
Downloads
Build the Press Drill
![items.png](/proxy/?url=https://content.instructables.com/FA6/OMS8/J3OPYWL8/FA6OMS8J3OPYWL8.png&filename=items.png)
![motor drill.png](/proxy/?url=https://content.instructables.com/F5N/W9HP/J3OPYWNR/F5NW9HPJ3OPYWNR.png&filename=motor drill.png)
![up terminal swich.png](/proxy/?url=https://content.instructables.com/FIO/REEI/J3OPYWQA/FIOREEIJ3OPYWQA.png&filename=up terminal swich.png)
i use items from old printers. you can use better meterials!
the motor for up-down movement, must be geared for easiest control
the drill is a cheap 12v dremmel
Make the Drill Start Automatically
![start drill switch 1.png](/proxy/?url=https://content.instructables.com/F7U/9QDF/J3OPYYFK/F7U9QDFJ3OPYYFK.png&filename=start drill switch 1.png)
![start drill switch 2.png](/proxy/?url=https://content.instructables.com/FJL/JTP8/J3OPYYN0/FJLJTP8J3OPYYN0.png&filename=start drill switch 2.png)
![3_1.png](/proxy/?url=https://content.instructables.com/FY6/LV62/J3OPYZ9D/FY6LV62J3OPYZ9D.png&filename=3_1.png)
make the drill start automatically when it reach the pcb

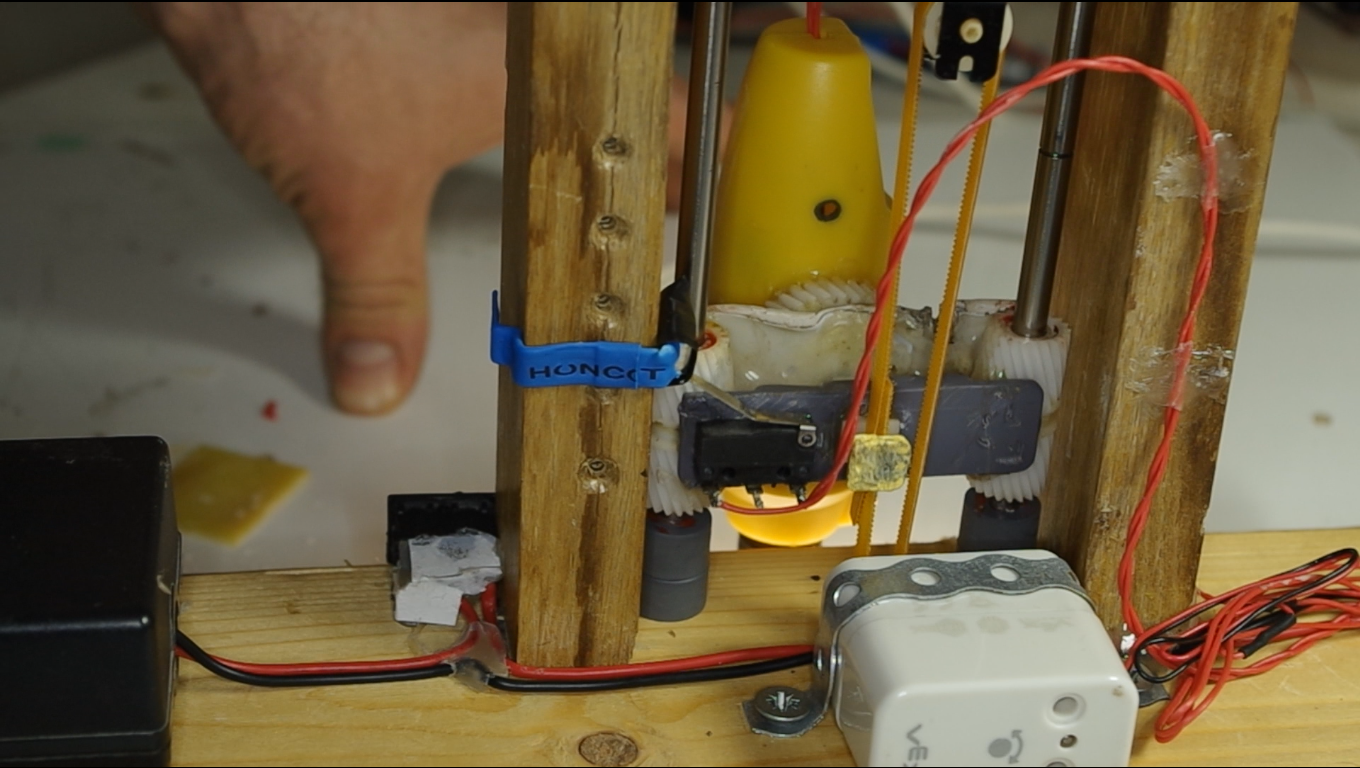

i use a terminal switch at back place of the drill's motor
Make the Up/down Movement Stop Automatically
![up terminal swich.png](/proxy/?url=https://content.instructables.com/FI3/4PGT/J3OPZ4LY/FI34PGTJ3OPZ4LY.png&filename=up terminal swich.png)
![test 3.png](/proxy/?url=https://content.instructables.com/F9C/0EPM/J3OPZ4FJ/F9C0EPMJ3OPZ4FJ.png&filename=test 3.png)
![test 4.png](/proxy/?url=https://content.instructables.com/F85/1466/J3OPZ4IW/F851466J3OPZ4IW.png&filename=test 4.png)
![3_2.png](/proxy/?url=https://content.instructables.com/F1R/QG4J/J3OPZ4OX/F1RQG4JJ3OPZ4OX.png&filename=3_2.png)
make the up/down movement stop automatically
Connect the Wiring
![3.png](/proxy/?url=https://content.instructables.com/F1T/GTJV/J3OPZ0FK/F1TGTJVJ3OPZ0FK.png&filename=3.png)
![connections 2.png](/proxy/?url=https://content.instructables.com/FBG/0V1B/J3OPYZW7/FBG0V1BJ3OPYZW7.png&filename=connections 2.png)
![connections 3.png](/proxy/?url=https://content.instructables.com/FNM/ZWZV/J3OPYZXH/FNMZWZVJ3OPYZXH.png&filename=connections 3.png)
![connections 5.png](/proxy/?url=https://content.instructables.com/FAZ/S8KE/J3OPZ02O/FAZS8KEJ3OPZ02O.png&filename=connections 5.png)
![connections 6.png](/proxy/?url=https://content.instructables.com/FLC/F48D/J3OPZ032/FLCF48DJ3OPZ032.png&filename=connections 6.png)
![connections 7.png](/proxy/?url=https://content.instructables.com/FHN/F1MW/J3OPZ03J/FHNF1MWJ3OPZ03J.png&filename=connections 7.png)
connect all the cables..
the power supply is 12v, at least 2A
Make a Foot Pedal
![1.jpg](/proxy/?url=https://content.instructables.com/FA4/6Z90/J3OPZ1Q6/FA46Z90J3OPZ1Q6.jpg&filename=1.jpg)
![foot pedal.png](/proxy/?url=https://content.instructables.com/FQV/GKWO/J3OPZ1U7/FQVGKWOJ3OPZ1U7.png&filename=foot pedal.png)
![3.png](/proxy/?url=https://content.instructables.com/FNY/20A7/J3OPZ1WN/FNY20A7J3OPZ1WN.png&filename=3.png)
![test 1.png](/proxy/?url=https://content.instructables.com/FDQ/4RQV/J3OPZ3Q8/FDQ4RQVJ3OPZ3Q8.png&filename=test 1.png)
![test 2.png](/proxy/?url=https://content.instructables.com/FOE/1EEA/J3OPZ3S6/FOE1EEAJ3OPZ3S6.png&filename=test 2.png)
i make a simple foot pedal with a button switch.
