Folding Hanging Work-table

The spring came so I decided to refresh my room’s interior.

I’ve thrown out my old couch and then, while waiting for delivery of the new one, I decided to paint up the walls. I’ve also come to idea to create a work-table. Since the apartment I have is quite small, and the room is only 11 square meters, I decided to create a folding table.

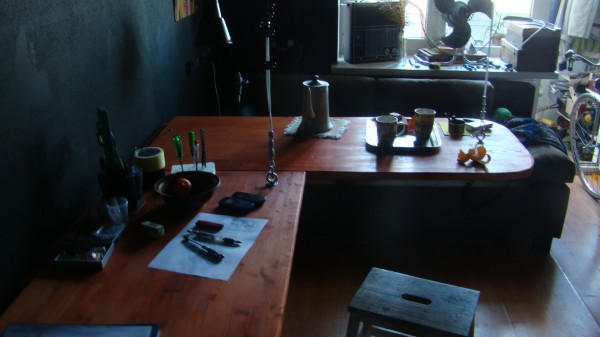

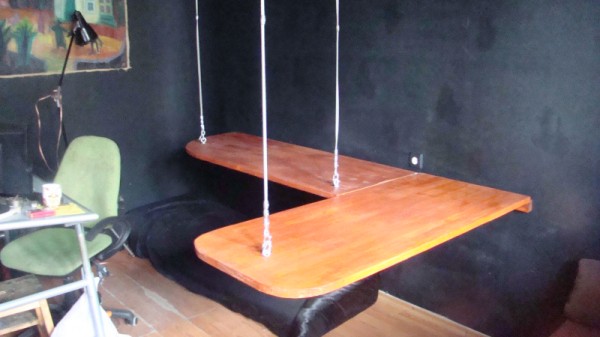

And this is what came out of it:

I picked two boards sized 28x600x1200 mm and 28x600x1600 mm, at prices of 25 and 30 euro, bought cable steering, bolts, nuts, clamps, hinges, screws, three turnbuckle and anchor for the walls (total sum is about 30 euros) and a long square bar 50x50x2000 mm (5 euros). All was about as previous.

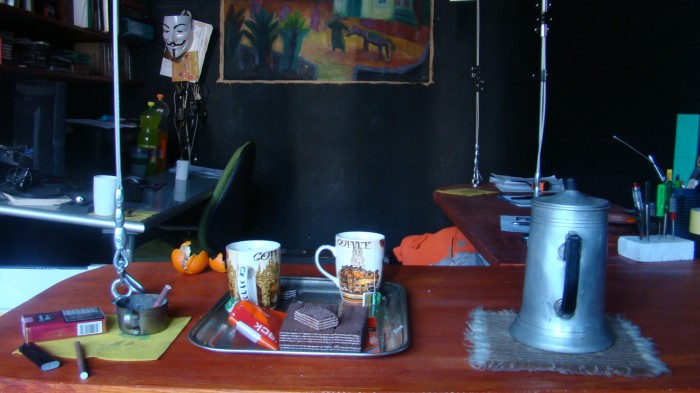

I sawed square bar into three parts so that the walls curve for the same reason, one had to file sheets. For attachment to the walls and ceiling, I used the anchor. Slings are regulated by a turnbuckle.

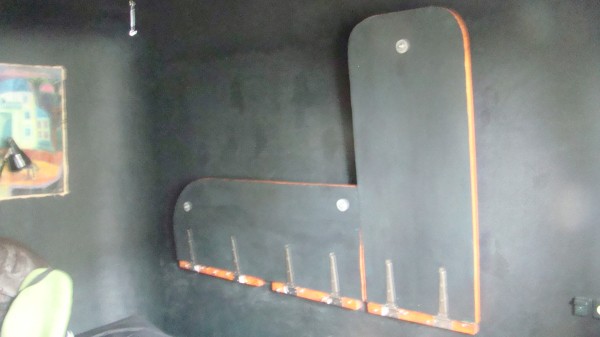

The shield is attached with hinges. Nothing complicated. Everything is very simple and reliable. The maximum weight for which I checked is 100 kilogram.

I’m sure there’s no sense to explain how to design this structure. Yet, while working, I realised that you can also make a similar table folding down. This can be assembled using the shorter parts and hinges to make longer ones.

I hope you'll find this useful.
