Folding Side Table
![Table stained 1.jpg](/proxy/?url=https://content.instructables.com/FEH/9YA6/KID4YV8N/FEH9YA6KID4YV8N.jpg&filename=Table stained 1.jpg)
![Table stained 3.jpg](/proxy/?url=https://content.instructables.com/FLO/7NIM/KID4YV8L/FLO7NIMKID4YV8L.jpg&filename=Table stained 3.jpg)
![Table stained 2.jpg](/proxy/?url=https://content.instructables.com/FDQ/F7GC/KID4YV8M/FDQF7GCKID4YV8M.jpg&filename=Table stained 2.jpg)
![Folding side table](/proxy/?url=https://content.instructables.com/FCJ/G0CD/KID4Y5PM/FCJG0CDKID4Y5PM.jpg&filename=Folding side table)
This folding table is build from 3/4" plywood.
I created this instructable specifically for the plywood challenge. It is basically made of no other materials but plywood!
There are no metal hinges or any other hardware. No screws or nails needed!
Other then the plywood the only thing you need is a 1/2" wood dowel. They come in 48" length and one will be enough. Other then that some wood glue and basic wood working tools.
Power tools:
- table saw
- jig saw
- mitre saw
- belt sander
- drill
Other tools:
- some trigger clamps or clutch style bar clamps
- hand saw
- hammer
- sand paper

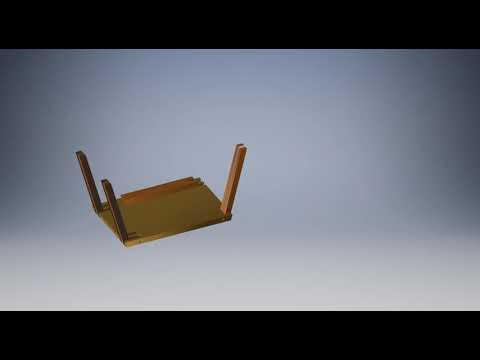

The drawings, renderings and assembly animation were created using Autodesk Inventor.
Supplies
2' x 4' plywood sheet 3/4" thick
1/2" diameter by 48" long wood dowel
Material
![20201121_153233.jpg](/proxy/?url=https://content.instructables.com/FKP/GVH1/KHT4SOBI/FKPGVH1KHT4SOBI.jpg&filename=20201121_153233.jpg)
![20201121_153345.jpg](/proxy/?url=https://content.instructables.com/FBA/CS3V/KHT4SOBM/FBACS3VKHT4SOBM.jpg&filename=20201121_153345.jpg)
I bought a full 4' x 8' sheet of 3/4" sanded plywood.
You can buy a small 2' x 4' panel at Home-depot but the cost per square foot is way higher.
The 2' x 4' sheet is enough to make the table.
I got the panel cut in half at the store to get two 4' x 4' pieces. Then cut one of them in half again to 2' x 4'.
This makes it much easier to get them home. I also don't have a big table saw to handle the full 4' x 8' sheets of ply wood.
Design
![table open 2.png](/proxy/?url=https://content.instructables.com/FI7/7PV1/KI5ZQXBR/FI77PV1KI5ZQXBR.png&filename=table open 2.png)
![table folded 1 leg.png](/proxy/?url=https://content.instructables.com/FFI/5RGQ/KI5ZQXBQ/FFI5RGQKI5ZQXBQ.png&filename=table folded 1 leg.png)
![table folded both legs.png](/proxy/?url=https://content.instructables.com/FYZ/TGFH/KI5ZQXBN/FYZTGFHKI5ZQXBN.png&filename=table folded both legs.png)
![foldet top view 1.png](/proxy/?url=https://content.instructables.com/FSD/O0V1/KI5ZQXBM/FSDO0V1KI5ZQXBM.png&filename=foldet top view 1.png)
Here is the basic design of the table.
Size like length and width can easily be changed to your desired table size.
The table built in this instructable is about 24 inches long by 16 inches wide.
The height will be approximately 15 inches.
For this size I chose a table thickness of 1.25".
A larger table should be maybe 1.5" thickness for extra strength.
Download the pdf for drawings with dimensions.
Downloads
Cutting Strips for the Table Top
![20201123_115746.jpg](/proxy/?url=https://content.instructables.com/FPI/IAMS/KHUK7XFH/FPIIAMSKHUK7XFH.jpg&filename=20201123_115746.jpg)
![20201123_115831.jpg](/proxy/?url=https://content.instructables.com/FVC/9JWR/KHUK7XFG/FVC9JWRKHUK7XFG.jpg&filename=20201123_115831.jpg)
![20201123_122839.jpg](/proxy/?url=https://content.instructables.com/F9X/26Y7/KHUK7XFF/F9X26Y7KHUK7XFF.jpg&filename=20201123_122839.jpg)
Starting with the 2' x 4' pre-cut sheet.

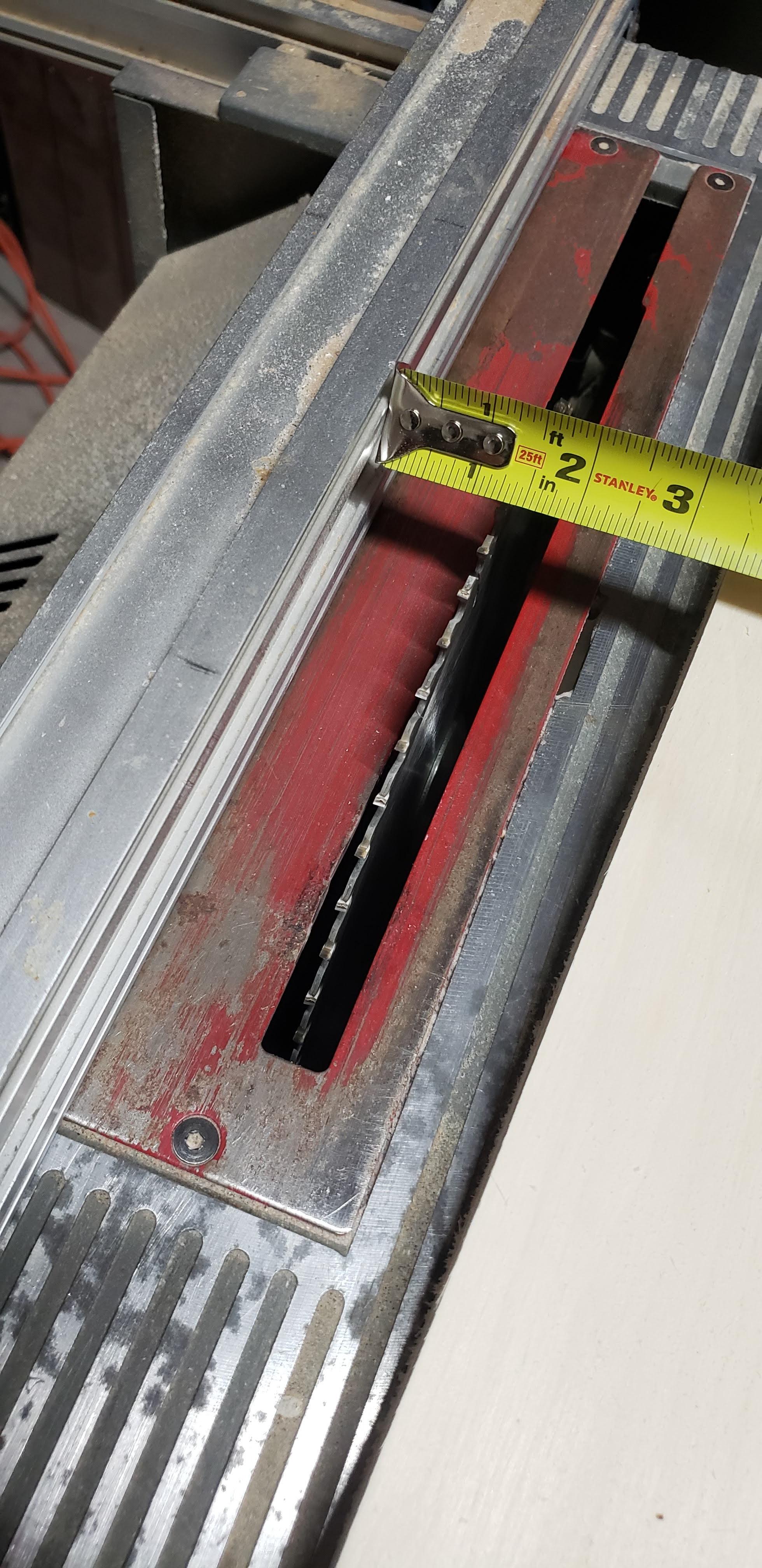

Set the table-saw to 1.25 and cut 21 strip along the 24" edge.
Stand the pieces up on the cut edge and you should get a width of 15.75 inches. If you want the table to be a bit wider just ad more strips.
Gluing the Pieces for the Top
![glue the top.jpg](/proxy/?url=https://content.instructables.com/FHP/NPYK/KI4KALZY/FHPNPYKKI4KALZY.jpg&filename=glue the top.jpg)
Apply wood glue on the flat sides of the pieces just cut and stand them up side by side on a flat surface.
I put a piece of plastic sheet (vapor barrier) down on a table or workbench so the pieces won't glue onto your work surface.
Use several clamps and let the glue dry for a few hours.
I used 13 of the cut strips to create a board that is just under 10" wide. This is not the final width of the table.
The width of the fold-able legs will add to the final width.
Cutting Leg Pieces
![leg left.jpg](/proxy/?url=https://content.instructables.com/FR6/LQNT/KI4KAN3B/FR6LQNTKI4KAN3B.jpg&filename=leg left.jpg)
![20201127_162112.jpg](/proxy/?url=https://content.instructables.com/FEL/9RG2/KI09Z2ES/FEL9RG2KI09Z2ES.jpg&filename=20201127_162112.jpg)
![table folding from front](/proxy/?url=https://content.instructables.com/F91/1L6D/KID4YEND/F911L6DKID4YEND.jpg&filename=table folding from front)
There are two different legs that need to be made.
We will call them the left and the right legs.
The left legs have a longer angled tab. The shorter once are on the right.

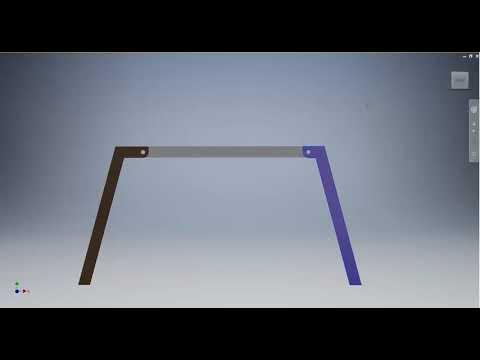

Look at the short video to see how the folding legs are hinged and lay flat against the underside of the table. The right leg folds flat under the table. The left leg (with the longer tab) will then fold flat against the right leg.

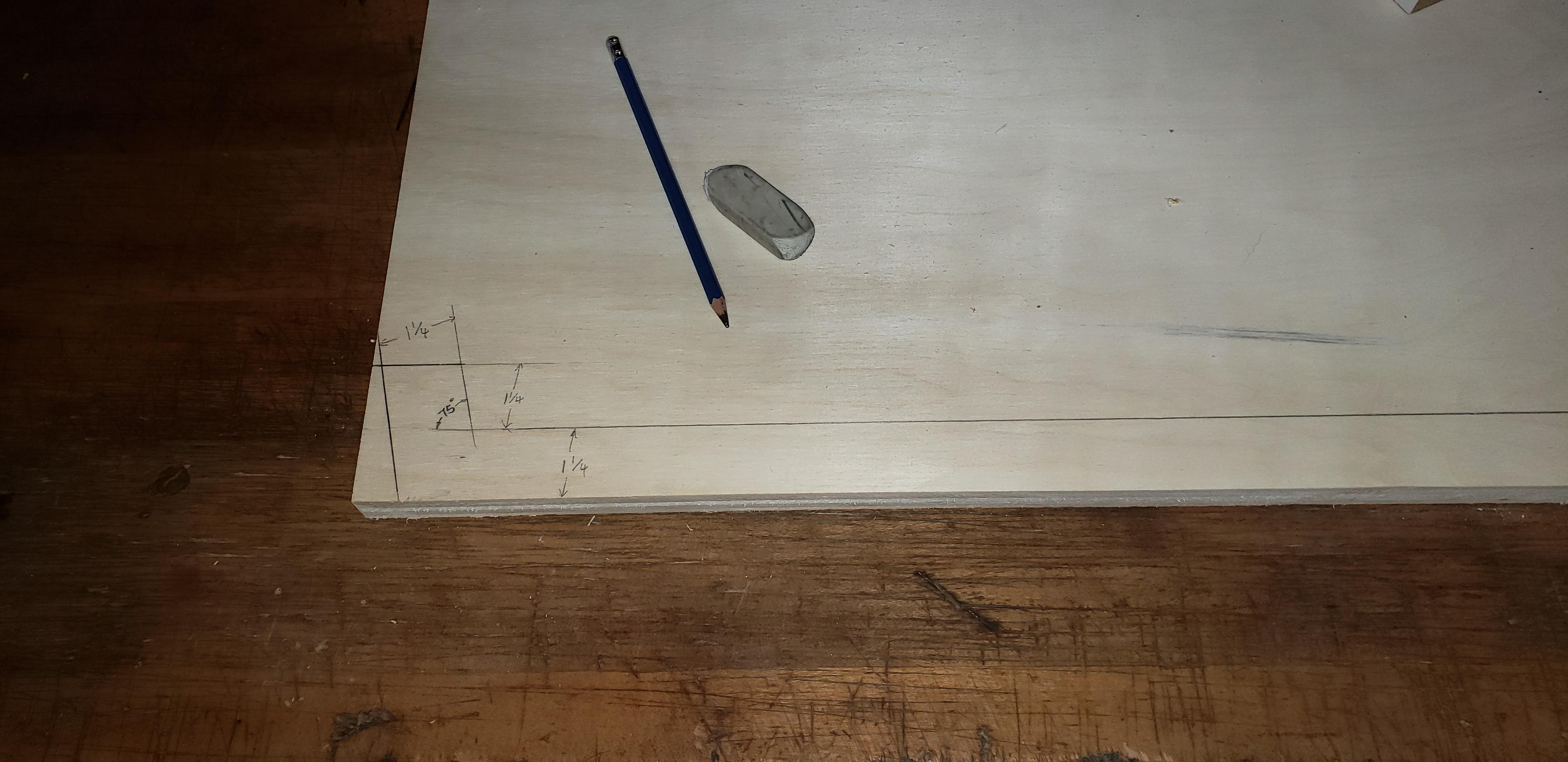

The pictures will show you how to mark the legs for cutting. You need to cut 4 pieces each.
When cutting the tabs with a skill saw i stay about 1/16 from the marked line.
The extra material will be sanded away with the beltsander after assembly.
Some Istructables require the use of a CNC wood router. This would work really nice to cut those leg pieces. I don't have access to that equipment. I am pretty sure not many hobbyists do. So the jigsaw and some extra sanding will be just fine.
Gluing the Four Legs
![legs.jpg](/proxy/?url=https://content.instructables.com/FO6/NRZ0/KID4Y6CK/FO6NRZ0KID4Y6CK.jpg&filename=legs.jpg)
![sanding of legs.jpg](/proxy/?url=https://content.instructables.com/F9B/E77J/KID4Y9GG/F9BE77JKID4Y9GG.jpg&filename=sanding of legs.jpg)
Take two long leg pieces and a short leg piece and glue them together.
Repeat this four times to create two leg assemblies with the longer tab(left legs) and two leg assemblies with the shorter tab (right legs)
Don't worry if it looks a bit rough. Take the belt sander after the glue is dry and get everything smooth.
Adding the Short Top Pieces
![top with shorts.jpg](/proxy/?url=https://content.instructables.com/FP8/UY5R/KID4Y8X7/FP8UY5RKID4Y8X7.jpg&filename=top with shorts.jpg)
![leg and top.jpg](/proxy/?url=https://content.instructables.com/F1Y/HQS5/KID4Y6CL/F1YHQS5KID4Y6CL.jpg&filename=leg and top.jpg)
Lay in the left and right leg pieces to have the proper alignment.
Assembly and Drilling
![drilled.jpg](/proxy/?url=https://content.instructables.com/F98/E0CS/KID4YAHS/F98E0CSKID4YAHS.jpg&filename=drilled.jpg)
![Drilling.jpg](/proxy/?url=https://content.instructables.com/FQB/AEGG/KID4YTFW/FQBAEGGKID4YTFW.jpg&filename=Drilling.jpg)
Once the top is ready and the leg assemblies are glued assemble them and drill the 1/2" hole and insert a dowel to create the hinge.
I don't have a drill press so hand drilling with a re-chargeable drill will have to do. Try to keep the drill as straight (perpendicular) as possible.

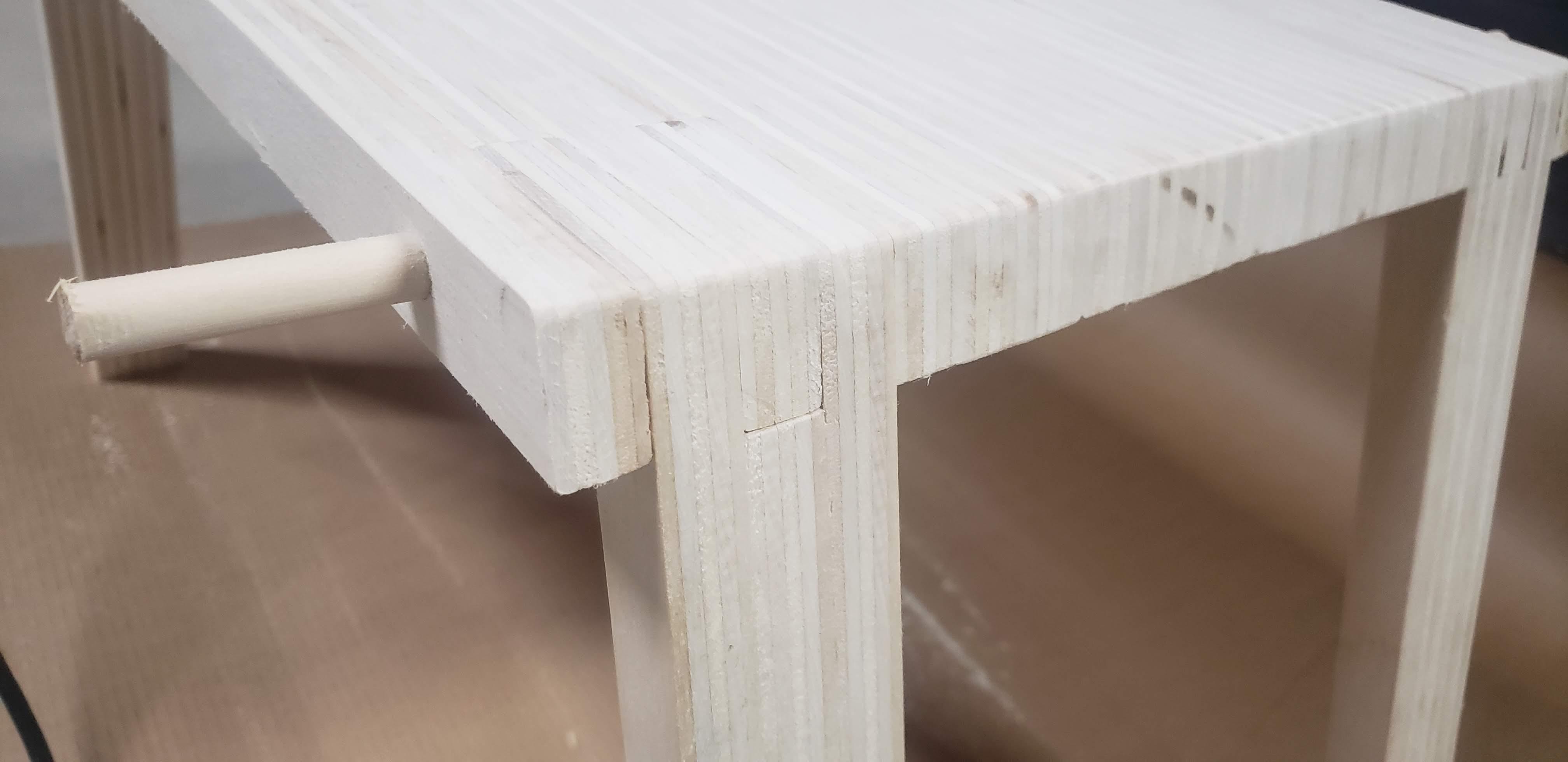

As you can see in the picture the leg pieces stick out a bit but on the top. That's OK. Remember I was cutting with the skill saw and left some extra. Take the belt sander and make it all smooth.
I also left some extra on the end (length) of the table. Now that the legs are in I mark the exact length. (See the pencil mark on the picture) Pull the dowels and disassemble. Take the top on the table saw and cut it to the exact length as marked.
I do not glue the dowels until the very end. We will have to take them out again for final sanding and staining.
I did cut the dowels about an inch long so they can be easily pulled with some pliers.
Final Assembly
![Final 1.jpg](/proxy/?url=https://content.instructables.com/FH7/46KB/KID4YTJ0/FH746KBKID4YTJ0.jpg&filename=Final 1.jpg)
![Sand 2.jpg](/proxy/?url=https://content.instructables.com/FTS/O4UJ/KID4YTIS/FTSO4UJKID4YTIS.jpg&filename=Sand 2.jpg)
![Final 3.jpg](/proxy/?url=https://content.instructables.com/FSP/T2KX/KID4YTIY/FSPT2KXKID4YTIY.jpg&filename=Final 3.jpg)
![Final 2.jpg](/proxy/?url=https://content.instructables.com/FPF/VIIG/KID4YTIZ/FPFVIIGKID4YTIZ.jpg&filename=Final 2.jpg)
![Sander on top.jpg](/proxy/?url=https://content.instructables.com/FZH/JD0L/KID4YTT9/FZHJD0LKID4YTT9.jpg&filename=Sander on top.jpg)
![Sanded corner.jpg](/proxy/?url=https://content.instructables.com/FXA/QVUN/KID4YTTA/FXAQVUNKID4YTTA.jpg&filename=Sanded corner.jpg)
Once all components fit properly and are sanded smooth start thinking about how you want to finish the wood and protect it.
I am only using a wood stain and will add a couple coats of varnish.
If you want to use the table outdoors you might want to paint the table.
Make sure you don't add paint in the are of the hinges as they will get to tight and might not move anymore.
Also this is when I finally glue in the dowels and cut them flush with the table top. Make sure you only glue the portion that sits in the outer most layer of plywood!
The Final Product!
This will be your end product.
Hopefully some of you like it and will attempt to bulid a table like this.
Good Luck!
