Foldable Steps
![IMG_20170826_120036.jpg](/proxy/?url=https://content.instructables.com/FST/W9VV/J7MFILFQ/FSTW9VVJ7MFILFQ.jpg&filename=IMG_20170826_120036.jpg)
We purchased a new (to us) RV. When it is driven the electric steps work fine. but when set up they don't always extend when the door is opened. I originally set up some concrete blocks but worried the added weight would be too much. I decided to make some steps that would break down and assemble easily and also store easily.
Cut the Pieces Needed
![drawing 1.jpg](/proxy/?url=https://content.instructables.com/FCT/ZZ1J/J7MFJ99A/FCTZZ1JJ7MFJ99A.jpg&filename=drawing 1.jpg)
![drawing 2.jpg](/proxy/?url=https://content.instructables.com/F1R/21HD/J7MFJ99B/F1R21HDJ7MFJ99B.jpg&filename=drawing 2.jpg)
![IMG_20170826_115432.jpg](/proxy/?url=https://content.instructables.com/F3P/DXW8/J7MFIL19/F3PDXW8J7MFIL19.jpg&filename=IMG_20170826_115432.jpg)
I decided to put half slots in 3/4" plywood. I cut 2 pieces as shown in drawings that would make 10" steps and an 8" riser.these are #'s 6 + 7. The measurements are on the drawings for all the pieces. Since I was going to paint these to protect them from the rain, I cut the slots at 7/8" instead of 3/4"

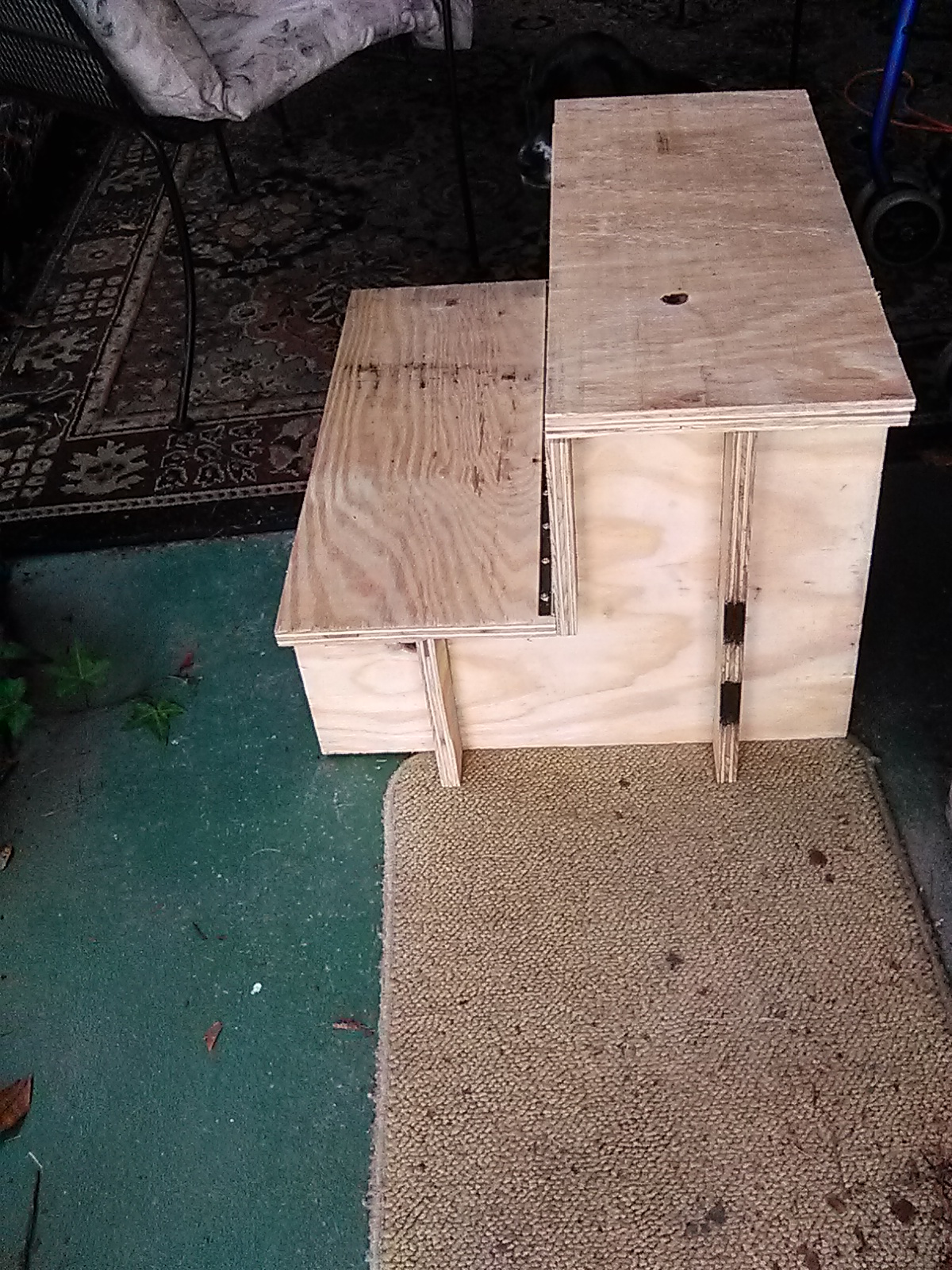

After Cutting Pieces, Start Assembly
![IMG_20170826_115613.jpg](/proxy/?url=https://content.instructables.com/F3Q/I90N/J7MFILAU/F3QI90NJ7MFILAU.jpg&filename=IMG_20170826_115613.jpg)
![IMG_20170826_115702.jpg](/proxy/?url=https://content.instructables.com/FKD/WZMJ/J7MFILBV/FKDWZMJJ7MFILBV.jpg&filename=IMG_20170826_115702.jpg)
![IMG_20170826_115727.jpg](/proxy/?url=https://content.instructables.com/F3X/F7AT/J7MFILBX/F3XF7ATJ7MFILBX.jpg&filename=IMG_20170826_115727.jpg)
Since I hadn't painted these yet, they were a little loose fitting which made it easy to assemble, but were still very stable.
Attach Piano Hinges
![IMG_20170826_115516.jpg](/proxy/?url=https://content.instructables.com/FQ6/ZXG9/J7MFIL7G/FQ6ZXG9J7MFIL7G.jpg&filename=IMG_20170826_115516.jpg)
![IMG_20170826_115747.jpg](/proxy/?url=https://content.instructables.com/FIW/XWDK/J7MFILCH/FIWXWDKJ7MFILCH.jpg&filename=IMG_20170826_115747.jpg)
![IMG_20170826_115802.jpg](/proxy/?url=https://content.instructables.com/FHF/LNTZ/J7MFILCI/FHFLNTZJ7MFILCI.jpg&filename=IMG_20170826_115802.jpg)
Attach the piano hinges as shown in drawing. This makes them fold up neatly for storage.
Put the steps on and try them out. I ended up putting a couple of dowels in the top step and drilled small holes in parts 6 and 7 for them to sit in. This keeps the steps from slipping and moving on you as you use them.

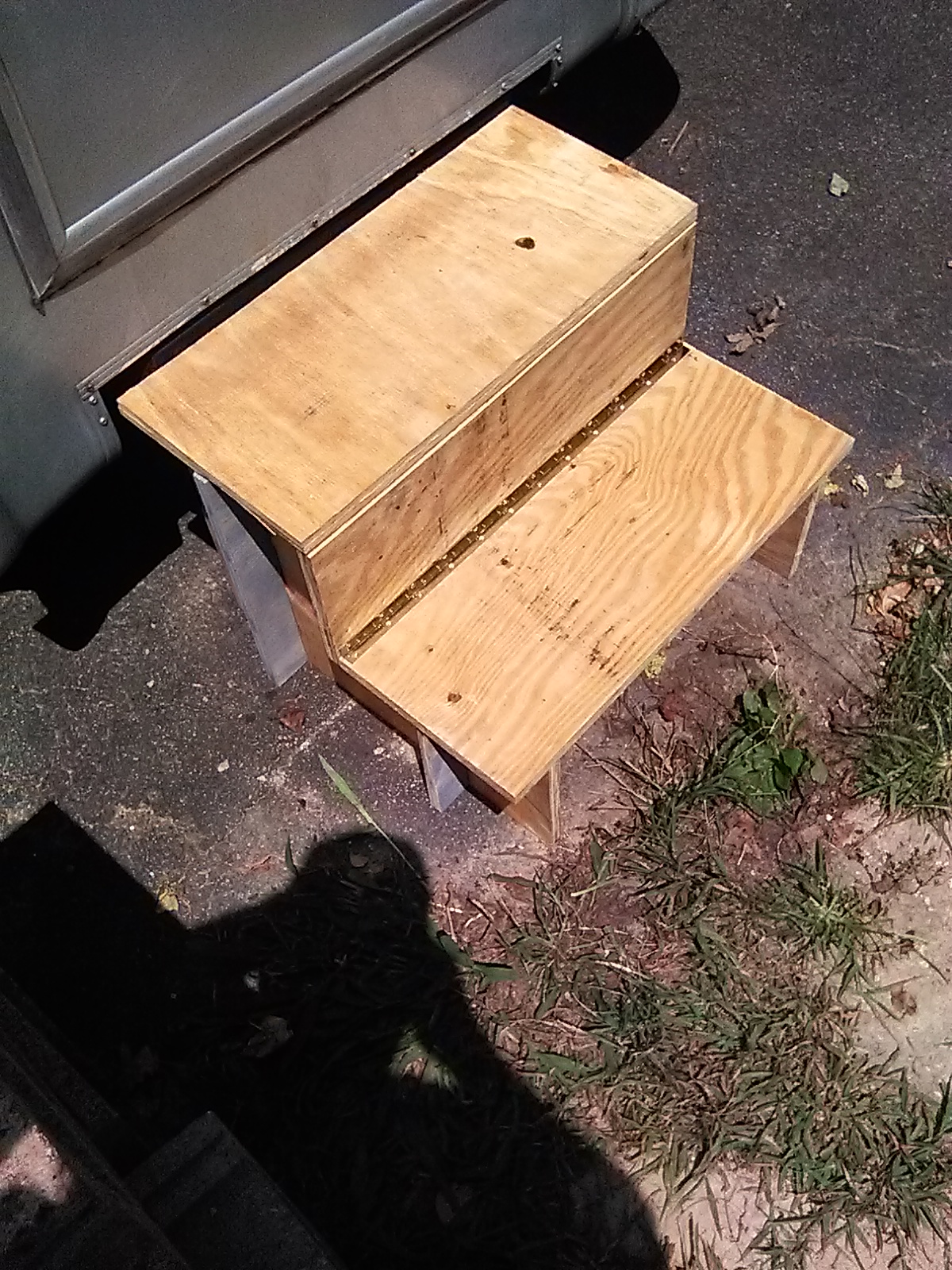

Set Them Up
![IMG_20170826_120007.jpg](/proxy/?url=https://content.instructables.com/FYM/K6HX/J7MFILCL/FYMK6HXJ7MFILCL.jpg&filename=IMG_20170826_120007.jpg)
![IMG_20170826_134403.jpg](/proxy/?url=https://content.instructables.com/FCS/SYTT/J7MFILIZ/FCSSYTTJ7MFILIZ.jpg&filename=IMG_20170826_134403.jpg)
![IMG_20170826_134416.jpg](/proxy/?url=https://content.instructables.com/F1A/I969/J7MFILMD/F1AI969J7MFILMD.jpg&filename=IMG_20170826_134416.jpg)
They worked out perfectly for short term use, and weigh less than one cement block.
