Foam Plate Plane

by backflip11 in Circuits > Remote Control

4826 Views, 11 Favorites, 0 Comments

Foam Plate Plane

13, 5:38 PM.jpg
Are you tired of buying overpriced parts for your rc plane? Well this is for you I have saved over $50 with this plan

Get the Materials

13, 5:38 PM.jpg
You need the following things, 1. Old styrofoam plate 2. Old airplane part 3. Hot glue You also need siscors

Get a Templet of the Part

13, 5:38 PM.jpg
Tape up the old part as best you can or just design a new one

Start Drawing

13, 5:38 PM.jpg
Trace or draw the part on the plate make sure you draw where the hinges are

Cut Out

13, 5:38 PM.jpg
13, 5:38 PM.jpg
Cut out the part be carful don't cut where the hinges go

Make Hinges

13, 5:38 PM.jpg
13, 5:38 PM.jpg
To make the hinges just run it over with a pincle a couple of times to push in the styrofoam but don't go all the way through and then test it

Add Control Horn and Wheel

13, 5:38 PM.jpg
13, 5:38 PM.jpg

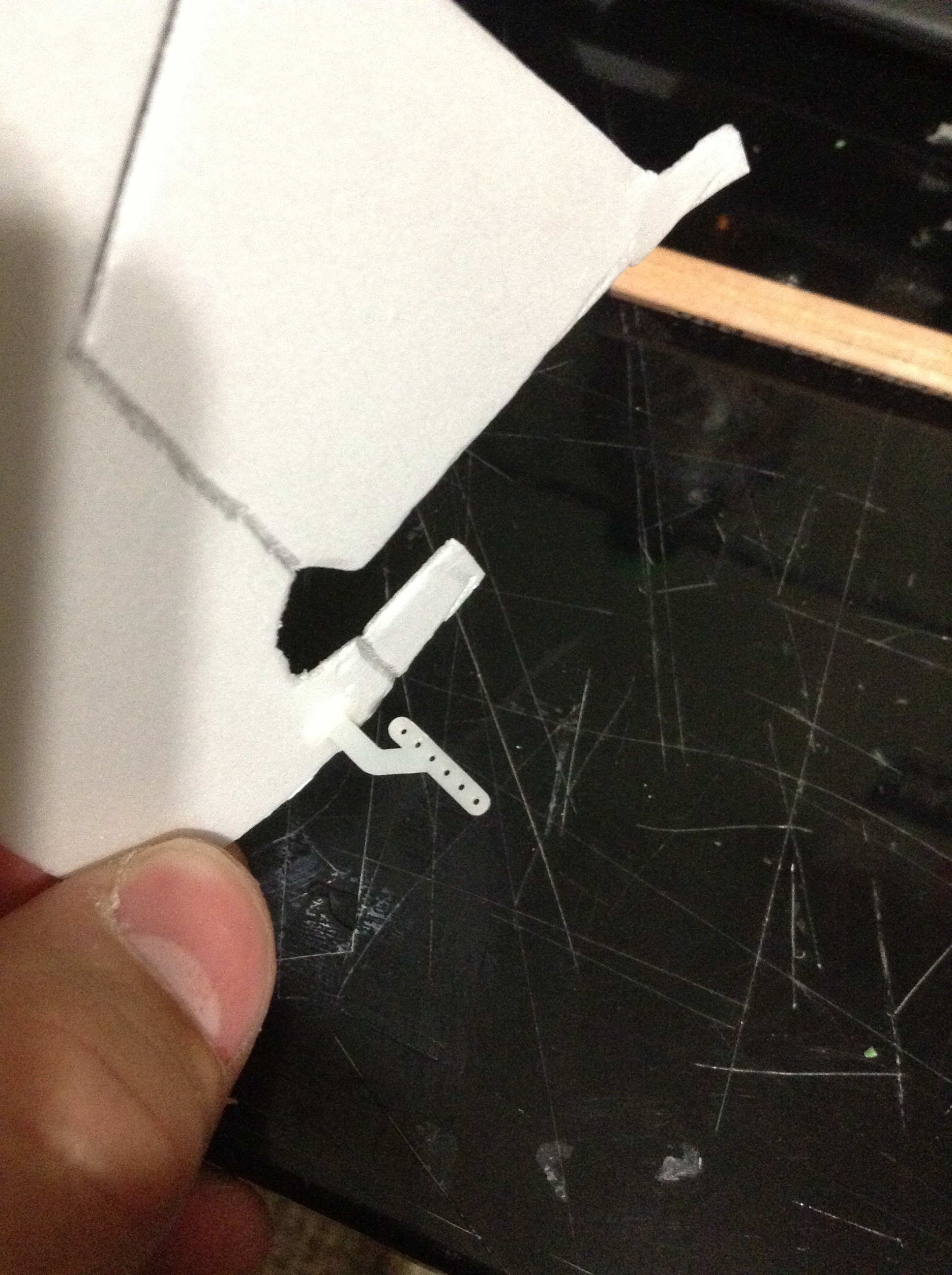

Mark where the control horns go and the wheel and install just like you usually do

Install

13, 5:38 PM.jpg
Mine was a perfict fit but if yours is to thin you might have to ca some plates together to get it right but install like normal and go fly
