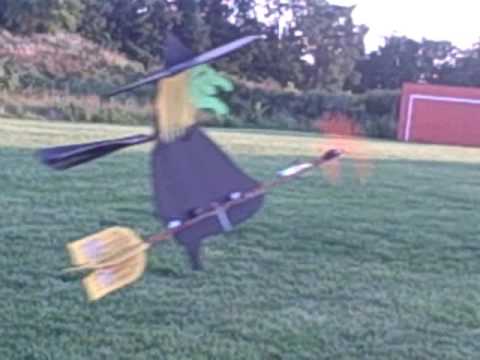

Flying Witch

How it works?

You need basically three things for flying: speed, airfoil and control surfaces, you can see all of them in the witch.

Here you have the plans, if you haven't a A0 printer don't worry, the PDF file contains the plans in A4 format.

Remember that parts 5,8 and 9 are control surfaces:

5 - Rudder

8 & 9 - Elevator

Depron, is a foam family product, lightweight and easy to cut.

This instructable uses same parts than RC airplanes such a:

Motor (x1): http://www.banggood.com/Sunnysky-X2204-1800KV-Brus...

ESC (x1) (Electronic Speed Control); http://www.banggood.com/ZTW-Spider-LITE-PRO-Series...

Propeller (x1): http://www.banggood.com/2-Pairs-DALPROP-J6045-PC-P...

Servomotor (x2): http://www.banggood.com/3_7g-Micro-Mini-Servo-For-...

Lipo Battery (2S 600mAh x1): http://www.banggood.com/Giant-Power-7_4V-2S-600mAh...

And a receiver for your transmitter... haven't?.

http://www.banggood.com/FlySky-FS-i6-2_4G-6CH-AFHD...

To cut depron: cutter or scalpel

To glue depron; Hot silicone gun

Reinforcing structure: Carbon fiber rods (3 mm)

Connect servos with control surface: Carbon fiber rods (2 mm)

For control surface hinge: standard adhesive tape

No, i don't speak about Foo Fighters song but it will be more fun if you know... Enjoy.
