DIY - Standing Desk Ikea Hack with HAMMARP Butcher Block Countertop

This is a super easy project to make a wall mounted standing desk/work station/work bench using 3/4 black iron pipe and fittings and desktop/benchtop material of your choice.

For my particular project, we needed to create a communal workstation area in our office. We ended up using Ikea HAMMARP butcher block as our desktop material. But you can swap that out with plywood, an old door, or anything you fancy for your needs.

Supplies

4 - 3/4' Black Iron Pipe (24") - https://thd.co/2KbDW63

4 - 3/4" Black Iron Floor Flange - https://thd.co/2AUqsSp

8 - 1" Rigid Conduit 2-Hole Straps - https://thd.co/2NEzri3

1 - HAMMARP Ikea Oak Butcher Block Countertop - https://bit.ly/2lfM4Tz

Step 1 - Clean Grease and Sticky Residue Off the of the Iron Pipes.

Screen Shot 2019-07-25 at 5.01.07 PM.png

Screen Shot 2019-07-25 at 5.00.55 PM.png

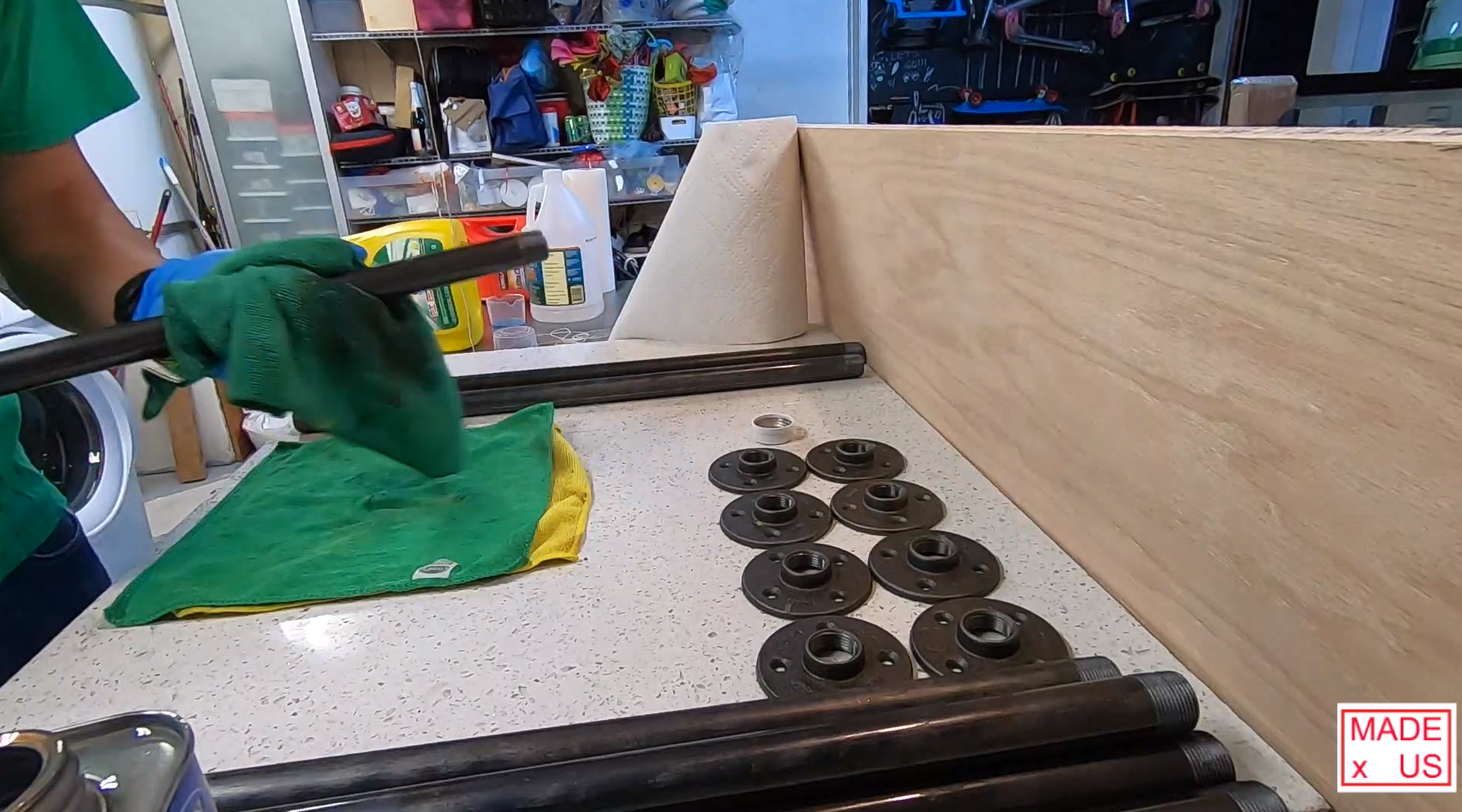

Your iron pipes may come with grease and stickers on them. Use mineral spirits to give them a good wipe down. Then remove the stickers, if they are stuck on really good use a utility knife and scrape off the sticker like you are peeling a carrot. Use some Goo-Gone to remove the rest of the stick residue. Give the pipes one more wipe down.

Step 2 - Determine Desired Height of the Desk

Screen Shot 2019-07-25 at 5.06.58 PM.png

Screen Shot 2019-07-25 at 5.07.05 PM.png

Screen Shot 2019-07-25 at 5.07.30 PM.png

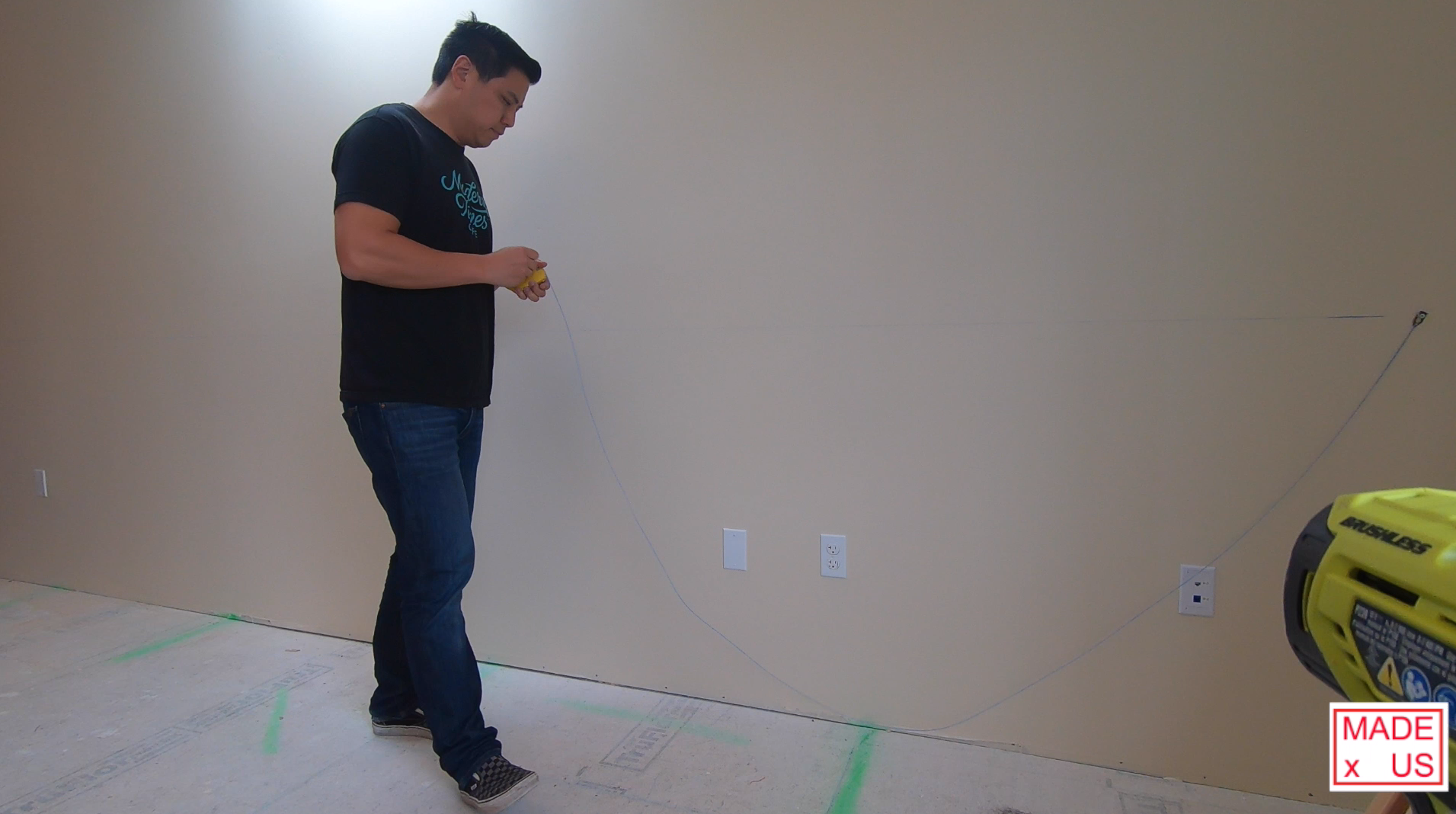

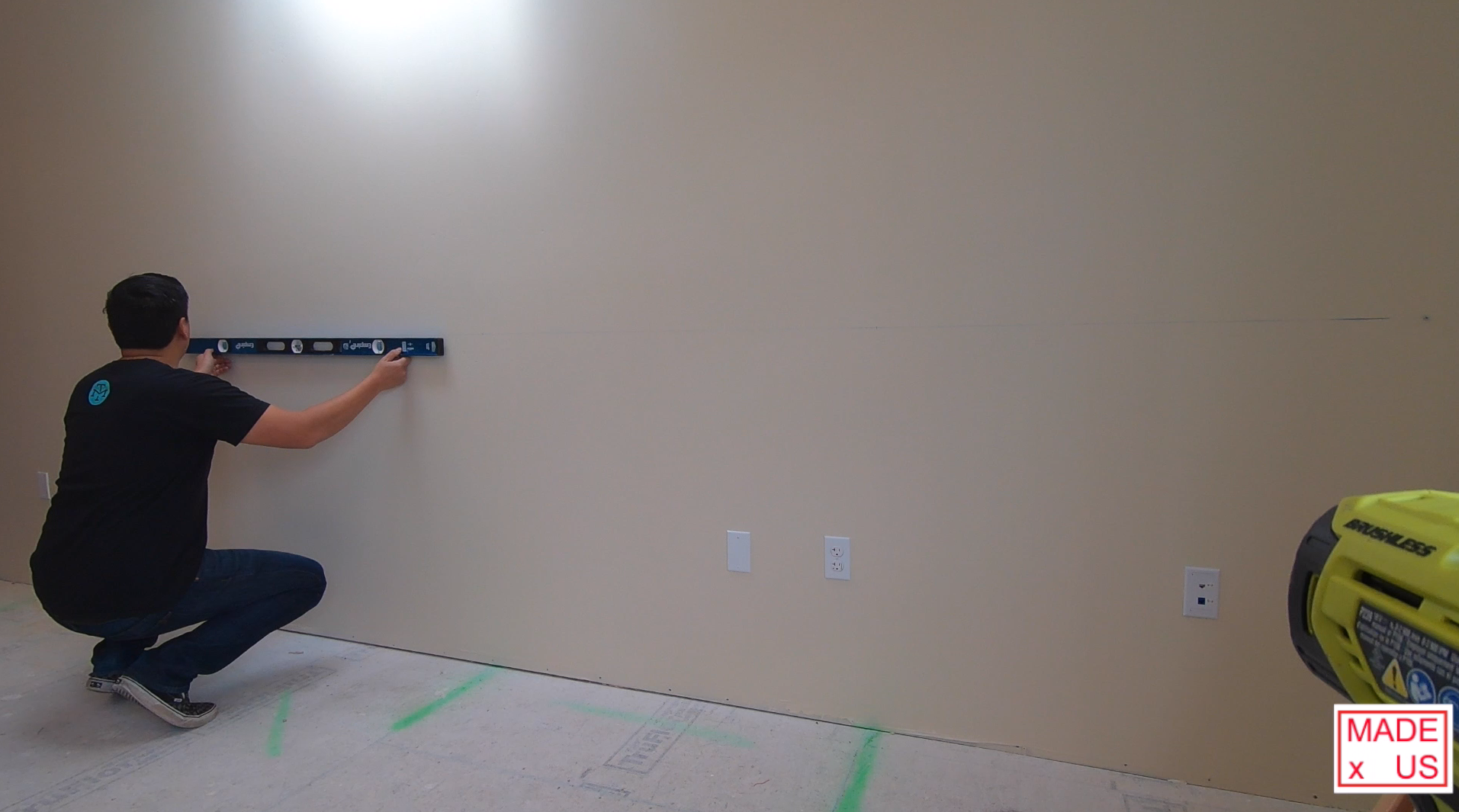

Determine your desired height of your standing desk. Once you do snap a chalk line on the wall where the desk will be installed. After you snap the chalk line, go back with a level to make sure the line is level.

Step 3 - Locate and Mark Studs on the Wall

Screen Shot 2019-07-25 at 5.08.30 PM.png

Screen Shot 2019-07-25 at 5.09.18 PM.png

Screen Shot 2019-07-25 at 5.08.49 PM.png

Use a stud finder to locate studs on the wall and mark where the stud intersects with your chalk line.

Step 4 - Use Wall Flange As a Template on Where to Drill Pilot Holes

Screen Shot 2019-07-25 at 5.12.18 PM.png

Screen Shot 2019-07-25 at 5.12.04 PM.png

Screen Shot 2019-07-25 at 5.11.50 PM.png

I decided to install a wall flange on every other stud, so about 32". I used a wall flange as a template to mark where to drill pilot holes on the top and bottom. I then drilled pilot holes into the studs.

Step 5 - Screw in Lag Screws and Pipes Into the Wall and Check Level

Screen Shot 2019-07-25 at 5.15.22 PM.png

Screen Shot 2019-07-25 at 5.15.37 PM.png

Screen Shot 2019-07-25 at 5.18.56 PM.png

Screen Shot 2019-07-25 at 5.18.47 PM.png

Screen Shot 2019-07-25 at 5.19.05 PM.png

From here I went and installed the lag screw into the top hole of the flange on all 4 studs. Then I tightened the 3/4 iron pipes into each flange. Before installing the bottom lag screws into the flanges, I checked to make sure everything was level.

Step 6 - Place Table Top Material on Top of the Pipes

Screen Shot 2019-07-25 at 5.20.21 PM.png

Screen Shot 2019-07-25 at 5.20.07 PM.png

Screen Shot 2019-07-25 at 5.19.47 PM.png

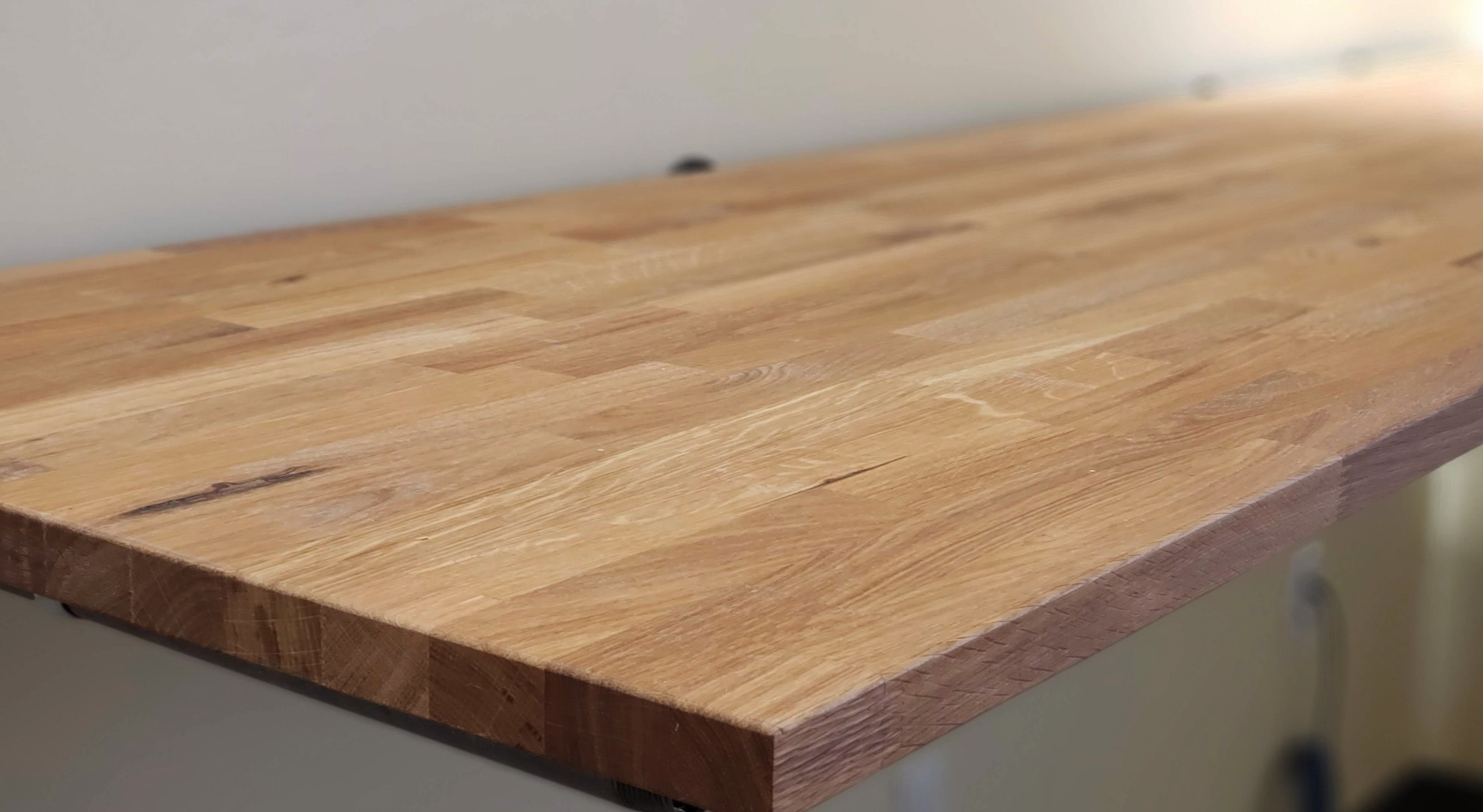

Get your table top material and place it on top of the pipes. In my case, I purchased the HAMMARP butcher block countertop from Ikea. However you could use plywood, an old door, or whatever you want your desktop material to be.

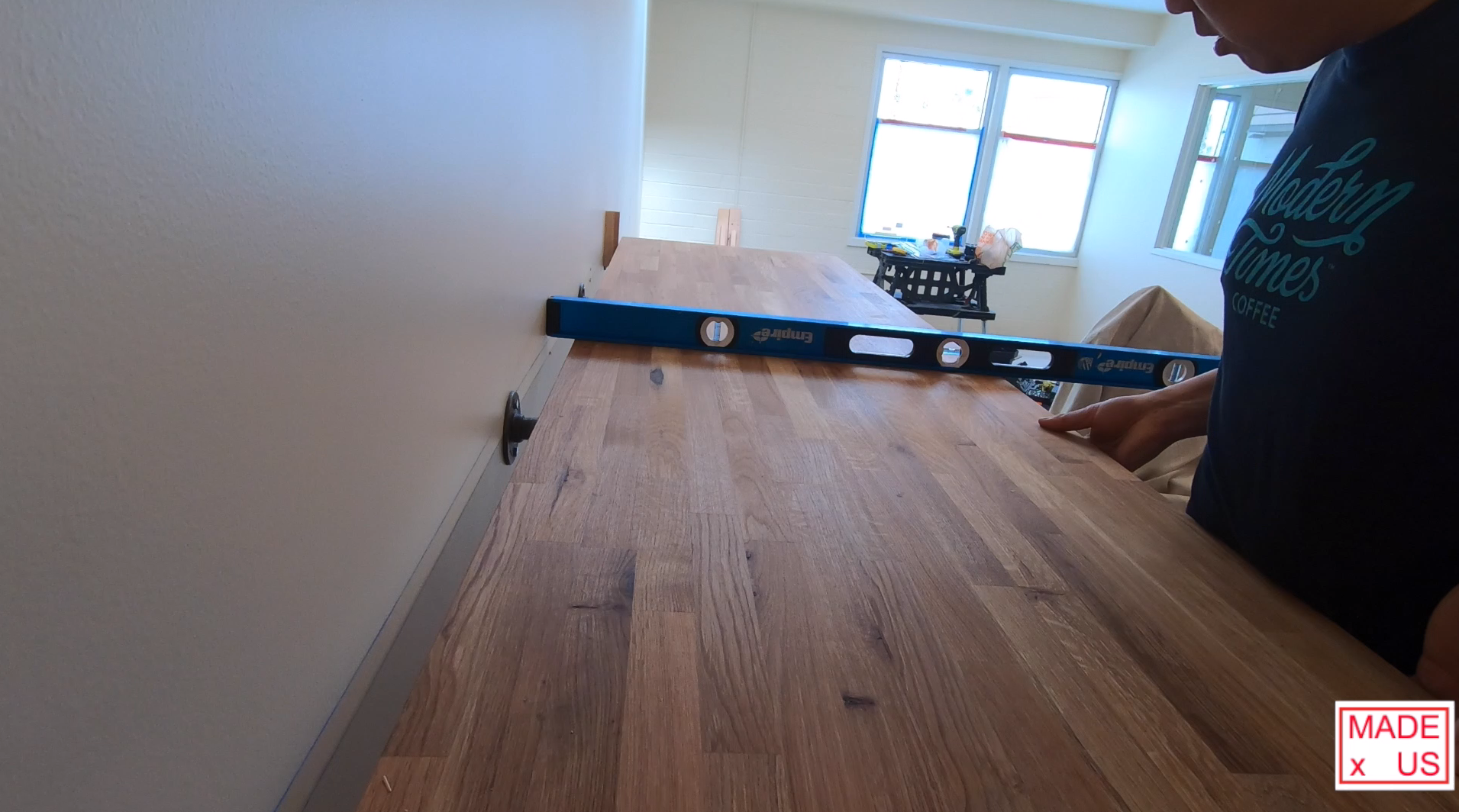

Once it's been placed on top and check to make sure it's level. If it's not completely level, you could use some shims. Just make sure the lag bolts and iron pipes are as tight as can be.

Step 7 - Secure Table Top to the Pipes.

Screen Shot 2019-07-25 at 5.37.12 PM.png

Screen Shot 2019-07-25 at 5.35.21 PM.png

Screen Shot 2019-07-25 at 5.35.10 PM.png

Screen Shot 2019-07-25 at 5.34.40 PM.png

Screen Shot 2019-07-25 at 5.34.21 PM.png

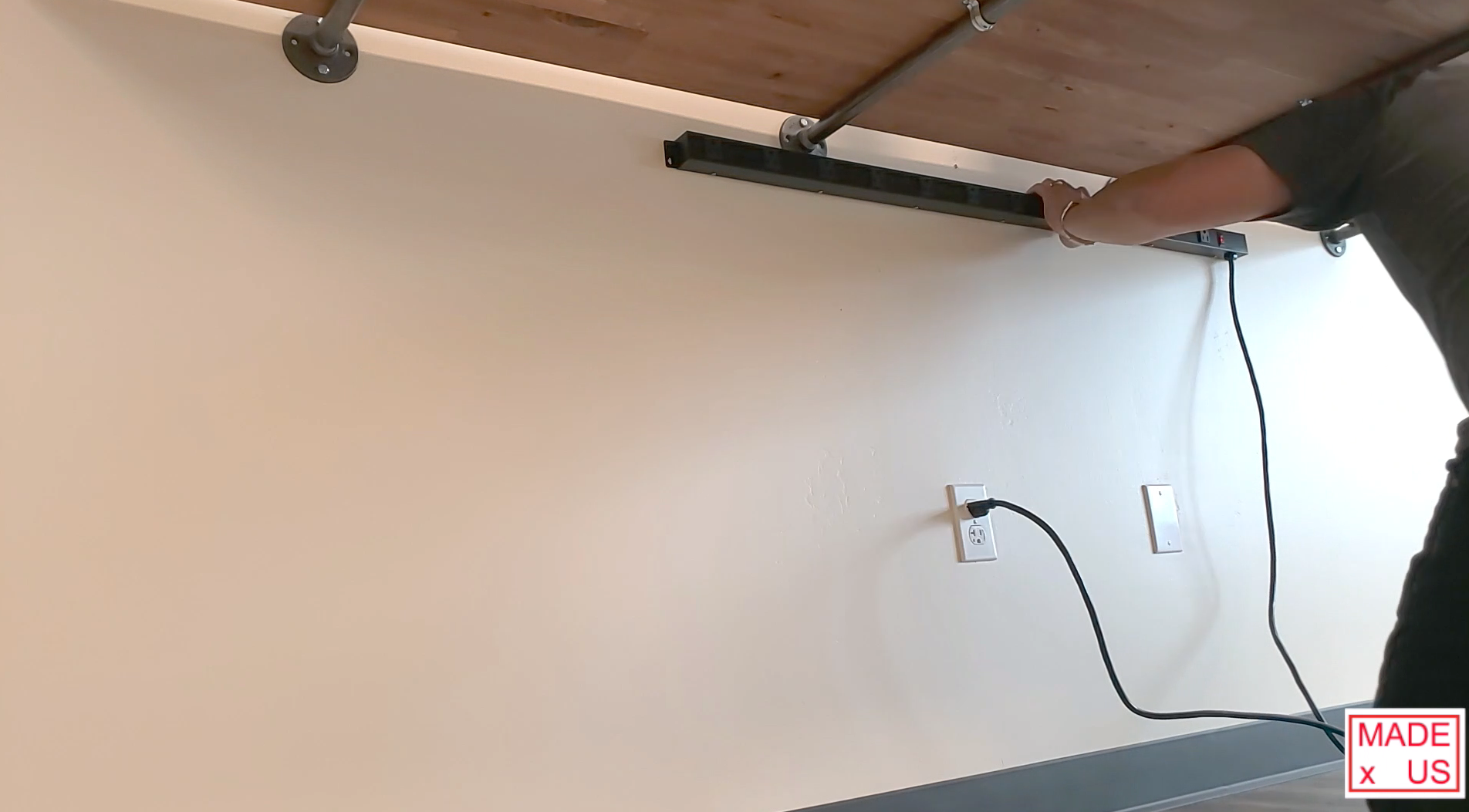

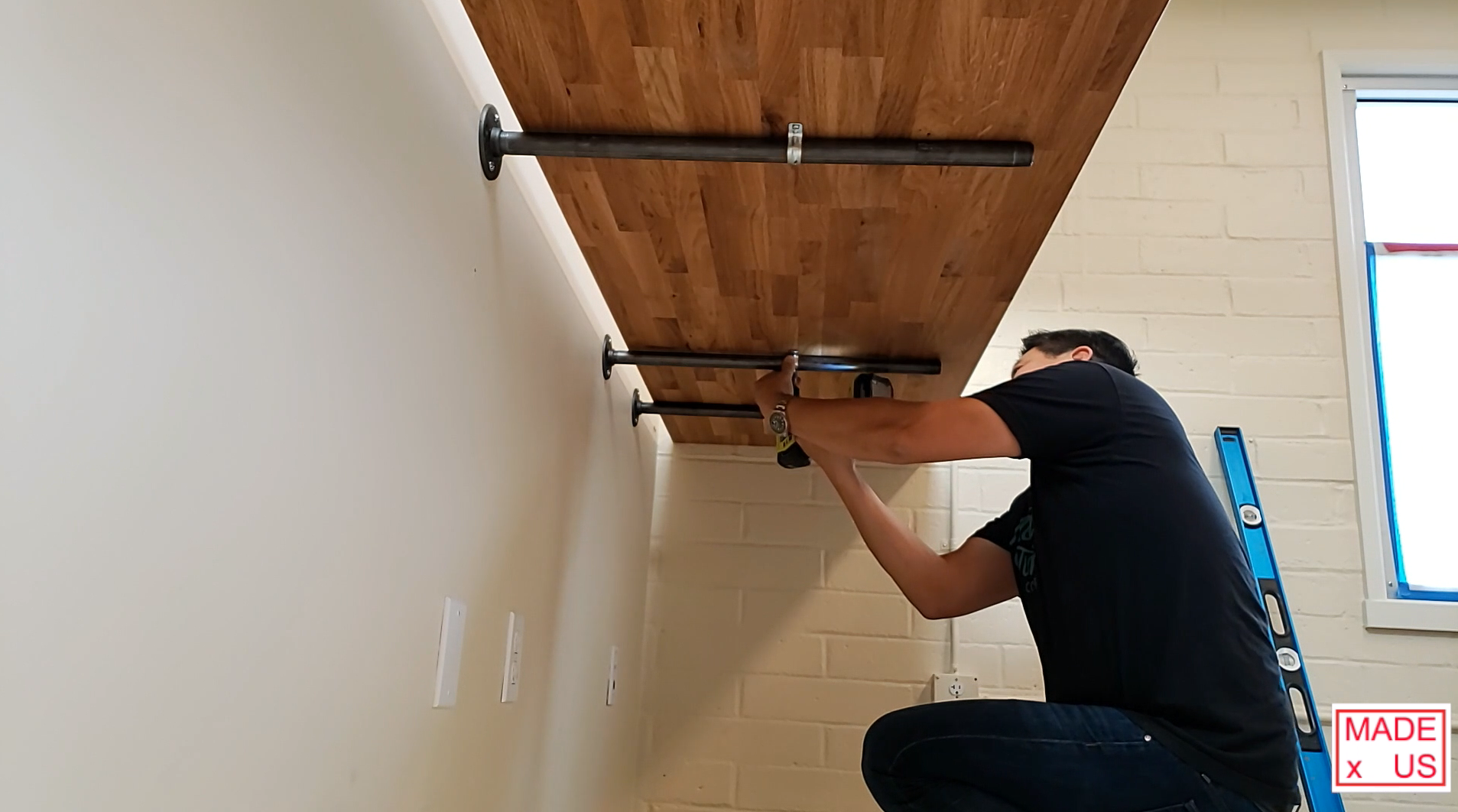

Once everything is level and in the desired position, screw in the clamps. I left about 2 inches between the wall and edge of the table top to allow for cables to run between the desk and wall.

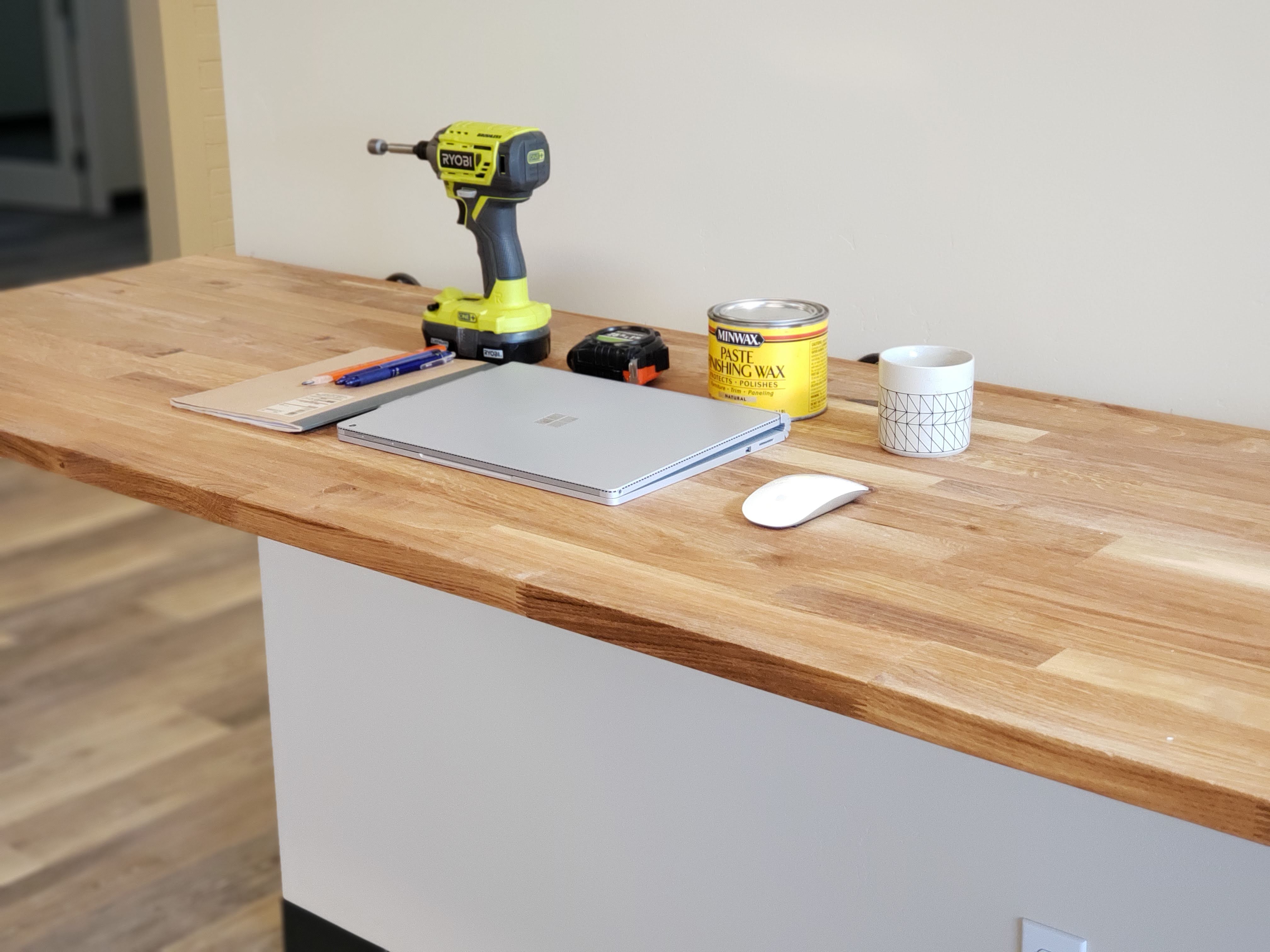

Once everything is secured, enjoy you new standing desk!
