Floating PC Mount

For my new handmade workbench I needed a pc mount to protect the electronics from dust, so I started to built one!

Materials

• OSB-board in your prefered length
• 2 brackets
• some screws
• wood glue
• tape

• linseed oil

Tools

• circular saw
• router
• sandpaper
• propane torch
• angle grinder
• vise
• steel brush

I first cut three pieces out of osb-board. I wanted a smooth crossover on the side pieces so I cut them in an angle of 45°.

Sadly I forgot to make some pictures. I hope you understand my explanation. Just have a look on the next step.

To put the three pieces together I took 2 small strips of tape to hold the parts in the correct position. I added some wood glue in the small slots between the left, the middle and the right part and flapped them up.

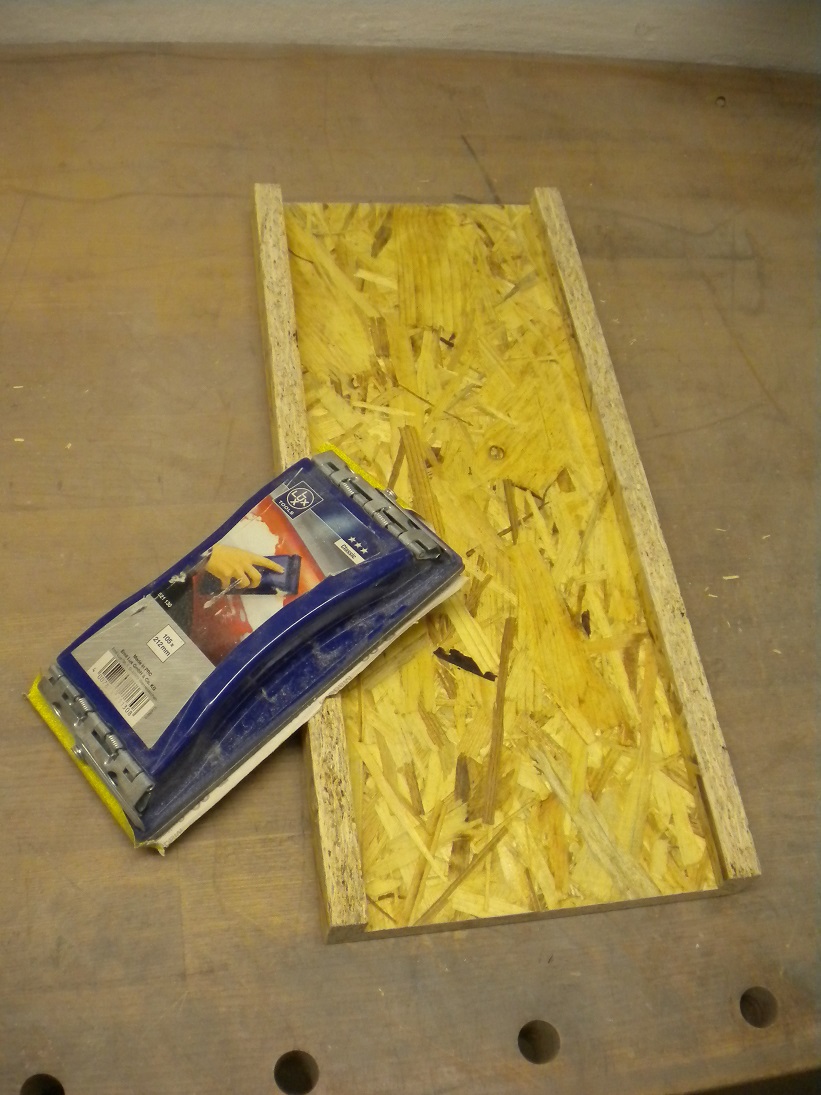

For a better finish I sanded all rough edges.

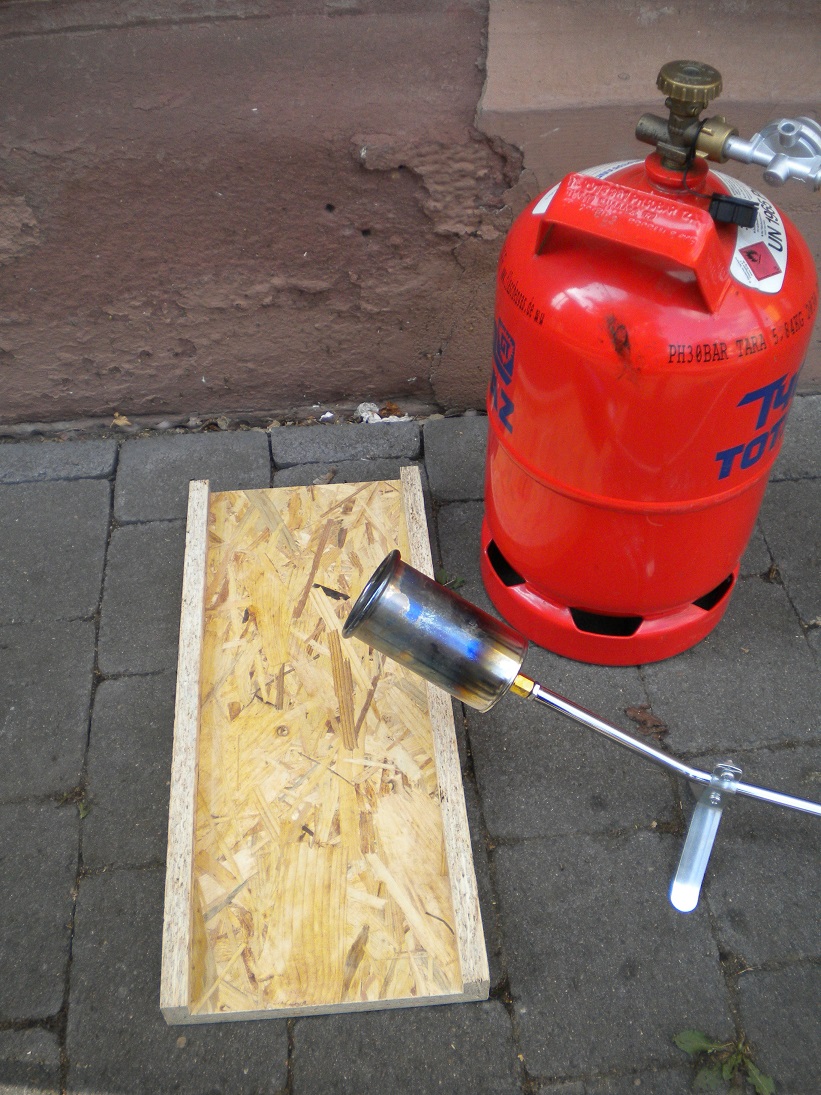

I troched my workbench with an propane torch and I wanted the pc mount to have the same look.

Please be carful when you use the propane torch!

After torching I used a steel brush to get rid off rough dirt.

For a nice finish I used some linseed oil.

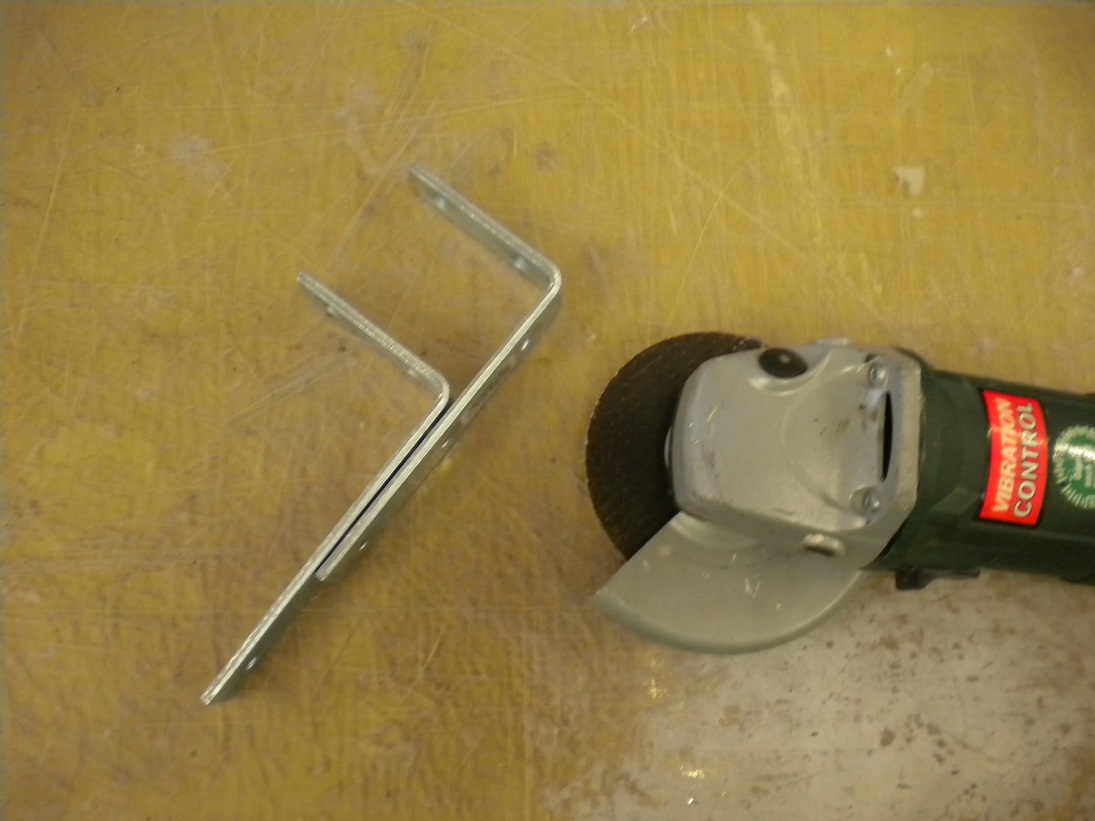

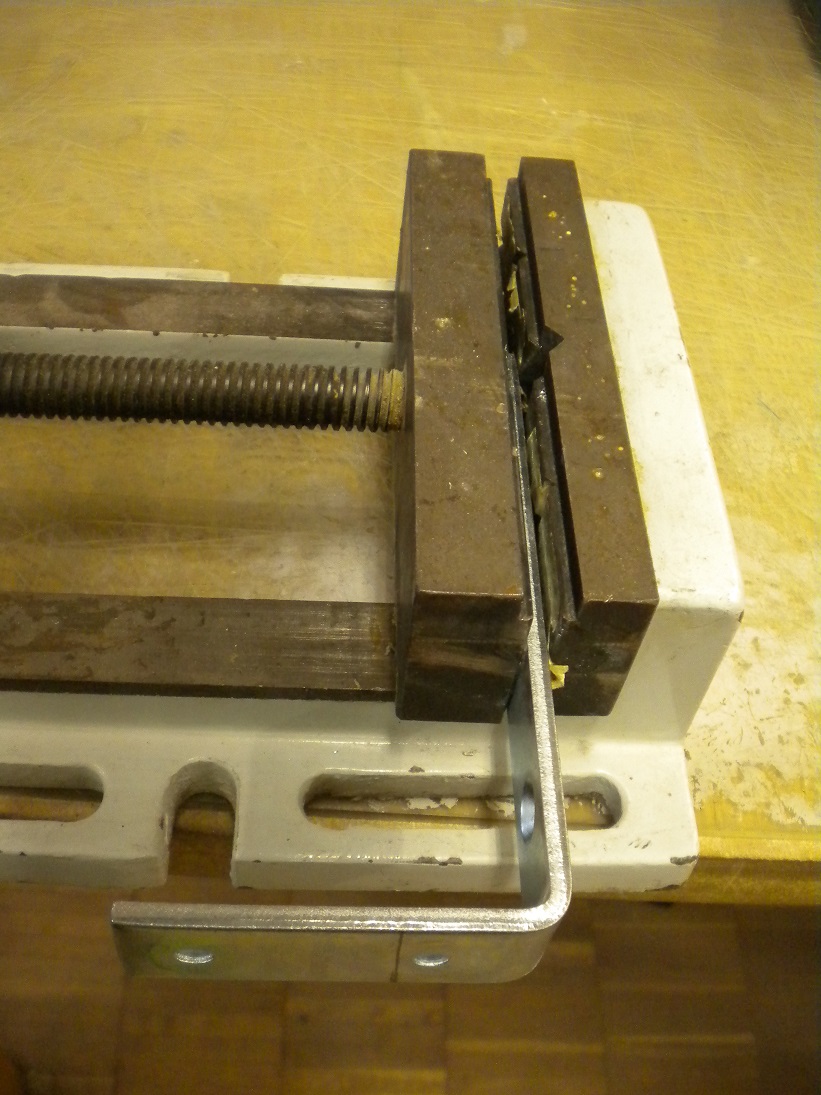

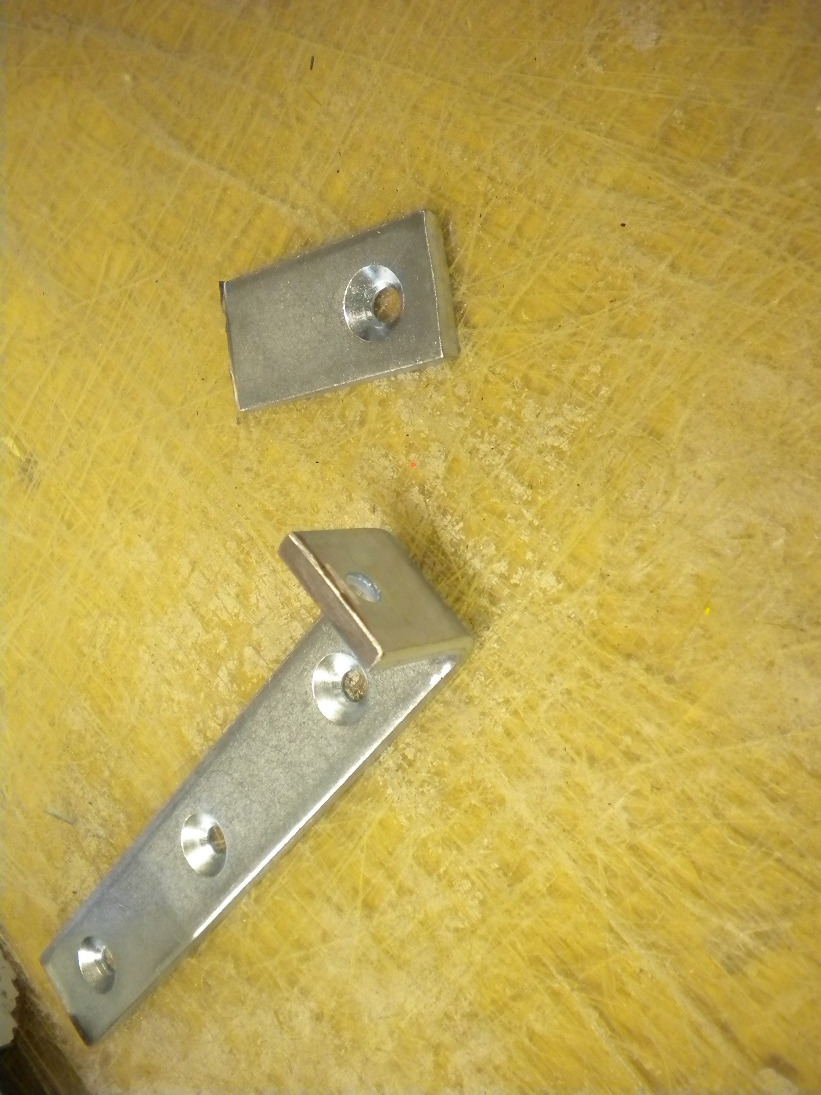

I measured the height and depth of the board and luckily I just had to cut off small pieces of the brackets because I don't wanted the brackets to be seen at the wall mount for a floating effect.

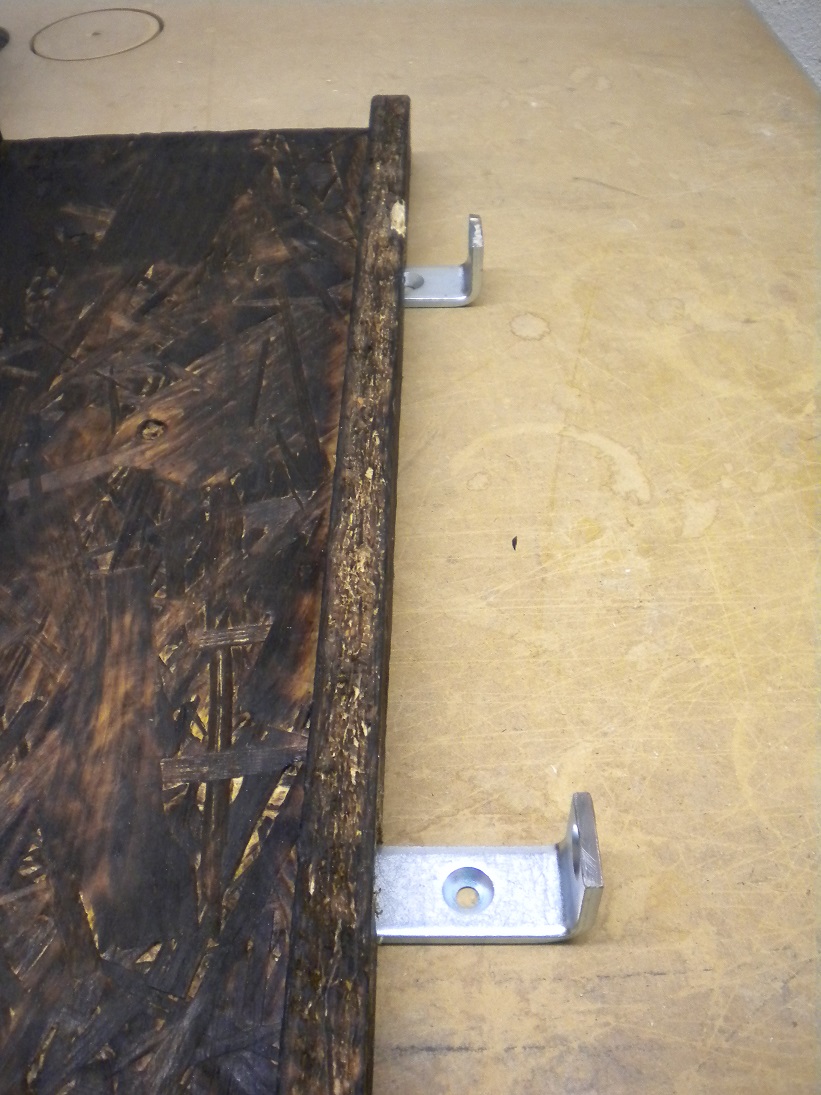

For a better stability and also for the floating effect I decided to make 2 notches. I first measured the length and the width of the brackets, then adjusted the router and started milling.

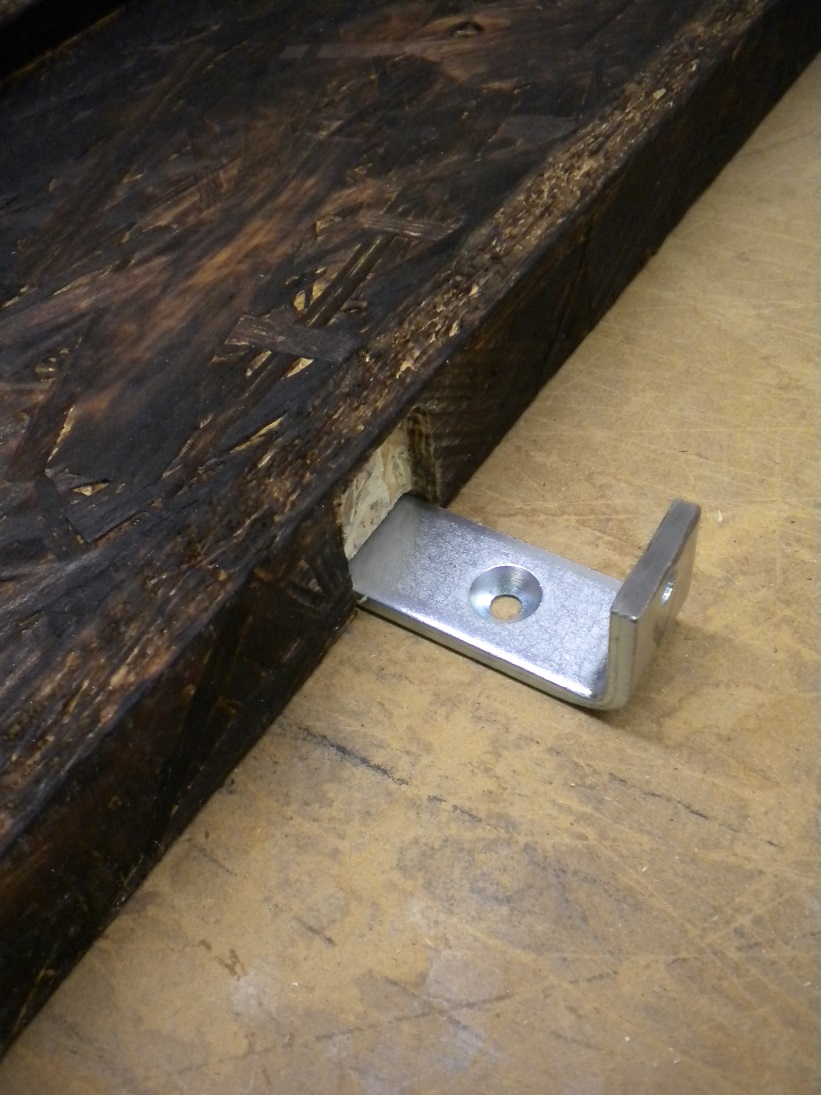

As you can see the brackets fit in perfectly!

Now you just have to drill some holes into the wall, tighten the brackets in the right position, push the osb-board over the brackets and tighten them with some scrrws from below and then you are finished!

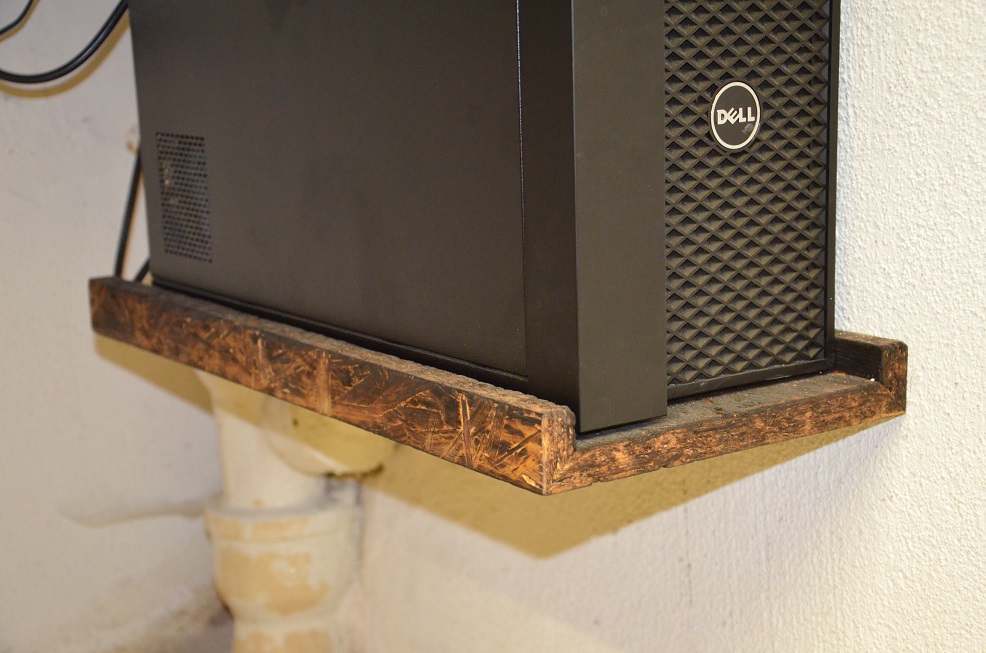

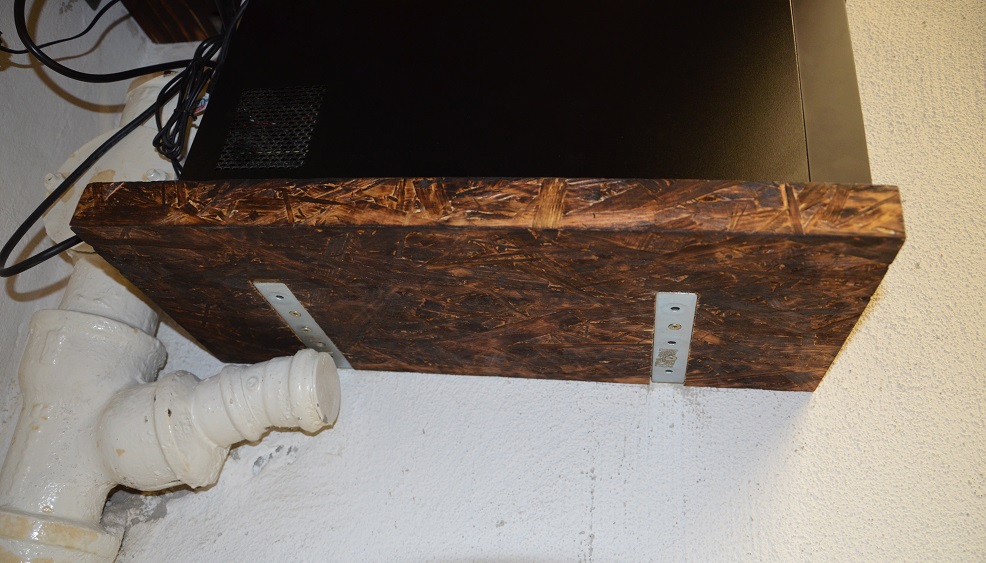

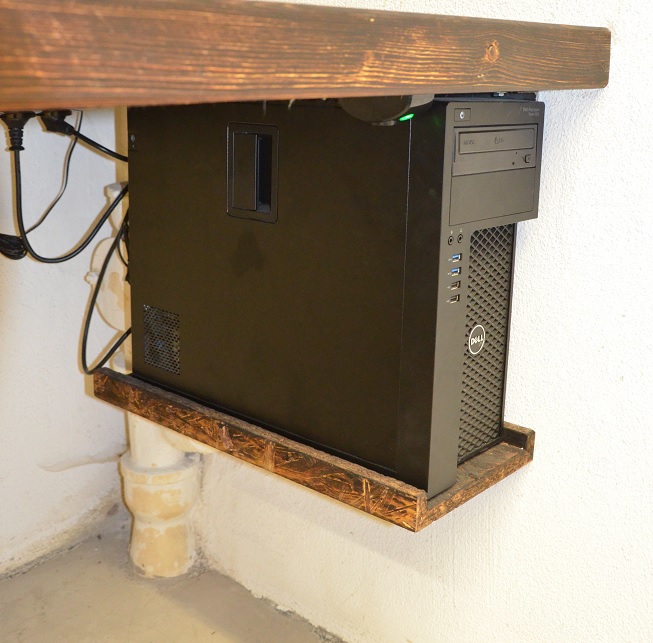

Here are some pics of my new floating pc mount. It was fun to built it and I learned a lot!

Improvement: Next time I would use some wider brackets to prevent vibrations if you bounce at your pc mount.

Thanks for reading and I hope you enjoyed my instructable!
