Flapping Bird
A boring day, you walk around not knowing what to do and there’s a cute little bird waiting to flap its wings on your arrival. No matter big or small, any fascinating thing can energize you and get you on track.
Make a feathered creature and play with it!
Things Required
1. Dream Kit
2. Chart paper
3. Cardboard
4.A pair of scissors
5. Thread or string
6. Paper fastener
7. Split pins
8. Ice-cream stick
9. Hot glue / glue
How It Works
We all know that the Distance sensor (ultrasonic) gives the distance of the object in front of it. In this project we are using a distance sensor to detect humans at a certain distance and then rotate the servo which is connected to the bird’s wings to open it when a person is present in front of the bird and fold the wings when no one is in front of it.

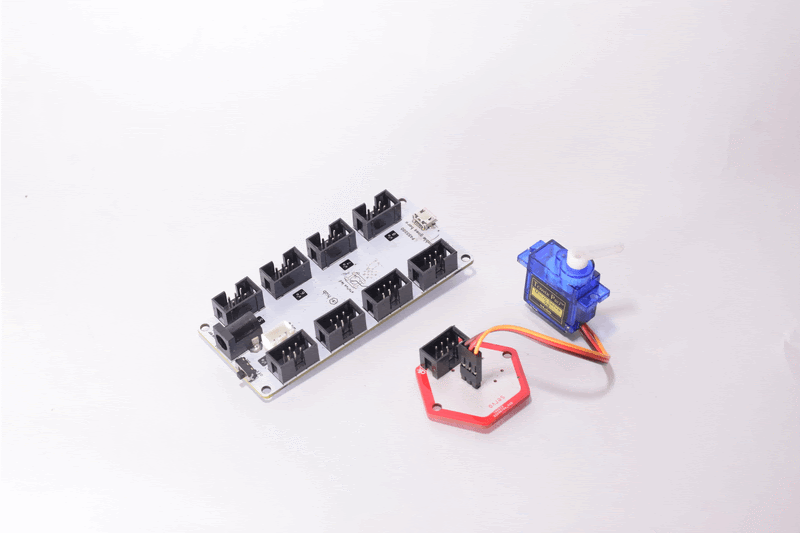

Connections
Programming Dream Kit With DK Studio
Connect the HUB to your computer using a USB cable. Open DK studio software in your computer and make sure that you have chosen the correct port number and press on ‘Connect’. The modules connected will appear in the module box. Program your Dk as shown above.
Click here to download the DK Studio Software
Build Your Model:Cut It Along the Borders As Shown Below
Click here to view and download the template of the flapping bird

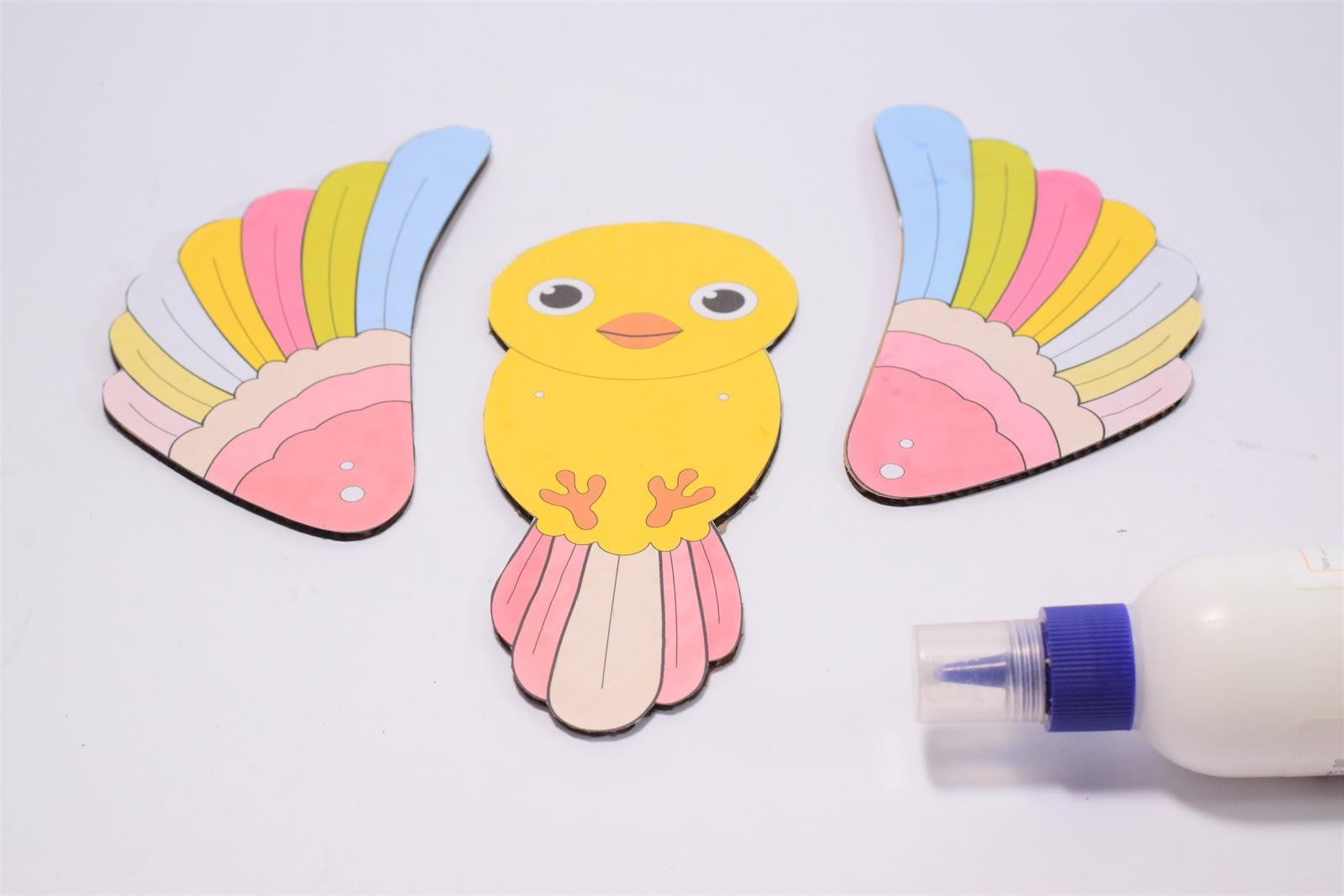

Attach It Together With Glue
Now Let’s Fix the Wings to the Body Using Split Pins As Shown Below

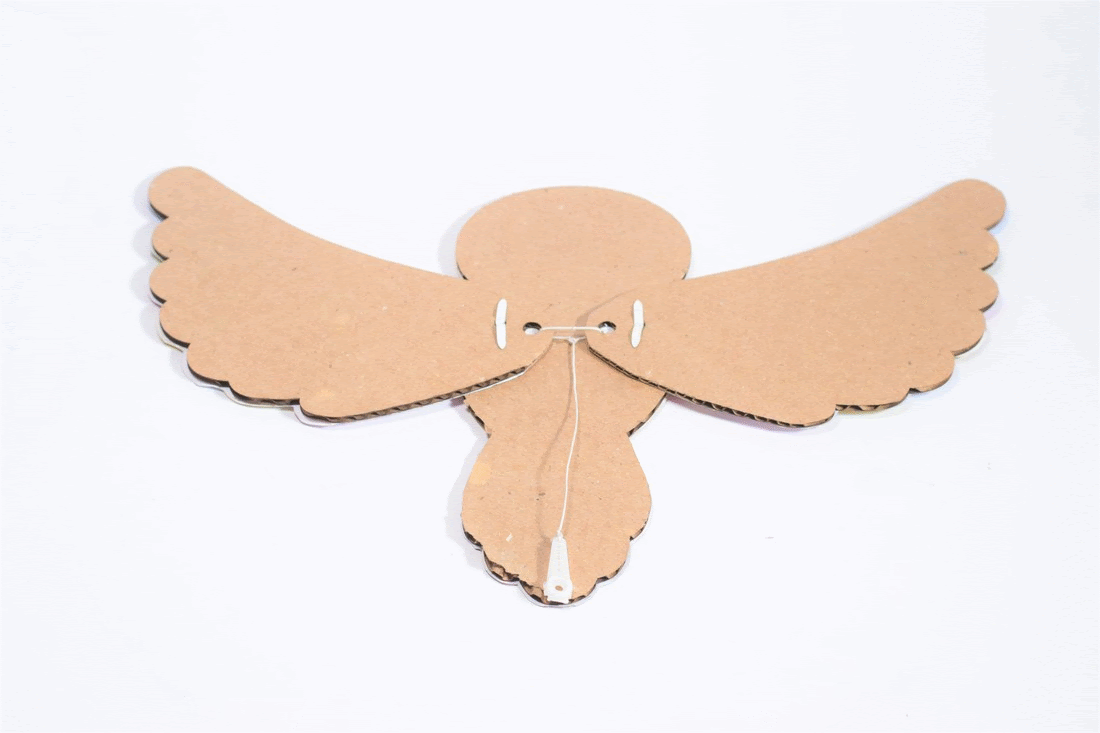

Use Thread to Tie Both the Wings Together and Fix It to a Servo Horn As Shown Below Attach Ice Cream Stick As a Support for the Bird

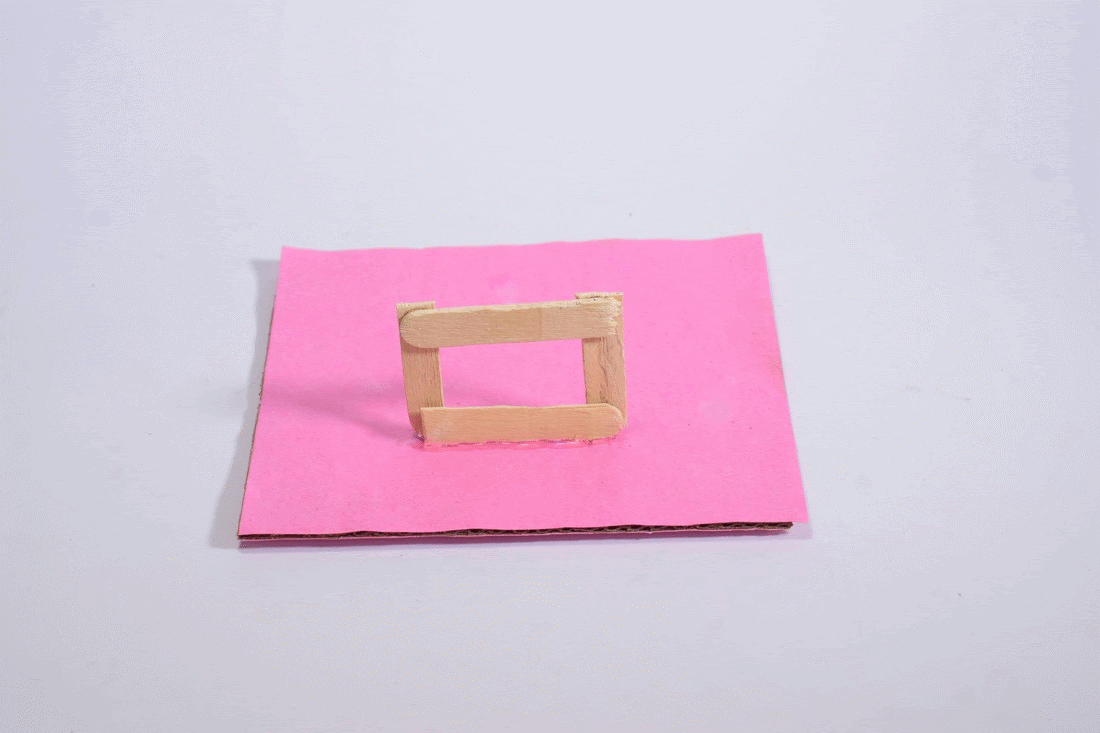

Let's Make a Base for the Bird Using Some Ice Cream Stick

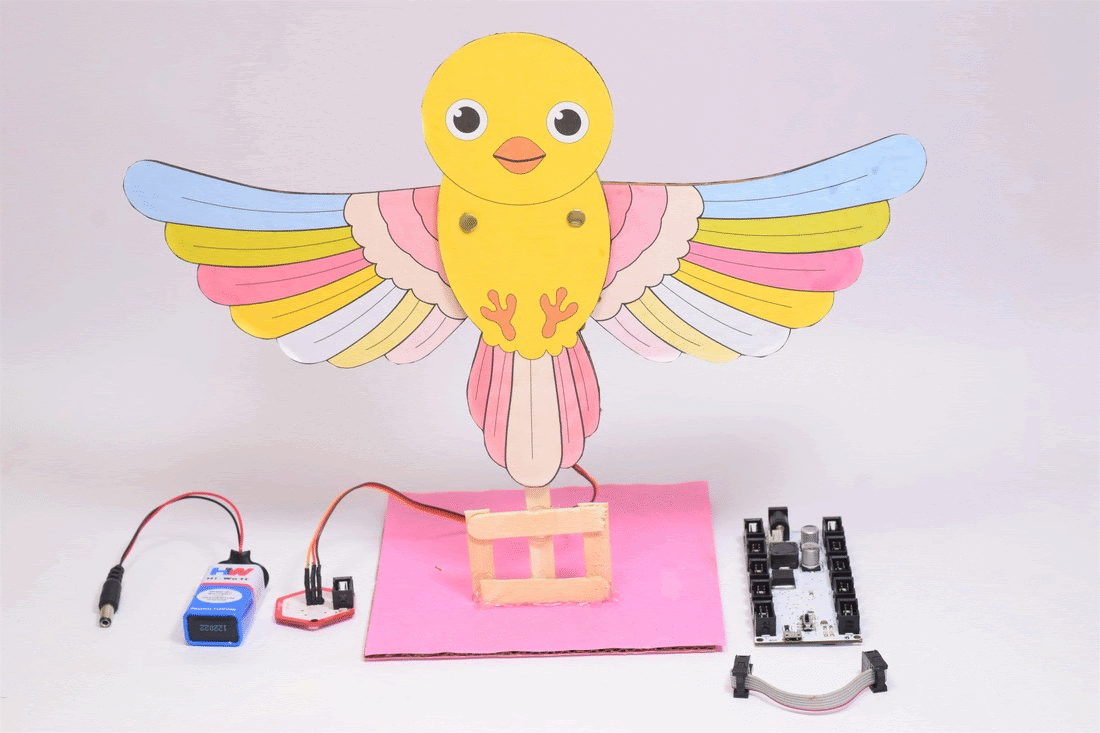

Now Start Placing the Hub and the Modules Over the Base As Shown Below
Upload the program and play with your feathered creature !!!!

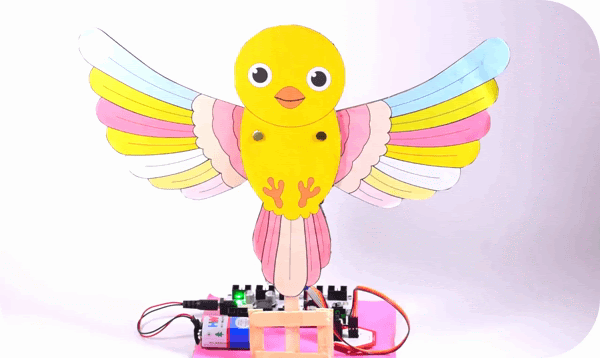

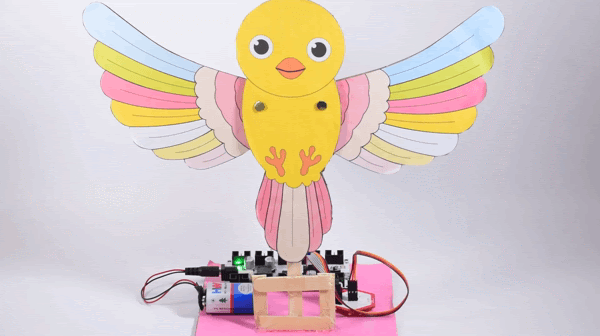

Awesome!!! You Have Created Your Own Flapping Bird :)
Once you complete the project share it on Instagram with Tag #dreamkit and #CreatedWithDreamKit
Happy creating !!!
