Flamethrowing Jack-O'-Lantern
by randofo in Circuits > Arduino
348809 Views, 548 Favorites, 0 Comments
Flamethrowing Jack-O'-Lantern
![flamethrowing.gif](/proxy/?url=https://content.instructables.com/F7M/B0JB/J6WGH0S5/F7MB0JBJ6WGH0S5.gif&filename=flamethrowing.gif)
![main1.jpg](/proxy/?url=https://content.instructables.com/FGD/5PFE/GU1I4FQD/FGD5PFEGU1I4FQD.jpg&filename=main1.jpg)
![main2.jpg](/proxy/?url=https://content.instructables.com/FP8/EA29/GU0ZM1PG/FP8EA29GU0ZM1PG.jpg&filename=main2.jpg)
![Flamethrowing Jack-O'-Lantern](/proxy/?url=https://content.instructables.com/FZD/OTT1/J6WGH0NW/FZDOTT1J6WGH0NW.jpg&filename=Flamethrowing Jack-O'-Lantern)

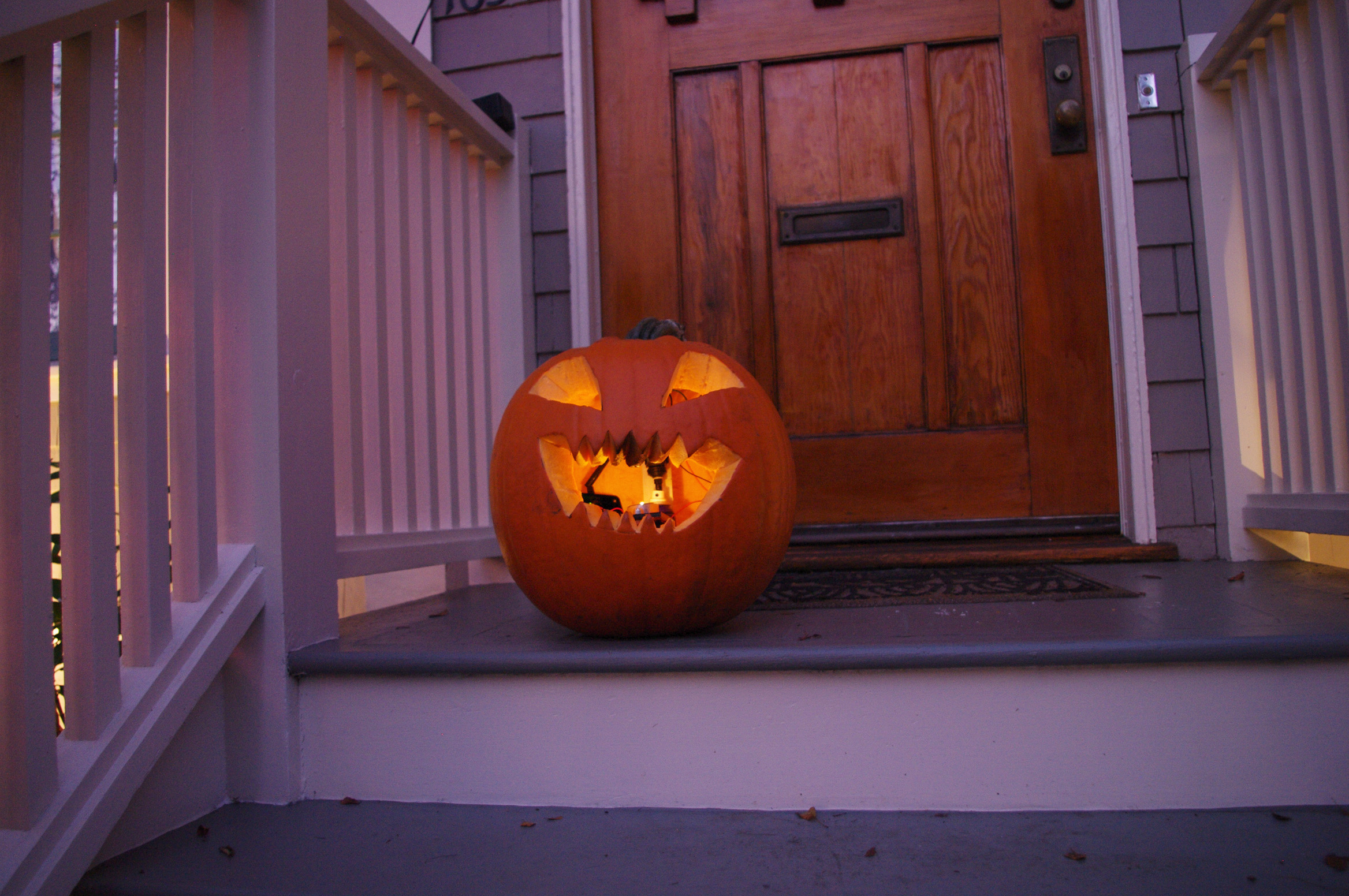

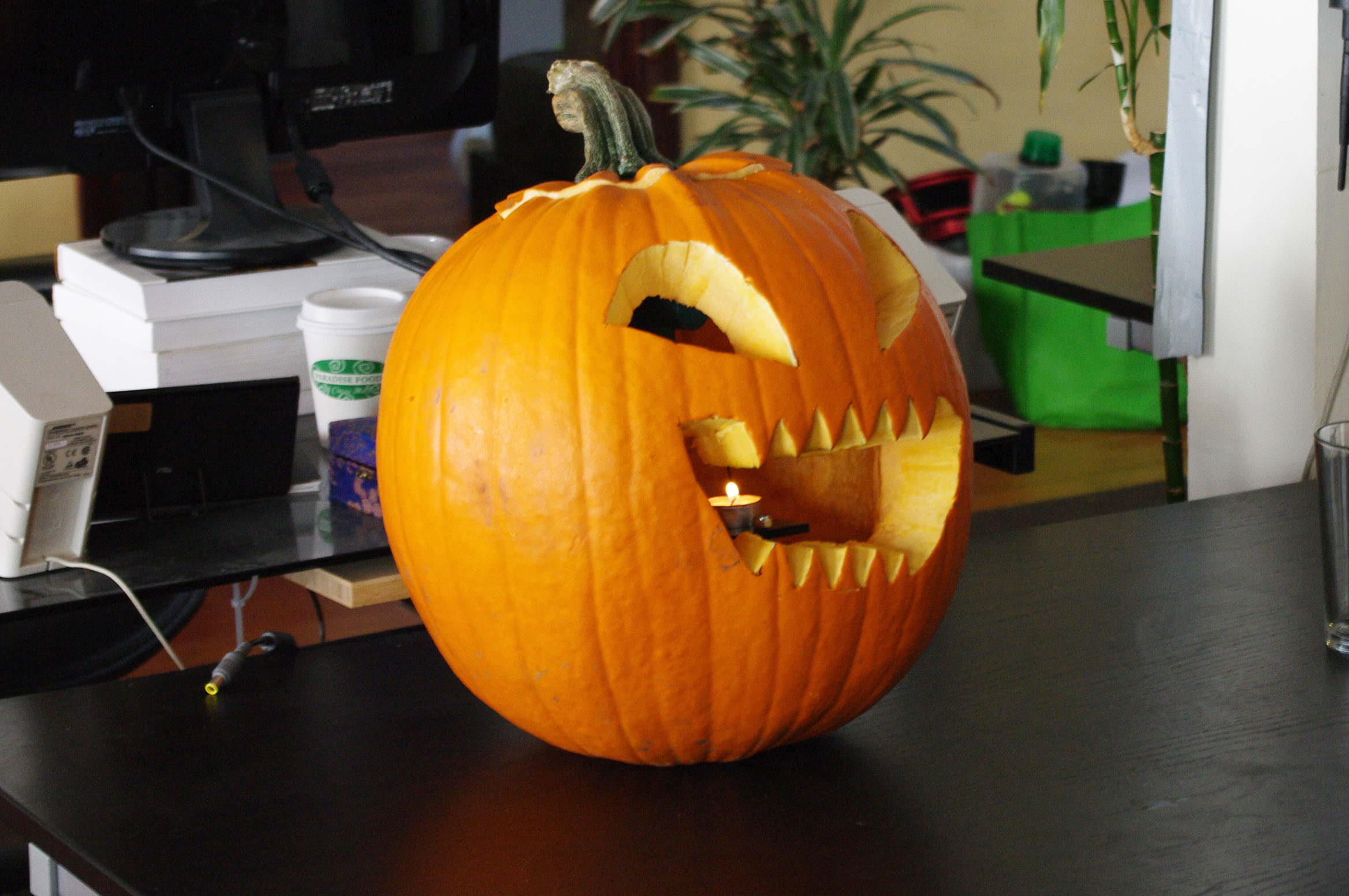

A flamethrowing jack-o'-lantern keeps the trick-or-treaters a safe distance from your house and is a fine addition to any anti-Halloween arsenal. At the first sign of any sugar-obsessed imp, simply press the trigger button and wirelessly shoot a one-second burst of flames out of the jack-o'-lantern's mouth. This plume of hellfire will make even the most bold of people think twice about approaching your door. Very few people are willing to risk life and limb for the chance of a tiny box of milk duds.
WARNING!: This pumpkin is extremely dangerous and you definitely should not make one of these. The instructions were posted here are for entertainment purposes only. I do not condone the manufacture or use of flamethrowing jack-o'-lanterns. Seriously, nothing good will come of making one of these. Don't do it.
Go Get Stuff
![1A.jpg](/proxy/?url=https://content.instructables.com/FH1/D1E8/GU1UZ3V8/FH1D1E8GU1UZ3V8.jpg&filename=1A.jpg)
For carving the jack-o'-lantern, you will need:
- A large pumpkin (mine was probably about 18" in diameter)
- An assortment of cutting knives. Serrated seemed to work the best.
- A marker
- Paper and pencil
- Scissors
- A spoon
- Other scraping implements. I found a chisel worked very well.
For the remote controlled flamethrower:
- Door lock actuator
- SquidBee transmitter and receiver. I had these lying around from a previous project. Any Arduino/Xbee combination should do.
- An extra ATMEGA168 or ATMEGA28 (only if using the Squidbee setup above as the receiver has no chip)
- Small can of WD-40
- 12" x 12" x 1/8" sheet of black acrylic
- SPST 5V relay
- Perfboard
- 5" x 2.5" x 2" project box.
- SPST momentary pushbutton switch
- 10K resistor
- (x2) 9V battery snap
- (x2) M-type plug adapters
- Misc. long zip ties
- 16" x 2" x 1/4" aluminum extrusion
- 3-1/2" x 1/4 bolts
- (x6) 1/4 nuts
- Tea light
- Matches
(Note that some of the links on this page are affiliate links. This does not change the cost of the item for you. I reinvest whatever proceeds I receive into making new projects. If you would like any suggestions for alternative suppliers, please let me know.)
Cut a Cap
![2A.jpg](/proxy/?url=https://content.instructables.com/FW1/XO12/GU2F3X4G/FW1XO12GU2F3X4G.jpg&filename=2A.jpg)
![2B.jpg](/proxy/?url=https://content.instructables.com/FZC/Z2VT/GU2F3X4I/FZCZ2VTGU2F3X4I.jpg&filename=2B.jpg)
![2C.jpg](/proxy/?url=https://content.instructables.com/F03/LT6T/GU1UZ3S7/F03LT6TGU1UZ3S7.jpg&filename=2C.jpg)
![2D.jpg](/proxy/?url=https://content.instructables.com/FSS/GA1S/GU2QYSXU/FSSGA1SGU2QYSXU.jpg&filename=2D.jpg)
Cut around the stem of the pumpkin at an angle (with the knife slanted in towards the stem of the pumpkin)
After you are done cutting all the way around, remove the stem. This will serve as your lid later on.
Gut It
![3A.jpg](/proxy/?url=https://content.instructables.com/FZS/AWRW/GU1UZ3TJ/FZSAWRWGU1UZ3TJ.jpg&filename=3A.jpg)
![3B.jpg](/proxy/?url=https://content.instructables.com/F91/WB19/GU1I4K5H/F91WB19GU1I4K5H.jpg&filename=3B.jpg)
![3C.jpg](/proxy/?url=https://content.instructables.com/FRV/3DN6/GU2QYSXW/FRV3DN6GU2QYSXW.jpg&filename=3C.jpg)
![3D.jpg](/proxy/?url=https://content.instructables.com/FWQ/T4RB/GU2QYSXX/FWQT4RBGU2QYSXX.jpg&filename=3D.jpg)
![3E.jpg](/proxy/?url=https://content.instructables.com/FIP/G4MU/GU1I4K5I/FIPG4MUGU1I4K5I.jpg&filename=3E.jpg)
Remove the guts from the pumpkin. To start it should be easy simple to pull them out by hand, but this is going to quickly become too difficult.
Using a metal spoon or other scraping tool (I found a chisel works best) scrape the sides of the pumpkin and remove all of the slimy innards. The inside should be reasonably smooth and clean when it is done.
Design a Face
![4A.jpg](/proxy/?url=https://content.instructables.com/FE4/B2OV/GU2QYSXZ/FE4B2OVGU2QYSXZ.jpg&filename=4A.jpg)

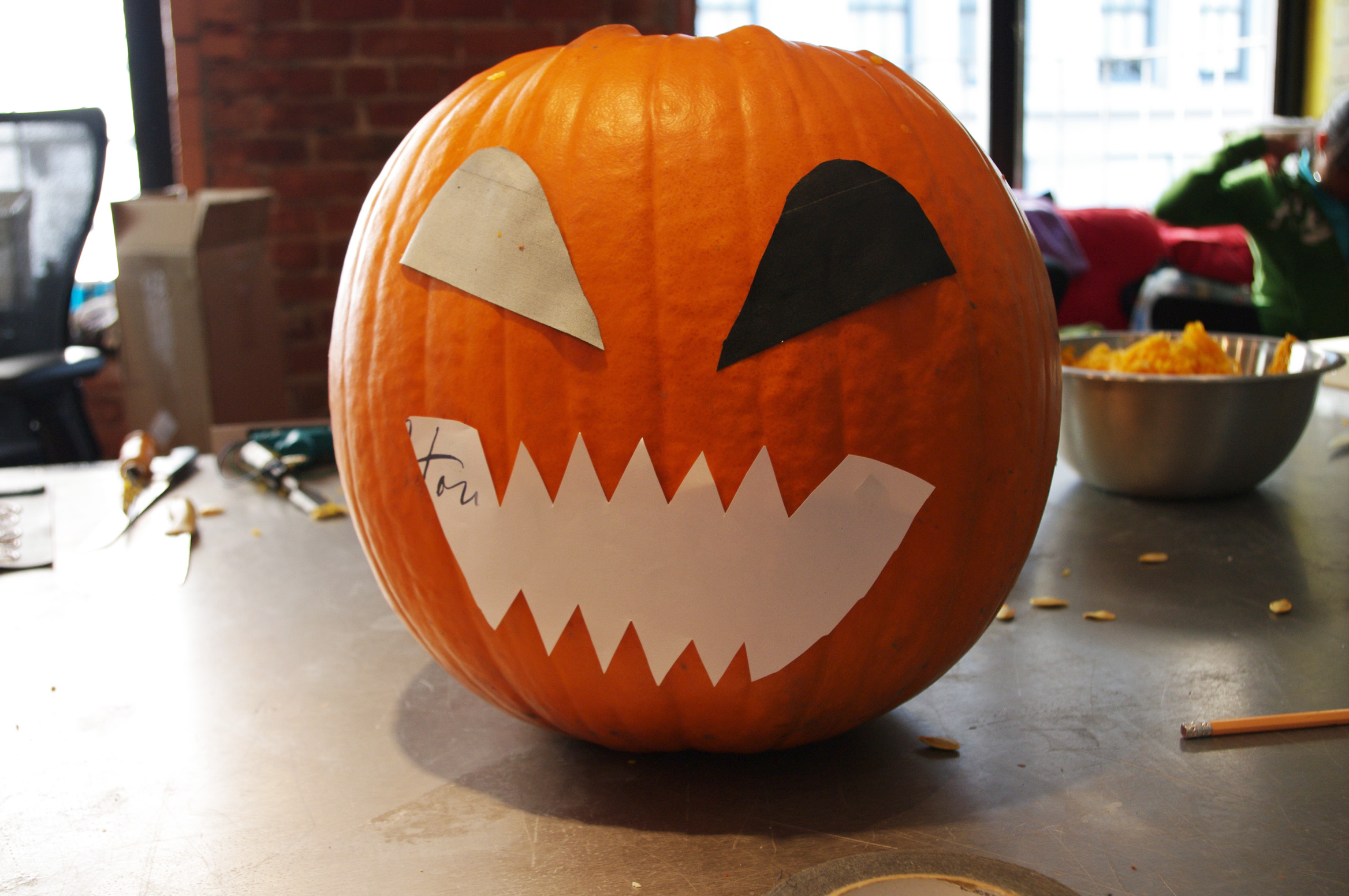

Draw a face on a piece of paper and then cut it out and tape it to the pumpkin.
One thing to keep in mind is that the mouth needs to be large and about halfway up the pumpkin or the flames aren't going to be able to shoot out.
Trace
![10A.jpg](/proxy/?url=https://content.instructables.com/FHB/ASYT/GU2QYT3X/FHBASYTGU2QYT3X.jpg&filename=10A.jpg)
![10B.jpg](/proxy/?url=https://content.instructables.com/FLM/29PV/GU2QYT3W/FLM29PVGU2QYT3W.jpg&filename=10B.jpg)
![10C.jpg](/proxy/?url=https://content.instructables.com/F2A/0HCB/GU1I4K9M/F2A0HCBGU1I4K9M.jpg&filename=10C.jpg)
With a marker, trace the outline of the face onto the pumpkin and remove the paper.
Cut
![11A.jpg](/proxy/?url=https://content.instructables.com/FQQ/REH1/GU1I4K9L/FQQREH1GU1I4K9L.jpg&filename=11A.jpg)
![11B.jpg](/proxy/?url=https://content.instructables.com/FXE/3M14/GU2QYT3V/FXE3M14GU2QYT3V.jpg&filename=11B.jpg)
![11C.jpg](/proxy/?url=https://content.instructables.com/FE5/9CBL/GU2F3XDZ/FE59CBLGU2F3XDZ.jpg&filename=11C.jpg)
![11D.jpg](/proxy/?url=https://content.instructables.com/FTK/4ZIS/GU1UZ42K/FTK4ZISGU1UZ42K.jpg&filename=11D.jpg)
![11E.jpg](/proxy/?url=https://content.instructables.com/FHZ/L4QF/GU2QYT3T/FHZL4QFGU2QYT3T.jpg&filename=11E.jpg)
![11F.jpg](/proxy/?url=https://content.instructables.com/F2T/R2BG/GU2F3XDU/F2TR2BGGU2F3XDU.jpg&filename=11F.jpg)
Cut out the pumpkin's face. For the larger and more complicated shapes like the mouth, it help to cut it out in smaller pieces instead of trying to remove one large chunk from the pumpkin.
Bend
![5A.jpg](/proxy/?url=https://content.instructables.com/FJ6/AOYW/GU2QYSY0/FJ6AOYWGU2QYSY0.jpg&filename=5A.jpg)
![5B.jpg](/proxy/?url=https://content.instructables.com/FNO/MTSY/GU2F3X50/FNOMTSYGU2F3X50.jpg&filename=5B.jpg)
![5C.jpg](/proxy/?url=https://content.instructables.com/FX3/UEUR/GU2QYSY2/FX3UEURGU2QYSY2.jpg&filename=5C.jpg)
![5D.jpg](/proxy/?url=https://content.instructables.com/FI6/M59U/GU2F3X51/FI6M59UGU2F3X51.jpg&filename=5D.jpg)
![5E.jpg](/proxy/?url=https://content.instructables.com/FKQ/W8Z4/GU1I4K5K/FKQW8Z4GU1I4K5K.jpg&filename=5E.jpg)

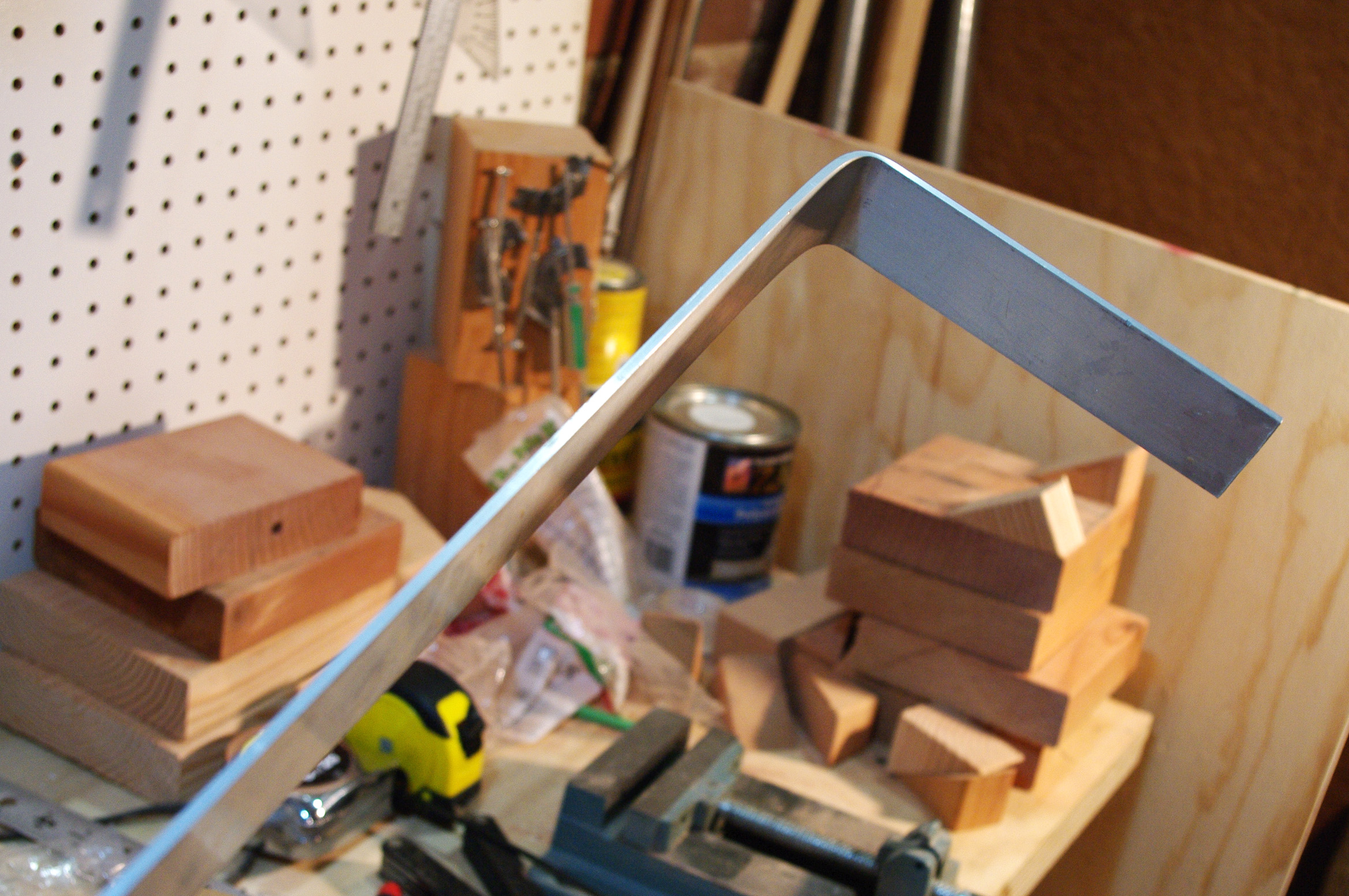

Make a mark about 6" from one of the edges of the aluminum extrusion.
Line up this mark with the edge of the workbench and clamp it between the workbench and something stiff and flat like a 2x4 or metal bar.
Grab the protruding edge firmly and push down until it is bent to 90 degrees. In doing so, you may want to push it slightly past 90 degrees as the aluminum tends to spring back a little when done.
Brackets
![6A.jpg](/proxy/?url=https://content.instructables.com/FZ9/BLWQ/GU2QYSY3/FZ9BLWQGU2QYSY3.jpg&filename=6A.jpg)
Download the following files for the motor mount and candle holder.
Use these files as cutting guides to cut the pieces out of 1/8" acrylic.
At times like these, having a laser cutter or using a laser cutter service comes in handy.
Downloads
Drill Holes
![7A.jpg](/proxy/?url=https://content.instructables.com/FL9/0ZIY/GU2F3X52/FL90ZIYGU2F3X52.jpg&filename=7A.jpg)
![7B.jpg](/proxy/?url=https://content.instructables.com/FFH/SWE9/GU1UZ3UG/FFHSWE9GU1UZ3UG.jpg&filename=7B.jpg)
![7C.jpg](/proxy/?url=https://content.instructables.com/FY6/Z0LX/GU2QYSY4/FY6Z0LXGU2QYSY4.jpg&filename=7C.jpg)
![7D.jpg](/proxy/?url=https://content.instructables.com/FIC/ZO6I/GU2F3X53/FICZO6IGU2F3X53.jpg&filename=7D.jpg)
![7E.jpg](/proxy/?url=https://content.instructables.com/FNB/0KN0/GU1UZ3V6/FNB0KN0GU1UZ3V6.jpg&filename=7E.jpg)

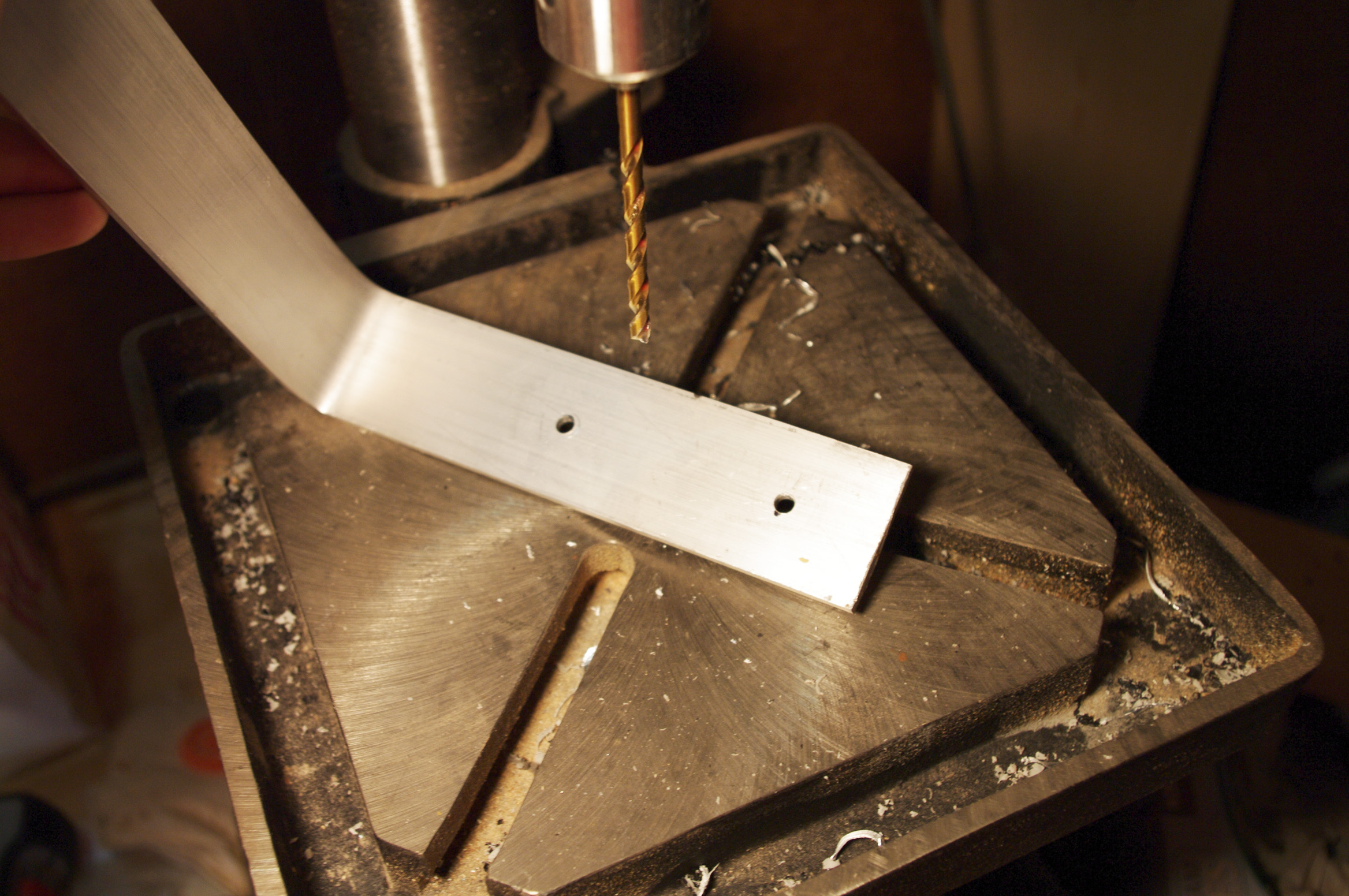

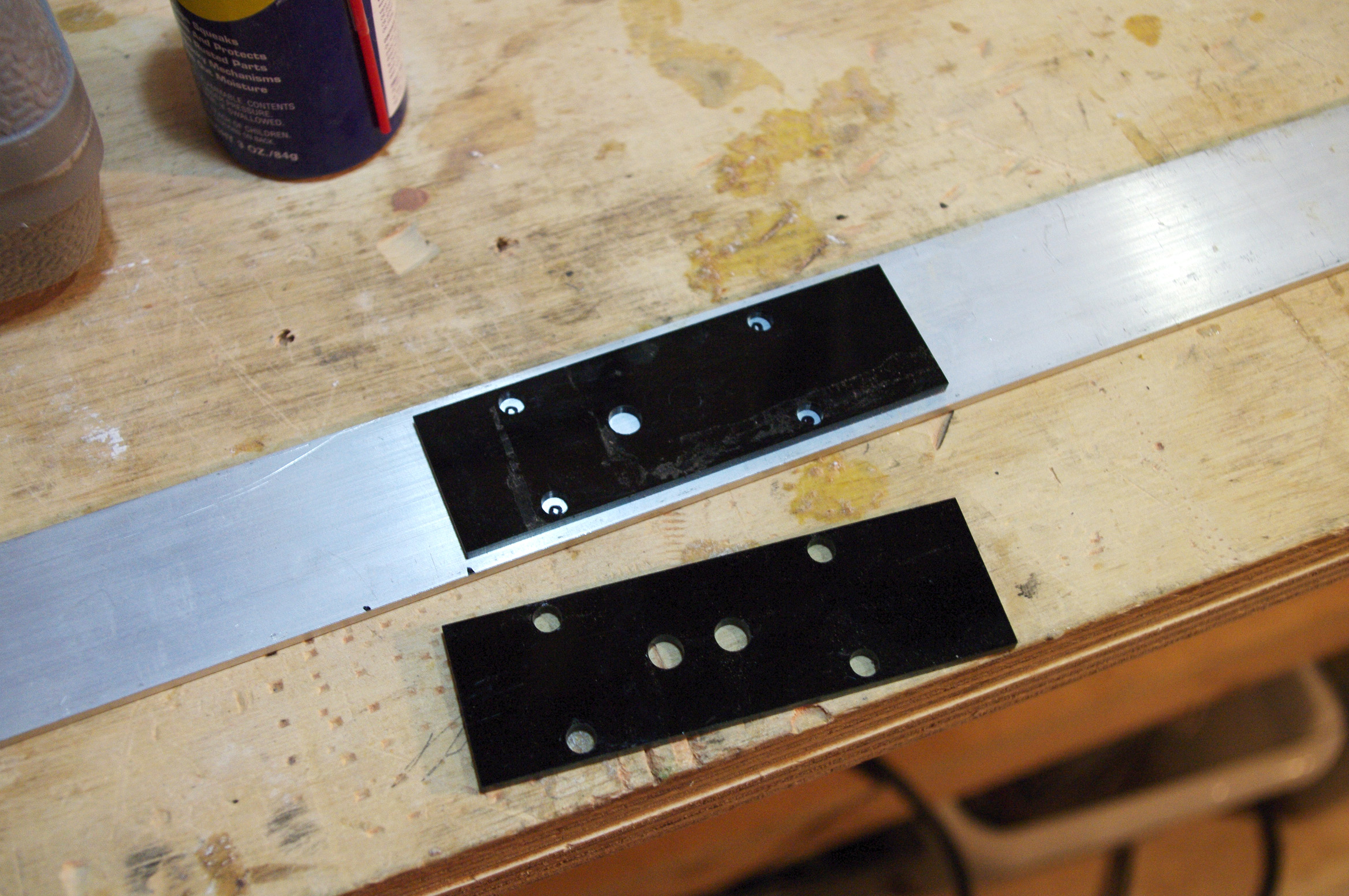

Use the two mounts that you just cut out as drilling guides on the aluminum extrusion.
The motor mount should line up with the long edge of the extrusion and you should use a marker to mark all 4 corner holes.
The candle mount should be slightly backed off from the short edge. Make two marks for those holes as well.
When you are done, drill 1/4" holes through the aluminum using a drill press.
Attach Things
![8A.jpg](/proxy/?url=https://content.instructables.com/FL7/JTL0/GU2F3XEC/FL7JTL0GU2F3XEC.jpg&filename=8A.jpg)
![8B.jpg](/proxy/?url=https://content.instructables.com/FKV/ALHL/GU2F3XEA/FKVALHLGU2F3XEA.jpg&filename=8B.jpg)
![8C.jpg](/proxy/?url=https://content.instructables.com/FTU/1PAR/GU1I4K9O/FTU1PARGU1I4K9O.jpg&filename=8C.jpg)

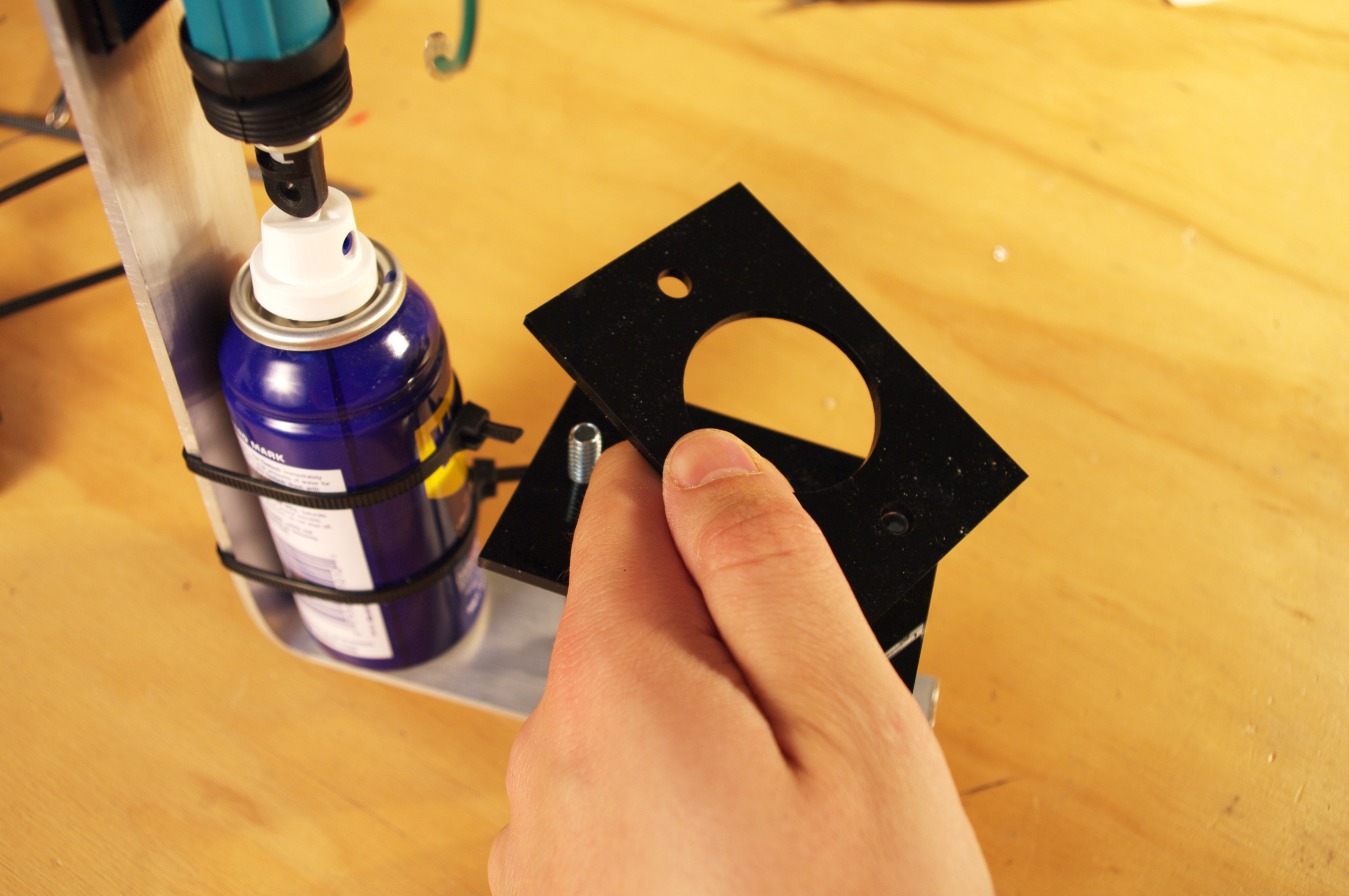

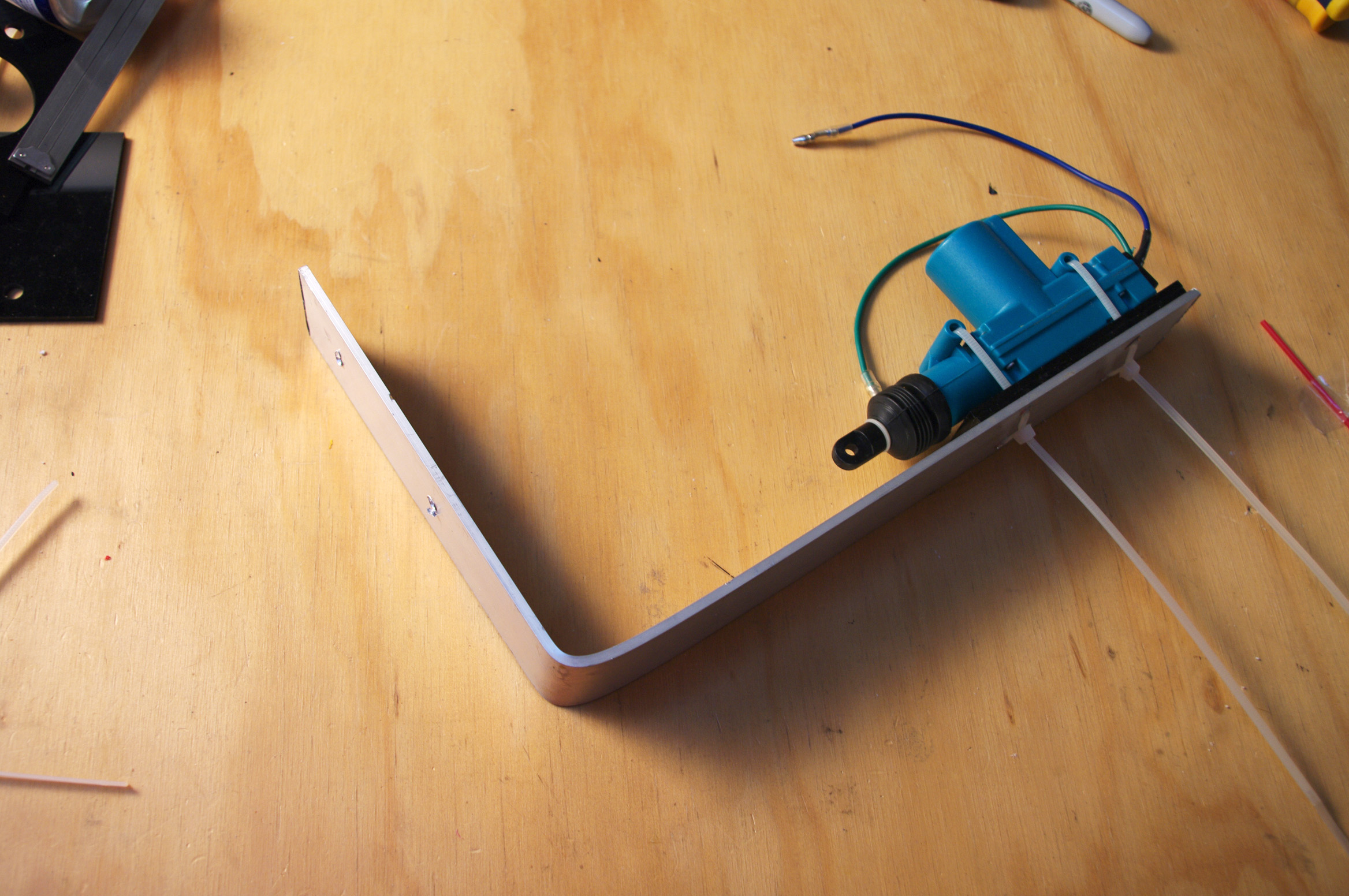

Stack the two motor mounts and align the motor atop it. Zip tie it all to the aluminum bracket.
Below it zip tie the small WD-40 can. The actuator from the motor should be aligned and touching the top of the can, but not yet pressing down firmly onto it.
Candle Mount
![9A.jpg](/proxy/?url=https://content.instructables.com/FQN/00DM/GU2QYT41/FQN00DMGU2QYT41.jpg&filename=9A.jpg)
![9B.jpg](/proxy/?url=https://content.instructables.com/F3B/06W0/GU2F3XE6/F3B06W0GU2F3XE6.jpg&filename=9B.jpg)
![9C.jpg](/proxy/?url=https://content.instructables.com/FLH/IV7X/GU2F3XE4/FLHIV7XGU2F3XE4.jpg&filename=9C.jpg)
![9D.jpg](/proxy/?url=https://content.instructables.com/FZX/AZFI/GU2QYT3Z/FZXAZFIGU2QYT3Z.jpg&filename=9D.jpg)
![9E.jpg](/proxy/?url=https://content.instructables.com/FB2/YQTM/GU2F3XE2/FB2YQTMGU2F3XE2.jpg&filename=9E.jpg)
Insert the two bolts upwards through the bottom of the aluminum bracket. Fasten them in place with bolts.
Thread on another bolts onto each. Twist this about 3/4" down.
Place the bottom of the candle holder (the side without the large hole) onto the bolts. Then place the top candle holder bracket.
Fasten the whole thing in place by threading on another nut onto each.
Battery Adapter
![12A.jpg](/proxy/?url=https://content.instructables.com/FHZ/FIO1/GU1I4KAV/FHZFIO1GU1I4KAV.jpg&filename=12A.jpg)
![12B.jpg](/proxy/?url=https://content.instructables.com/FF6/PK3N/GU2F3XQ3/FF6PK3NGU2F3XQ3.jpg&filename=12B.jpg)

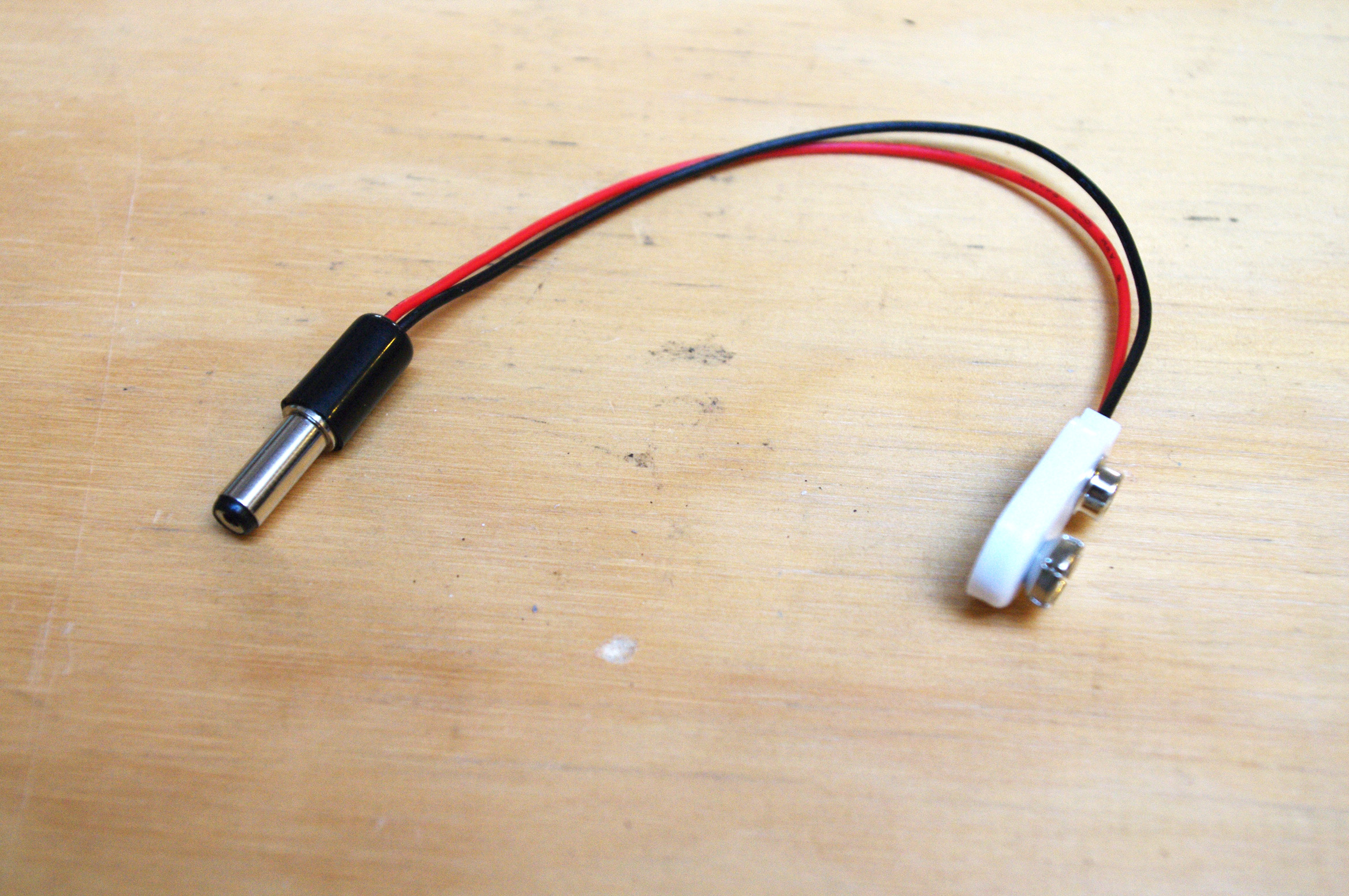

Solder the 9V battery snap to the M-type plug such that the red wire is connected to the tip and the black wire is connected to the barrel.
Don't forget to slip the plug's cover onto the wire before you solder.
Program the Receiver
![13A.jpg](/proxy/?url=https://content.instructables.com/FZZ/J40Z/GU1I4KAX/FZZJ40ZGU1I4KAX.jpg&filename=13A.jpg)
![13B.jpg](/proxy/?url=https://content.instructables.com/F3I/X05H/GU1UZ47T/F3IX05HGU1UZ47T.jpg&filename=13B.jpg)

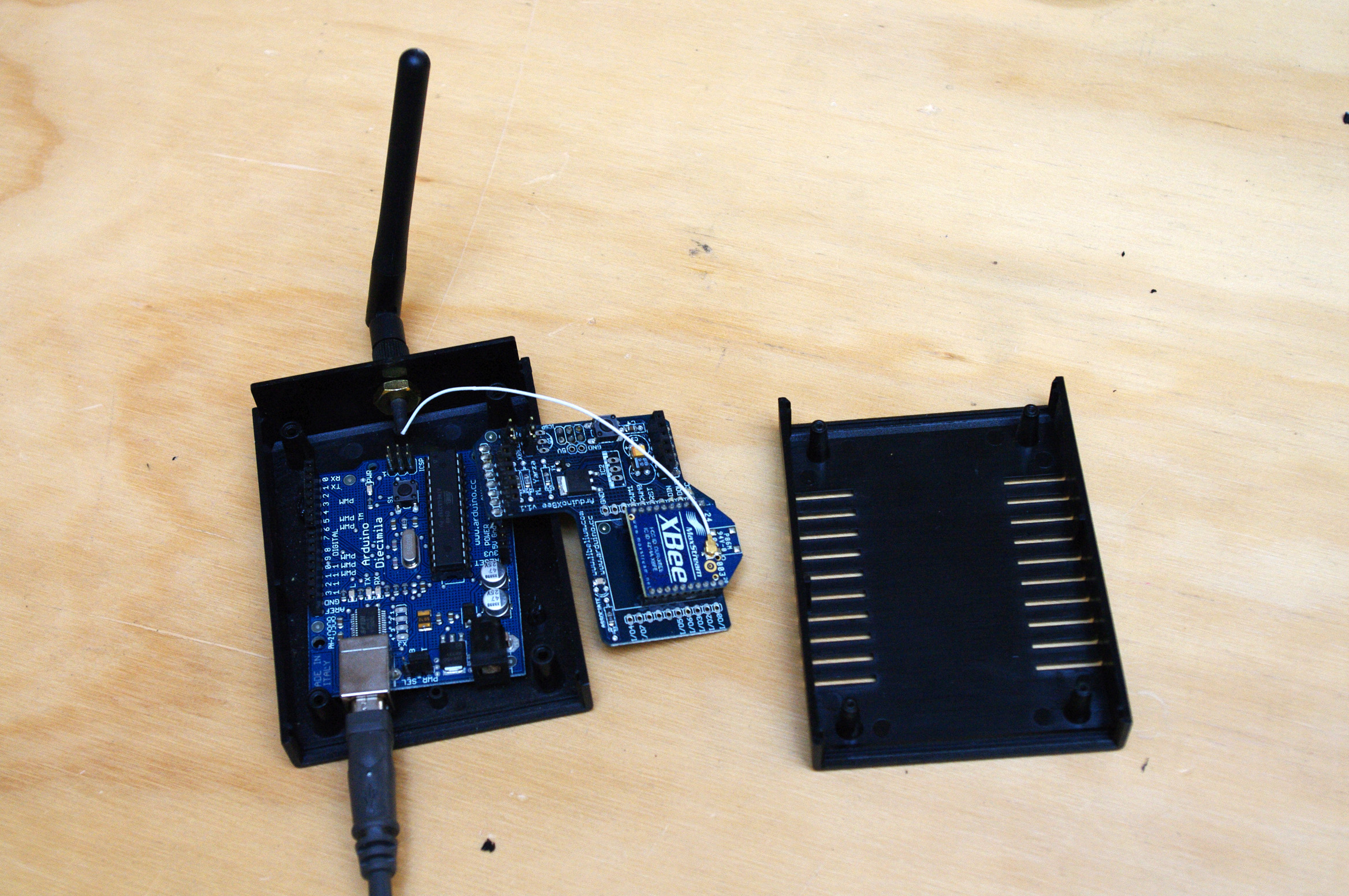

Open the SquidBee transmitter node and remove the Arduino from the XBee shield.
Change the power jumper on the Arduino to select USB power (if necessary).
Program the Arduino with the following code:<pre>//Flamethrowing Jack-O'-Lantern Receiver code //Copyleft 2011 int sentDat; void setup() { Serial.begin(9600); pinMode(3, OUTPUT); } void loop() { if (Serial.available() > 0) { sentDat = Serial.read(); if(sentDat == 'h'){ //activate the pumpkin for one second and then stop digitalWrite(3, HIGH); delay(1000); digitalWrite(3, LOW); } } }
When done, disconnect the USB power, change the power selection jumper, and plug the XBee shield back in.
Downloads
Program the Transmitter
![14A.jpg](/proxy/?url=https://content.instructables.com/FFC/PNA7/GU1I4KAY/FFCPNA7GU1I4KAY.jpg&filename=14A.jpg)
The transmitter is a little bit trickier if you are using a SquidBee setup because it is lacking an ATMEGA chip.
First unplug the XBee shield.
If necessary, add and bootload and the chip.
Then, like the other board, change the power selection jumper to USB, and then upload the following code:<pre>/* Flamethrowing Jack-O'-Lantern Trigger code Based on Button example code http://www.arduino.cc/en/Tutorial/Button created 2005 by DojoDave <http://www.0j0.org> modified 28 Oct 2010 by Tom Igoe The circuit: * pushbutton attached to pin 2 from +5V * 10K resistor attached to pin 2 from ground This code is in the public domain. */ // constants won't change. They're used here to // set pin numbers: const int buttonPin = 2; // the number of the pushbutton pin const int ledPin = 13; // the number of the LED pin // variables will change: int buttonState = 0; // variable for reading the pushbutton status void setup() { // initialize serial communication: Serial.begin(9600); // initialize the LED pin as an output: pinMode(ledPin, OUTPUT); // initialize the pushbutton pin as an input: pinMode(buttonPin, INPUT); } void loop(){ // read the state of the pushbutton value: buttonState = digitalRead(buttonPin); // check if the pushbutton is pressed. // if it is, the buttonState is HIGH: if (buttonState == HIGH) { // turn LED on: digitalWrite(ledPin, HIGH); //transmit a High command to the pumpkin and delay a second so that it does not recieve more than one command //per button press Serial.println('h'); delay(1000); } else { // turn LED off: digitalWrite(ledPin, LOW); } }
Lastly, change both of the TX/RX jumpers on the XBee shield from USB to XBee.
Downloads
Switch
![15A.jpg](/proxy/?url=https://content.instructables.com/F3B/NW17/GU2F3XQ4/F3BNW17GU2F3XQ4.jpg&filename=15A.jpg)
![15B.jpg](/proxy/?url=https://content.instructables.com/FTM/811Z/GU2QYT90/FTM811ZGU2QYT90.jpg&filename=15B.jpg)
Drill a 3/8" hole (or whatever is appropriate for your switch) in the side of your project enclosure.
Install the pushbutton switch.
Antenna
![16A.jpg](/proxy/?url=https://content.instructables.com/FK9/C31X/GU1UZ47W/FK9C31XGU1UZ47W.jpg&filename=16A.jpg)
![16B.jpg](/proxy/?url=https://content.instructables.com/FPG/88ZG/GU2QYT91/FPG88ZGGU2QYT91.jpg&filename=16B.jpg)
![16C.jpg](/proxy/?url=https://content.instructables.com/F5X/CZKM/GU2QYT95/F5XCZKMGU2QYT95.jpg&filename=16C.jpg)
![16D.jpg](/proxy/?url=https://content.instructables.com/FJW/8U4H/GU2QYT96/FJW8U4HGU2QYT96.jpg&filename=16D.jpg)

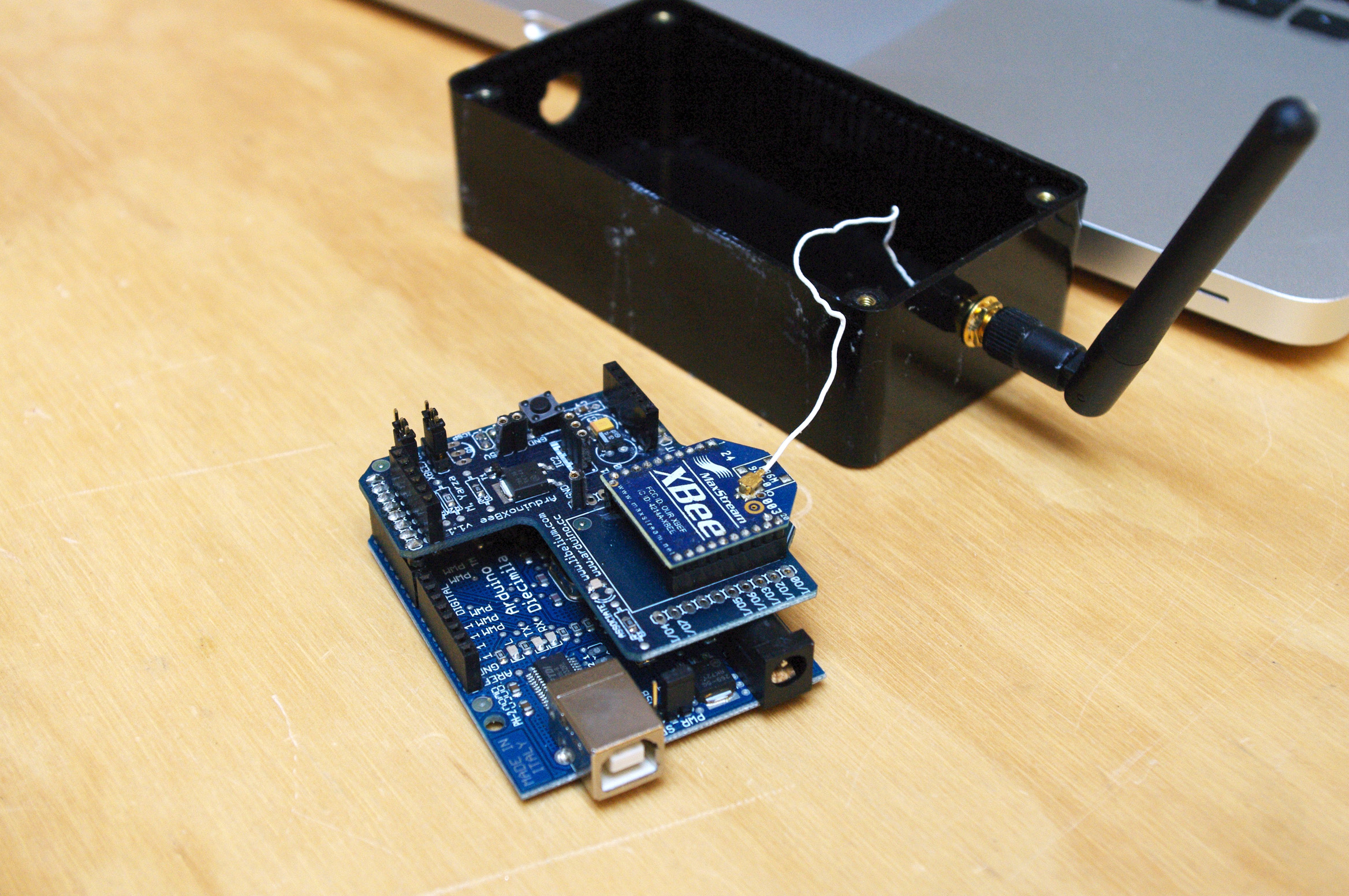

Install the antenna into the side of the enclosure opposite the switch. Be careful not to break the wire connecting the antenna to the XBee.
Wire the Transmitter
![17A.jpg](/proxy/?url=https://content.instructables.com/F8G/19UL/GU1UZ47X/F8G19ULGU1UZ47X.jpg&filename=17A.jpg)
![17B.jpg](/proxy/?url=https://content.instructables.com/FEM/19SG/GU2QYT99/FEM19SGGU2QYT99.jpg&filename=17B.jpg)
Solder a wire to one leg of a 10K resistor. Solder the opposite end of this wire to one of the switch terminals.
Plug in the side of the resistor with the wire soldered to it into pin 2 of the Arduino. Connect the other end of the resistor to ground.
Solder a wire to the other terminal on the switch and connect this wire with 5V on the Arduino board.
Lastly, plug your 9V battery connector into the power socket on the Arduino board.
Power
![18A.jpg](/proxy/?url=https://content.instructables.com/FGV/CT24/GU2F3XQ7/FGVCT24GU2F3XQ7.jpg&filename=18A.jpg)

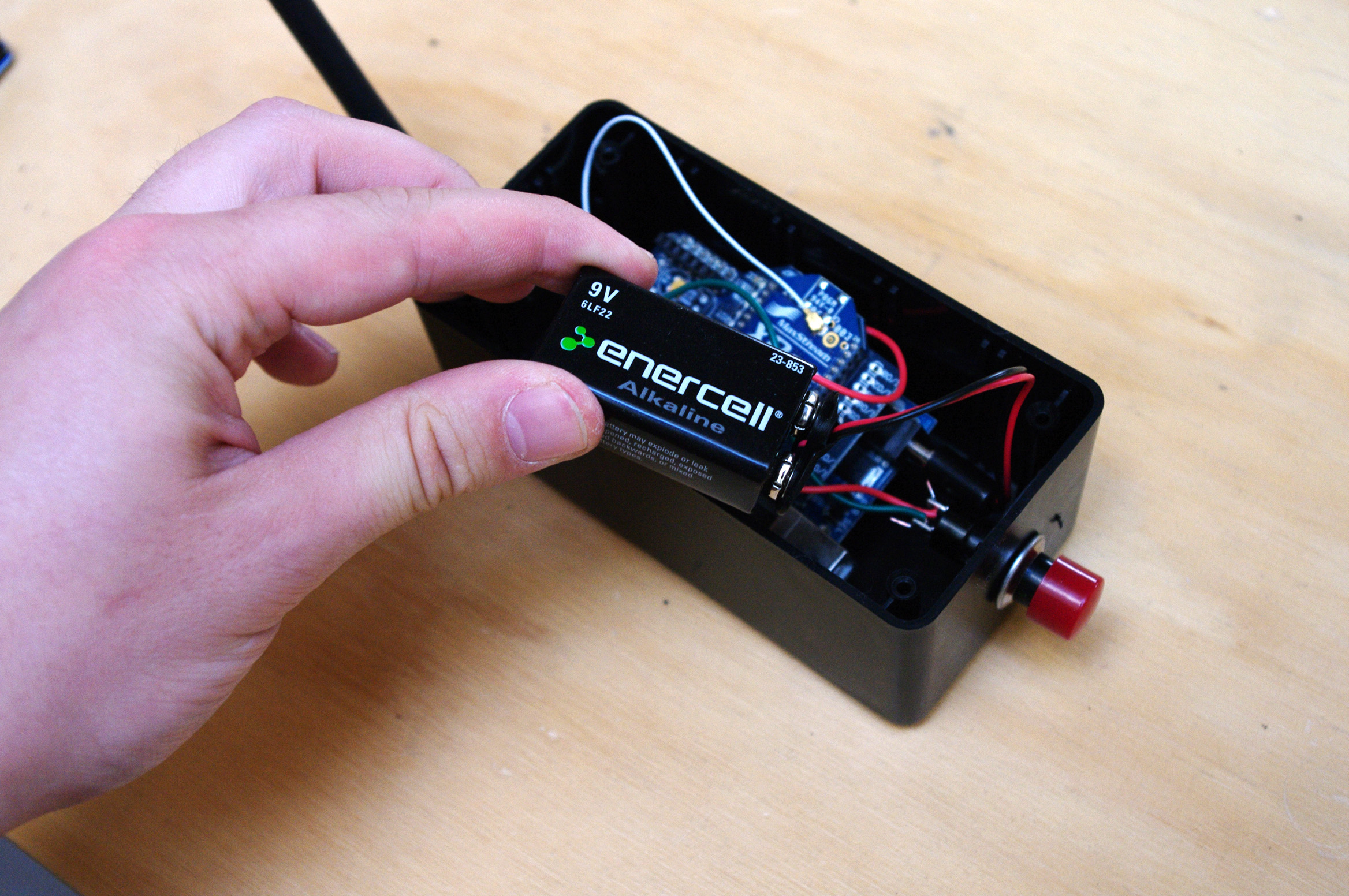

Plug in a 9V battery to power up the transmitter.
Case Closed
![19A.jpg](/proxy/?url=https://content.instructables.com/F0G/YCHB/GU2QYTC0/F0GYCHBGU2QYTC0.jpg&filename=19A.jpg)
![19B.jpg](/proxy/?url=https://content.instructables.com/FJG/Q0VX/GU1I4KDH/FJGQ0VXGU1I4KDH.jpg&filename=19B.jpg)
Fasten shut the transmitter's case.
Wire the Reciever
![20A.jpg](/proxy/?url=https://content.instructables.com/FAG/OKQH/GU1UZ4F9/FAGOKQHGU1UZ4F9.jpg&filename=20A.jpg)
![20B.jpg](/proxy/?url=https://content.instructables.com/F1Y/PPYP/GU2F3XRS/F1YPPYPGU2F3XRS.jpg&filename=20B.jpg)
![20C.jpg](/proxy/?url=https://content.instructables.com/FSK/7CQX/GU1I4KDI/FSK7CQXGU1I4KDI.jpg&filename=20C.jpg)
![20D.jpg](/proxy/?url=https://content.instructables.com/FA5/3BNU/GU2F3XRU/FA53BNUGU2F3XRU.jpg&filename=20D.jpg)
Affix the relay to a small piece of perfboard.
Connect one of the relay's coils to ground on the Arduino board and the other to pin 3.
Attach 9V to one of the relay's load pins and a long red wire to the other. To get easy access to the 9V power source, I broke off the top of the 9V battery snap and soldered a wire directly to the +9V battery connector tab (notice the extra red wire coming from the 9V battery snap).
Attach an extra long black wire to ground.
Put It Together
![21A.jpg](/proxy/?url=https://content.instructables.com/FN6/W48K/GU2QYTC4/FN6W48KGU2QYTC4.jpg&filename=21A.jpg)
I lost the case for my SquidBee transmitter node (the pumpkin receiver) a long time ago. I find that a piece of black gaffers tape typically gets the job done.
I plugged in the 9V battery and passed the red and black wires through the hole in the side of the case neat-like.
Then, I slapped a piece of black tape on top and called it a day. This will be inside the pumpkin, so aesthetics don't matter quite as much.
Wire the Motor
![22A.jpg](/proxy/?url=https://content.instructables.com/FPQ/782V/GU1UZ4FB/FPQ782VGU1UZ4FB.jpg&filename=22A.jpg)
![22B.jpg](/proxy/?url=https://content.instructables.com/FRC/YTF4/GU2QYTC6/FRCYTF4GU2QYTC6.jpg&filename=22B.jpg)
Wire the motor to the relay wires such that when the relay closes, the motor's actuator pushes down. In this case, red went to blue and black to green. It may be different for another motor.
Put It in the Pumpkin
![23A.jpg](/proxy/?url=https://content.instructables.com/FMI/PUJV/GU1I4KDJ/FMIPUJVGU1I4KDJ.jpg&filename=23A.jpg)
![23B.jpg](/proxy/?url=https://content.instructables.com/F9R/D638/GU2QYTCA/F9RD638GU2QYTCA.jpg&filename=23B.jpg)
![23C.jpg](/proxy/?url=https://content.instructables.com/F6O/0LRA/GU2QYTCB/F6O0LRAGU2QYTCB.jpg&filename=23C.jpg)
Place the whole contraption inside of the pumpkin.
Make sure that the battery is plugged in.
Also, make sure that the lid fits. If the lid does not lay flat, trim it appropriately to work.
Finally, it is a good idea to test to see if the the WD-40 sprays when the button on the transmitter is pressed down. It is easier and exponentially safer to debug this when there is no flame present.
Candle
![24A.jpg](/proxy/?url=https://content.instructables.com/F16/AW0R/GU2QYTCC/F16AW0RGU2QYTCC.jpg&filename=24A.jpg)
![24B.jpg](/proxy/?url=https://content.instructables.com/F95/S2RC/GU1UZ4FC/F95S2RCGU1UZ4FC.jpg&filename=24B.jpg)
![24C.jpg](/proxy/?url=https://content.instructables.com/FE2/AHRY/GU2F3XRX/FE2AHRYGU2F3XRX.jpg&filename=24C.jpg)
Once it is certain that everything is working as it should, it is time to add fire.
First off, find the transmitter. Make sure no one or nothing is pressing down on the button and it is somewhere safe.
Light a tea light and place it in the candle holder.
Fire!
![25A.jpg](/proxy/?url=https://content.instructables.com/F1N/VRVY/GU1UZ4FD/F1NVRVYGU1UZ4FD.jpg&filename=25A.jpg)
Take a number of steps way back from the pumpkin and press the trigger on the transmitter. If all is well with the world, the jack-o'-lantern will blast a burst of hellfire out of its mouth.
Shock and awe all innocent bystanders. This is the stuff nightmares are made of.
All of that said... SERIOUSLY, DON'T MAKE THIS.
