Fix a Grabber Stick

by Palingenesis in Workshop > Repair

2566 Views, 5 Favorites, 0 Comments

Fix a Grabber Stick

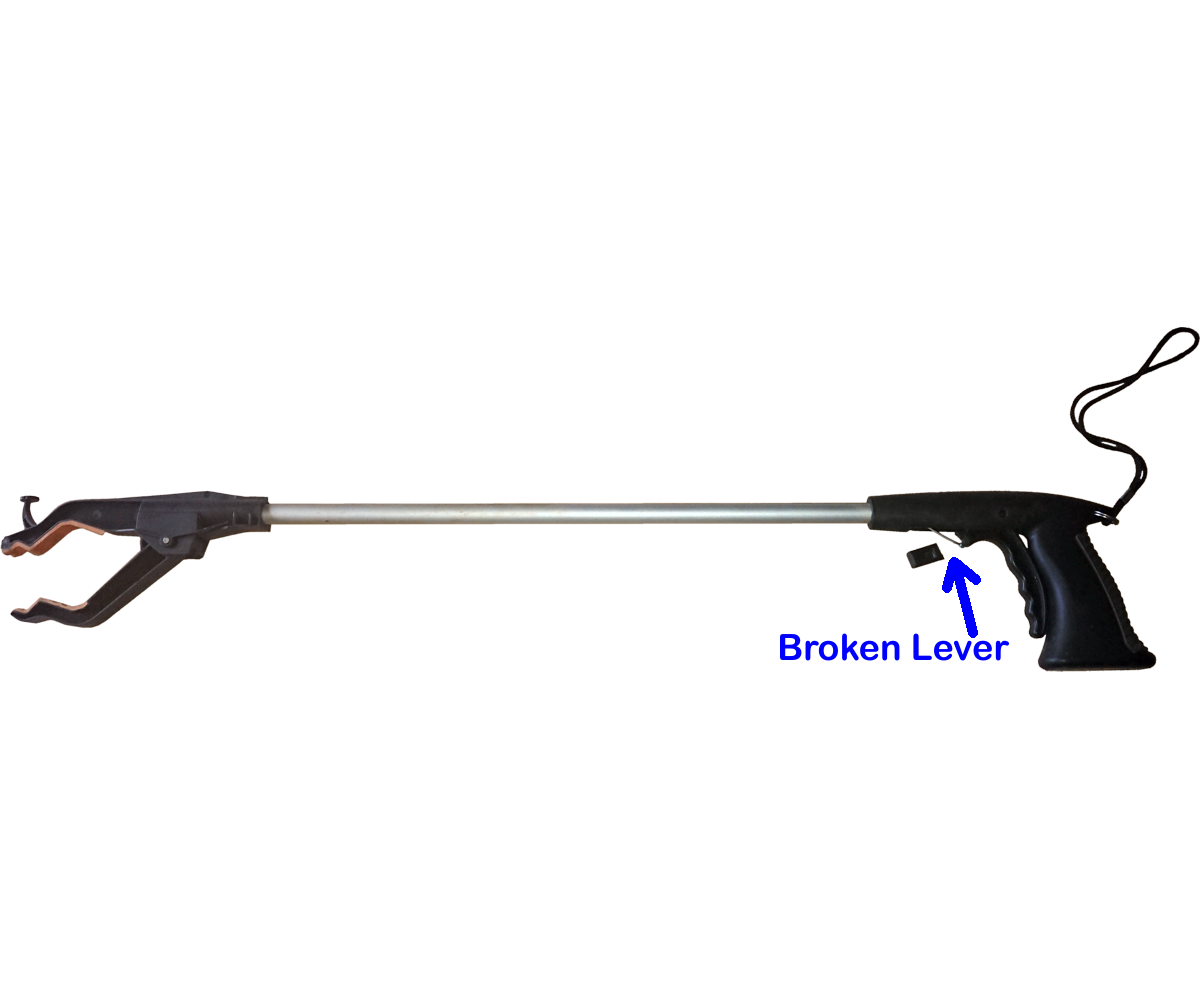

My Grabber Stick lever broke.

So I made a new lever on my 3D Printer.

If you have a Grabber Stick the same as mine this 3D print will fix it if the lever is broken.

Supplies

My 3D Printer.png

3d Printer.

Downloads

Gripper_Lever.stl

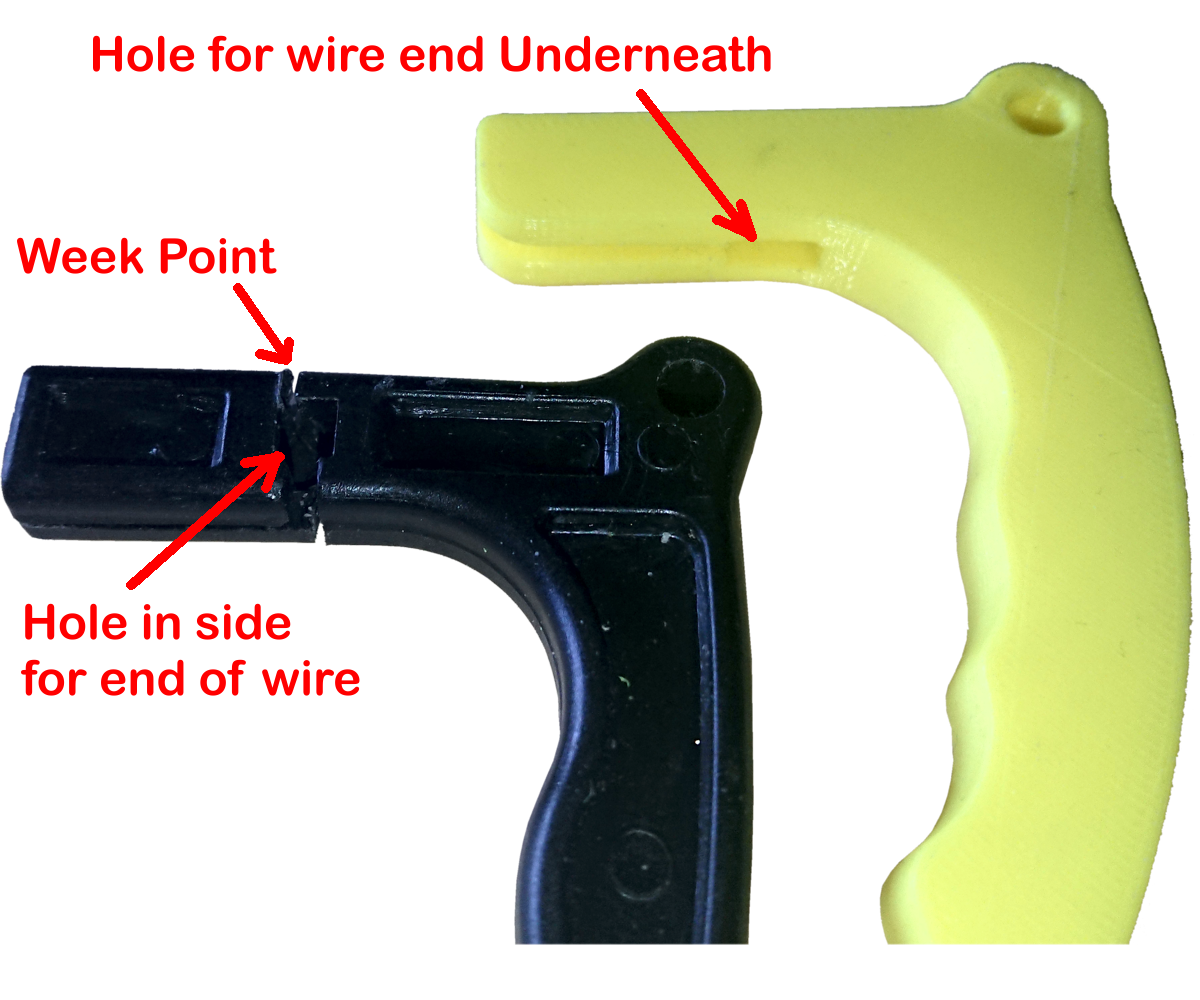

Make Improvement of Broken Part


If it is possible to improve the design of the broken item.

Make the improvements.

Print the New Lever


I used PLA to print this and used the setting shown in the image.

The file for the lever is listed in Supplies.

Remove Broken Part


The gripper has a pivot pin for the lever.

This slides out with a little force.

Fit New Part


Fit cable into new part.

Position new part in its correct place and replace the Pivot Pin.

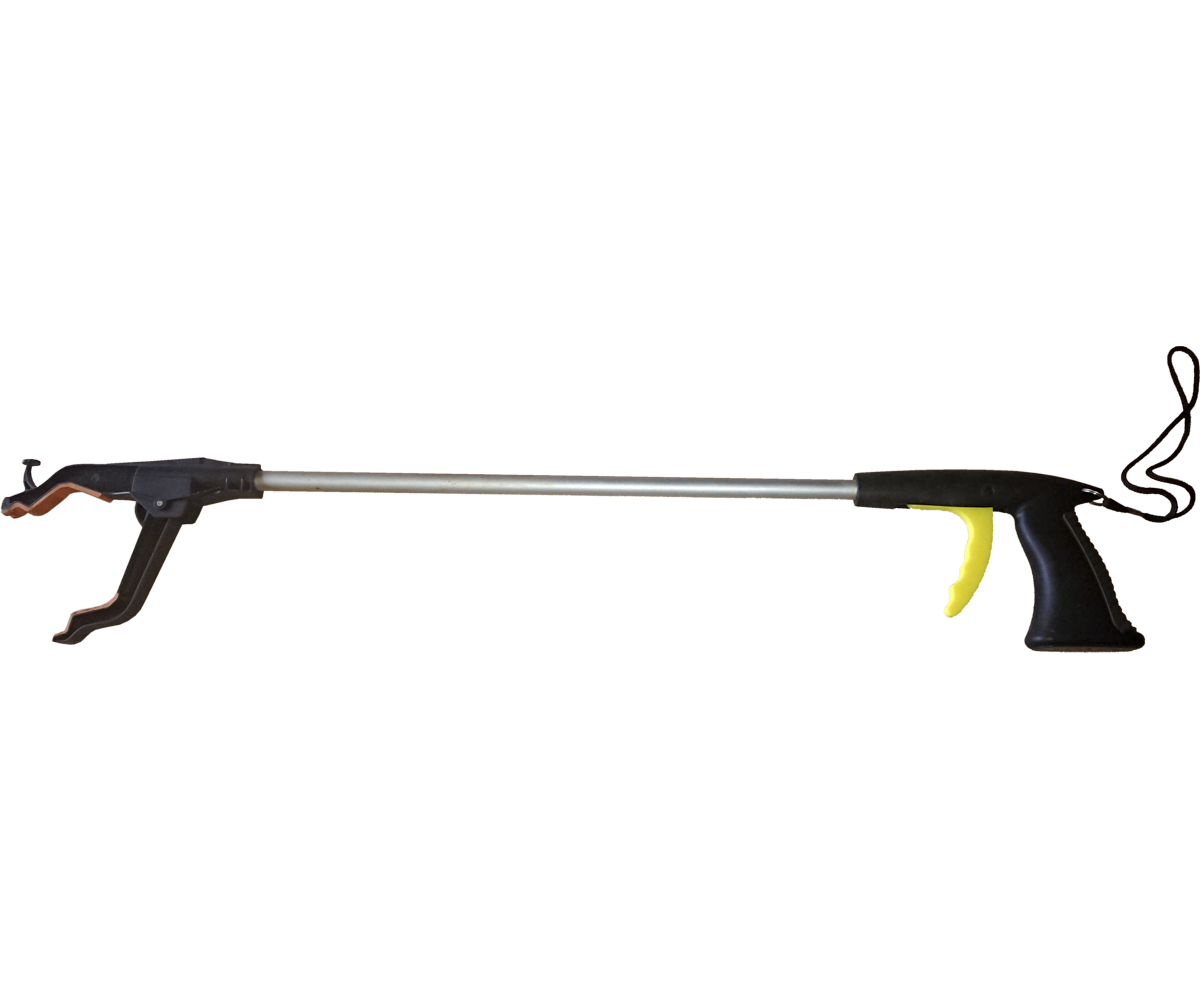

Finished


All fixed.

I am now able to pick up things I dropped on the floor again.
