Fix a DEAD Raspberry Pi..!

by Baasil Biniyamin in Circuits > Raspberry Pi

15817 Views, 6 Favorites, 0 Comments

Fix a DEAD Raspberry Pi..!


Hi guys,

While doing a project based on raspberry pi i just overvoltaged it and got damaged. And now i figured out a way to fix dead pi's damaged by excessive power supply. In my case it's a pi 3 model b, If you like this please vote me for micro controller contest

Gather Materials..

  • Raspberrypi (which ahve to be fixed)
  • Arduino Uno
  • Sorldering machine
  • etc

Issue..


The reason why my pi damaged was giving power from both GPIO pins and usb connector.

Precaution..

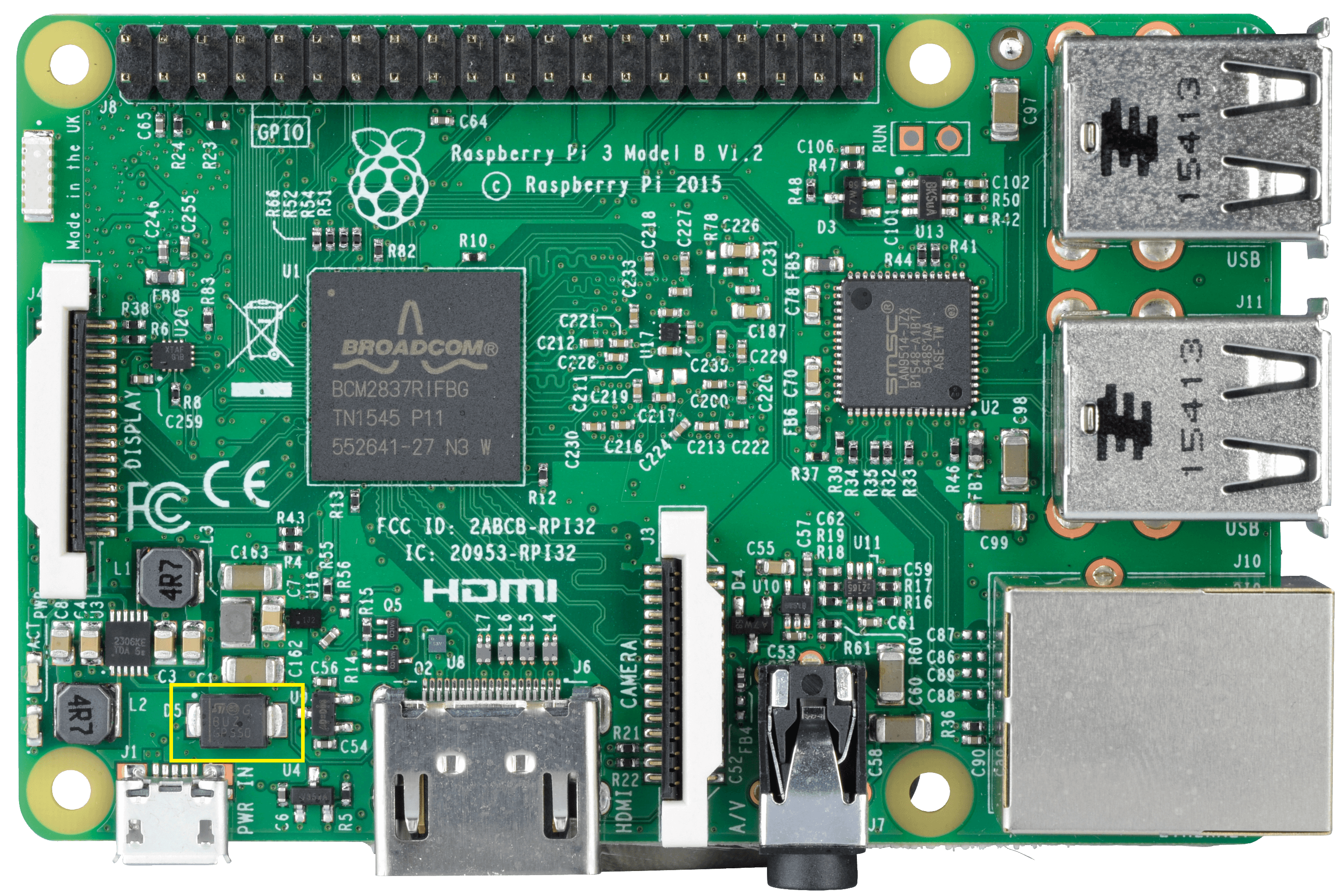

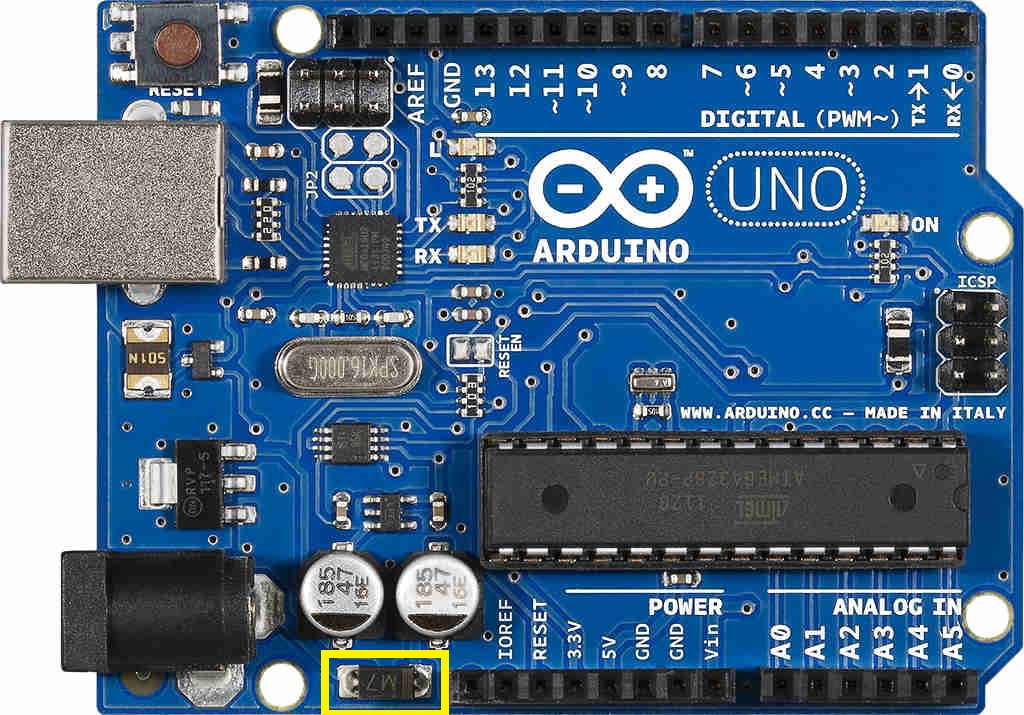

The diode BUZG550 is the one we have to replace to make pi working so we have to replace it with SMBJ.A0 or M7 seen in Arduino. Both are ideal solution to make it working. Please do not damage the board while working on this fix.

Applied Fix!


Conclusion

This fix helped me a lot and saved my money and time, I think tho post this instructables because this would help someone i think. If it helps please share and like this instructables

**I AM NOT RESPONSIBLE IF ANY DAMAGE OCCURRED FROM YOUR SIDE**
