Fix Your Broken Eyeglasses
![IMG_20210214_175450-01.jpeg](/proxy/?url=https://content.instructables.com/F77/JZBU/KL9G2TY3/F77JZBUKL9G2TY3.jpg&filename=IMG_20210214_175450-01.jpeg)
![fix your broken eye glasses with 3dprinting](/proxy/?url=https://content.instructables.com/FRC/N3C7/KLDUOXNH/FRCN3C7KLDUOXNH.jpg&filename=fix your broken eye glasses with 3dprinting)
Hi All,
Anyone with eyeglasses would understand the pain when a new pair of eyeglasses break... it is very common and unfortunately it is equally expensive to repair the broken part compared to buying a new one...
In this instructable, I will share how I fixed an eyeglass using 3d printer
Understanding What Needs to Be Fixed
![IMG_20210214_160115-01.jpeg](/proxy/?url=https://content.instructables.com/FIS/5REP/KL9G2TYI/FIS5REPKL9G2TYI.jpg&filename=IMG_20210214_160115-01.jpeg)
![IMG_20210214_160120-01.jpeg](/proxy/?url=https://content.instructables.com/FY5/RXWC/KL9G2U39/FY5RXWCKL9G2U39.jpg&filename=IMG_20210214_160120-01.jpeg)

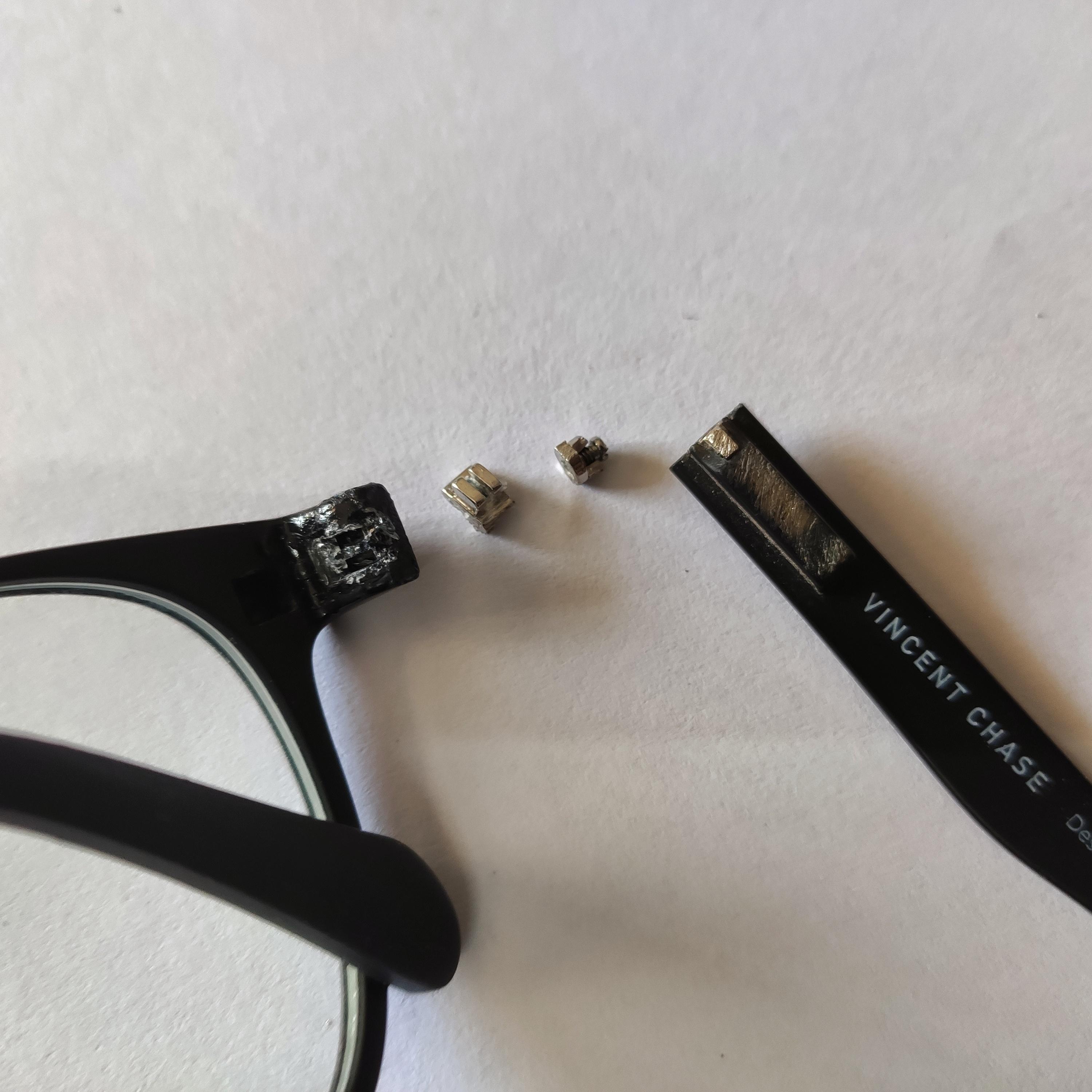

- My son kept on fidgeting with his eyeglasses till the point that I could not use super glue to fix it, anymore...
- The hinge was destroyed and there was no way I could replace the hinge...
- I have seen some experts printing the whole frame, but I wanted to just make a hinge that fits the existing frame that would solve my problem for now...
Remove Unwanted Parts
![IMG_20210214_160452-01.jpeg](/proxy/?url=https://content.instructables.com/F3W/MTZU/KL9G2U2U/F3WMTZUKL9G2U2U.jpg&filename=IMG_20210214_160452-01.jpeg)
- Before we start designing, we need measurements for each part.
- To do that, we will remove any unwanted part and measure the dimensions
Designing in Tinkercad
![image01141.jpg](/proxy/?url=https://content.instructables.com/FT5/T057/KLDUOXLR/FT5T057KLDUOXLR.jpg&filename=image01141.jpg)

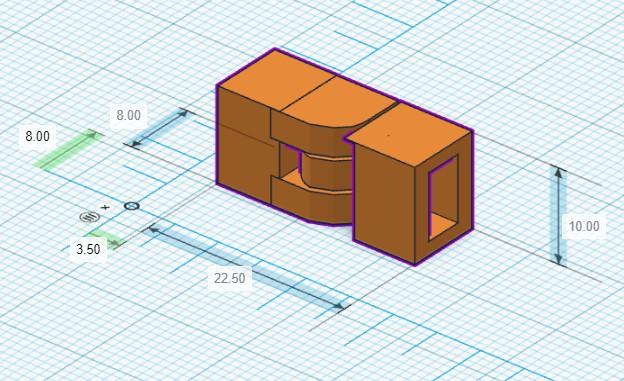

- I used tinkercad to design the hinge
- One side a single cube with a hole of 8mm HT and 4 mm width
- STL file on thingiverse https://www.thingiverse.com/thing:4770354
- 3d Print at 0.2mm

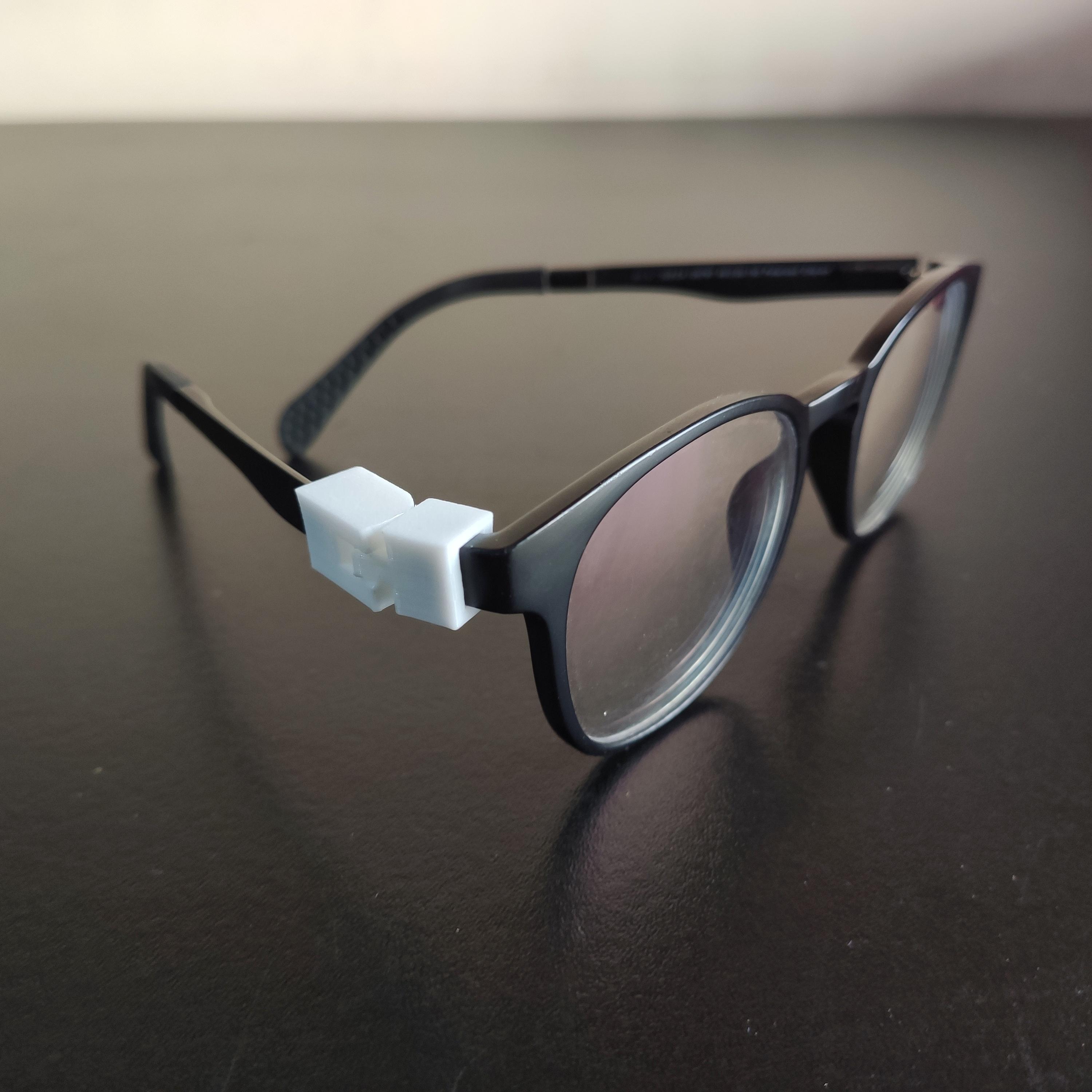

Done
![IMG_20210214_174405-01.jpeg](/proxy/?url=https://content.instructables.com/FP7/DWBH/KL9G2TY6/FP7DWBHKL9G2TY6.jpg&filename=IMG_20210214_174405-01.jpeg)
- Once the 3d printing is done
- Fix the eye fame
- We have to adjust the length of the temples / arms
- Bases on issues, adjust the 3d model and re-print. till you get the final perfect hinge
