Firefly Pickle Jar With Microbit and Neopixels

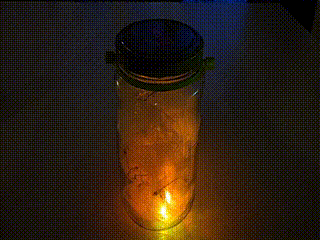

A motion sensitive firefly-filled pickle-jar that gets brighter when you move it, and then settles down to just twinkle a bit when its still.

This project was inspired by a workshop led by Lila Finch and the great folks doing tinkering / creative learning at UC Boulder.

• A microbit, v1 will do
• AA battery holder to power Microbit, and 2 AA batteries
• Neopixel strand of about 50 or so, like this one: https://www.adafruit.com/product/4560
• A nice big glass jar, perhaps of the sort that used to hold pickles, with a lid large enough that you can hot-glue the battery pack and microbit to it.
• Solder, screws, or breakout with which to attach the three wires of your neopixels to the microbit.
• Tulle - the sort of fine netting you often see made into wedding veils, or something similar you have lying around such as thin white cloth, paper, or packing material (thin enough to let the light shine through).

You can cut a neopixel strand to any length you like, but you need to attach the 3 the wires to your microbit. For neopixels with wires that appear to be exposed and uninsulated - like the ones recommended for this project ( https://www.adafruit.com/product/4560 ), you'll need to burn the insulation coating off of the ends with a lighter or match before attaching them to your microbit. Just hold the lighter to the ends for a second - and try not to burn off more coating than you need to in order to attach them to the microbit (if you do, just use some electrical tape to make sure they won't create a short circuit if they happen to touch.

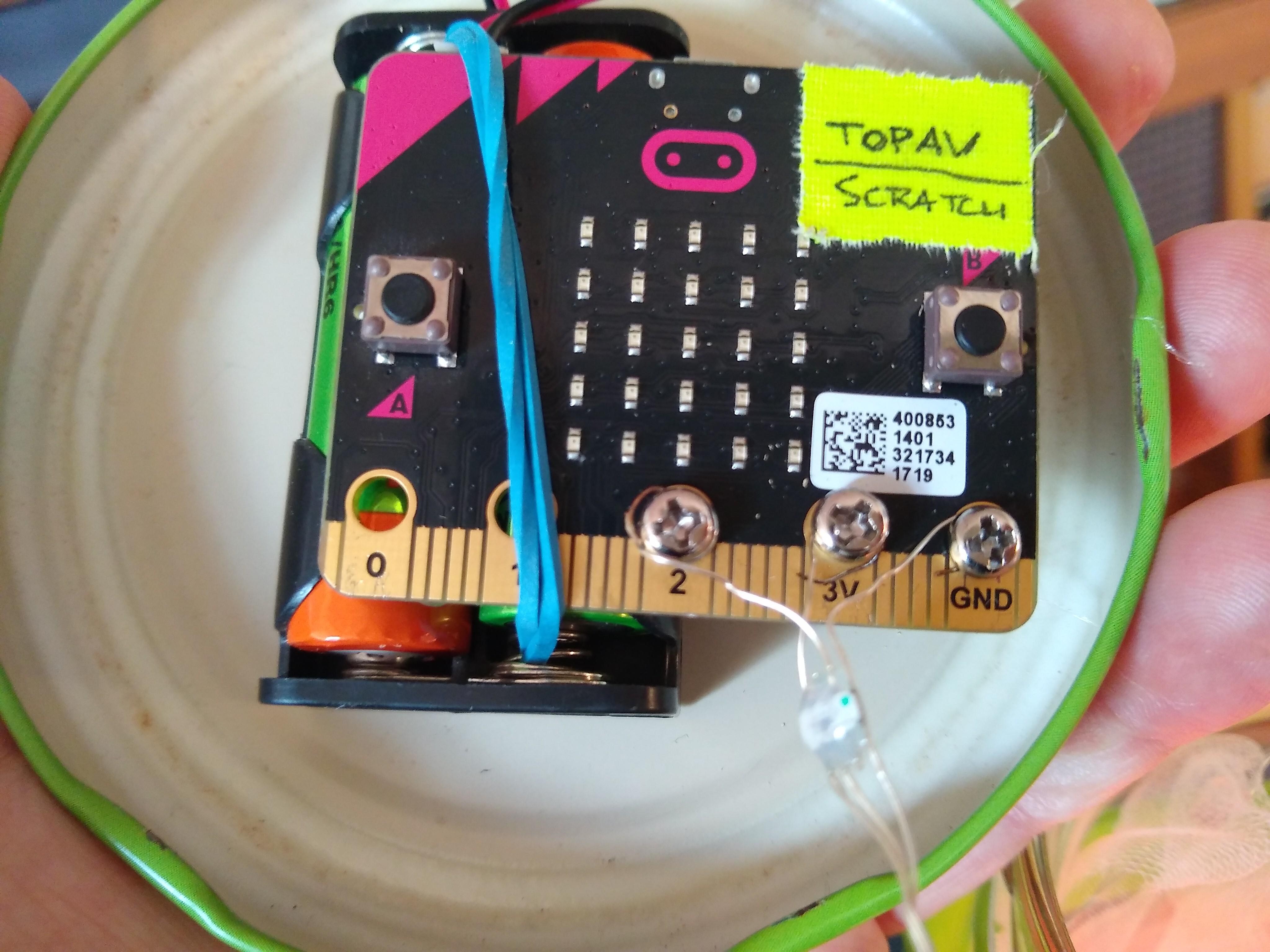

Attach the neopixel wire closest to the green dot in each LED to the GND pin on the microbit, the wire on the opposite side from that to the 3V pad, and the middle wire to the 2 pin Pad. I used some small screws and nuts I had hanging around, but you can solder directly to your board or use some other means.

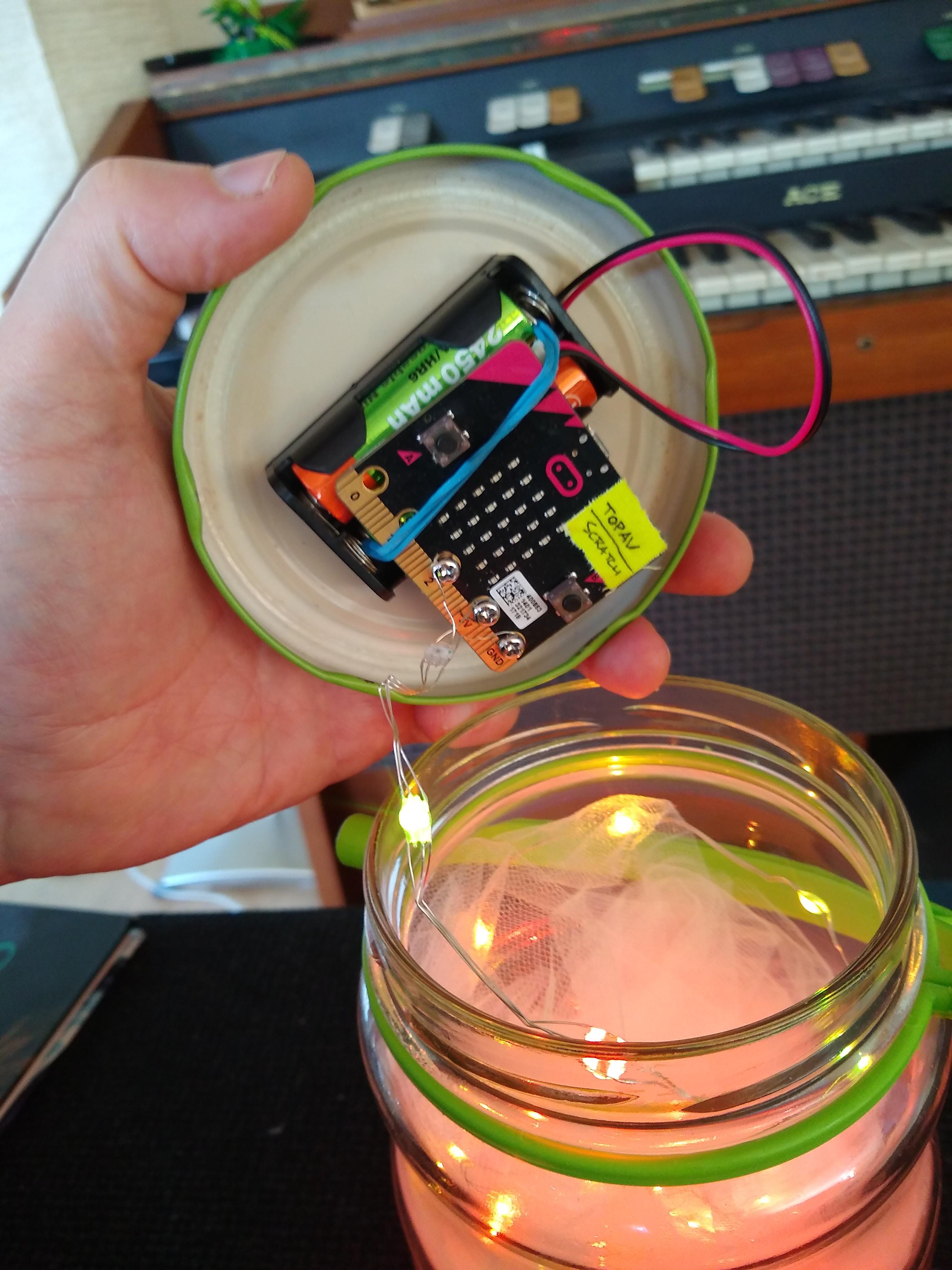

Scratch the inside of the jar lid with a screwdriver in a random pattern to provide something for the hot glue to hold onto. Hot glue the bottom side of your battery holder to the inside of the lid (so that the batteries can still be taken out and replaced as necessary). Now take a short rubber band and loop either end through the springs that connect to the negative terminals of the batteries. When you put the batteries in place, they will hold each side of the rubber band so you can then use it to hold the microbit against the battery pack.

Wrap the neopixel strip up with your tulle or paper in a kind of randomly spread out pattern, and then put it into your jar. Leave enough slack in the wire at the top so that you can lay the jar lid (and microbit) on the table next to the jar, so it's easy to plug into and program.

You can use MakeCode to program your microbit to control the behavior of your neopixel fireflies.

You can find sample code here.

https://github.com/lightnin/microbit-lantern2

This code lights a few LEDs now and then by random chance, and then uses "shift" to send them down the neopixel string to the end. When it detects motion in the accelerometer, the chance of the next LED lighting is increased, so that when you move the jar more LEDs begin to light up and make their way down the strand. Once the jar is still, the chances of each LED being lit slowly decrease down to the minimum, which is about 5%. So when still, there should only be a few "active fireflies", but when shaken, there should be many more.

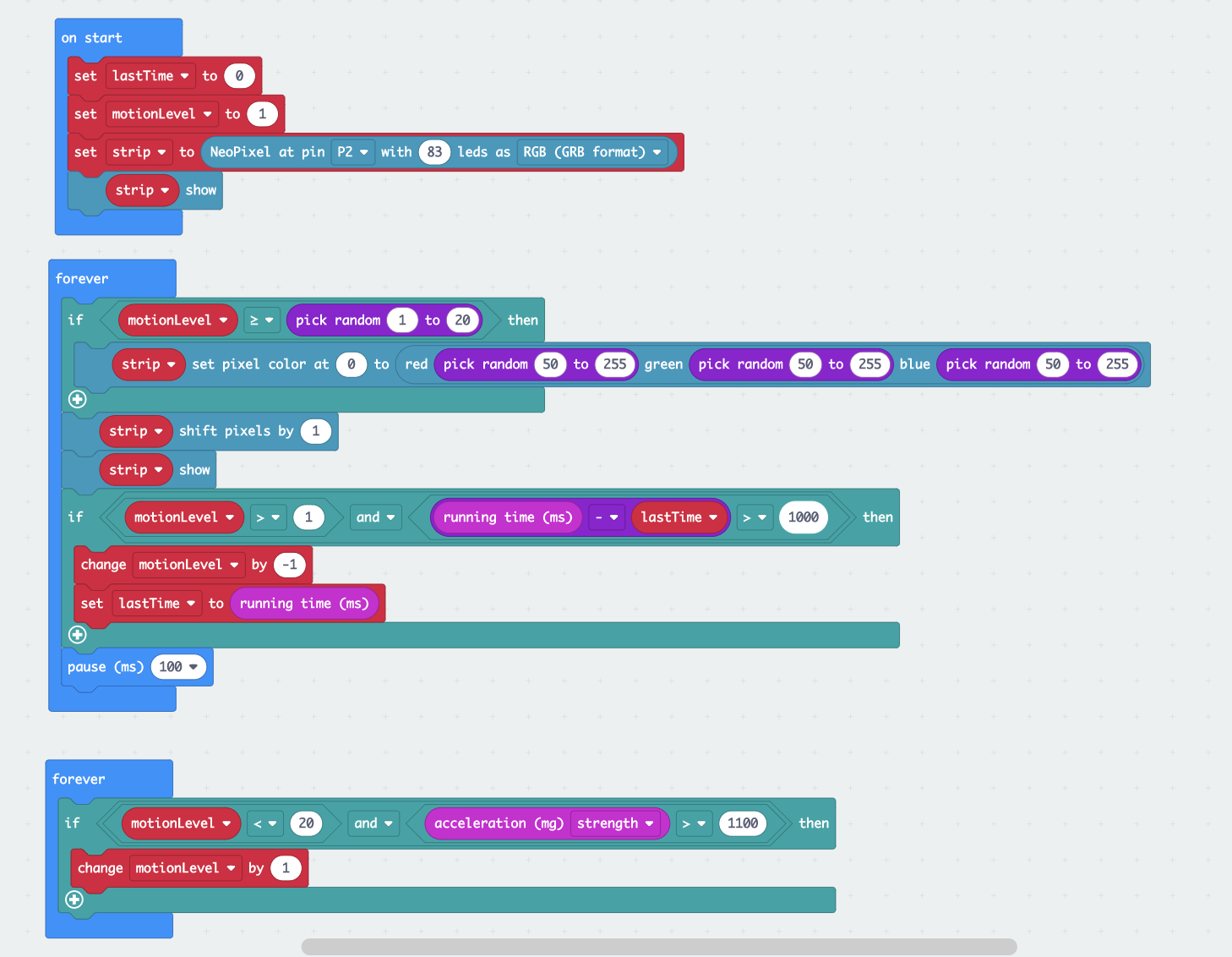

Explanation of sample code:

The "on start" code sets up the neopixels with the set strip command, which sets pin 2 - the one you attached the middle wire on your neopixels to - as the controlling pin. It also tells the microbit how many LEDs you have.

The first forever loop:

1. See if motionLevel is higher than a random number. motionLevel is a variable whose value gets increased as there is more motion, and then slowly decreases when there is no motion. So the higher motionLevel is the more likely the next LED will be lit.

2. Next the code "Shifts" pixels - that just means it takes each lit pixel and moves it to the next LED in the neopixel strip. Shift is different than rotate in that once a pixel goes off the end of the strip, it's gone - whereas "rotate" takes pixels that fall off the end of the string and puts them at the start again.

3. We need a way to make motionLevel go back down after it has been increased - otherwise, once you move the jar once most of the LEDS will stay lit. So the second 'if statement' checks to see if one second has elapsed since the value stored in the lastTime variable - which records the last time this was checked. If true, then motionLevel is decreased by 1 and lastTime variable is reset to the new value of milliseconds since the microbit was turned on.

The bottom, smaller forever loop:

1. This just checks the combined directional "g" forces being reported by the MicroBit accelerometer. At rest, the accelerometer reports 1 earch G, which is 1023. If a combined strength value greater than that is being reported, then the jar is being moved, so we increase the motionLevel variable. You will need to adjust these values if you are building this project on a planet other than earth.

Enjoy!
