And another long overdue project of mine, which started with us painting my son's room
My son also wanted to have a firefighter truck painted on his wall. But since I had some electronics stuff on my mind which I wanted to try out anyway, I promised him much more than a painting.
The idea behind, is to have a somehow 3d painting, with lights, and more states of programming. I decided to go with this:
• Idle mode: all lights are off, but if the light sensor senses no light, the headlights go on 20% of their power
• Headlight mode: headlights go on 100%
• Action mode: all lights animated somehow like a real firefighter truck (see video)
Cycling through all actions is done with a touch sensor on the lower left part, near the wheel.
My son also wanted to have a firefighter truck painted on his wall. But since I had some electronics stuff on my mind which I wanted to try out anyway, I promised him much more than a painting.
The idea behind, is to have a somehow 3d painting, with lights, and more states of programming. I decided to go with this:
• Idle mode: all lights are off, but if the light sensor senses no light, the headlights go on 20% of their power
• Headlight mode: headlights go on 100%
• Action mode: all lights animated somehow like a real firefighter truck (see video)
Cycling through all actions is done with a touch sensor on the lower left part, near the wheel.
Canvas and Form
![20150221_123125.jpg](/proxy/?url=https://content.instructables.com/FSD/GB0T/I7VQKSKS/FSDGB0TI7VQKSKS.jpg&filename=20150221_123125.jpg)
![20150201_170744.jpg](/proxy/?url=https://content.instructables.com/FD7/EEL7/I7VQKSKL/FD7EEL7I7VQKSKL.jpg&filename=20150201_170744.jpg)
![20150201_170758.jpg](/proxy/?url=https://content.instructables.com/FTW/YHC5/I7VQKSKO/FTWYHC5I7VQKSKO.jpg&filename=20150201_170758.jpg)
First of all I tried drawing a truck and all the elements to be later implemented. My son approved every part of the project, so my motivation was maximised ;-)
I started with a normal painting canvas.
Had a lot of styrofoam plates lying around in the basement, cut them in the form I needed, and glued them on the painting canvas. Later I rounded all the corners with some sandpaper. Also for some more detail in the form, I applied some cardboard.
I new that I am gonna use spray paint to cover the styrofoam, and also have found out the hard way that spray paint eats right through the styrofoam. So first of all before continuing, I covered everything with 2 layers of wood glue with a brush.
Spray Painting and Decoration
![20150215_124003.jpg](/proxy/?url=https://content.instructables.com/F1J/A8MQ/I7VQKSKR/F1JA8MQI7VQKSKR.jpg&filename=20150215_124003.jpg)
![temp_439332492.jpg](/proxy/?url=https://content.instructables.com/FRW/9H9N/I7W1QSDX/FRW9H9NI7W1QSDX.jpg&filename=temp_439332492.jpg)
![2015-03-30_14-20.jpg](/proxy/?url=https://content.instructables.com/FKJ/VELK/I7VQL0WW/FKJVELKI7VQL0WW.jpg&filename=2015-03-30_14-20.jpg)
![temp_504834298.jpg](/proxy/?url=https://content.instructables.com/F5Q/IR43/I7W1QSHK/F5QIR43I7W1QSHK.jpg&filename=temp_504834298.jpg)
![temp_262296483.jpg](/proxy/?url=https://content.instructables.com/FBA/AJU5/I7W1QSOE/FBAAJU5I7W1QSOE.jpg&filename=temp_262296483.jpg)
![temp_268093791.jpg](/proxy/?url=https://content.instructables.com/FS6/ADIX/I7W1QSSV/FS6ADIXI7W1QSSV.jpg&filename=temp_268093791.jpg)
99% of the painting is covered with spray painting. Acrylic paintings I used only for some small stuff.

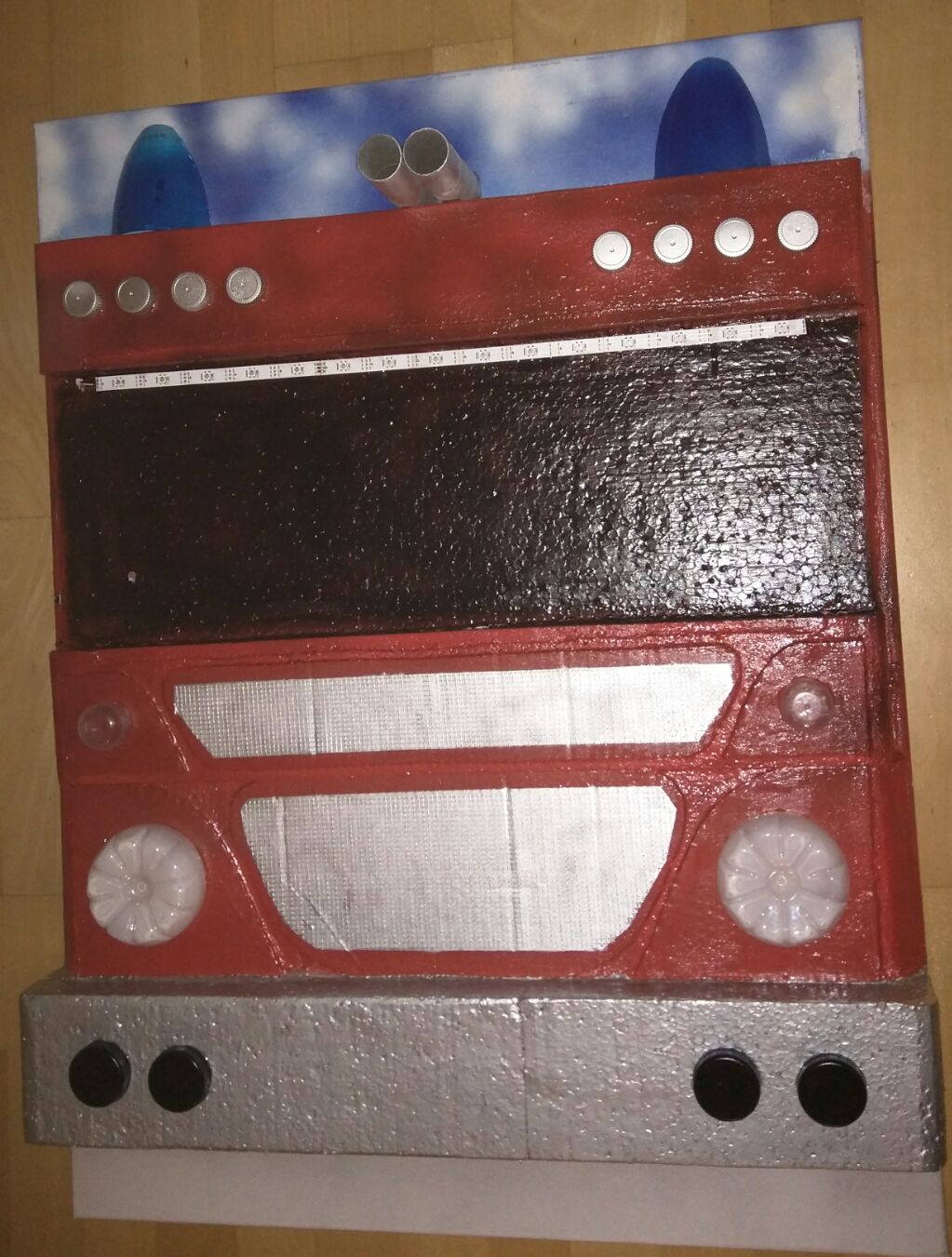

So I painted everything, red the truck, silver the front bar, black the inside and wheels, white and blue the sky.
Now the decoration part has begun. I gathered over time everything I could imaging fitting the painting: bottle caps, bottles, sticks, parts from old toys, etc.
For the sirens, wheels, headlights, etc I used plastic bottles. See the image what part of the bottle is used for what part.
I found an online service which creates customised registration numbers. I only printed them out and used them on the truck.
So I painted everything, red the truck, silver the front bar, black the inside and wheels, white and blue the sky.
Now the decoration part has begun. I gathered over time everything I could imaging fitting the painting: bottle caps, bottles, sticks, parts from old toys, etc.
For the sirens, wheels, headlights, etc I used plastic bottles. See the image what part of the bottle is used for what part.
I found an online service which creates customised registration numbers. I only printed them out and used them on the truck.
Electronic Part
![20150304_162615.jpg](/proxy/?url=https://content.instructables.com/F8E/O4QH/I7VQKSJR/F8EO4QHI7VQKSJR.jpg&filename=20150304_162615.jpg)
![20150304_162625.jpg](/proxy/?url=https://content.instructables.com/FEG/SJNG/I7VQKSJU/FEGSJNGI7VQKSJU.jpg&filename=20150304_162625.jpg)
![IMG_20150312_181246.jpg](/proxy/?url=https://content.instructables.com/FCT/98ZP/I7VQKSKA/FCT98ZPI7VQKSKA.jpg&filename=IMG_20150312_181246.jpg)
![IMG_20150312_212357.jpg](/proxy/?url=https://content.instructables.com/FDD/XIAS/I7VQKSKE/FDDXIASI7VQKSKE.jpg&filename=IMG_20150312_212357.jpg)
![IMG_20150312_212413.jpg](/proxy/?url=https://content.instructables.com/FXE/X4B1/I7VQKSKI/FXEX4B1I7VQKSKI.jpg&filename=IMG_20150312_212413.jpg)
![temp_127288784.jpg](/proxy/?url=https://content.instructables.com/FTI/B3NT/I7VQLPSW/FTIB3NTI7VQLPSW.jpg&filename=temp_127288784.jpg)
![temp_499581937.jpg](/proxy/?url=https://content.instructables.com/FY6/QILU/I7VQLPT4/FY6QILUI7VQLPT4.jpg&filename=temp_499581937.jpg)
I am starting to beleive that lights on toys for children is like bluetooth on devices for grownups ;-).
So lets put some light in the project.
I used:
• normal leds: 2 yellow, 2 red, 2 blue
• a programmable led strip (WS2812b)
• photoresistor - light sensor
• Atmega328p microcontroller - programming
• 7805 voltage regulator
• 10uF capacitor - stabilise 7805 output
• 10MO resistor - touch sensor
• PCB board

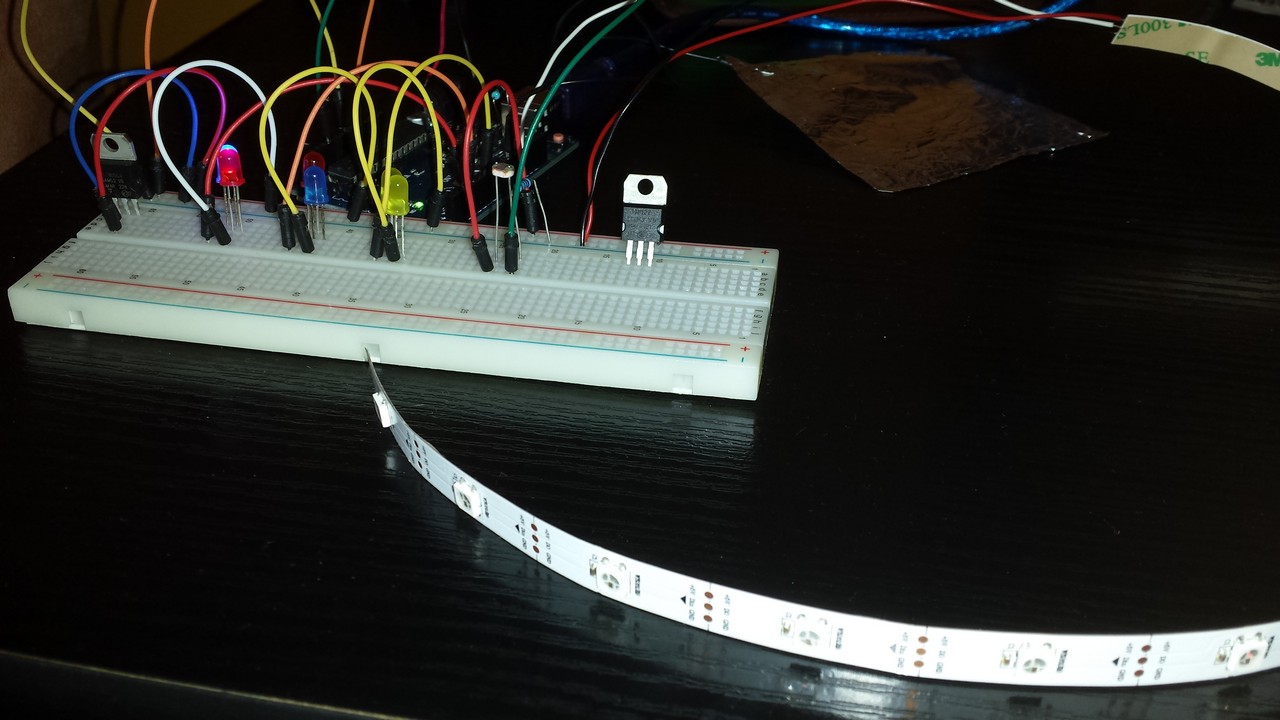

Starting with an arduino I tried out the electronic part as seen in the pictures. Have developed the code for all 3 programs and to cycle through them.
Then I moved the code on a ATmega328p, which is the same microcontroller used on the Arduino, just to minimize the cost and size of the electronic part of the project.

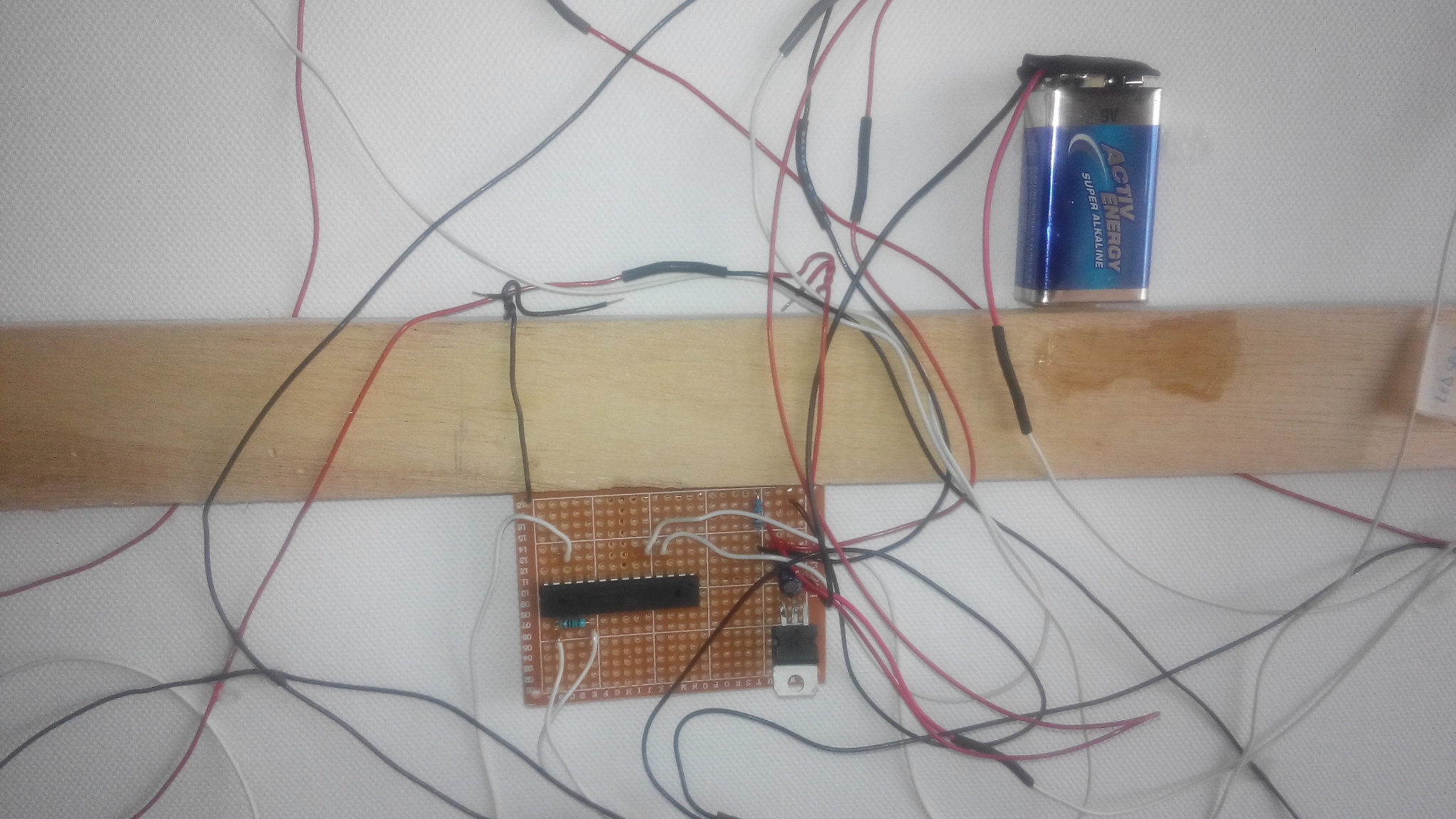

Then I moved everything on a PCB board and soldered all together. This is my first time soldering everything on a board. Used only dev breadboards until now. So be gentle with my soldering skills :-)
So lets put some light in the project.
I used:
• normal leds: 2 yellow, 2 red, 2 blue
• a programmable led strip (WS2812b)
• photoresistor - light sensor
• Atmega328p microcontroller - programming
• 7805 voltage regulator
• 10uF capacitor - stabilise 7805 output
• 10MO resistor - touch sensor
• PCB board
Starting with an arduino I tried out the electronic part as seen in the pictures. Have developed the code for all 3 programs and to cycle through them.
Then I moved the code on a ATmega328p, which is the same microcontroller used on the Arduino, just to minimize the cost and size of the electronic part of the project.
Then I moved everything on a PCB board and soldered all together. This is my first time soldering everything on a board. Used only dev breadboards until now. So be gentle with my soldering skills :-)
Finished
![temp_499581937.jpg](/proxy/?url=https://content.instructables.com/FS9/CEW6/I7W1RCEU/FS9CEW6I7W1RCEU.jpg&filename=temp_499581937.jpg)

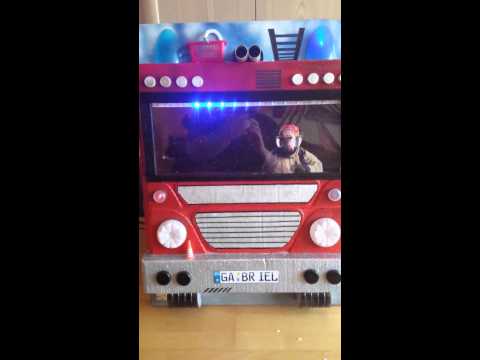

Put all together results in the truck you see in the videos.
Seeing my son sit in front of it and playing more then 10 minutes with it (yes, that's a lot of patience for him / his age) was all I needed to declare it a successfull project :-)
