Fire Security Alarm Circuit Without Transistor
by Utsource123 in Circuits > Electronics
1369 Views, 1 Favorites, 0 Comments
Fire Security Alarm Circuit Without Transistor
Hii friend,
Today I am going to make a fire alarm circuit without using any transistor.
Let's get started,
Take All Components As Shown Below
Components required -
(1.) Battery - 9V x1
(2.) Battery clipper x1
(3.) Buzzer x1

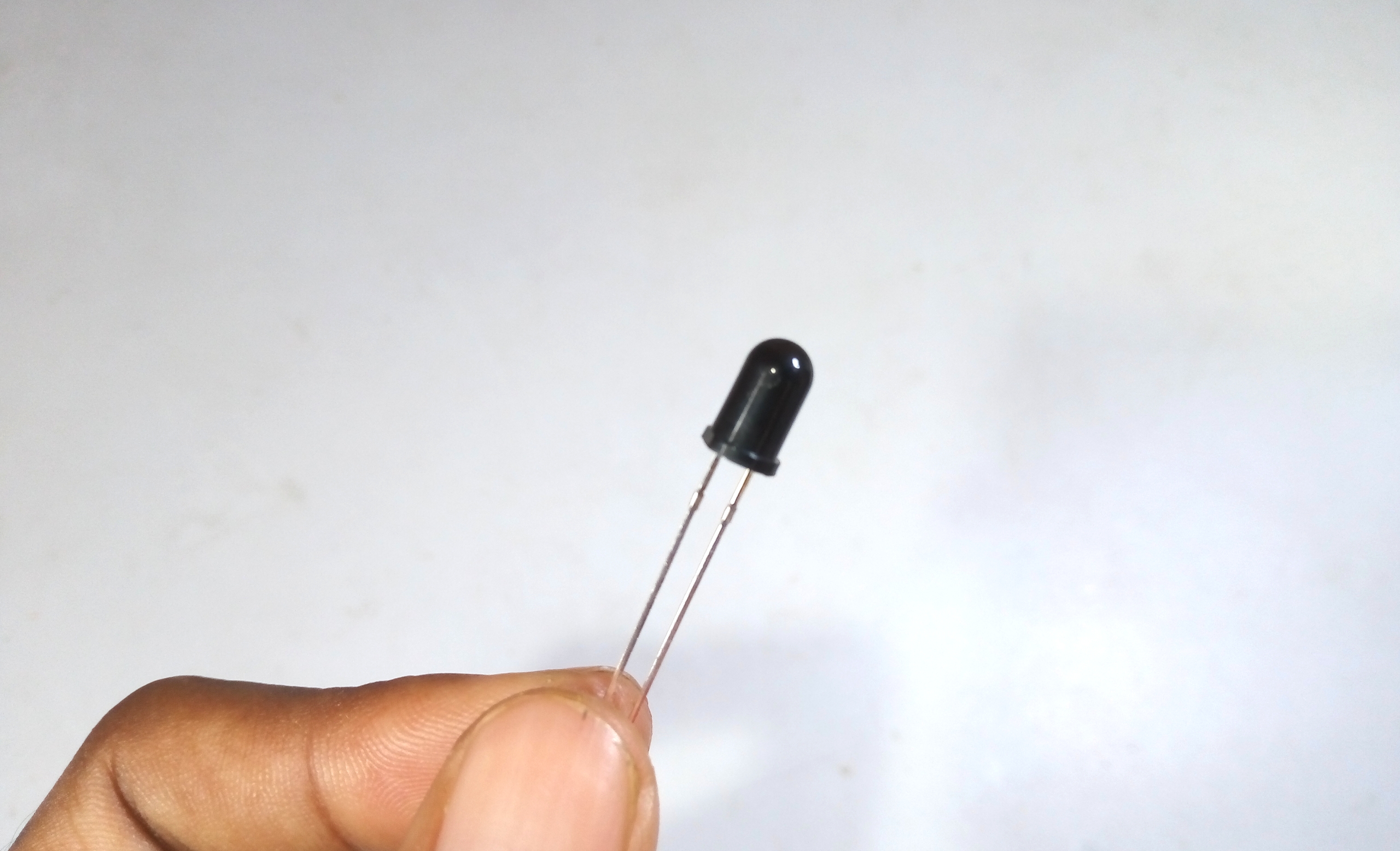

(4.) IR Sensor x1
(5.) Match

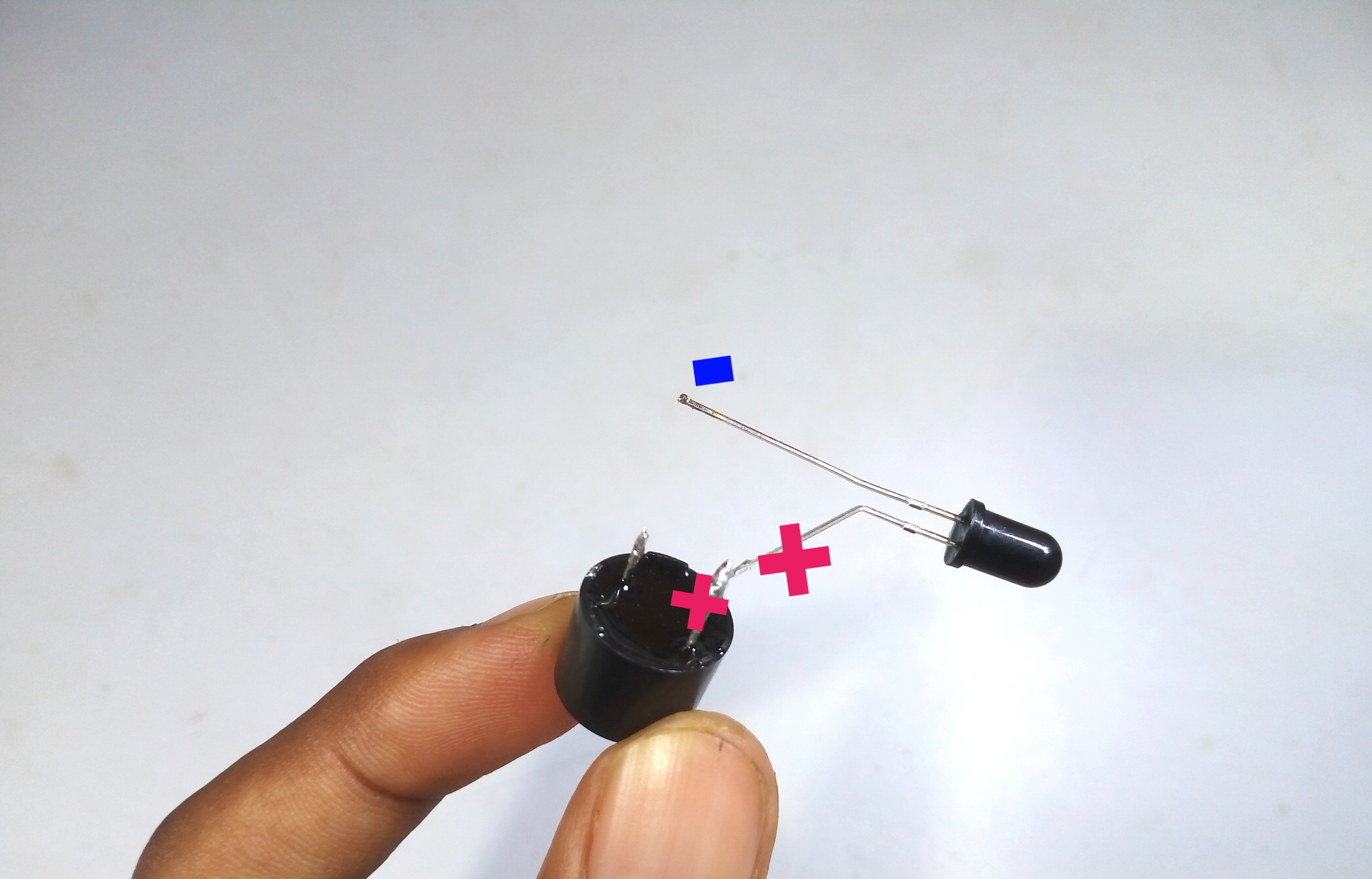

Solder IR Sensor to Buzzer
Connect +ve wire of IR Sensor to the +ve of buzzer as shown in picture.

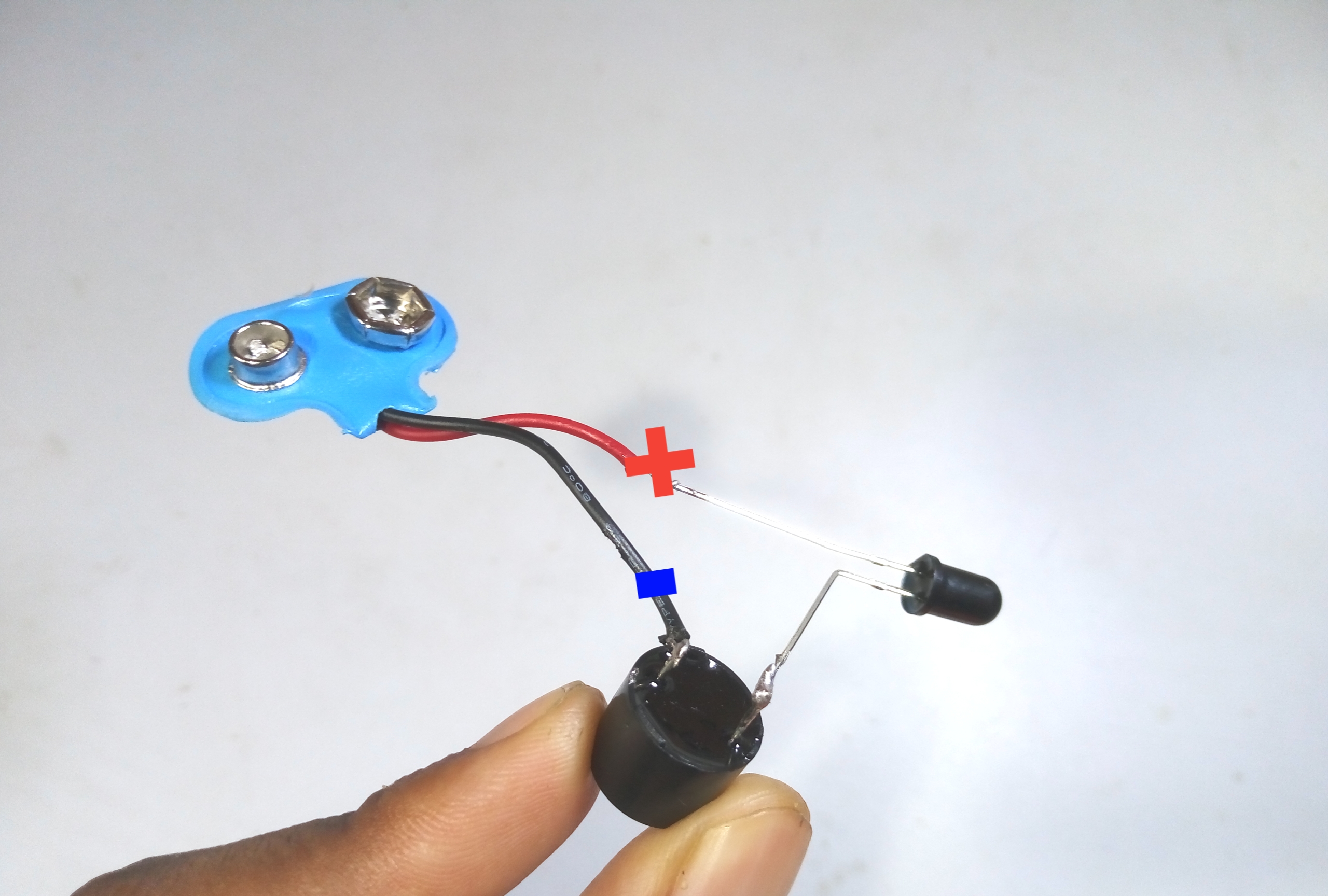

Now Connect Battery Clipper Wire
Now connect +ve wire of battery clipper to -ve of IR Sensor and
-ve wire of battery clipper to -ve of buzzer as shown in picture.
Now Connect Battery to the Circuit
Now connect battery to the circuit and use it.
How to Use It
Burn fire across this circuit then buzzer will give beep sound.
Uses:- This circuit will help us to protect from fire.
Thank you
