Fingerprint Based Security System
by Komal Manoj Thakur in Circuits > Electronics
17944 Views, 45 Favorites, 0 Comments
Fingerprint Based Security System

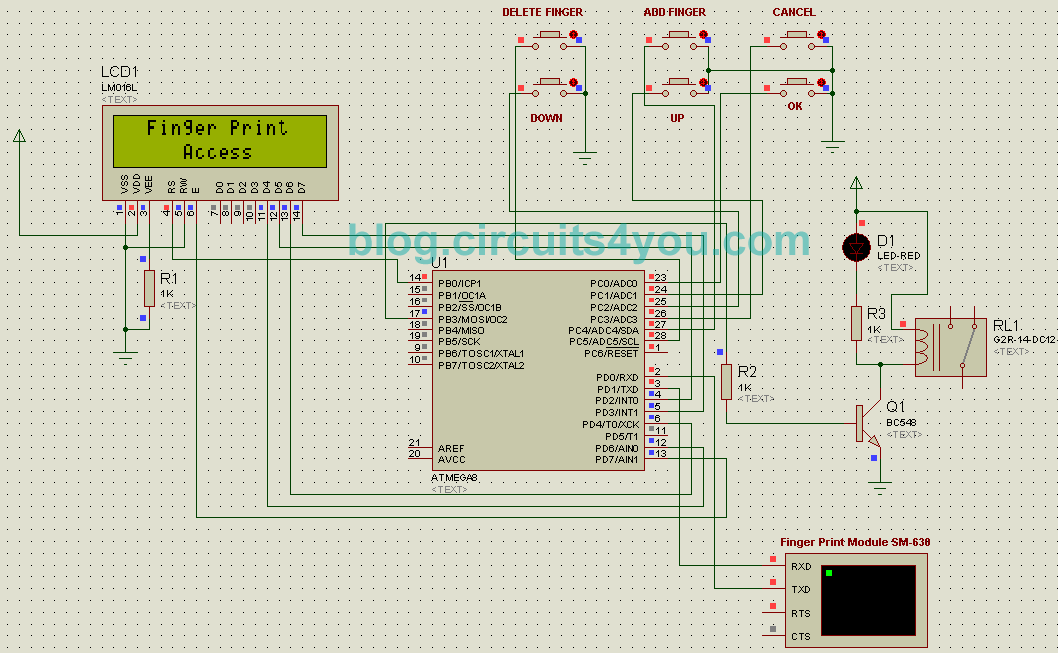

This AVR microcontroller based project demonstrates Finger print based access control or security system, in this project we have provided all required data, PCB, Code, Circuit Diagram, Proteus Simulation.
This project operates a relay based on valid finger detection. It is provided with 6-Keys for Addition, Deletion of Finger Print. It uses standard SM-630 Fingerprint Verification Module developed by Miaxis Biometrics Co., Ltd.
SM630 background highlight optical fingerprint verification module is the latest release of Miaxis Biometrics Co., Ltd. It consists of optical fingerprint sensor, high performance DSP processor and Flash. It boasts of functions such as fingerprint Login, fingerprint deletion, fingerprint verification, fingerprint upload, fingerprint download, etc.
Major Components Required
1. Atmega 8 Microcontroller
2. Relays, Switches
3. SM630 Finger Print Module
4. LM7805
5. BC548
6. 16x2 LCD Display
Circuit Design and PCB Manufacturing
Download All required files from Here
Programming the Controller
AVR Studio Code Download
Download code PCB design and make it
