Final Project Step 3 Front Plate

This is an opportunity to show what you know about Inventor. This is not intended to be a fully detailed instruction but more of a road map to get you started a give some direction. This is part 3 of a 6 part project. Please see the attached file for details.

Set Sheet Metal Styles and Standards according to the drawing.

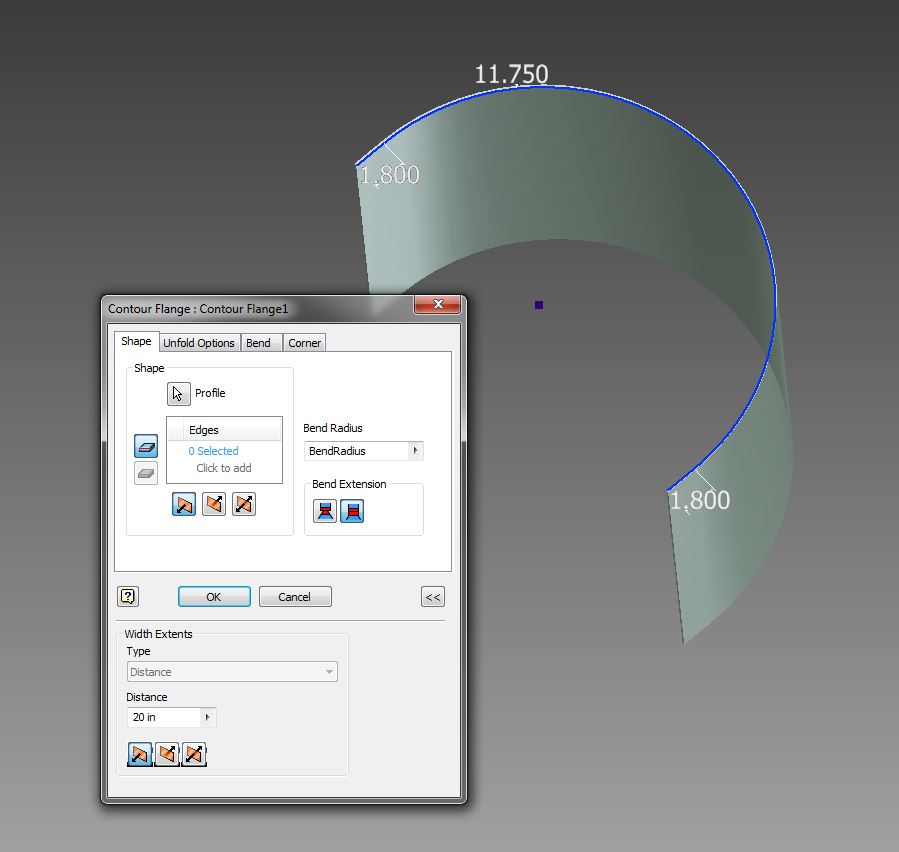

Create a 2d sketch and a "Contour Flange" to develop the base.

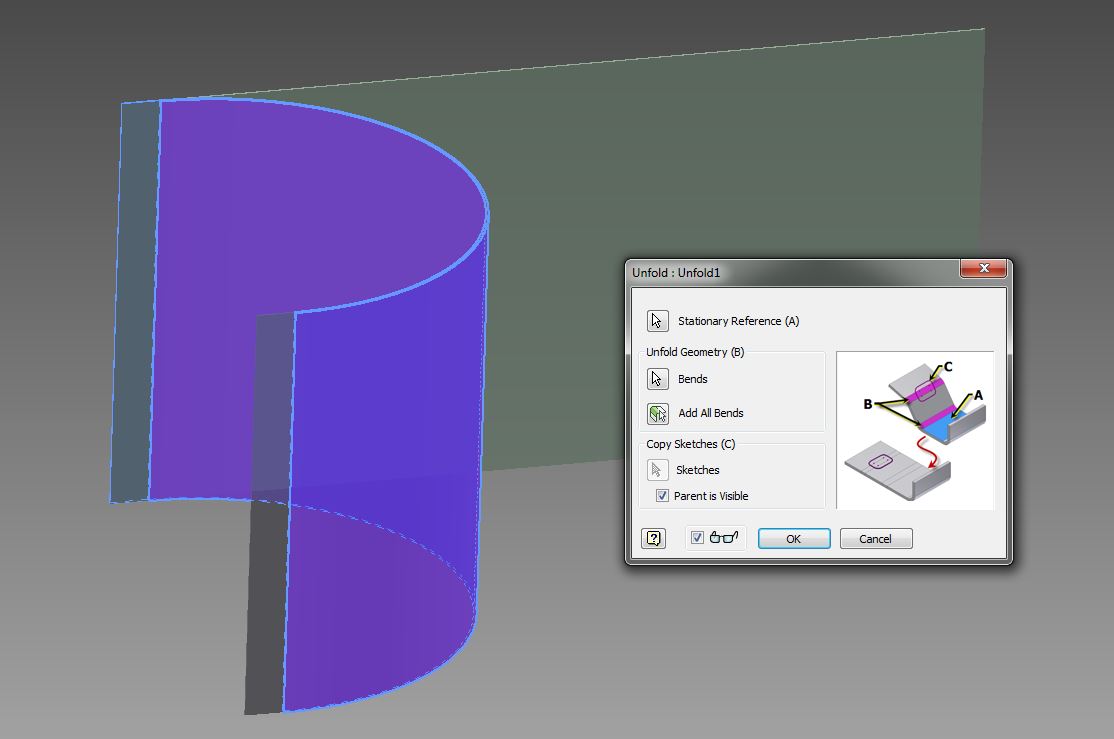

We must unfold the item to perform work on the flat pattern. Use the "UnFold" command.

Create a 2D sketch and cut the center air hole. In the sketch you should incorporate points for the anchor holes aswell.

Create 2 patterns to achieve the required amount of holes and spacing.

Create the holes for the anchor rods.

Use the "ReFold" feature to refold the part to its rolled state.

Create a 2D sketch on a side face and layout the points as required. Use the Hole feature to create the mounting holes.

Once the part is complete create the flat pattern.
