Film Canister Battery
by Cats Science Club in Circuits > LEDs
42106 Views, 340 Favorites, 0 Comments
Film Canister Battery
Making a battery from film canisters, used wire, vinegar, and nails.
Check us out at catsscience.com and on Facebook
Please vote for us.
Check us out at catsscience.com and on Facebook
Please vote for us.

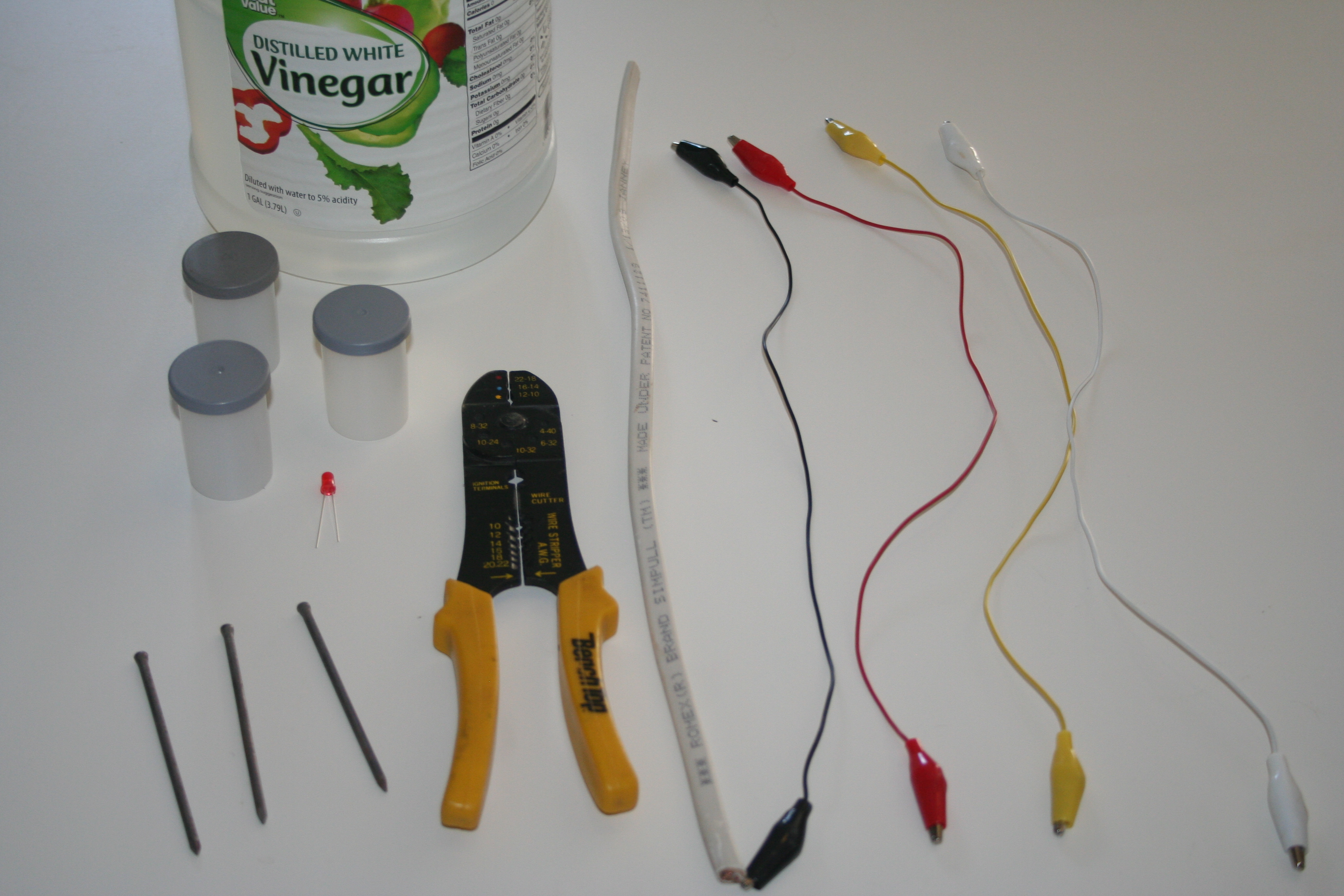

Materials
Film canisters
Vinegar
Safety goggles
Nails (zinc coated)
Wire Cutters
Alligator clips with wire
Scrap copper wire
Red LED
No film canisters? You can use a cup with plastic wrap over the top. That is the way we did it the first time. Works almost as good. We also sell the film canisters at catsscience.com but you maybe able to get them cheaper from e-bay.
No alligator clips? We used old speaker wire that we found. It works fine.
Vinegar
Safety goggles
Nails (zinc coated)
Wire Cutters
Alligator clips with wire
Scrap copper wire
Red LED
No film canisters? You can use a cup with plastic wrap over the top. That is the way we did it the first time. Works almost as good. We also sell the film canisters at catsscience.com but you maybe able to get them cheaper from e-bay.
No alligator clips? We used old speaker wire that we found. It works fine.
Getting Copper Wire

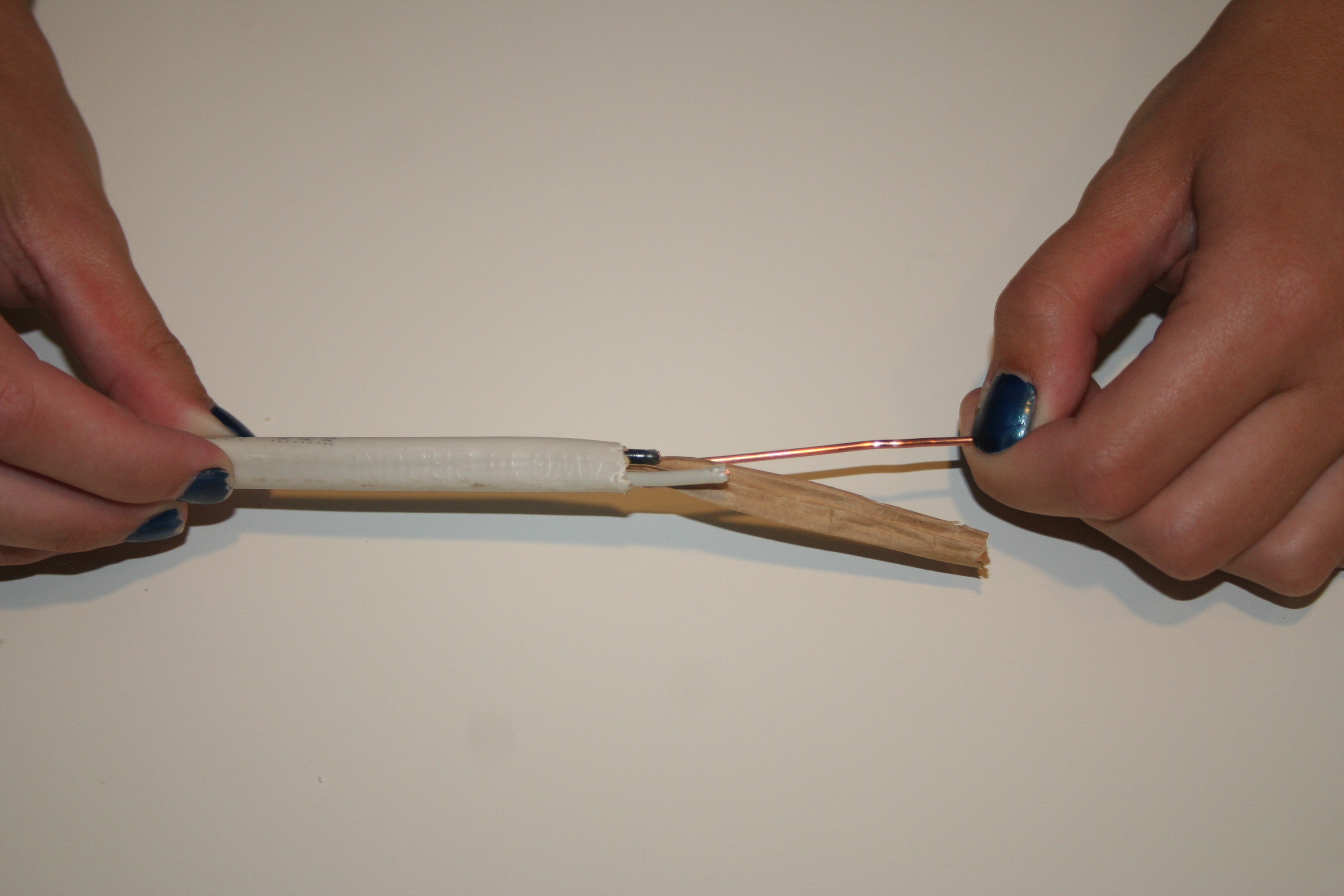

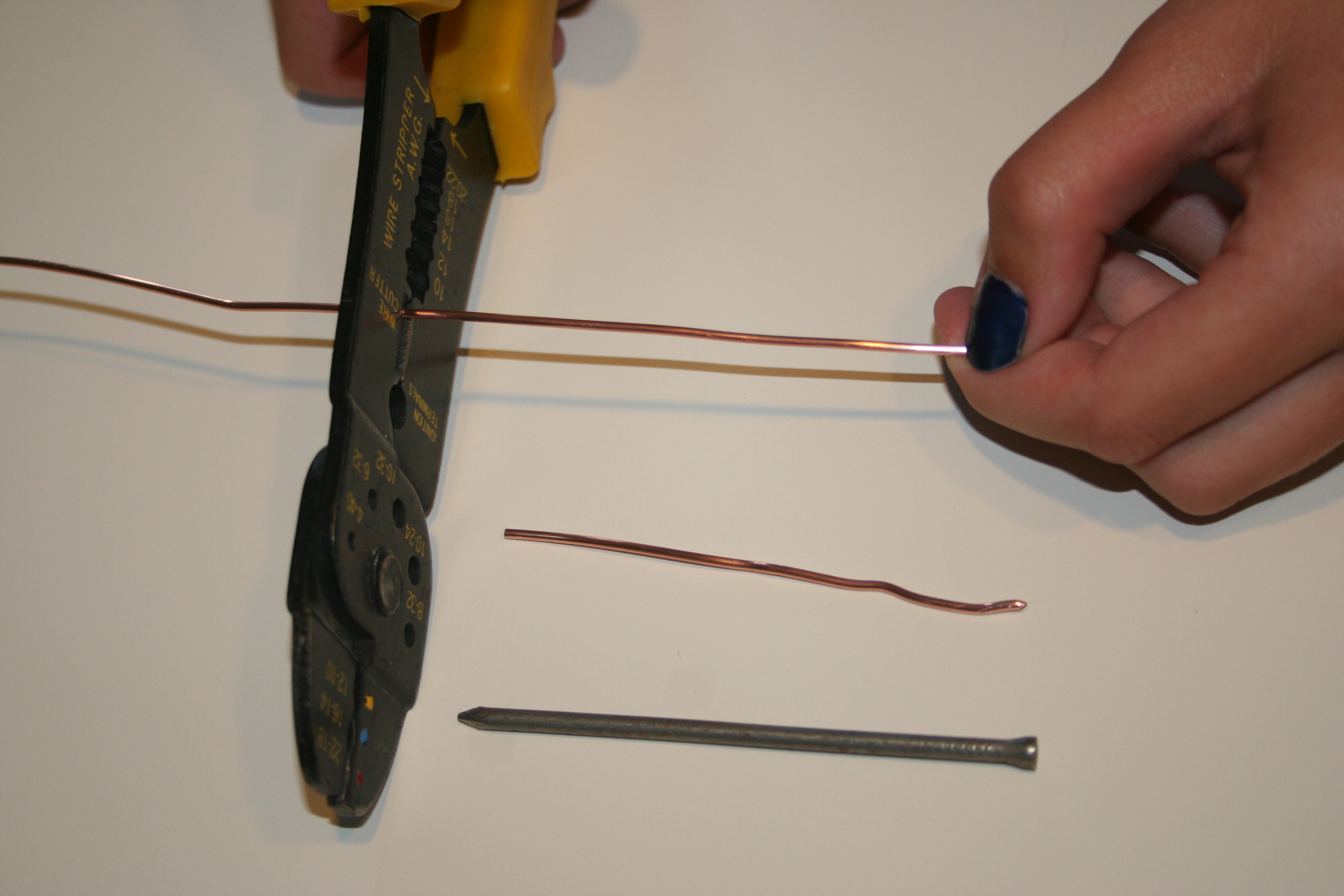

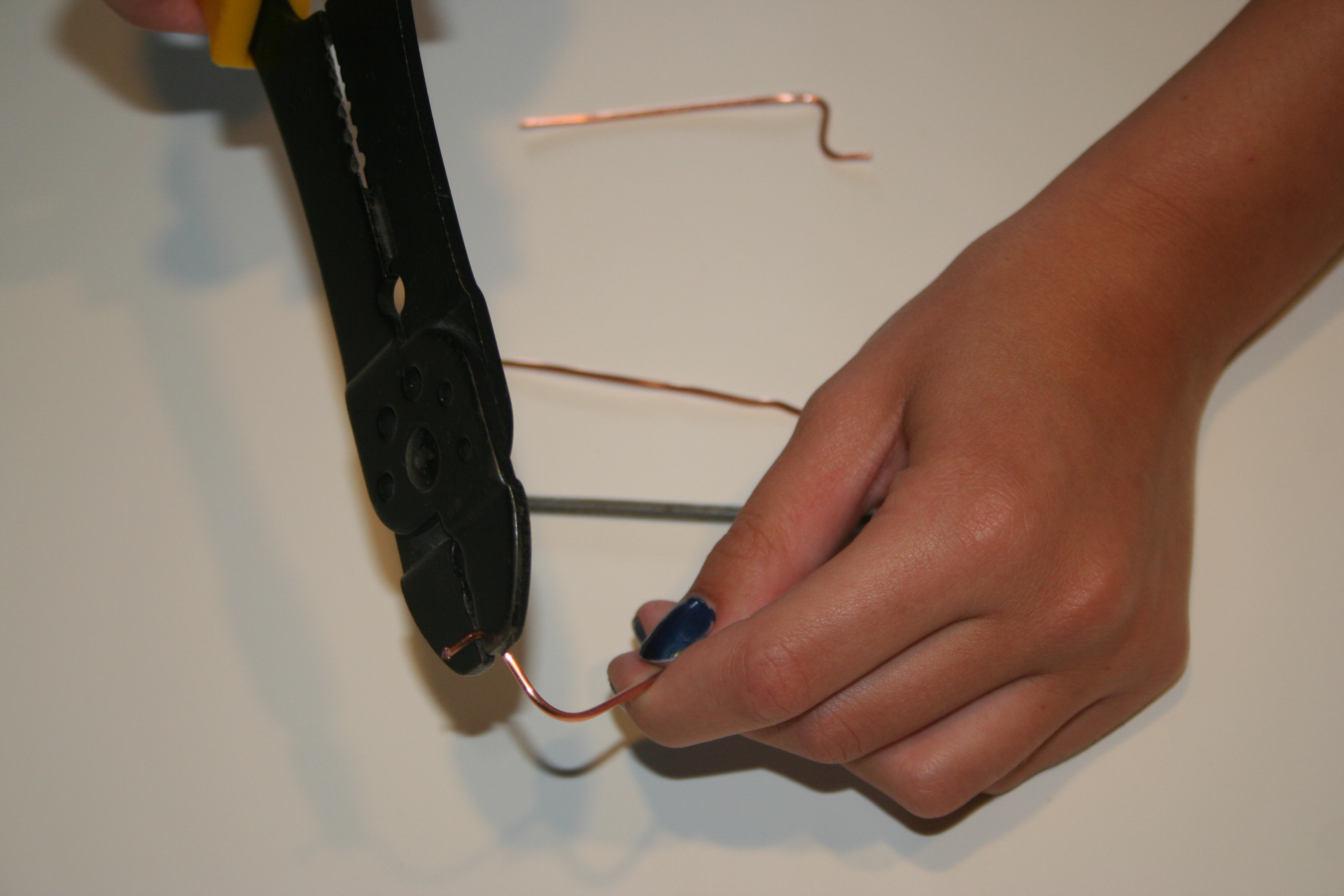

Old scrap pieces of Romex wire works great to get copper wire. Just take the ground wire out. It is the one with no insulation directly on it. Once you have the wire out, cut it into pieces a bit smaller then your nails. Now that you have your pieces of copper wire, we suggest you bend them. This prevents the wire from slipping around and gives a good place for the clips to hook to.
Making the Battery

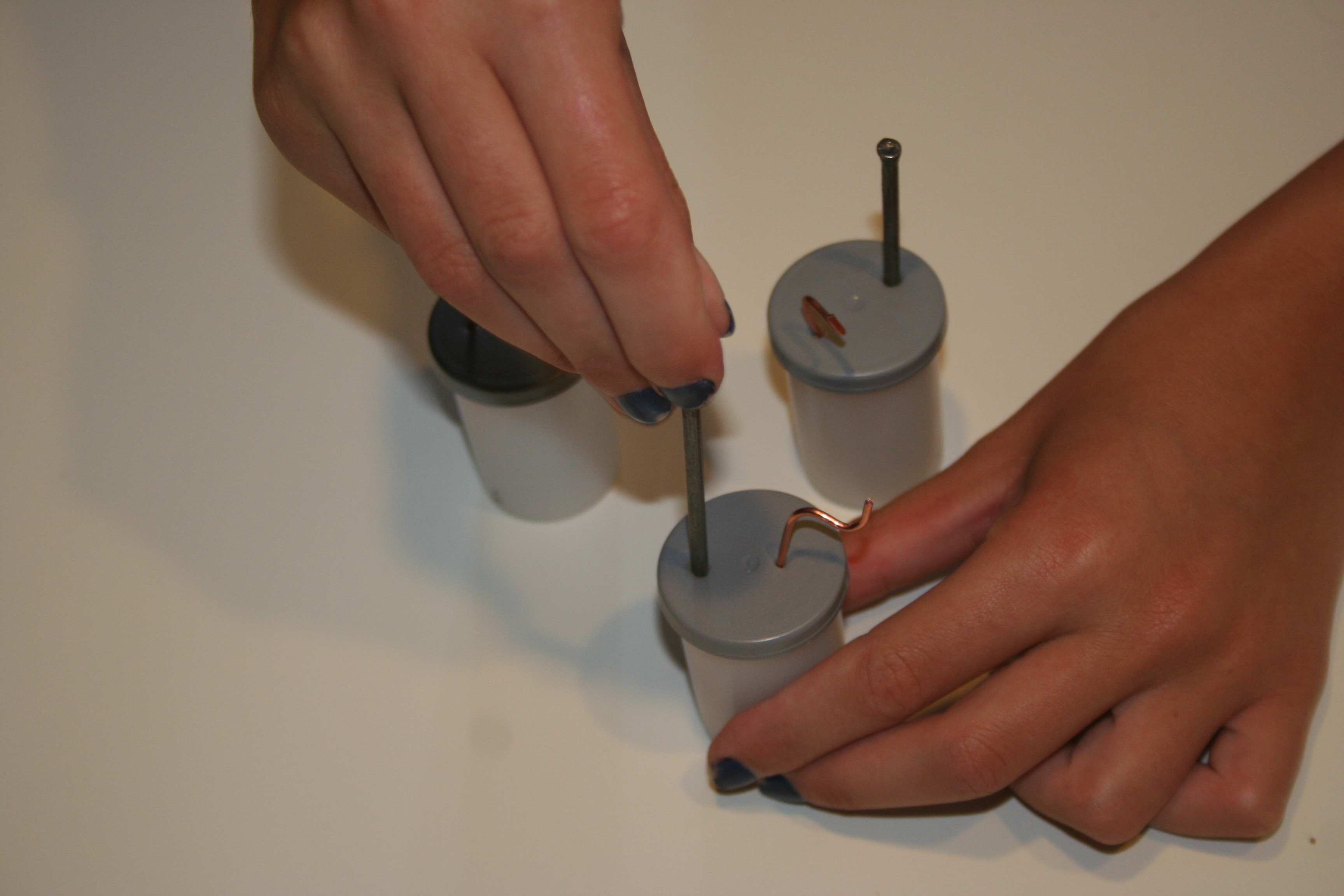

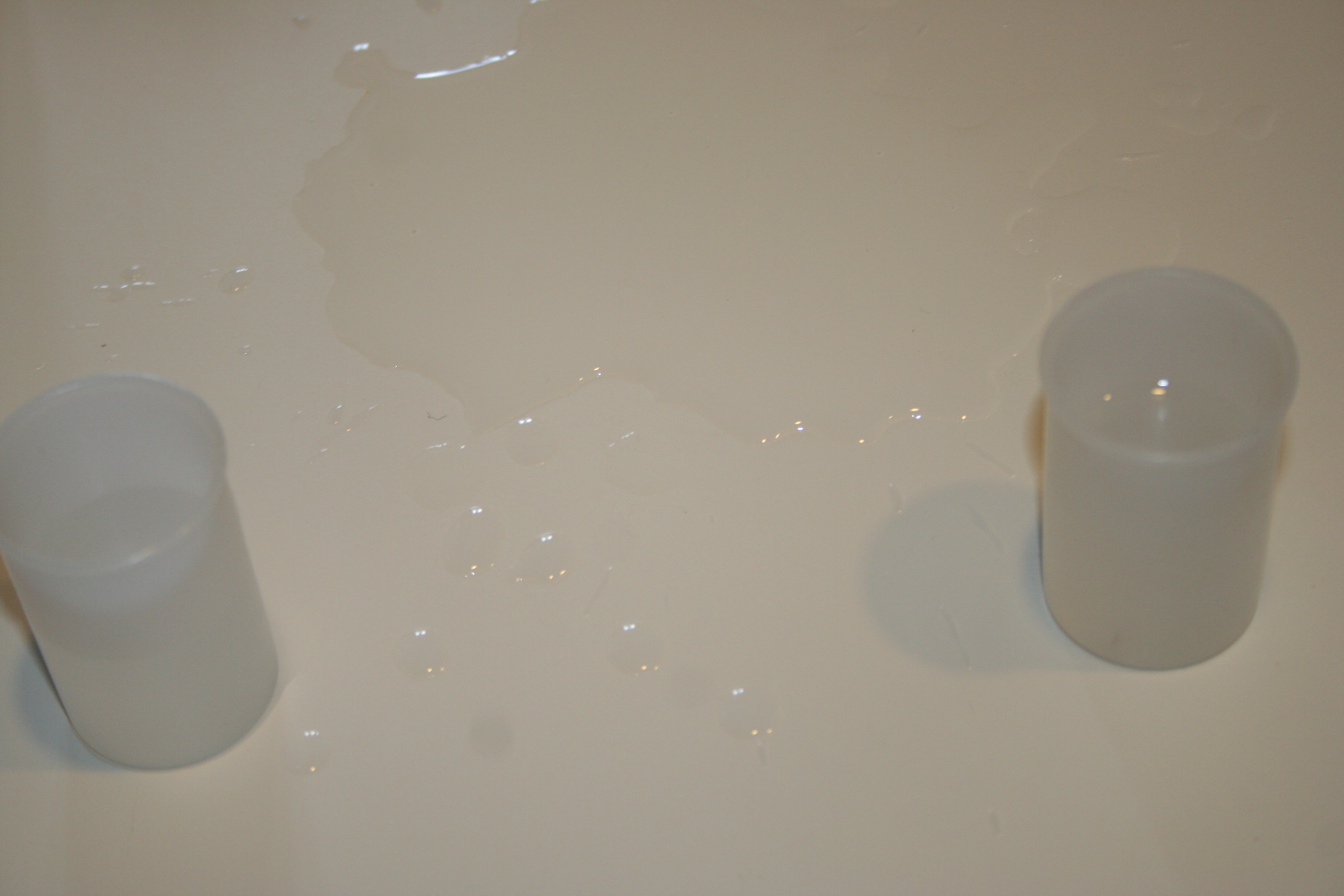

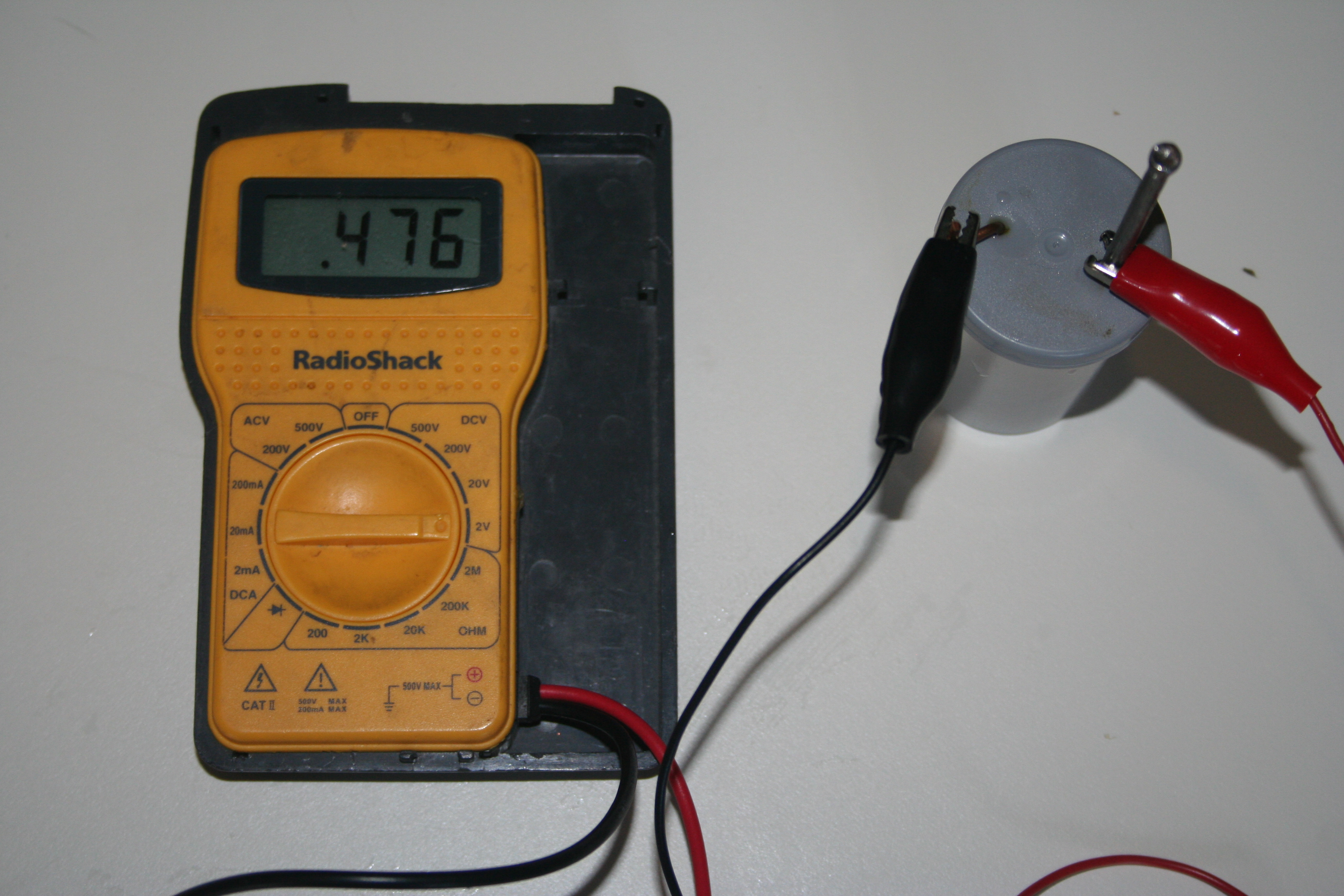

Put on safety goggles. Take your film canister with the lid on it and using the nail, punch two holes into the lid. Place one copper wire and one nail into each lid. Remove lids and add vinegar to canisters. Replace lids and clean any spills. We now should have close to .5 volts.
Connecting Batteries
It will take 3 canisters hooked together to get us enough energy to light up the LED. We can see the light in a very dark room but to be able to get the LED to shine more or to use other colored LEDs you will need more "batteries".

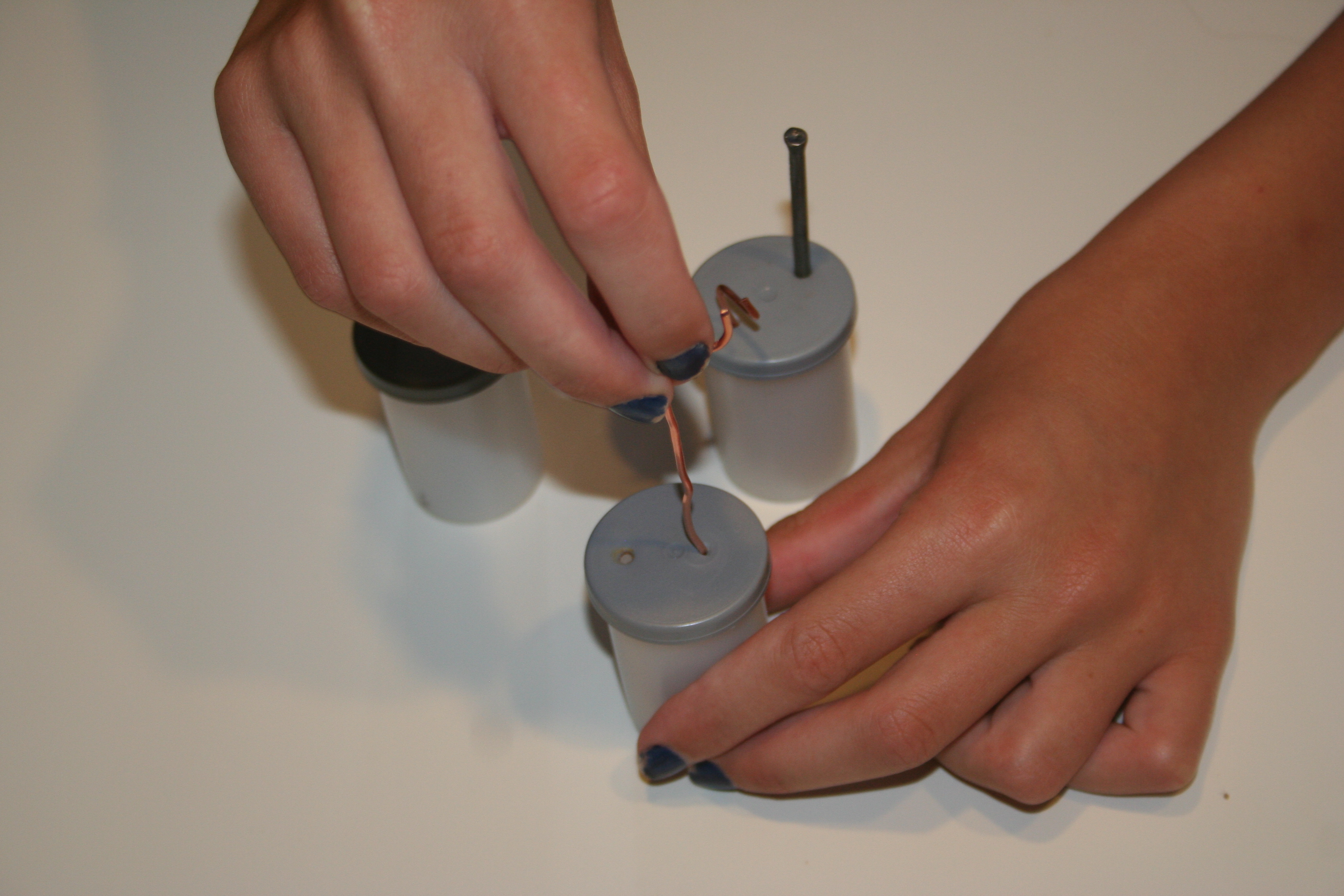

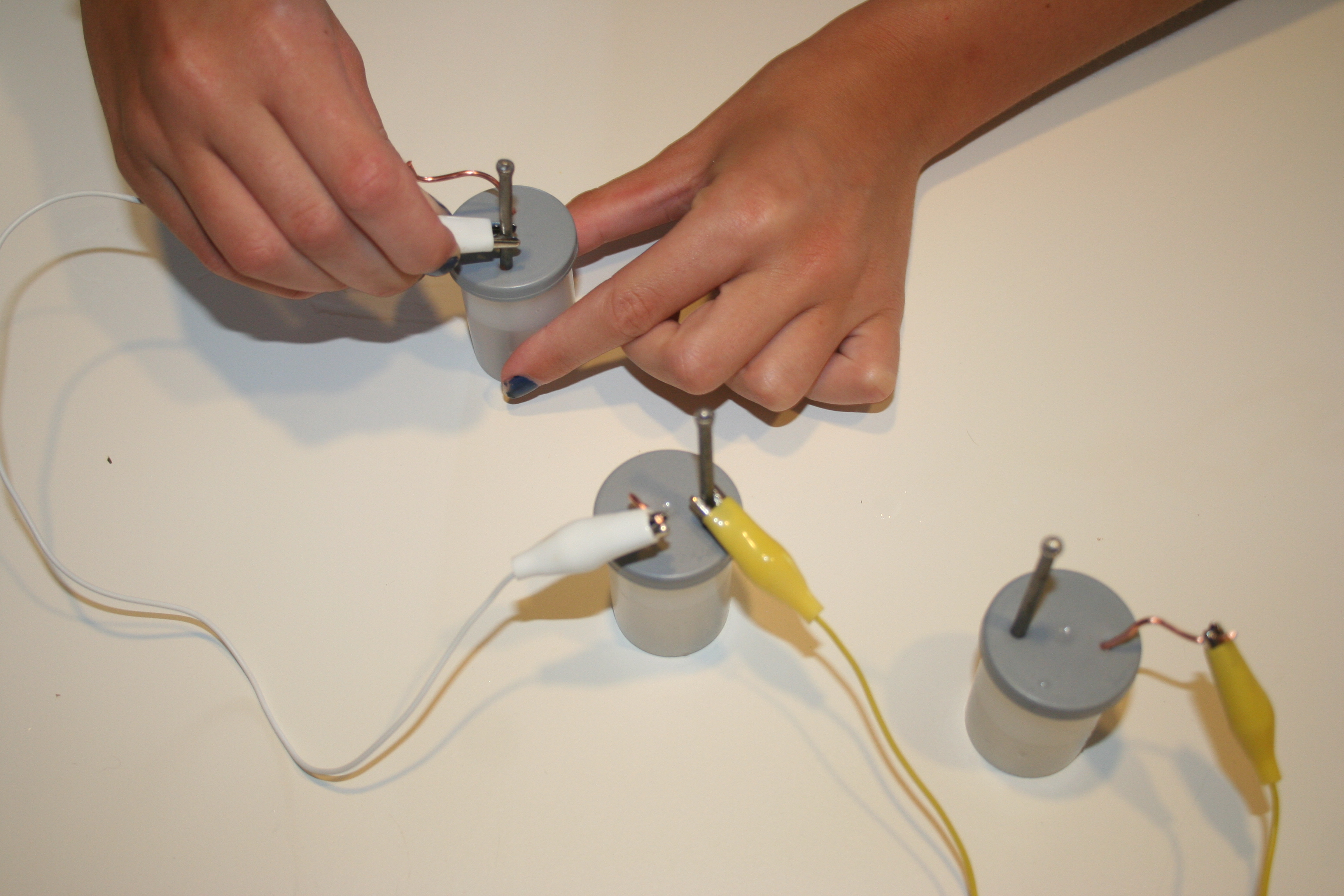

Hook the "batteries" to one another by connecting the alligator clips. We will need to connect one canister to the other by copper wire to nail. The copper wire is acting as a positive and the the nail is acting as a negative. String 3 or more canisters together to get enough energy to light the LED.
Hook the "batteries" to one another by connecting the alligator clips. We will need to connect one canister to the other by copper wire to nail. The copper wire is acting as a positive and the the nail is acting as a negative. String 3 or more canisters together to get enough energy to light the LED.
Other

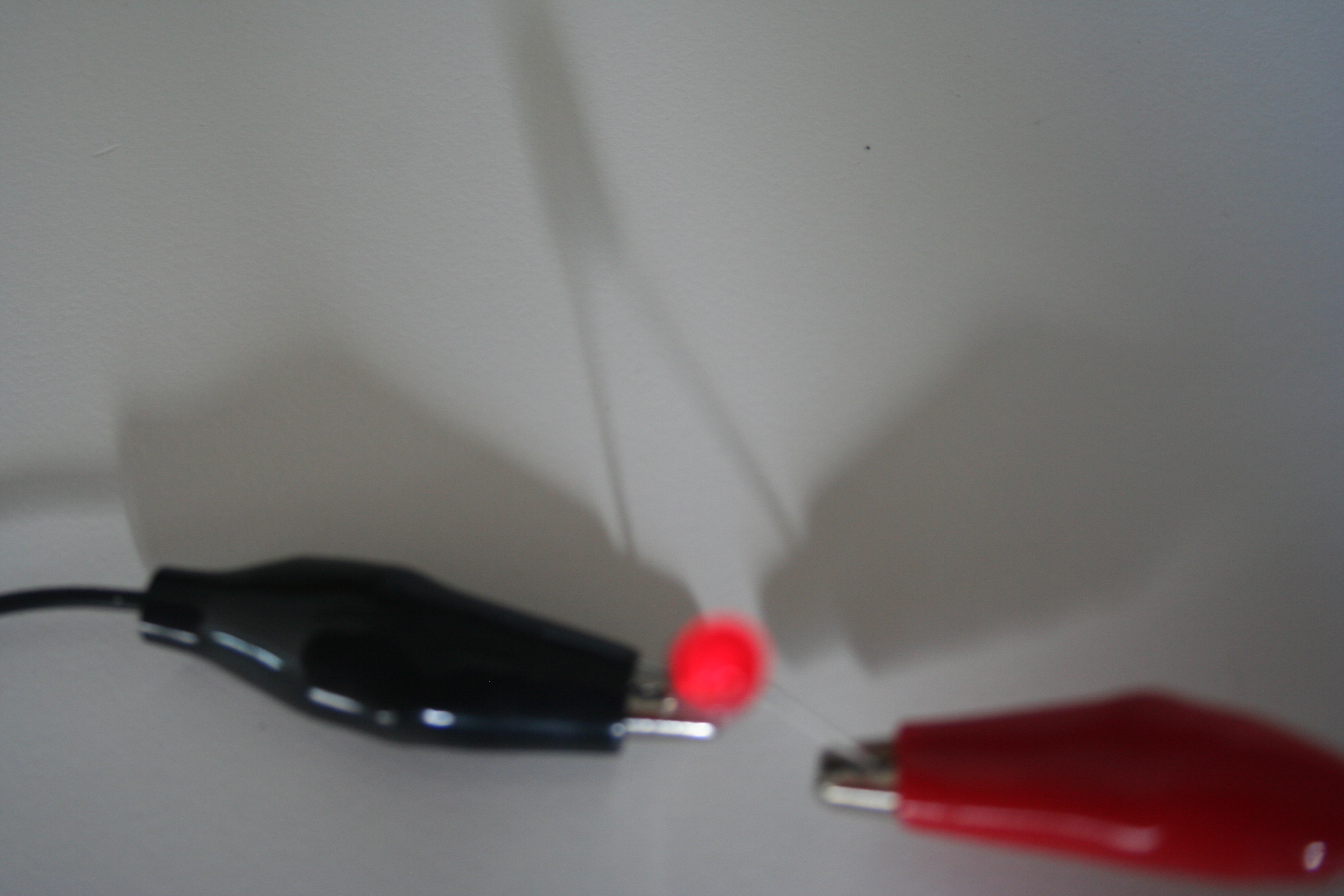

Add a red LED to the 3 batteries. You will need to be in a dark room to see the light. Now add another battery, and another. See any difference? Try a yellow LED. What else could you run on these batteries?
We have had the red LED running for five days on the 4 batteries. Still shining!
No film canisters? You can use a cup with plastic wrap over the top. That is the way we did it the first time. Works almost as good. We also sell the film canisters at catsscience.com but you maybe able to get them cheaper from e-bay.
No alligator clips? We used old speaker wire that we found. It works fine.
Light not turning on? Try switching the connections to the legs of the LED. You may just have it backwards.
Please Check us out at catsscience.com and Facebook
We have had the red LED running for five days on the 4 batteries. Still shining!
No film canisters? You can use a cup with plastic wrap over the top. That is the way we did it the first time. Works almost as good. We also sell the film canisters at catsscience.com but you maybe able to get them cheaper from e-bay.
No alligator clips? We used old speaker wire that we found. It works fine.
Light not turning on? Try switching the connections to the legs of the LED. You may just have it backwards.
