Fidget Spinner Which Actually Works!

Hi friends, I made a simple fidget spinner using fusion 360 which actually works! I am in 11th grade at Jonson high school

I used a pencil and paper for sketch (optional) and fusion 360 for my design (required)

At first, we will start by making 2 circles inside one other at the size of 22 and 34.

Now we will pull the circles apart to give them a 3d cylindrical shape so they can be a part of our fidget spinner.

Now, we will make the tapered angle 30 so it can look like the image above and be the center part.

So now we can give it more of a flower shape and give our fidget spinner a cool and smooth texture.

Then we can successfully make our beautiful flower shape 3d by dragging and pulling it upwards.

Now we will draw a circle shape on our flower and crop it apart to give it more of a goggle shape.

So after we have our hole cropped, we will repeat the step 2 more time to give it the outer fidget spinner shape.

The next step is to make the edge smooth by giving it a radius so it's a perfect outer layer.

After, we will make a simple center cap which allows your fidget spinner to rotate, you can see the steps in my youtube video if you want. You can give it a logo if you want to but you don't have to.

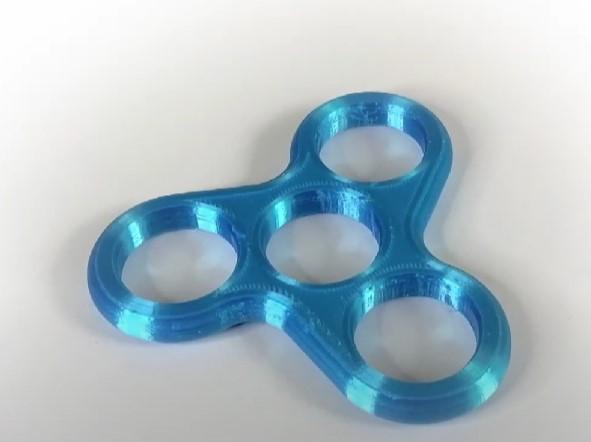

So after you are done with your designs, you can now start to 3d print them!

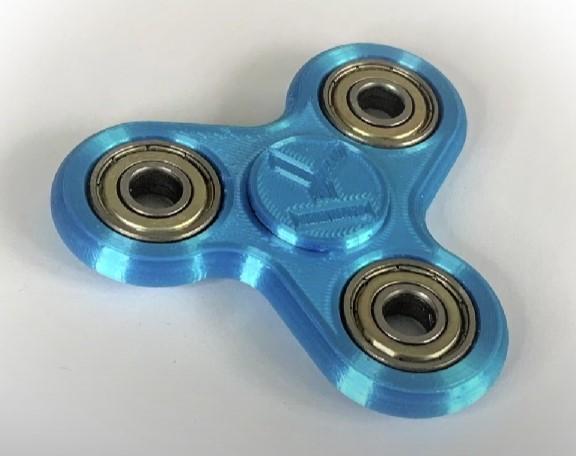

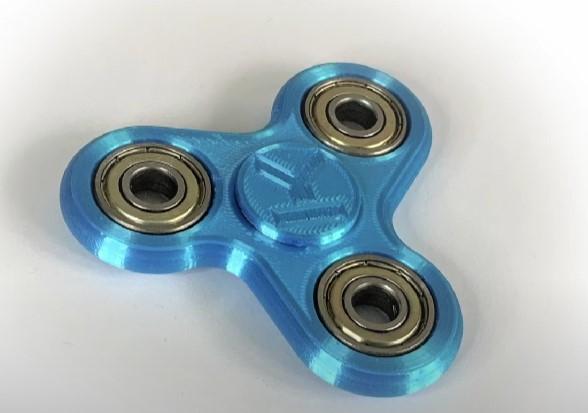

Now finally, you can put your pieces together and play with your fidget spinner as long as you want !!! :)
