Fidget Spinner Box Puck

The fidget spinners are crazy, but when everybody has one, I want something else.

So I designed an inclosed 'puck' box, with a spinner inside. You 3D-print this design with only three parts and add two skate bearings.

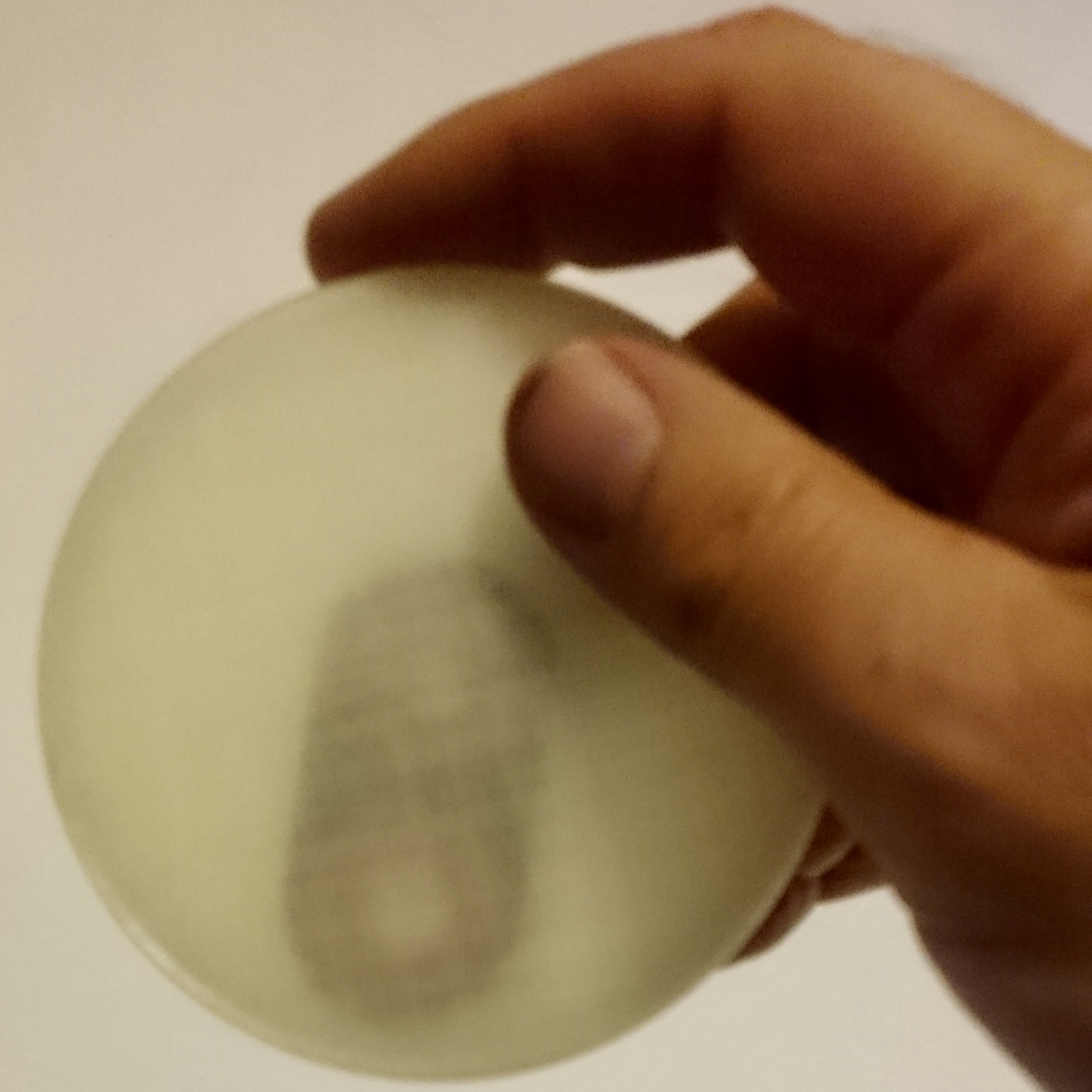

I printed one black puck and a transparant one. I really like the transparant because you can see the spinner, spin inside.

The two halves of the puck easily screw closed with the spinner centered inside.

Materials:

• filament
• two skate bearings

Tools:

• 3D printer
• hammer or vice

And that's it!

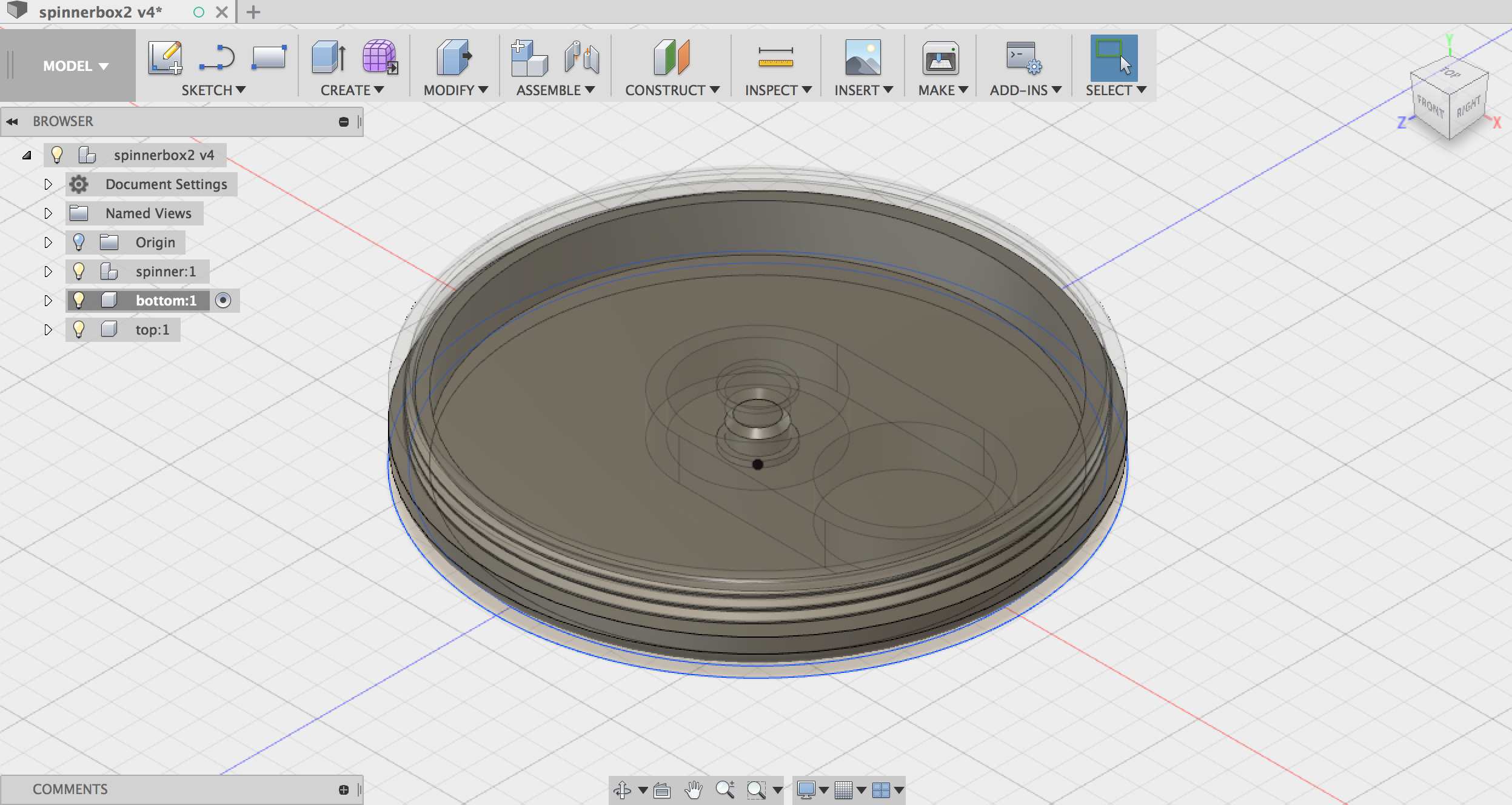

This is my first design in Fusion360 :) So I'm impressed with the result.

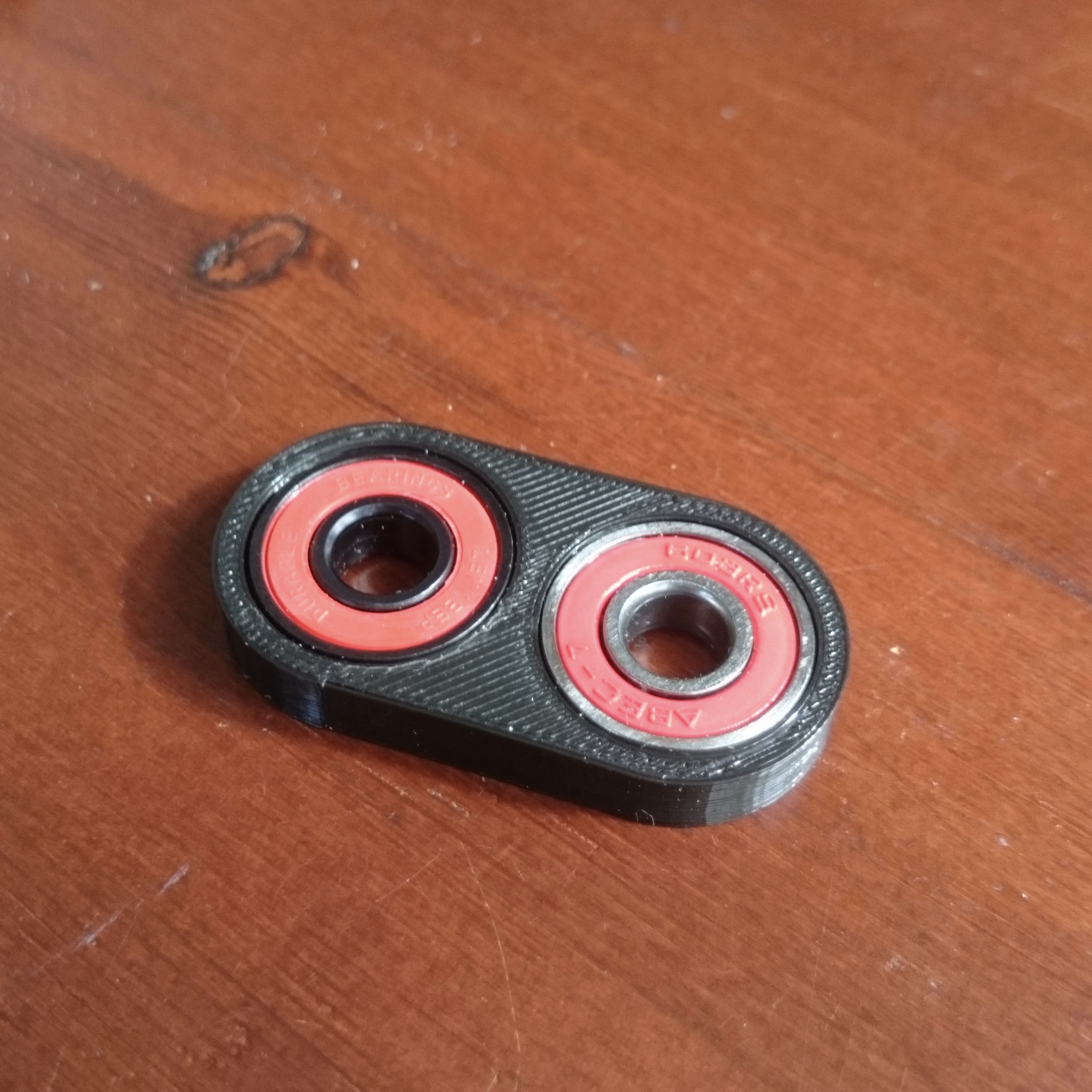

There is one spinner with two standard skate bearings. (22mm x 7mm with 8mm hole)

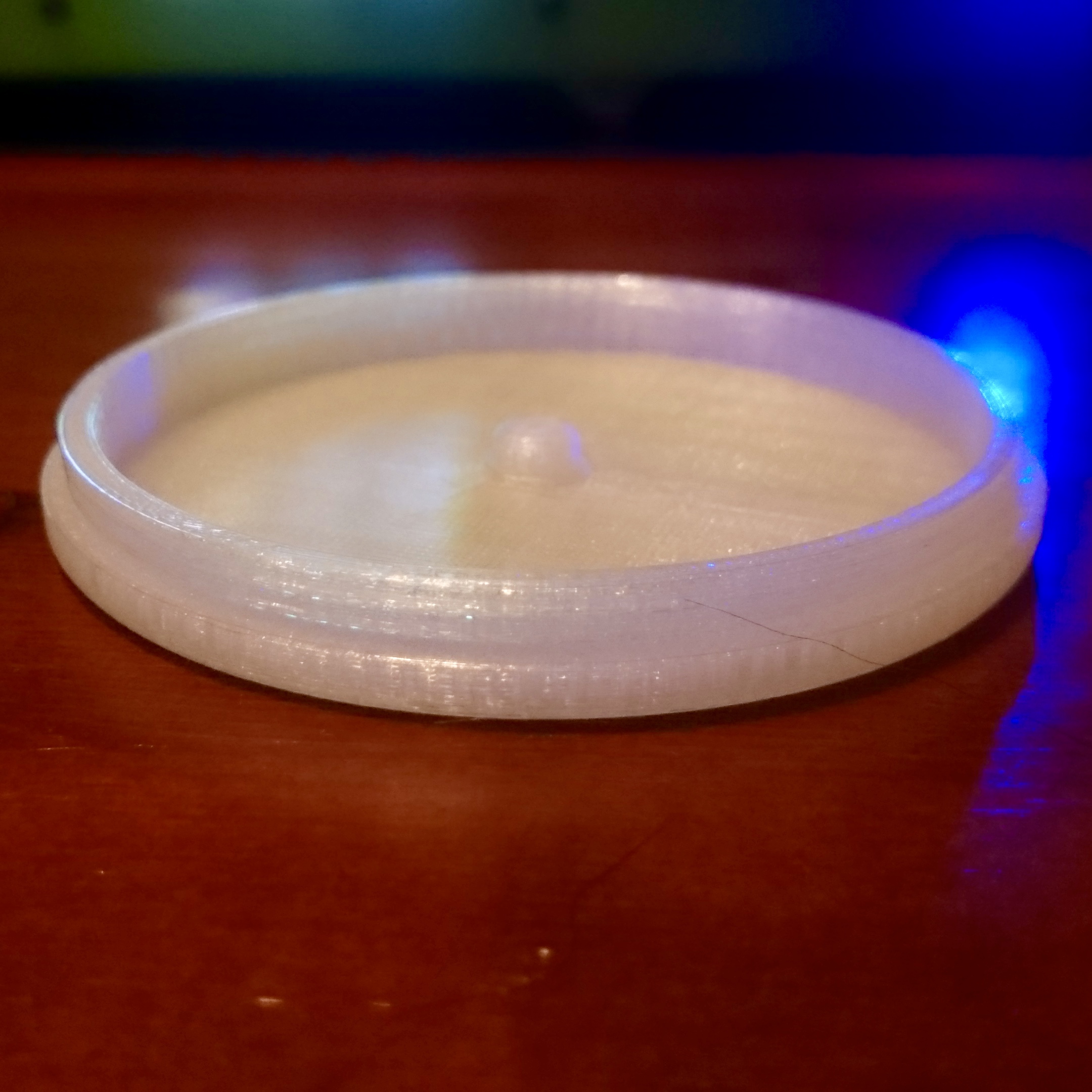

The two shells of the puck screw together. Fusion360 has a really easy function to create threat. (Thank you Maker's Muse for the tutorial) and it prints without problems.

The STL-files are added.

I printed this on my new (second hand) 3D-printer; Createbot Mini.

Settings:

• PLA
• 210 C
• fill: 30%
• no support
• bed: 60 C

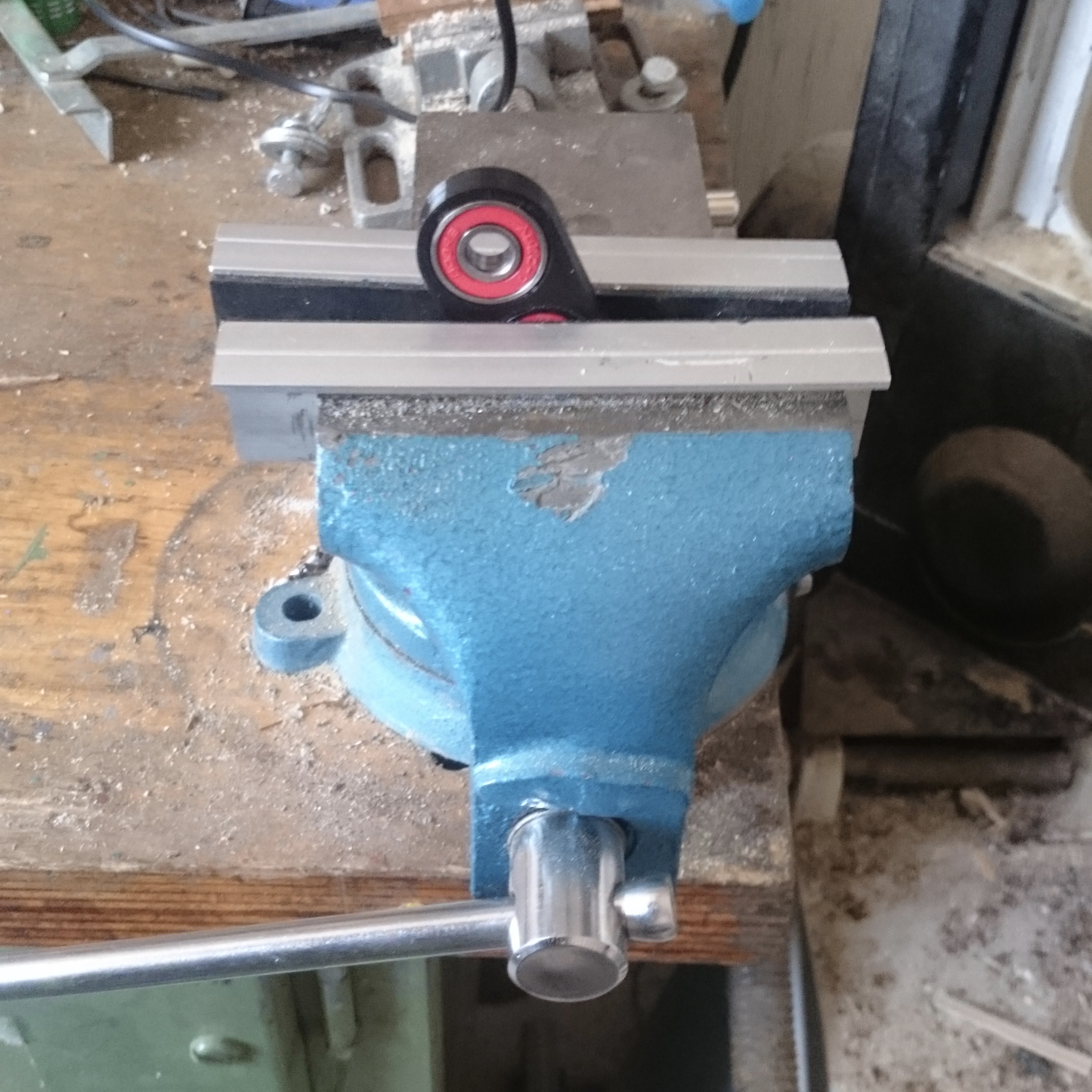

• Use a hammer or vice (or really strong person) to push het bearings in the spinner.
• Put the spinner with one of the bearings (the best one) in the peg of one of the shells.
• Screw the other shell on top of the shell with the spinner.

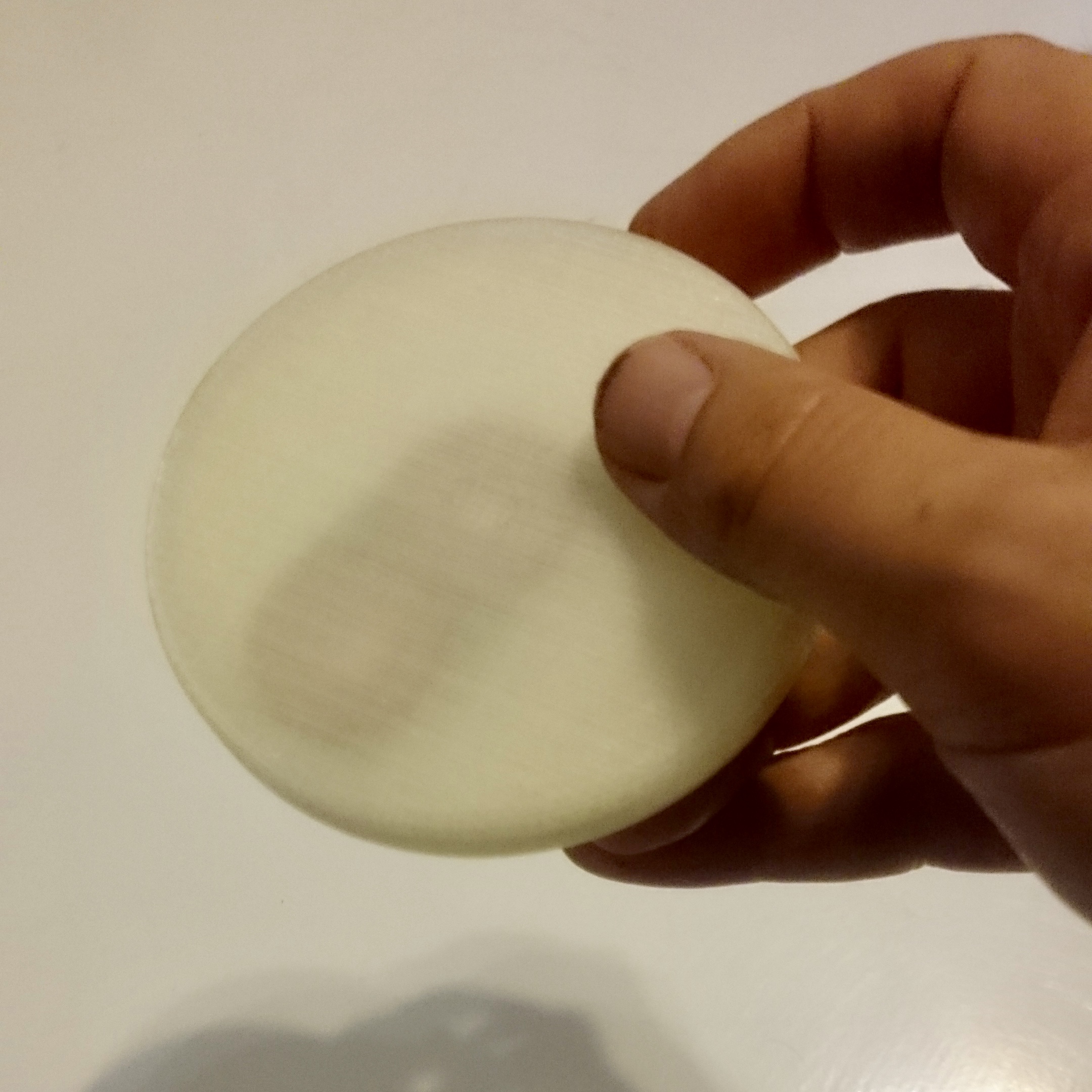

Spin the spinner bij moving and vibrating the puck in your hand.

Try to put it away again....
