I created this for a Fallout fan. The Vault Boy Led Light.
It's made out of acrylic glass and a wooden base with green Led's.
The Laser Cut Parts
![sockel.JPG](/proxy/?url=https://content.instructables.com/FIJ/FMOH/JKWULF7M/FIJFMOHJKWULF7M.jpg&filename=sockel.JPG)
![vaulzboy.JPG](/proxy/?url=https://content.instructables.com/FSW/AA5E/JKVCSF8J/FSWAA5EJKVCSF8J.jpg&filename=vaulzboy.JPG)
![IMG_8072.JPG](/proxy/?url=https://content.instructables.com/FS6/FIBT/JKWULJK3/FS6FIBTJKWULJK3.jpg&filename=IMG_8072.JPG)
![switch.JPG](/proxy/?url=https://content.instructables.com/F1L/34RZ/JKWULF6I/F1L34RZJKWULF6I.jpg&filename=switch.JPG)

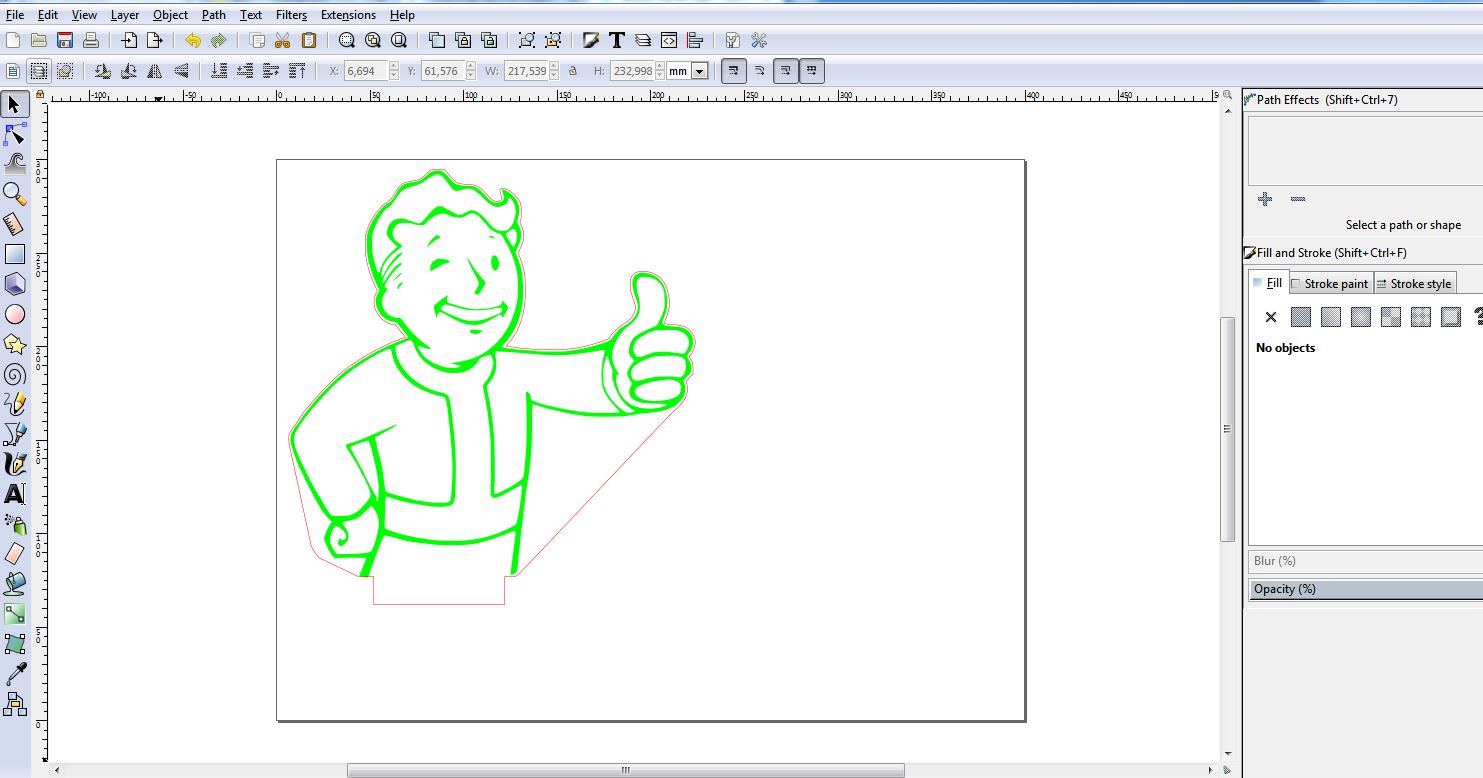

First I created the Vault Boy in Inkscape. I used 3 mm cast Acrylic glass to laser the Vault Boy
In Qcad and Inkscape I created the base, It's made out of 4 mm plywood. and then glued together. In one of the parts, 4 nuts are inserted. They are used to screw the cover on it.
The 2 files are attached here. I'm working with Qcad and Inkscape
Mounting All Together
![allparts-number.jpg](/proxy/?url=https://content.instructables.com/FTF/QRFG/JKWULBHF/FTFQRFGJKWULBHF.jpg&filename=allparts-number.jpg)
![IMG_8036.JPG](/proxy/?url=https://content.instructables.com/FTW/L6SX/JKWULBI0/FTWL6SXJKWULBI0.jpg&filename=IMG_8036.JPG)
![IMG_8037.JPG](/proxy/?url=https://content.instructables.com/FVR/YFT7/JKWULBIB/FVRYFT7JKWULBIB.jpg&filename=IMG_8037.JPG)
![IMG_8038.JPG](/proxy/?url=https://content.instructables.com/F4V/E311/JKWULBIM/F4VE311JKWULBIM.jpg&filename=IMG_8038.JPG)
![IMG_8039.JPG](/proxy/?url=https://content.instructables.com/F8V/ZINZ/JKWULBIN/F8VZINZJKWULBIN.jpg&filename=IMG_8039.JPG)
![IMG_8041.JPG](/proxy/?url=https://content.instructables.com/F25/GAPP/JKWULBIZ/F25GAPPJKWULBIZ.jpg&filename=IMG_8041.JPG)
![IMG_8043.JPG](/proxy/?url=https://content.instructables.com/FSO/2MTR/JKWULBFH/FSO2MTRJKWULBFH.jpg&filename=IMG_8043.JPG)
![IMG_8048.JPG](/proxy/?url=https://content.instructables.com/F08/J3DJ/JKWULBFL/F08J3DJJKWULBFL.jpg&filename=IMG_8048.JPG)
![IMG_8049.JPG](/proxy/?url=https://content.instructables.com/FJT/0O4I/JKWULBFR/FJT0O4IJKWULBFR.jpg&filename=IMG_8049.JPG)
![IMG_8051.JPG](/proxy/?url=https://content.instructables.com/FJT/6Z8P/JKWULBG7/FJT6Z8PJKWULBG7.jpg&filename=IMG_8051.JPG)
![IMG_8054.JPG](/proxy/?url=https://content.instructables.com/FGF/NKPP/JKWULBGY/FGFNKPPJKWULBGY.jpg&filename=IMG_8054.JPG)

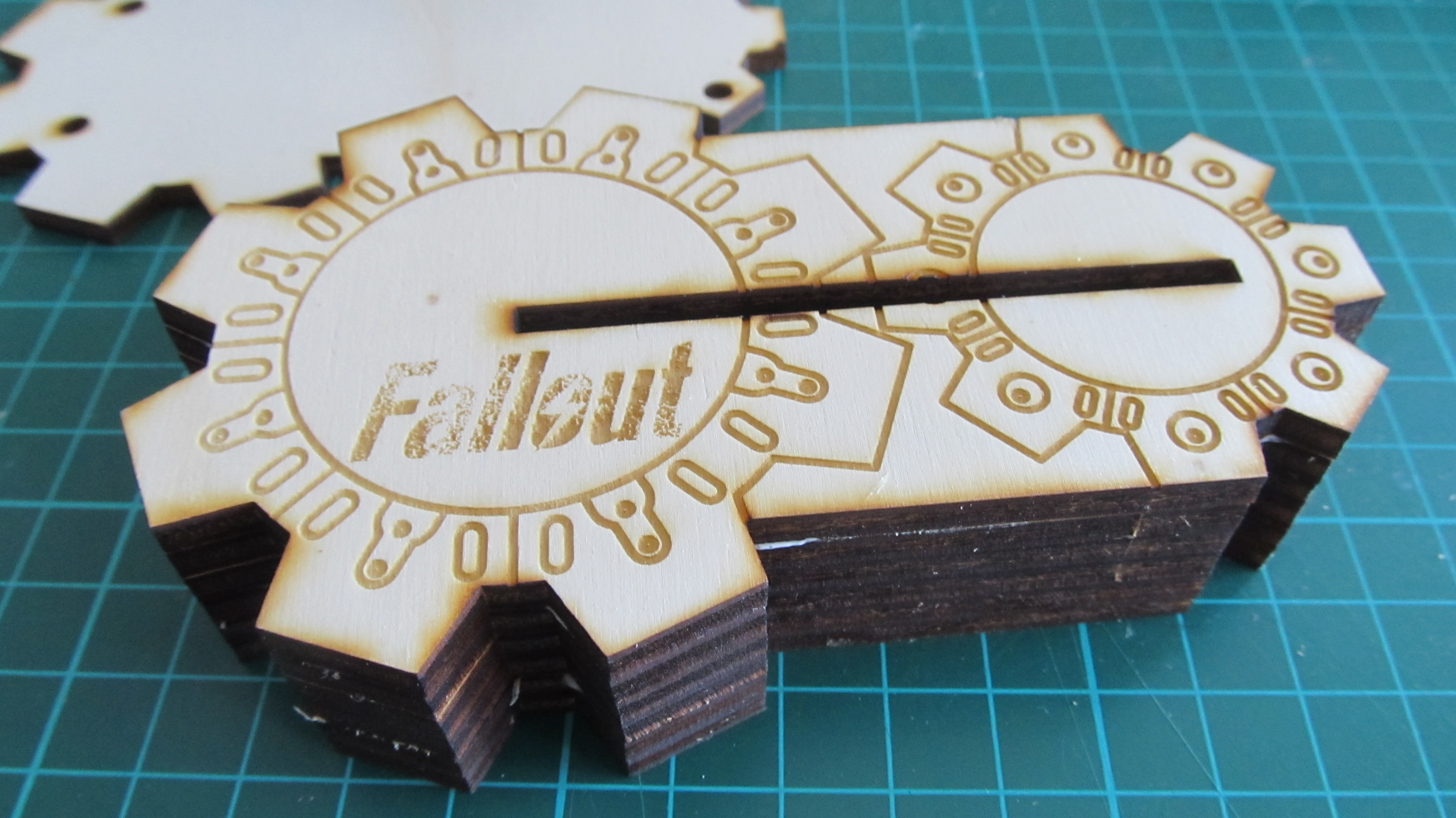

Here are the 4mm plywood laser cuts

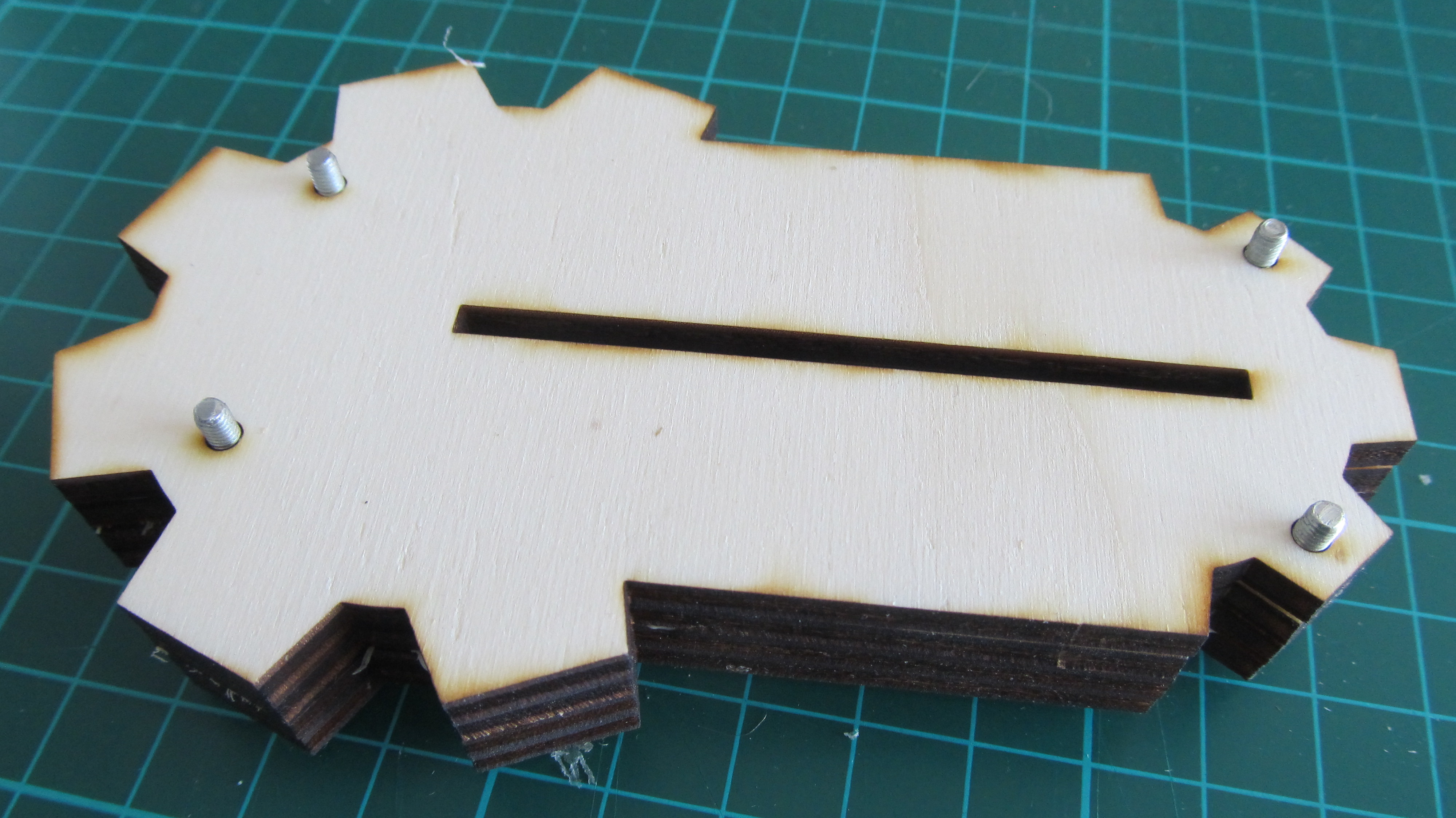

Starting with part 1. Use four 20mm M3 Screws like on the picture. Wood glue on the part and then place part 2 on it.
Again use wood glue and then part 4. Here use three M3 nuts and screw all together. And again use glue on part 3 and 5.
Use a clamp to hold all together.
After the glue is dry, glue part 6 on it and use a weight to press all down.

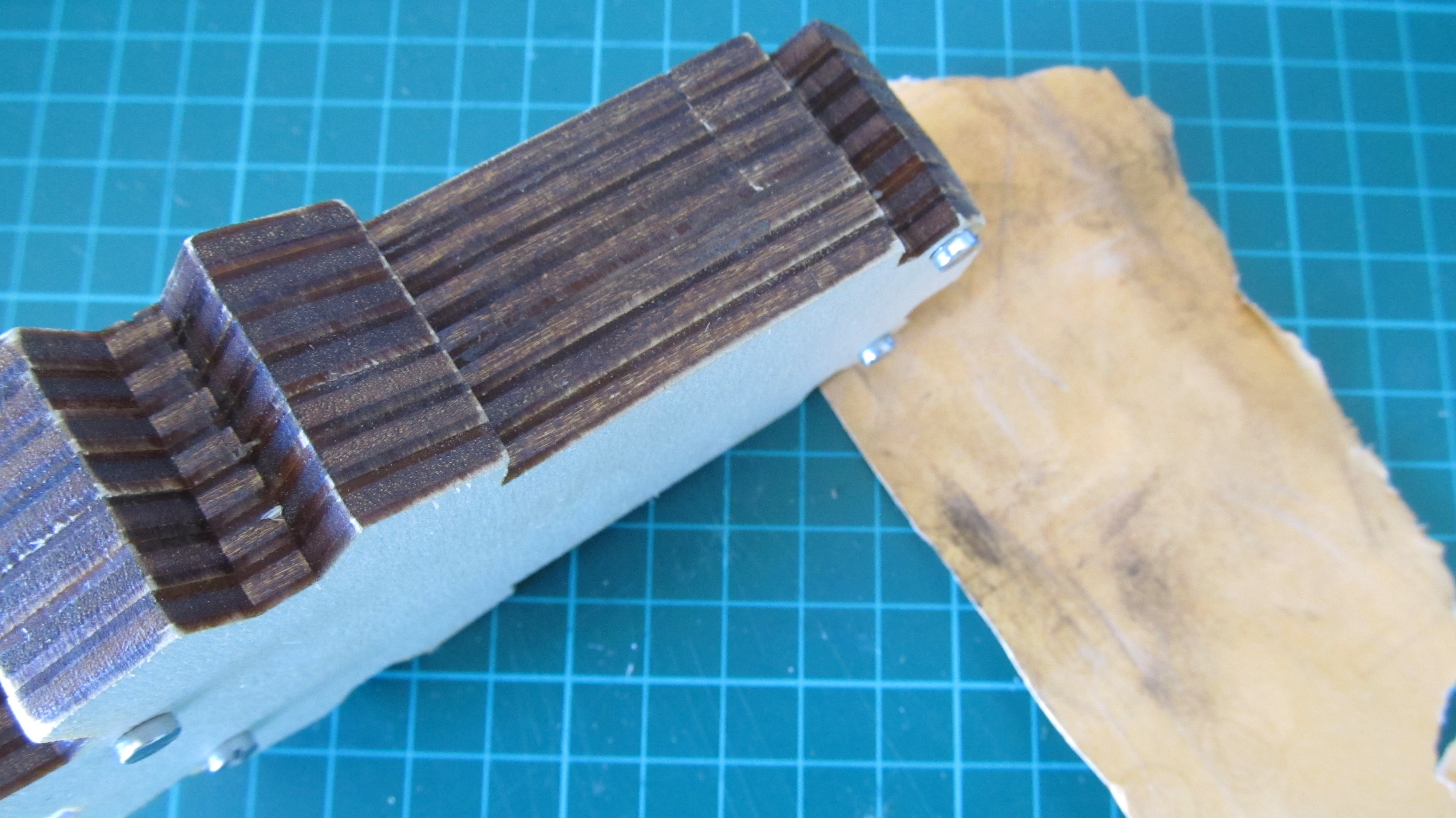

Now screw the bottom part 7 on it, and sand it with sandpaper.
The Color Job
![IMG_8055.JPG](/proxy/?url=https://content.instructables.com/FKN/MEKO/JKWULCN8/FKNMEKOJKWULCN8.jpg&filename=IMG_8055.JPG)
![IMG_8058.JPG](/proxy/?url=https://content.instructables.com/F08/F5KI/JKWULCNC/F08F5KIJKWULCNC.jpg&filename=IMG_8058.JPG)
![IMG_8063.JPG](/proxy/?url=https://content.instructables.com/FP2/OEZW/JKWULCNT/FP2OEZWJKWULCNT.jpg&filename=IMG_8063.JPG)
![IMG_8061.JPG](/proxy/?url=https://content.instructables.com/F5M/WBZJ/JKWULCNE/F5MWBZJJKWULCNE.jpg&filename=IMG_8061.JPG)
![IMG_8060.JPG](/proxy/?url=https://content.instructables.com/FAN/XDFX/JKWULCND/FANXDFXJKWULCND.jpg&filename=IMG_8060.JPG)
![IMG_8062.JPG](/proxy/?url=https://content.instructables.com/FL1/1S5Z/JKWULCNS/FL11S5ZJKWULCNS.jpg&filename=IMG_8062.JPG)
![IMG_8064.JPG](/proxy/?url=https://content.instructables.com/FZ2/J1VI/JKWULCNX/FZ2J1VIJKWULCNX.jpg&filename=IMG_8064.JPG)
![IMG_8065.JPG](/proxy/?url=https://content.instructables.com/F8L/CHBS/JKWULCNY/F8LCHBSJKWULCNY.jpg&filename=IMG_8065.JPG)
![IMG_8066.JPG](/proxy/?url=https://content.instructables.com/FB3/3SHF/JKWULCO1/FB33SHFJKWULCO1.jpg&filename=IMG_8066.JPG)
![IMG_8067.JPG](/proxy/?url=https://content.instructables.com/FM0/6AL6/JKWULCO2/FM06AL6JKWULCO2.jpg&filename=IMG_8067.JPG)
![IMG_8094.JPG](/proxy/?url=https://content.instructables.com/F2S/DGQA/JKWULCO4/F2SDGQAJKWULCO4.jpg&filename=IMG_8094.JPG)
![IMG_8096.JPG](/proxy/?url=https://content.instructables.com/F8L/WH9E/JKWULCMZ/F8LWH9EJKWULCMZ.jpg&filename=IMG_8096.JPG)

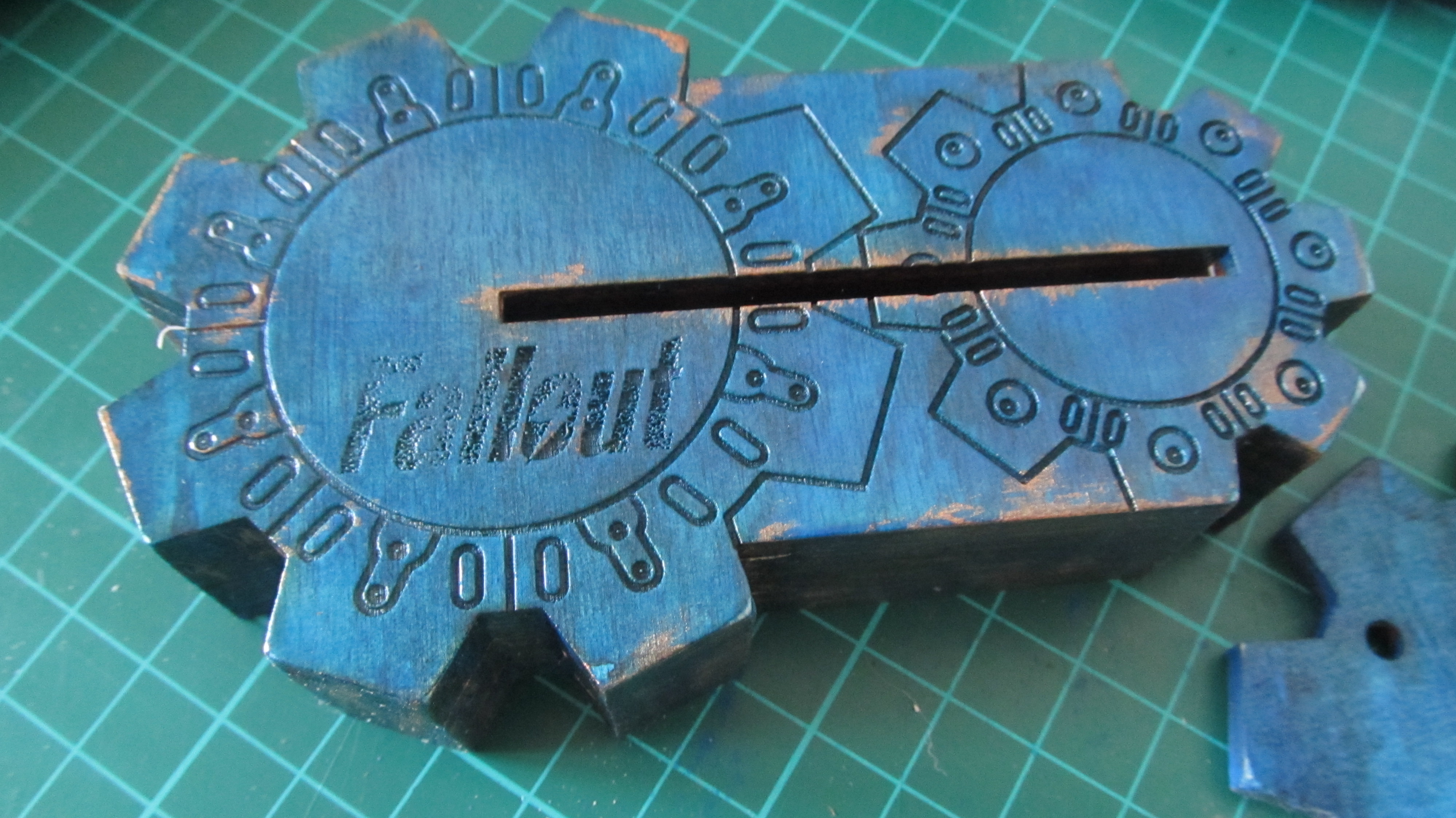

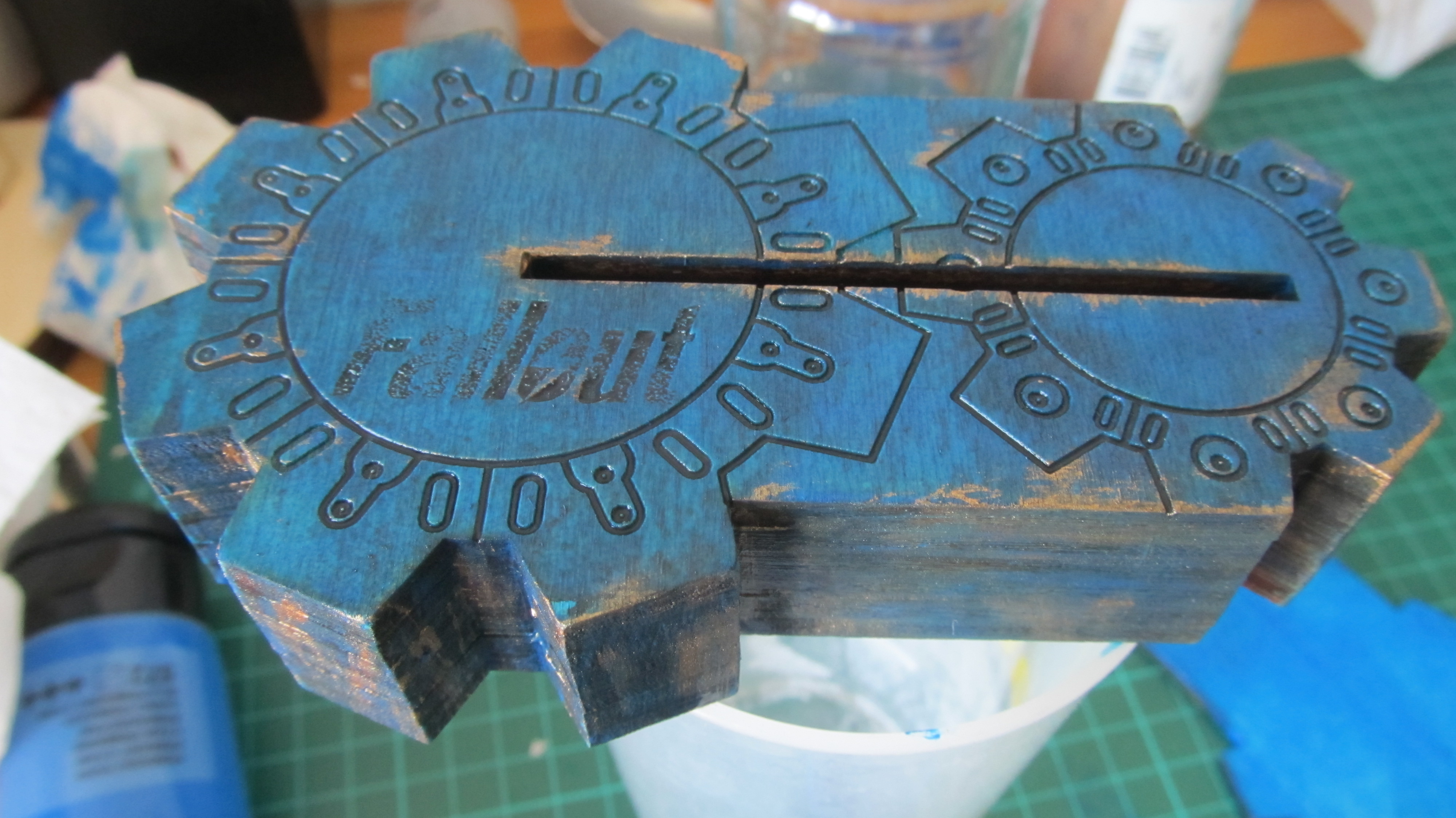

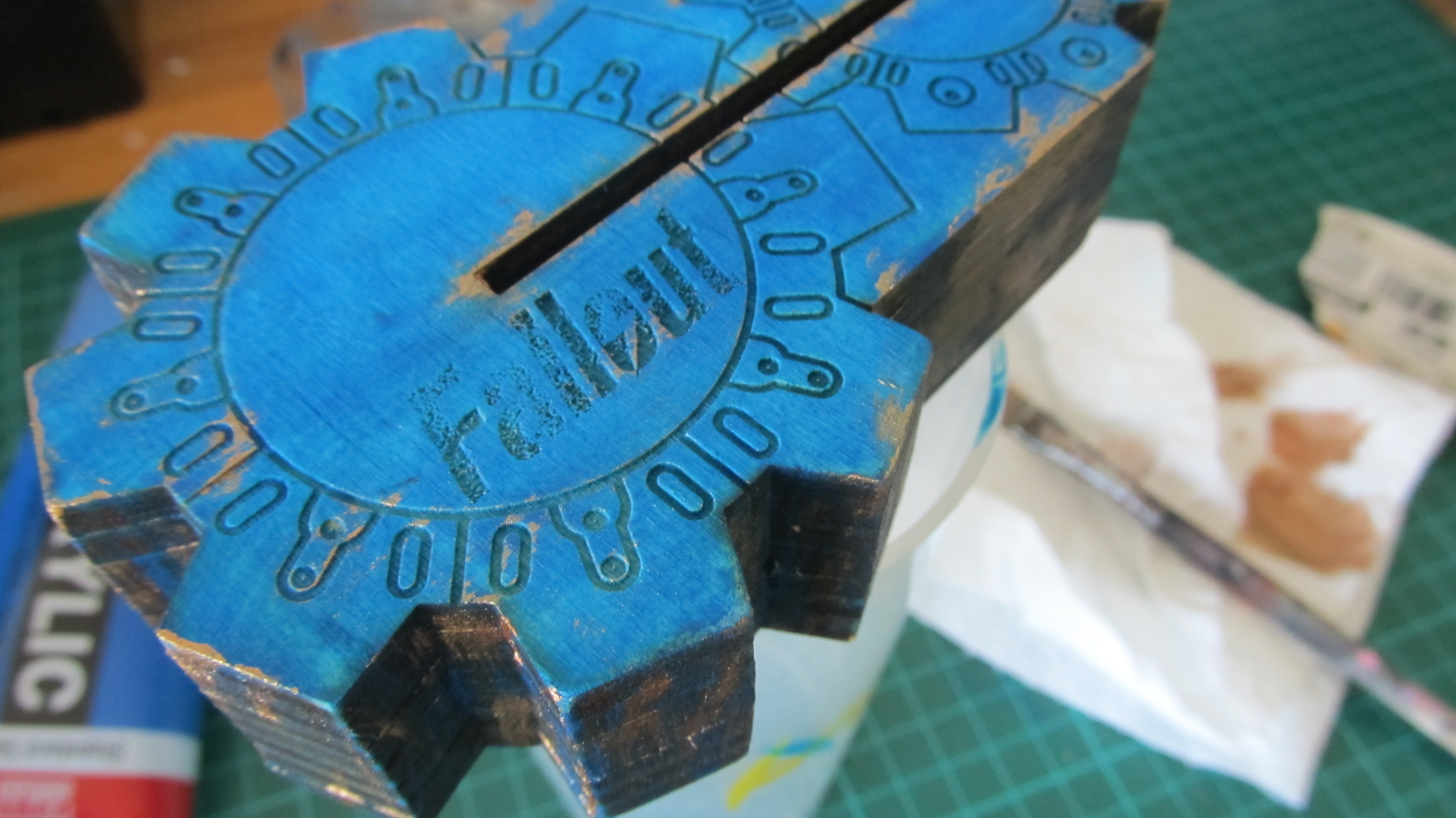

Painting the base with blue acrylic color mixed with water. After drying use bronze acrylic and tap on the corners of the base to give it a metallic look. Let it dry.
Now use a black acrylic color with a lot of water and paint it on the base, wait a few minutes and tap with kitchen paper on it to remove it from the surface. Now you have a nice washing effect.
Again let it dry.
Now paint two layers of acrylic varnish on it and sand it again. To finish pass a last layer of varnish on it.
The Electronic
![schema.JPG](/proxy/?url=https://content.instructables.com/FAA/PQ60/JKVCTHP7/FAAPQ60JKVCTHP7.jpg&filename=schema.JPG)
![pcb.JPG](/proxy/?url=https://content.instructables.com/FNZ/3W41/JKVCSIKJ/FNZ3W41JKVCSIKJ.jpg&filename=pcb.JPG)
![Parts.JPG](/proxy/?url=https://content.instructables.com/F63/U073/JKVCSDOR/F63U073JKVCSDOR.jpg&filename=Parts.JPG)
![AllIn2.JPG](/proxy/?url=https://content.instructables.com/FR4/43LG/JKVCSDPF/FR443LGJKVCSDPF.jpg&filename=AllIn2.JPG)

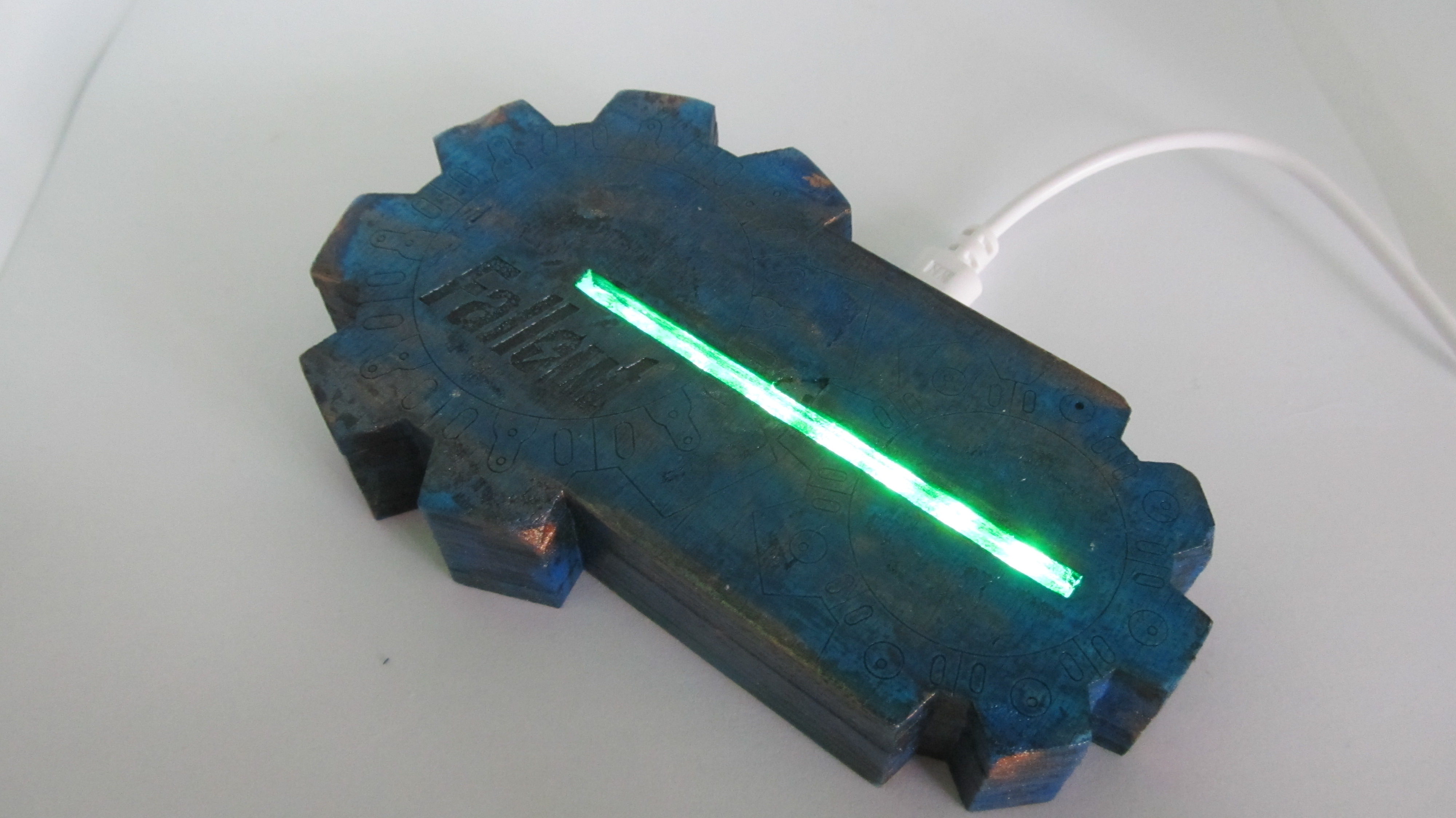

![LedOn.JPG](/proxy/?url=https://content.instructables.com/F3B/ANKL/JKVCSDOQ/F3BANKLJKVCSDOQ.jpg&filename=LedOn.JPG)

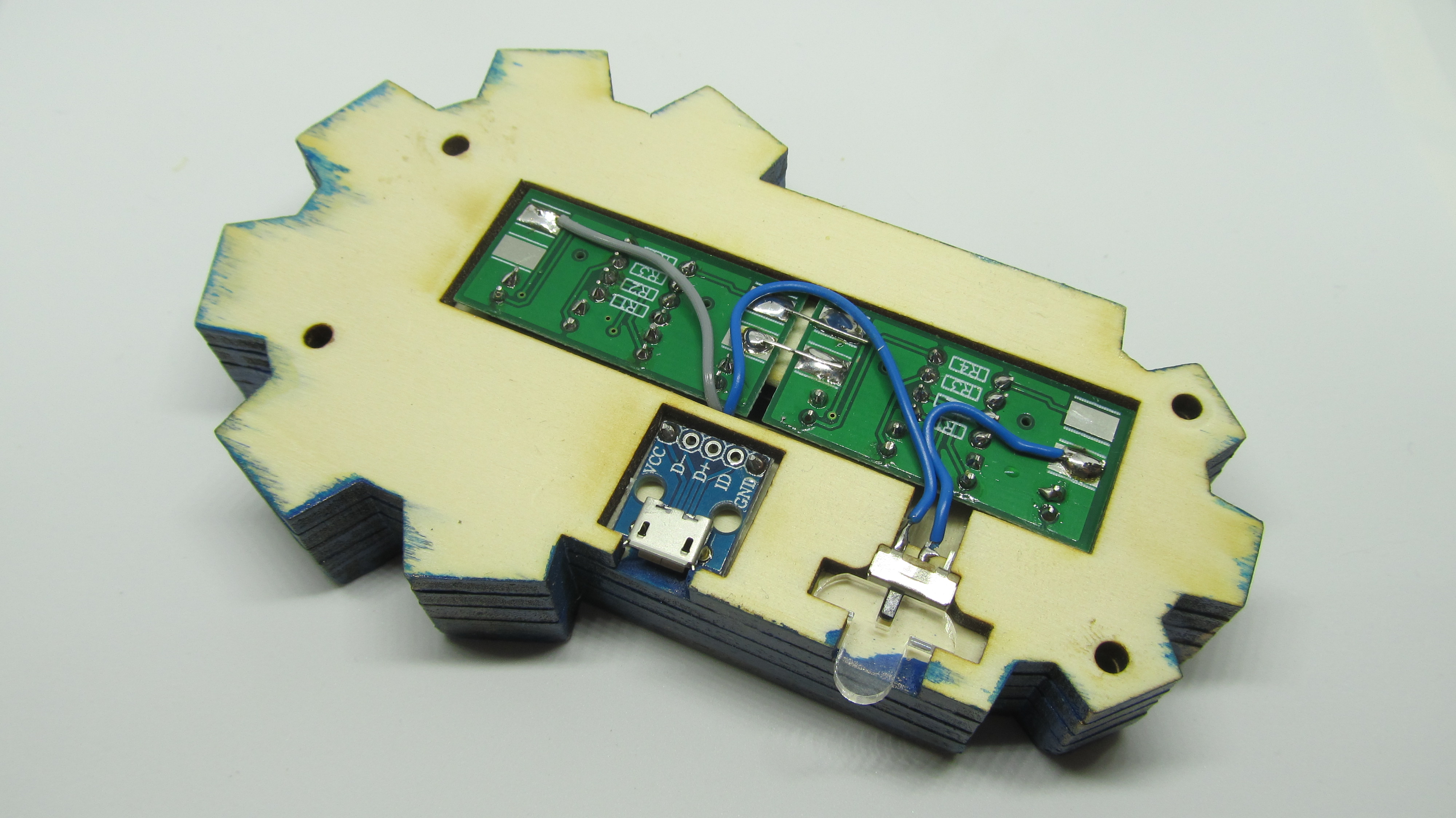

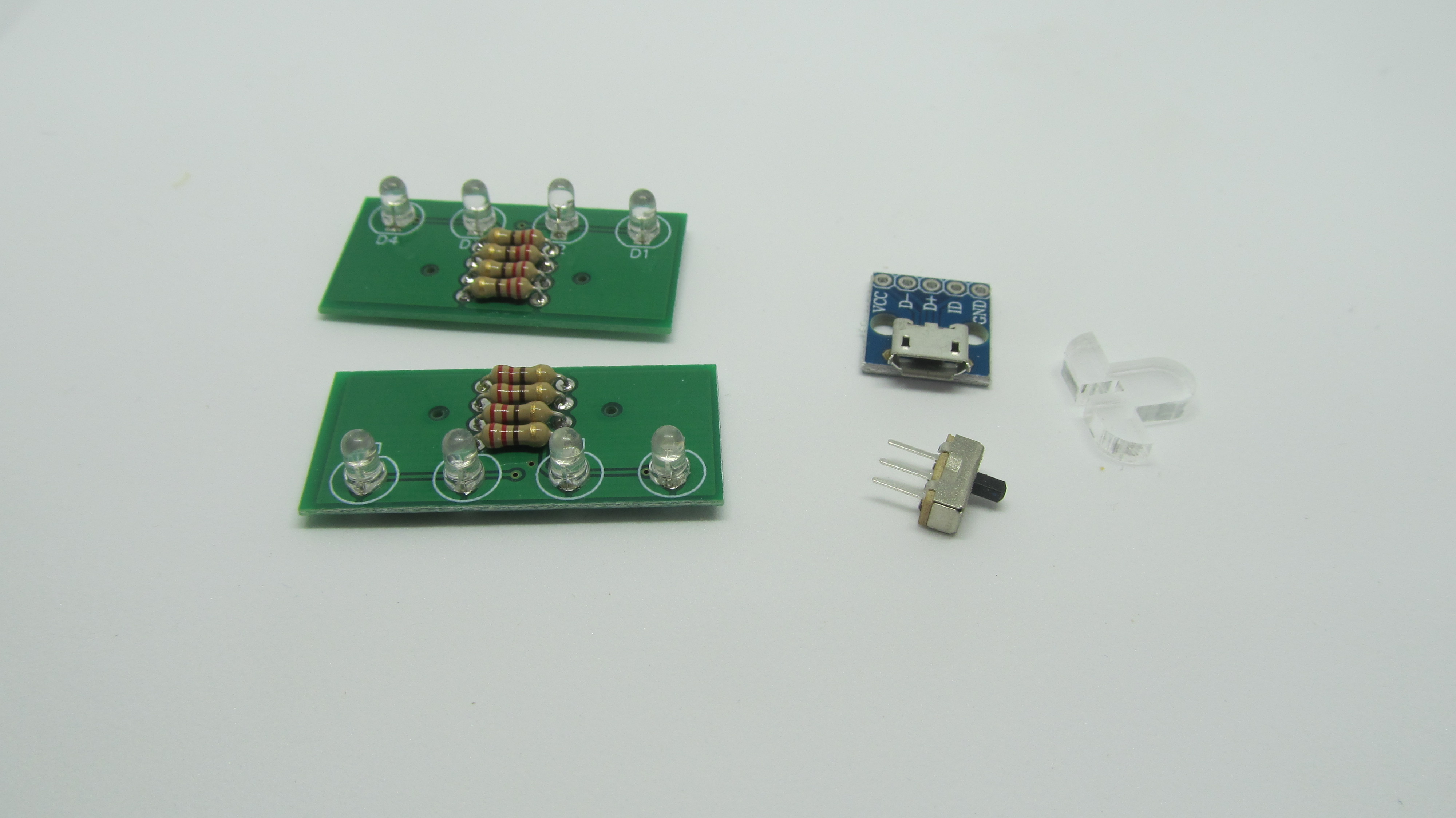

For the electronic I use my self developed PCB's.
Parts used:
- 4 Resistors 220R
- 4 LED's 3mm green4
- 1 Micro USB breakout board
- 1 Micro switch
- 1 laser cut switch cap
A breadboard can be used to replace my PCB board
The Program I use is DipTrace
Now screw the bottom (part 7) with four 16mm M3 screws on the base and finished.
The Result
![IMG_8104.JPG](/proxy/?url=https://content.instructables.com/FPD/7FKT/JKWULFHV/FPD7FKTJKWULFHV.jpg&filename=IMG_8104.JPG)
![good005.JPG](/proxy/?url=https://content.instructables.com/FHM/J5VJ/JKVCSELG/FHMJ5VJJKVCSELG.jpg&filename=good005.JPG)
![IMG_8106.JPG](/proxy/?url=https://content.instructables.com/FM9/3HN4/JKWULFGJ/FM93HN4JKWULFGJ.jpg&filename=IMG_8106.JPG)
![IMG_8107.JPG](/proxy/?url=https://content.instructables.com/FKQ/SV6U/JKWULFH7/FKQSV6UJKWULFH7.jpg&filename=IMG_8107.JPG)
![Good3.JPG](/proxy/?url=https://content.instructables.com/F45/6I6J/JKVCSEFD/F456I6JJKVCSEFD.jpg&filename=Good3.JPG)
![Good002.JPG](/proxy/?url=https://content.instructables.com/FVD/5TIZ/JKVCSE3X/FVD5TIZJKVCSE3X.jpg&filename=Good002.JPG)

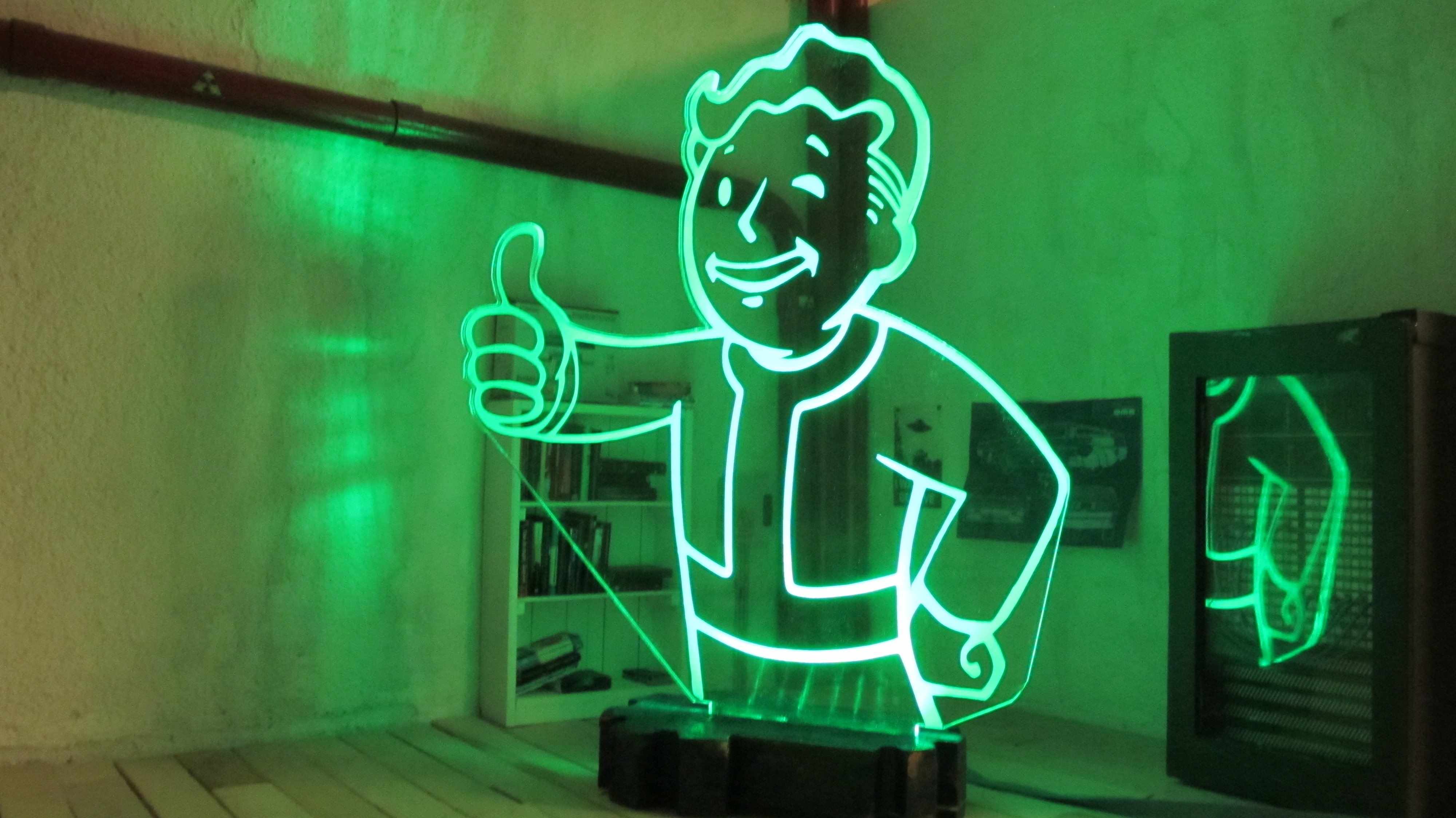

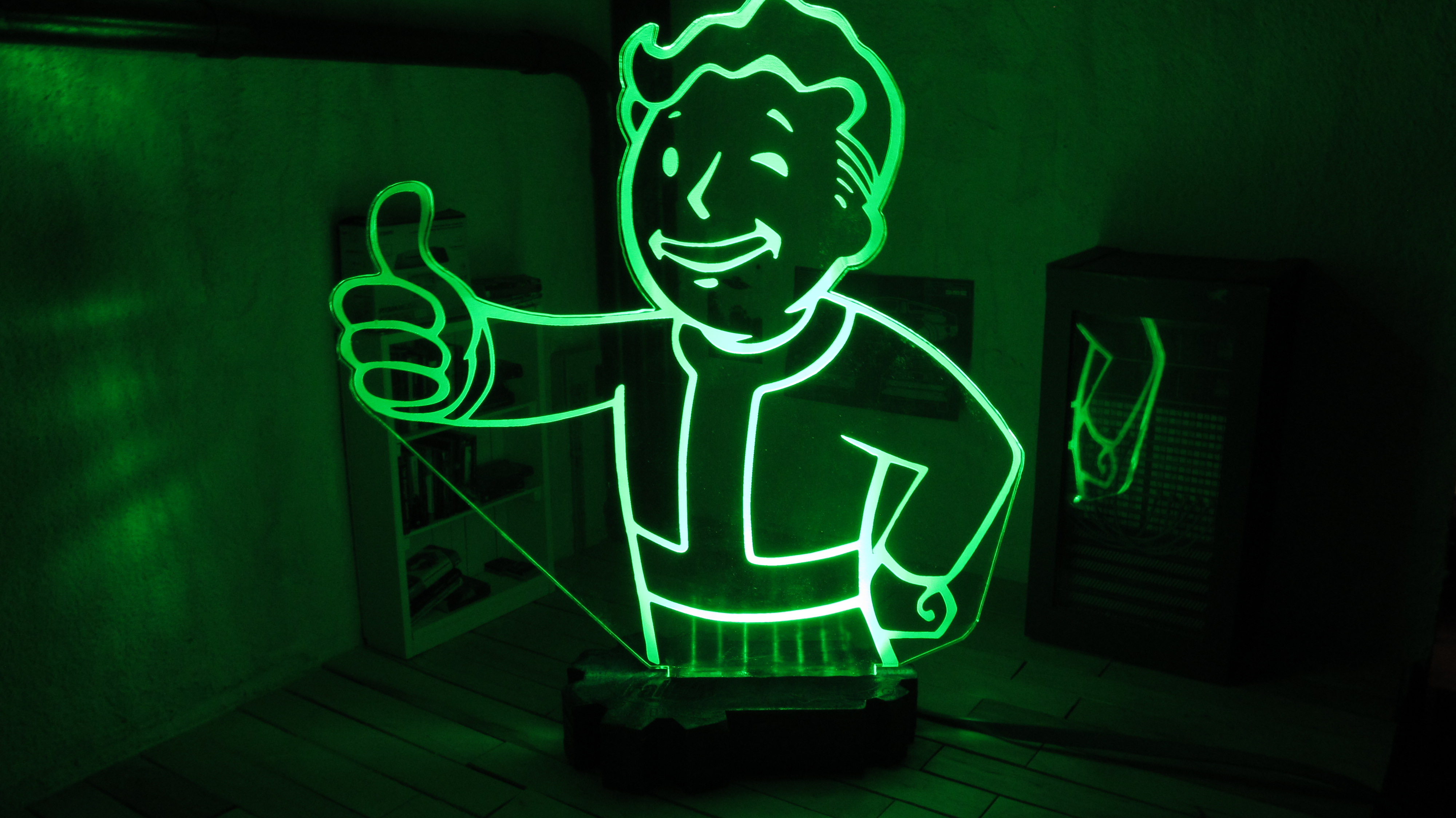

And here the finished item and NO, it's not 3 meter high, but the room is a miniature I'm working on :)
I hope you enjoyed my instructable.
