Face to Face Wheelchair

A set of add on handles for wheelchairs that make it easier to enjoy the talk

while taking a walk with your loved one.

Our add-on handles are designed to fit a verity of wheelchair designs.

Make sure you choose the right type of connection that fit your needs.

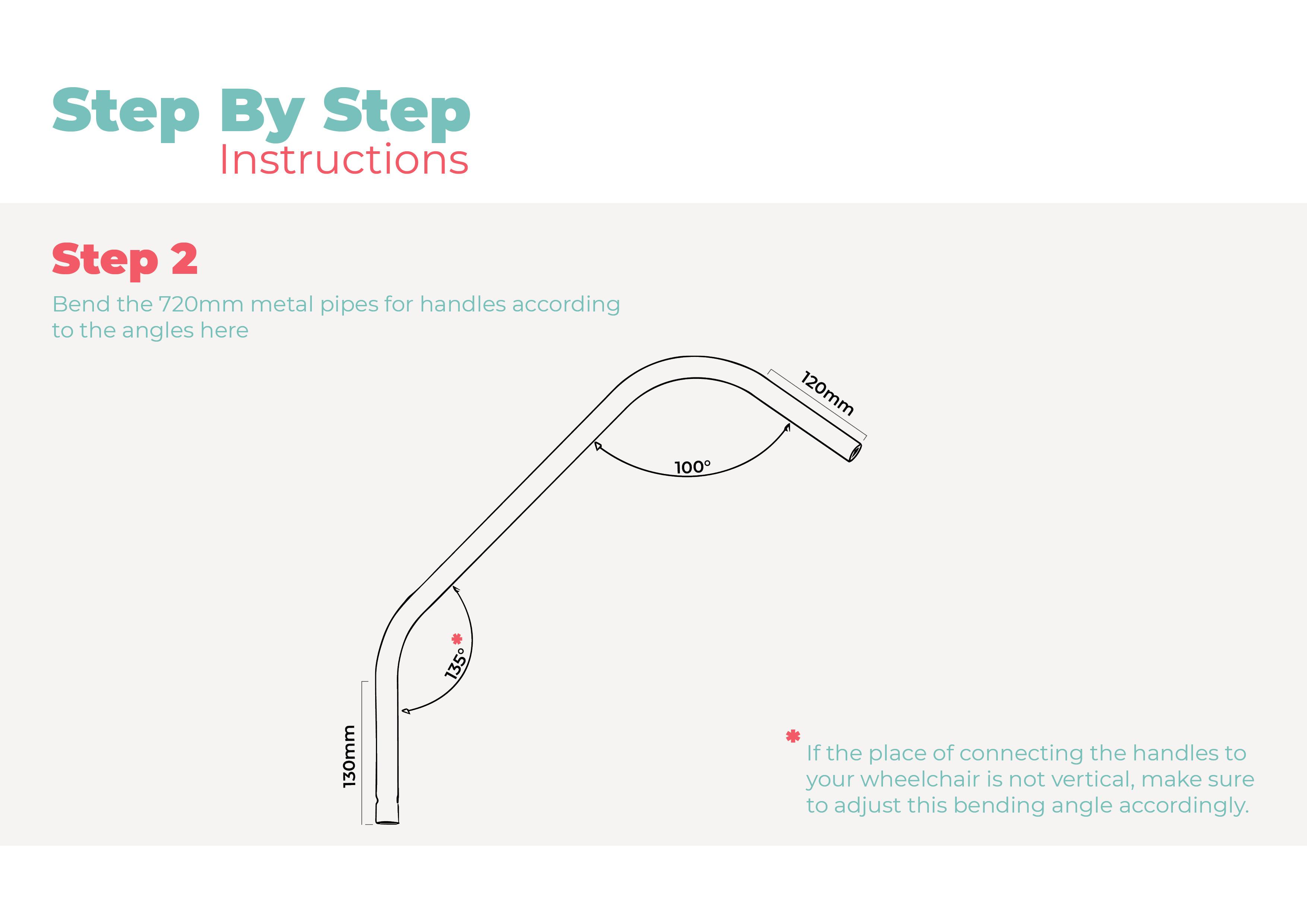

Bend the 720 mm metal pipes for handles according to the angles here

*If the place of connecting the handles to your wheelchair is not vertical, make sure to adjust this bending angle accordingly.

Drill a 6mm diameter hole in the marked place both on the wheel chair and on the handle pipe

3D print the handle stoppers file attached

(STL file name : Handle stoppers) Using a bit of pressure, place at 3 cm height on the handle pipe .

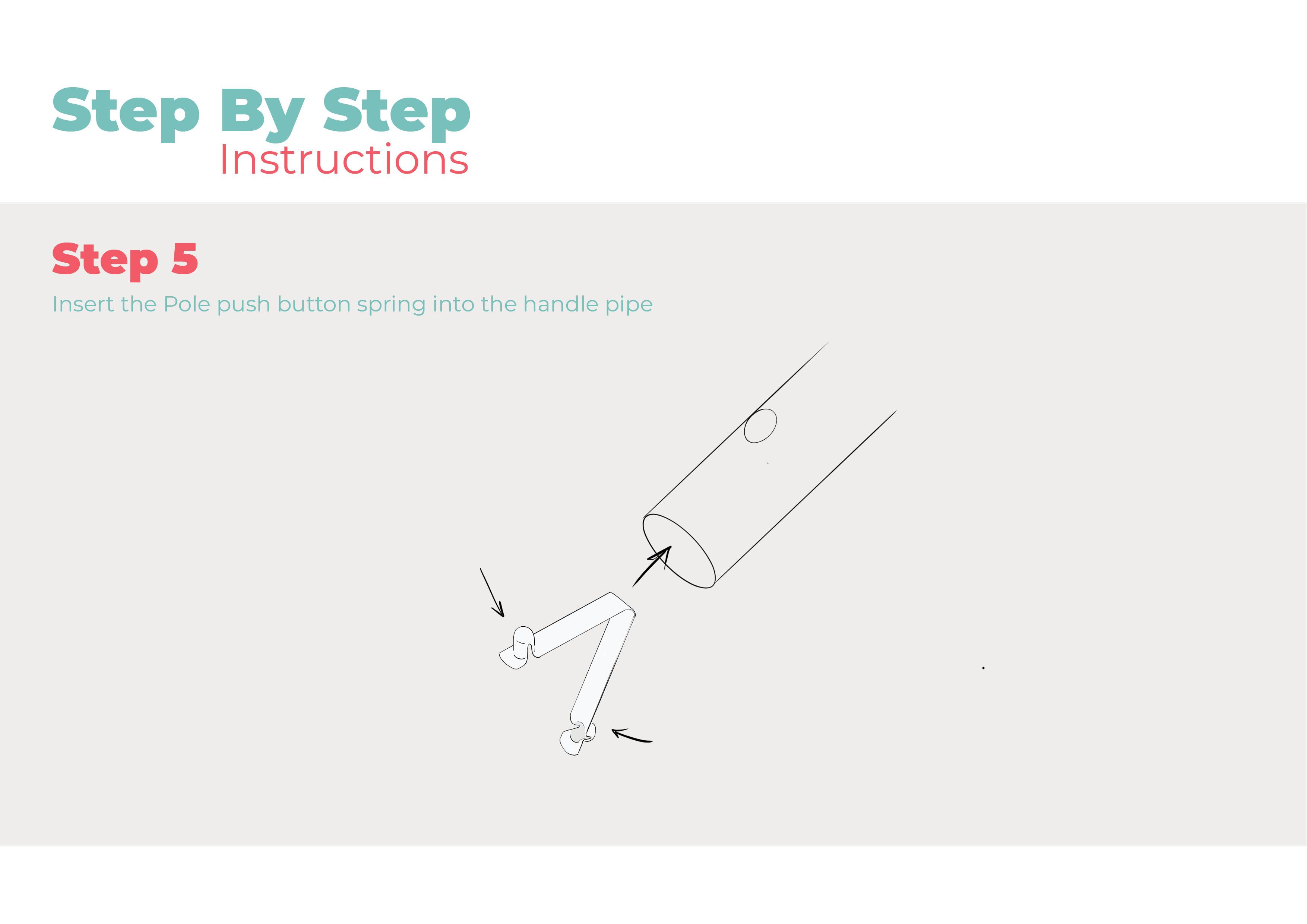

Insert the pole push button spring into the handle pipe

Link for pole push spring - click here

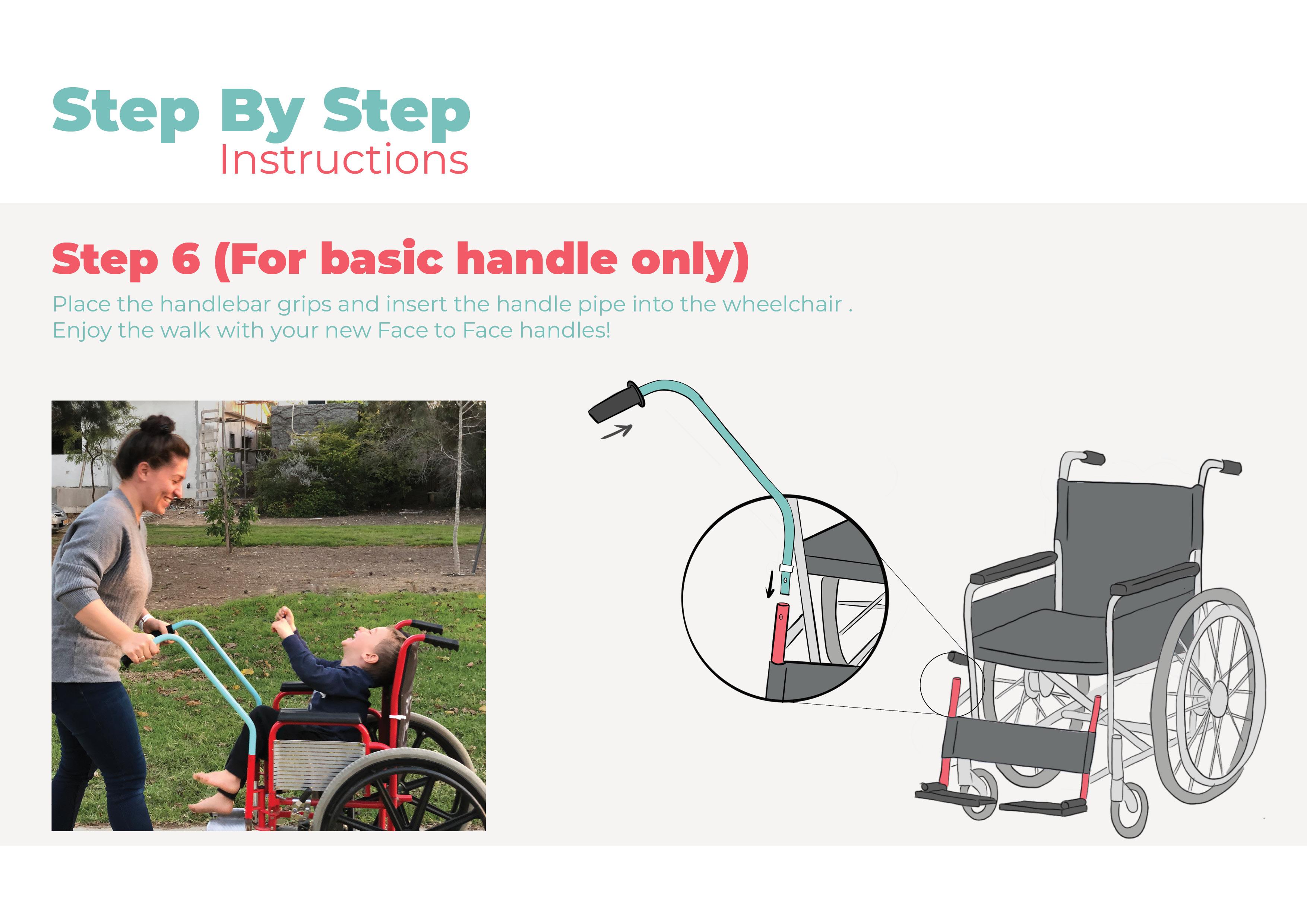

Place the handlebar grips and insert the handle pipe into the wheelchair .
Enjoy the walk with your new Face to Face handles!

Link for purchasing handlebar grips- click here

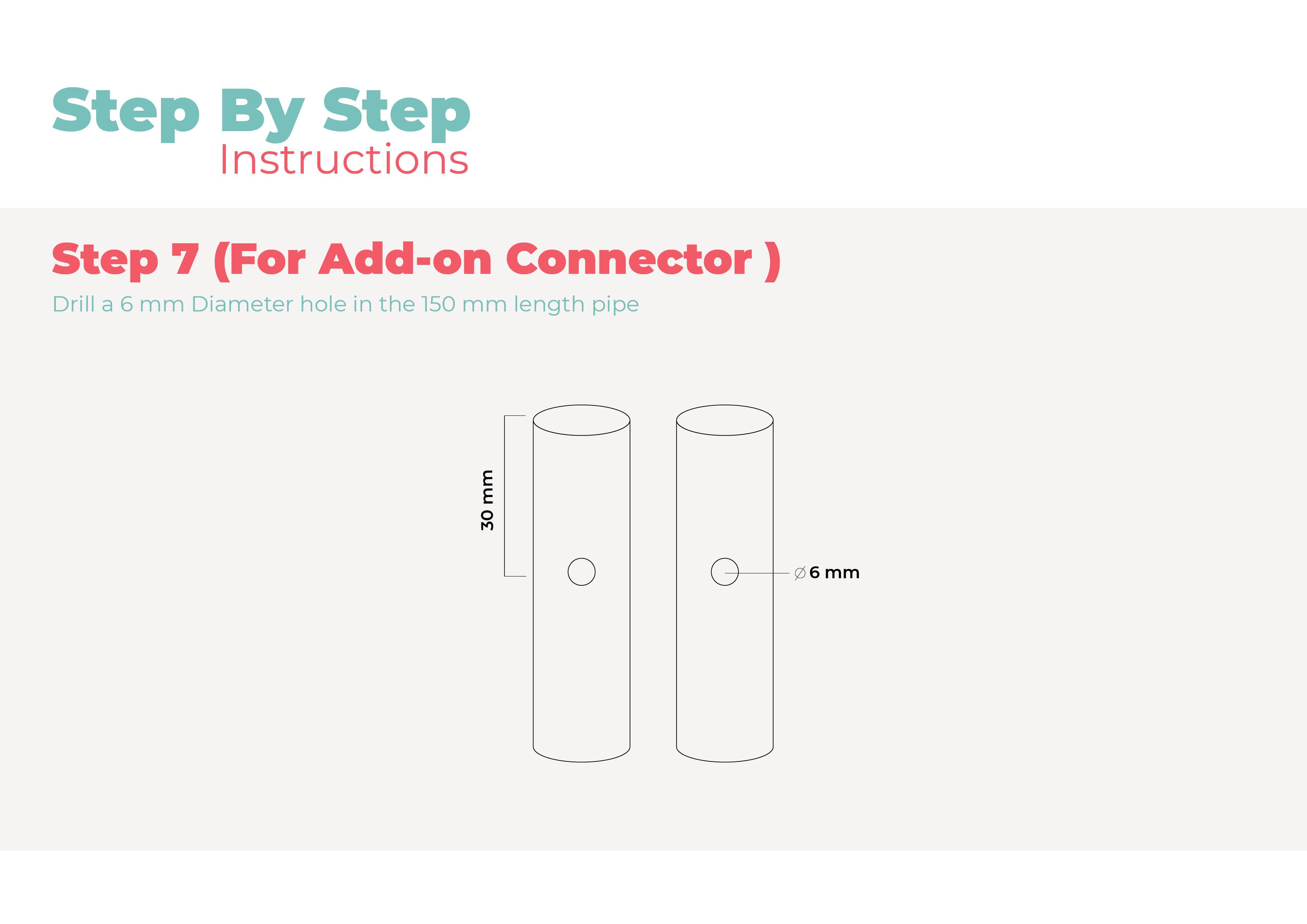

Drill a 6 mm Diameter hole in the 150 mm length pipe

3D print the connector part (STL part name: Add On Connector)

Using the metal bands, connect the 3D printed connector part and the 150 mm metal pipe to the wheelchair.

Link for purchasing metal band - click here

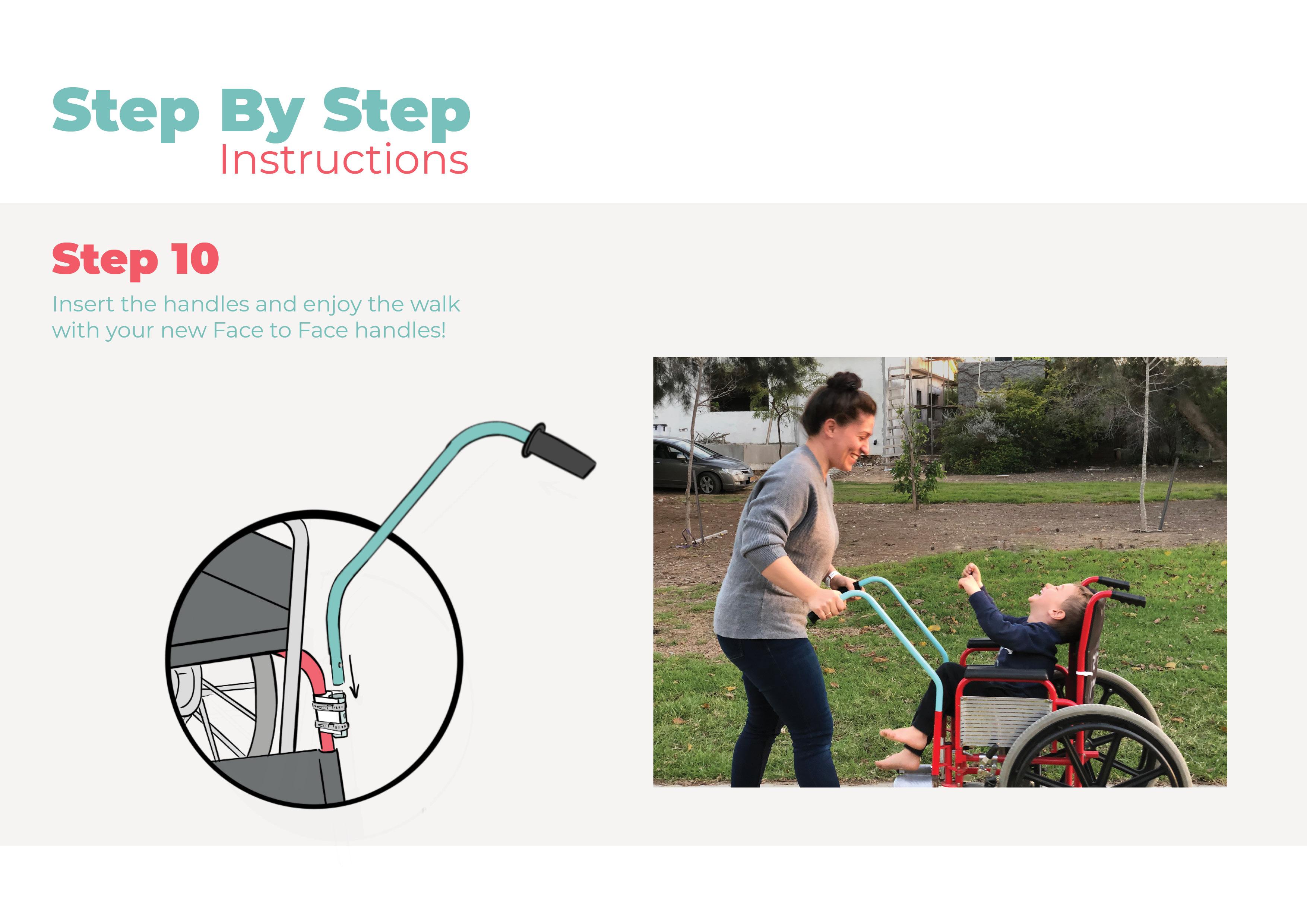

Insert the handles and enjoy the walk with your new Face to Face handles!
