FOOD PLATTERS (Purple Heart and White Oak)

by Food Related in Living > Kitchen

2576 Views, 44 Favorites, 0 Comments

FOOD PLATTERS (Purple Heart and White Oak)

Food Platters.png

You can use many different types of wood for this project.

I had scraps of Purple Heart and White Oak left over from another project and they turned out very nicely.

Make your own shaped handle and board for that matter.

Supplies

2 x Strips of Purple Heart 650mm long, 120mm wide.

1 strip of White Oak, 750 Long, 180mm wide.

Food grade mineral oil

Video

Wooden Platters (Purple Heart and Oak)

Assemble Materials

Screen Shot 2020-06-16 at 9.52.30 AM.png
Screen Shot 2020-06-16 at 9.52.47 AM.png

Lay materials out in the order you would like.

In the photos i am making 3 boards in one go.

The White Oak is in the middle, and is longer as it will make the handle part.

Glueing and Clamping

Screen Shot 2020-06-16 at 9.52.58 AM.png
Screen Shot 2020-06-16 at 9.53.21 AM.png
Screen Shot 2020-06-16 at 9.53.40 AM.png

Use a food safe glue, PVA or something similar.

Clamp together using sash clamps or what ever you have.

Wipe off any glue that squeezes out with a damp cloth.

I left these platters clamped for 24 hours.

Marking and Cutting Handle and Ends

Screen Shot 2020-06-16 at 9.53.49 AM.png
Screen Shot 2020-06-16 at 9.54.02 AM.png
Screen Shot 2020-06-16 at 9.54.33 AM.png
Screen Shot 2020-06-16 at 9.55.06 AM.png
Screen Shot 2020-06-16 at 9.55.29 AM.png

Create a template and mark it on your handle,

Use a square to make sure the ends are even and have 90 degree corners.

Cut using a saw. I used a band saw but you could use a hand saw or mitre saw.

Planing

Screen Shot 2020-06-16 at 9.55.51 AM.png
Screen Shot 2020-06-16 at 9.56.09 AM.png

I used a thicknesser to make sure my boards were nice and evenly flat.

This could be done with a hand plane and orbital sander... or whatever you have.

Drilling the Handle

Screen Shot 2020-06-16 at 9.56.22 AM.png
Screen Shot 2020-06-16 at 9.56.31 AM.png

I made sure I taped the underside of my drill hole to avoid blowout.

I used a 30mm drill bit.

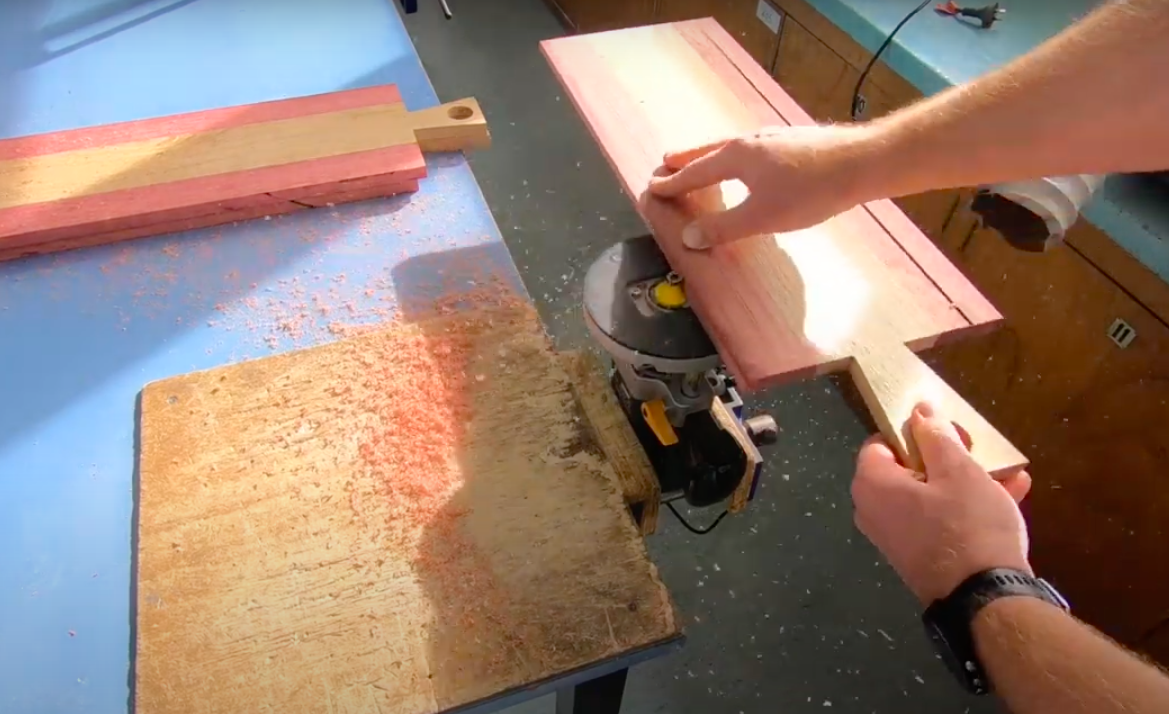

Routing the Edges

Screen Shot 2020-06-16 at 9.56.42 AM.png
Screen Shot 2020-06-16 at 9.56.51 AM.png

I used a round off routing bit to give the edges a nice feel.

I also routed the handle and the hole.

It would be safer to use a routing table but I don't have one!!

You could just do this with sandpaper...it would just take you longer.

Sanding

Screen Shot 2020-06-16 at 9.57.02 AM.png
Screen Shot 2020-06-16 at 9.57.12 AM.png
Screen Shot 2020-06-16 at 9.57.18 AM.png

I started sanding using an orbital sander with 100 grit.

I then moved to 240 grit and hand sanded.

You could go to 400 grit and higher if wanted...

Cleaning and Oiling

Screen Shot 2020-06-16 at 9.57.31 AM.png
Screen Shot 2020-06-16 at 9.57.40 AM.png
Screen Shot 2020-06-16 at 9.57.48 AM.png

I wiped the boards down with a damp cloth and waited for them to dry.

I then used a food grade mineral oil and oiled them 3 times over a week, allowing each coat to soak in well.
