FMG-9 Mods
As some of you may know, I made some mods to TeacherOfTheWays' foldable gun, the FMG-9. I really like the gun and I decided it could use some improvement. Hope you enjoy my instructable.
Hopper
The hopper that I attached onto the gun. Is mostly the same as the one from oodalumps' 7-shot pistol. Here are some different views.

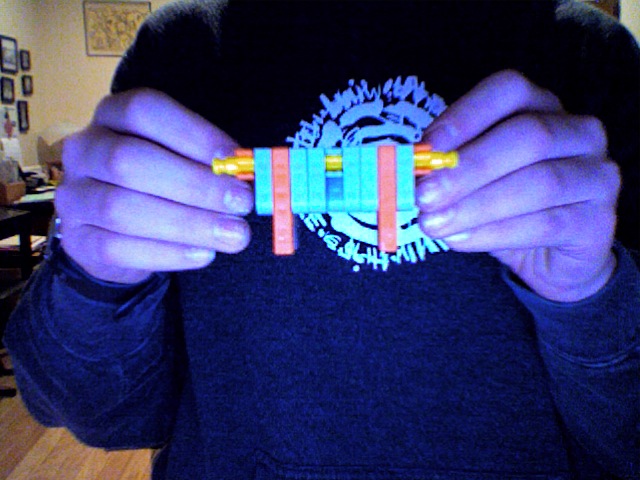

Pic 1: First Side
Pic 2: Second Side
Pic 3: top view.

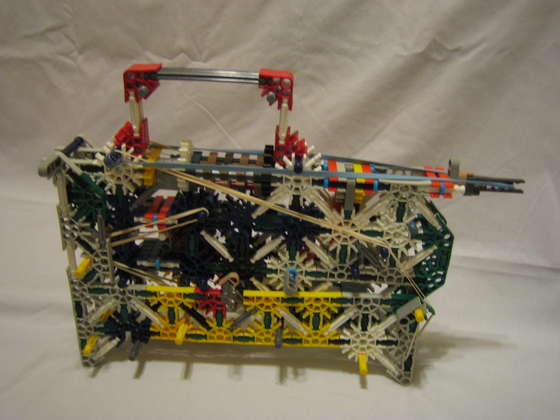

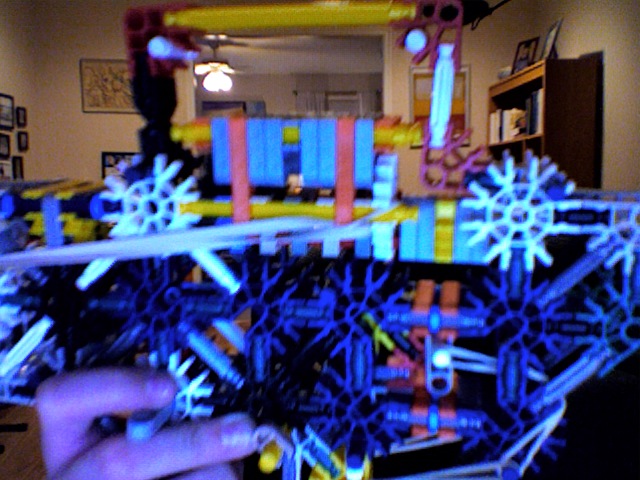

Pic 4: Hopper on Gun
Pic 1: First Side
Pic 2: Second Side
Pic 3: top view.
Pic 4: Hopper on Gun
Removable Handle
Since I added the hopper I thought it would be easier to reload if I made the handle removable so here it is.

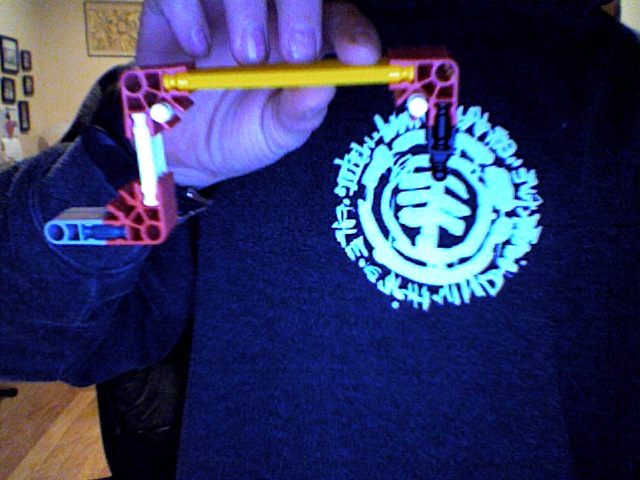

Pic 1: The handle
Pic 2: Different view

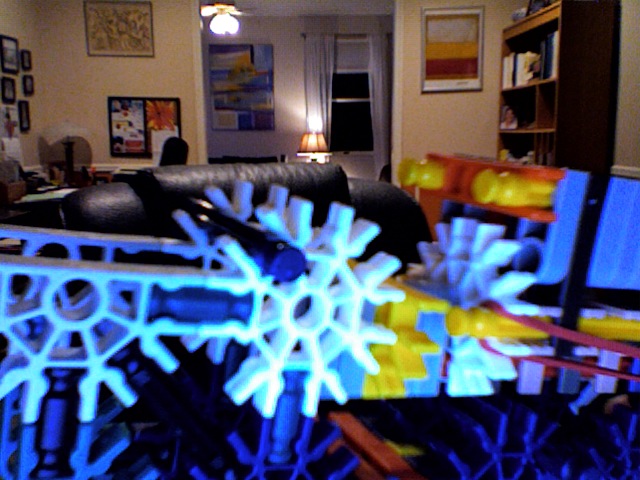

Pic 3: Move blue rod to here

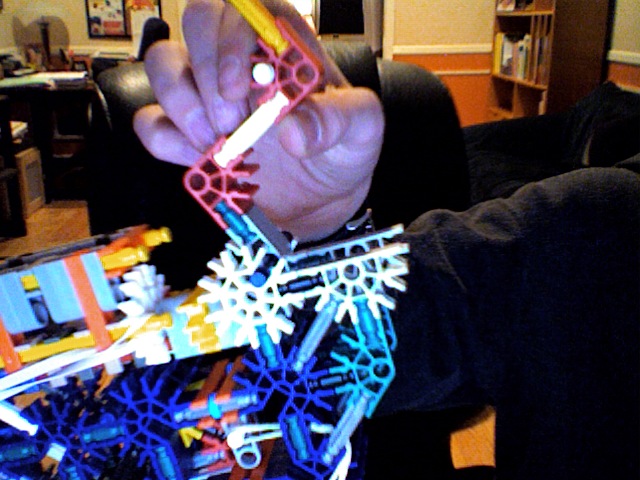

Pic 4+5: Add three ball sockets to other blue rod and connect handle
Pic 1: The handle
Pic 2: Different view
Pic 3: Move blue rod to here
Pic 4+5: Add three ball sockets to other blue rod and connect handle
Improved Firing Mechanism
I soon found out after making the gun that if you put more than one rubber band on the gun it would not fire because the firing pin would catch on the green connector. To solve this problem I cut a white rod to the size of a green rod and replaced the green rod with that. Sorry but I only have one picture.
