FIX Your Extension Cord BETTER THAN NEW
by hoppyandjumpy in Workshop > Repair
2524 Views, 14 Favorites, 0 Comments
FIX Your Extension Cord BETTER THAN NEW
![Screenshot from 2018-09-14 13-22-28.png](/proxy/?url=https://content.instructables.com/FLQ/1C3G/JM0UZQJY/FLQ1C3GJM0UZQJY.png&filename=Screenshot from 2018-09-14 13-22-28.png)
![FIX your extension cord BETTER THAN NEW](/proxy/?url=https://content.instructables.com/FBC/16DF/JM0UZQ5J/FBC16DFJM0UZQ5J.jpg&filename=FIX your extension cord BETTER THAN NEW)
If you ever damage or cut your extension cord, rather than throwing it away or buying expensive components to fix the extension cord, It’s just as easy to use off-the-shelf components to simply fix it. Enjoy!! :)
Modification to BX Cable Connector
![Screenshot from 2018-09-14 12-04-33.png](/proxy/?url=https://content.instructables.com/FO0/98NG/JM0UZM2L/FO098NGJM0UZM2L.png&filename=Screenshot from 2018-09-14 12-04-33.png)
![Screenshot from 2018-09-14 12-04-49.png](/proxy/?url=https://content.instructables.com/F2L/1ET9/JM0UZM2K/F2L1ET9JM0UZM2K.png&filename=Screenshot from 2018-09-14 12-04-49.png)
![Screenshot from 2018-09-14 12-05-06.png](/proxy/?url=https://content.instructables.com/FH9/O2BK/JM0UZM2I/FH9O2BKJM0UZM2I.png&filename=Screenshot from 2018-09-14 12-05-06.png)
![Screenshot from 2018-09-14 12-06-39.png](/proxy/?url=https://content.instructables.com/FUI/1WM1/JM0UZM2F/FUI1WM1JM0UZM2F.png&filename=Screenshot from 2018-09-14 12-06-39.png)
Cut off the end of a BX connector and put your wire in to it. Then glue it on to the wire with Epoxy Glue Make sure you have plenty of wire to wire the outlet. Put the connector in to the box and secure it with the nut.
Wire the Outlet
![Screenshot from 2018-09-14 12-05-47.png](/proxy/?url=https://content.instructables.com/FGG/GQJD/JM0UZM2G/FGGGQJDJM0UZM2G.png&filename=Screenshot from 2018-09-14 12-05-47.png)
![Screenshot from 2018-09-14 12-07-03.png](/proxy/?url=https://content.instructables.com/FY2/R2O2/JM0UZM1F/FY2R2O2JM0UZM1F.png&filename=Screenshot from 2018-09-14 12-07-03.png)
![Screenshot from 2018-09-14 12-07-41.png](/proxy/?url=https://content.instructables.com/FJN/TIH0/JM0UZM1D/FJNTIH0JM0UZM1D.png&filename=Screenshot from 2018-09-14 12-07-41.png)
![Screenshot from 2018-09-14 12-08-21.png](/proxy/?url=https://content.instructables.com/FSO/7A07/JM0UZM1B/FSO7A07JM0UZM1B.png&filename=Screenshot from 2018-09-14 12-08-21.png)

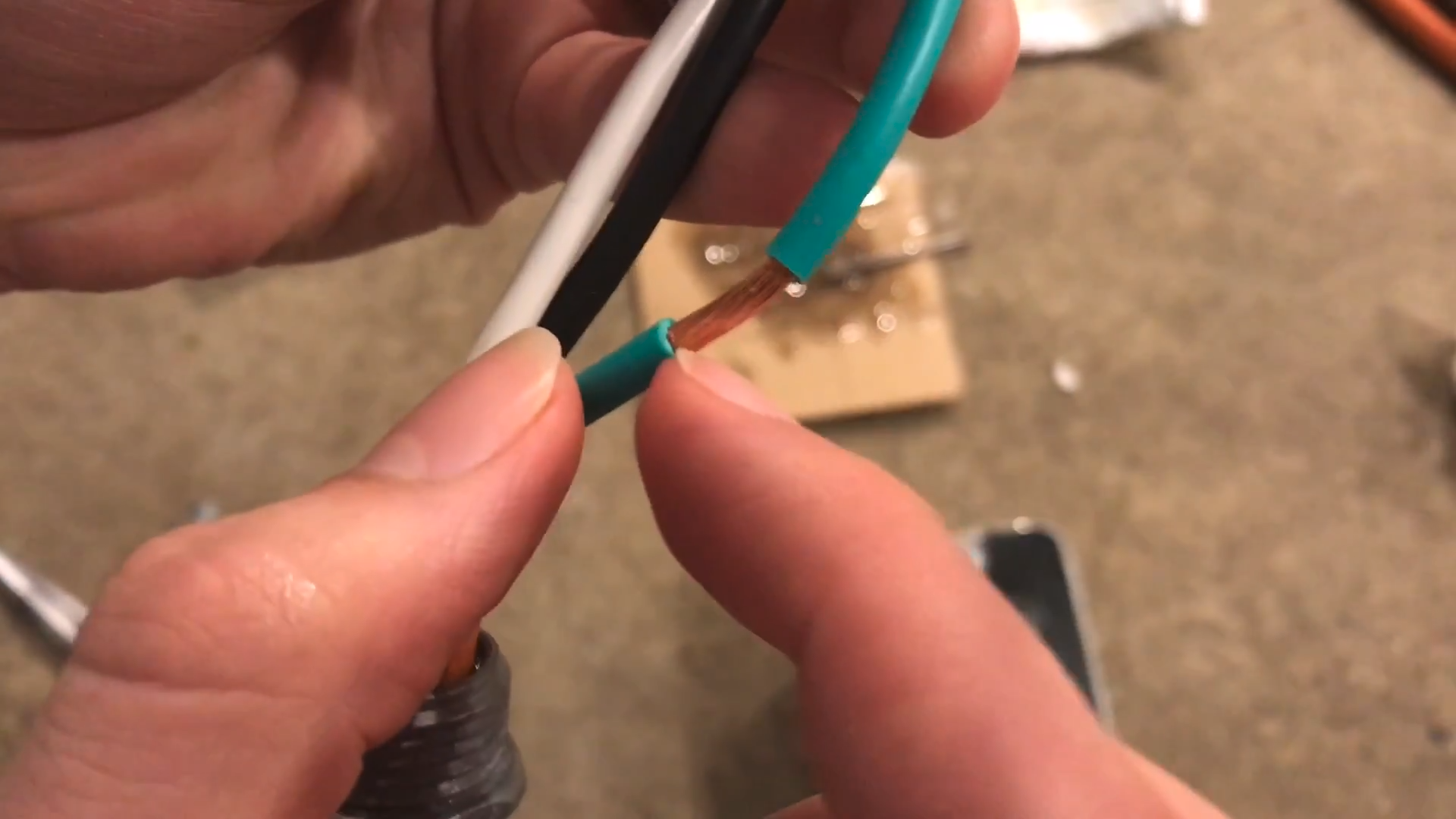

Strip a section of the wire so it can connect to the ground. Now let's wire the outlet, Black wire goes with the gold screw and the white wire goes with the sliver screw.
Finished
![Screenshot from 2018-09-14 12-08-36.png](/proxy/?url=https://content.instructables.com/F6O/YKW4/JM0UZM1A/F6OYKW4JM0UZM1A.png&filename=Screenshot from 2018-09-14 12-08-36.png)
![Screenshot from 2018-09-14 12-09-26.png](/proxy/?url=https://content.instructables.com/F4I/KNZ0/JM0UZM19/F4IKNZ0JM0UZM19.png&filename=Screenshot from 2018-09-14 12-09-26.png)

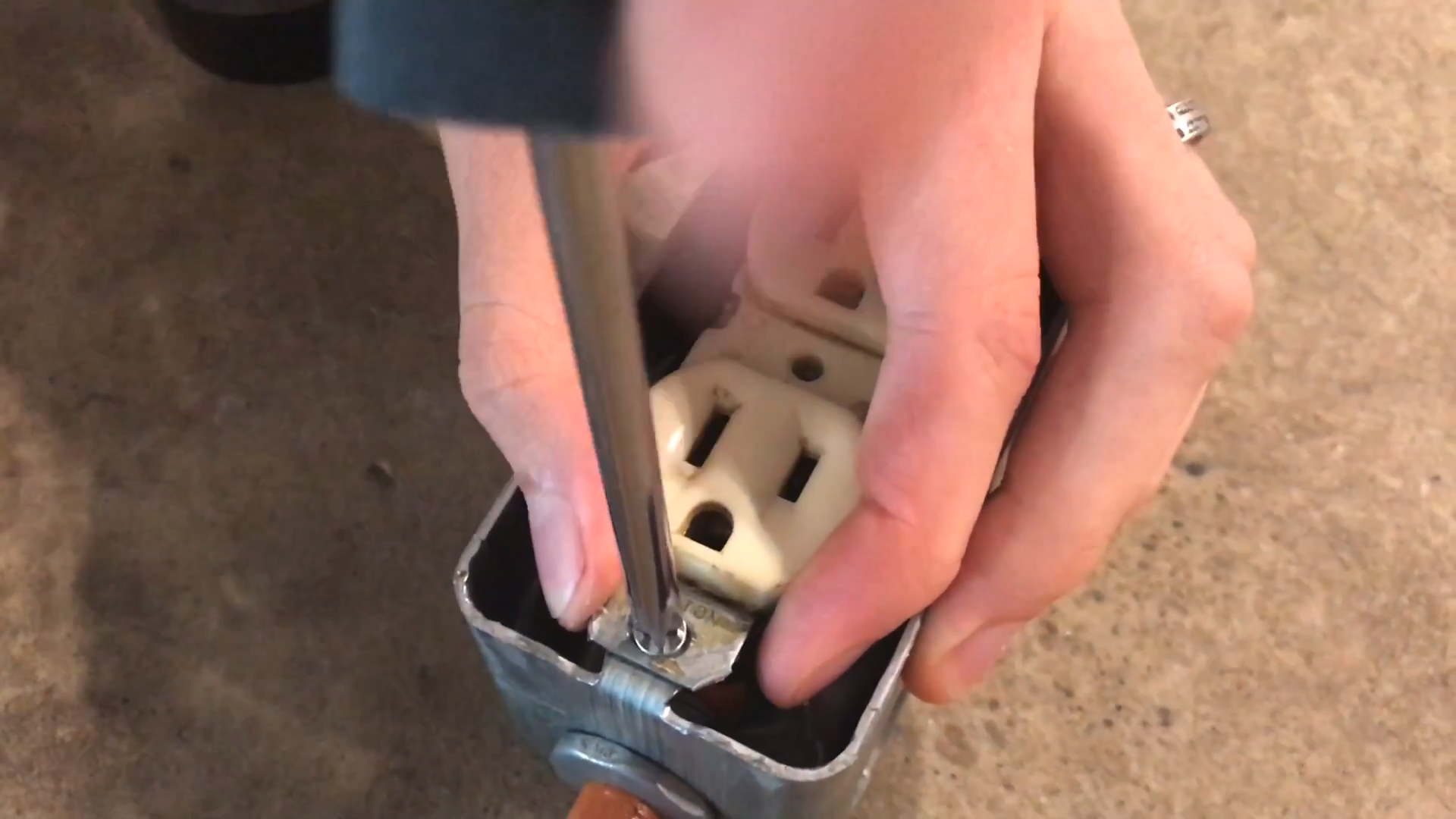

Now screw in the outlet and the front plate, and now your done! In my opinion this is an upgrade to the normal cord.
![FIX your extension cord BETTER THAN NEW](/proxy/?url=https://content.instructables.com/F3S/DV97/JM0UZQ77/F3SDV97JM0UZQ77.jpg&filename=FIX your extension cord BETTER THAN NEW)
Watch the the video!! :)
