Extremely Simple & Easy UVC Disinfecting Chamber With 4 Items Only!

by smith library in Living > Cleaning

674 Views, 2 Favorites, 0 Comments

Extremely Simple & Easy UVC Disinfecting Chamber With 4 Items Only!

uvc box 022.png
uvc box 024.png

WARNING!
DO NOT LOOK DIRECTLY AT THE UVC LIGHT WHEN IT IS ON.
DO NOT EXPOSE YOUR SKIN TO THE UVC LIGHT.
ALLOW AT LEAST 30 MINUTES FOR THE OZONE CREATED BY THE UVC LIGHT TO DECOMPOSE.

Inventory List

uvc box 002.png

1 - Foil lined insulated grocery bag with zipper closure similar to this:
https://www.amazon.com/gp/product/B071ZNFVMD/ref=p...

2 - A cooling rack that fits on the bottom of the grocery bag similar to this:
https://www.amazon.com/gp/product/B01BX9EBCE/ref=p...

3 - UVC lamp for sanitizing cabinets similar to this:
https://www.amazon.com/gp/product/B07GBS2CJK/ref=p...

4 - Velcro circles with adhesive similar to this:
https://www..amazon.com/gp/product/B00GUZK4I2/ref=...

5 - A pair of gloves

Rack & Bag

uvc box 004.png

The bag you choose must be lined with a highly reflective material for the UVC rays to reflect back onto your items to be disinfected.

The items need to be disinfected on all of their surfaces so that is why you need a mesh rack to elevate them off the bottom of the bag.

Put the cooling rack into the bottom of the bag.

Assemble UVC Lamp

uvc box 006.png
uvc box 008.png

Place the UVC lamp parts on a clean surface.

I used the bubble wrap that was wrapped around the bulb when shipped.

Wear gloves when assembling the parts of your UVC lamp because oil from hands will damage the UVC bulb.

The lamp I ordered came with the bulb and its holder as one piece but the power cord is separate.

It takes a bit of effort to secure the cord to the lamp so wear gloves!

Attach UVC Lamp

uvc box 010.png
uvc box 012.png
uvc box 016.png
uvc box 018.png

Match the twos parts of a velcro circle to itself so both adhesive sides are exposed. It's easier to attach the pieces onto the lamp together and put in place rather than trying to line up the two parts separately.

Attach two piece velcro circles to the back of the UVC lamp.

Firmly press the lamp onto the top flap of the insulated bag.

Make sure the power cord is where the zipper can be closed up close to the cord.

Disinfect Items

uvc box 026.png
uvc box 014.png
uvc box 020.png

Place items inside the bag.

Some smaller packaged grocery items can be placed in a medium sized bag along with phones and keys. This is a box of crackers standing on it's end along with a large smart phone.

Securely close the zipper as close as possible around the power cord.

Put the bag and lamp into a room away from people and pets.

Make sure the bag is completely closed before turning the UVC lamp on.

NEVER look at the UVC lamp when it is on or expose your skin to it.

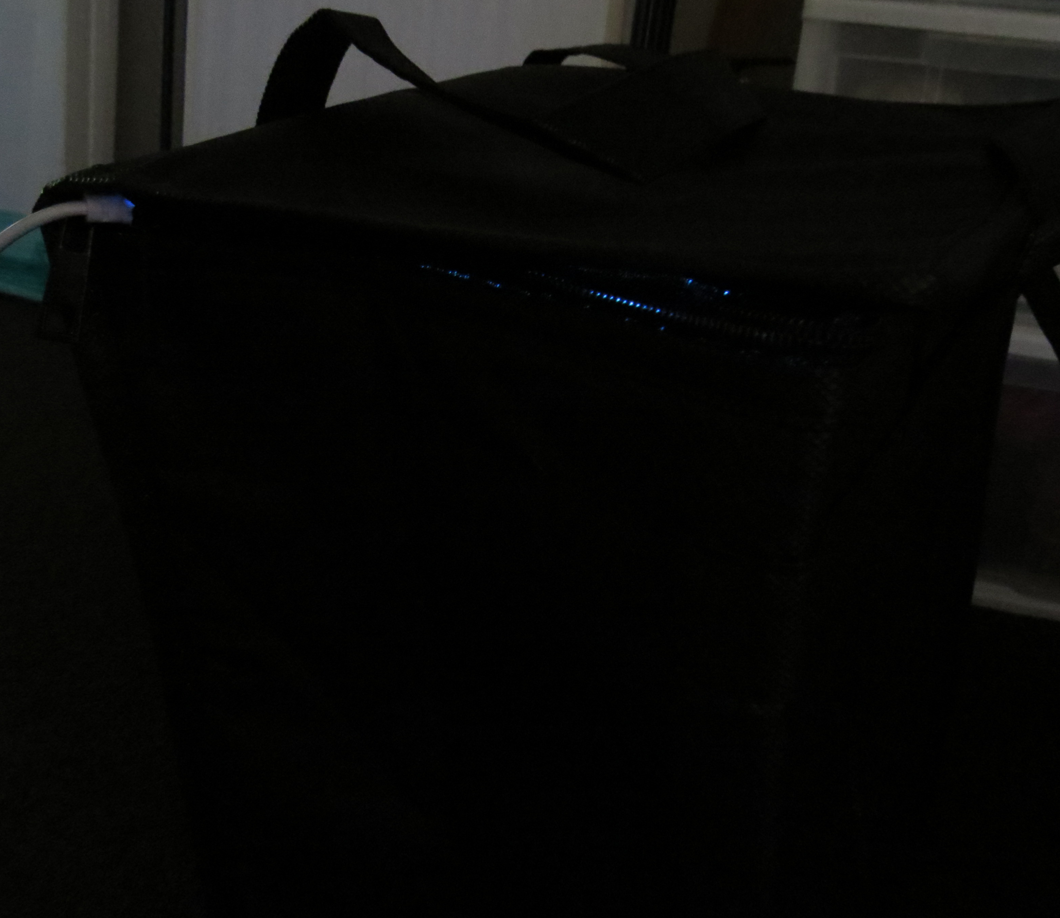

You can see in the darkened room that a small amount of the UVC light does come through the edges of the zipper. So DO NOT STAY IN THE ROOM WHILE THE UVC LAMP IS ON.

Many on-line resources says that 10-15 minutes is the amount of time needed to disinfect phones and keys.

Some UVC lamps come with plug-in timers so set it so the UVC lamp turns off after 10-15 minutes. The timer which came with my lamp did not work so I use a timer in the kitchen.

After the 10-15 minutes turn off the UVC lamp and leave the bag closed in the empty room for at least 30 minutes to allow the ozone to decompose and dissipate to safe levels.
