Ethernet Crossover Cable From a Straight-through Ethernet Cable
by Punarnia in Circuits > Soldering
5617 Views, 17 Favorites, 0 Comments

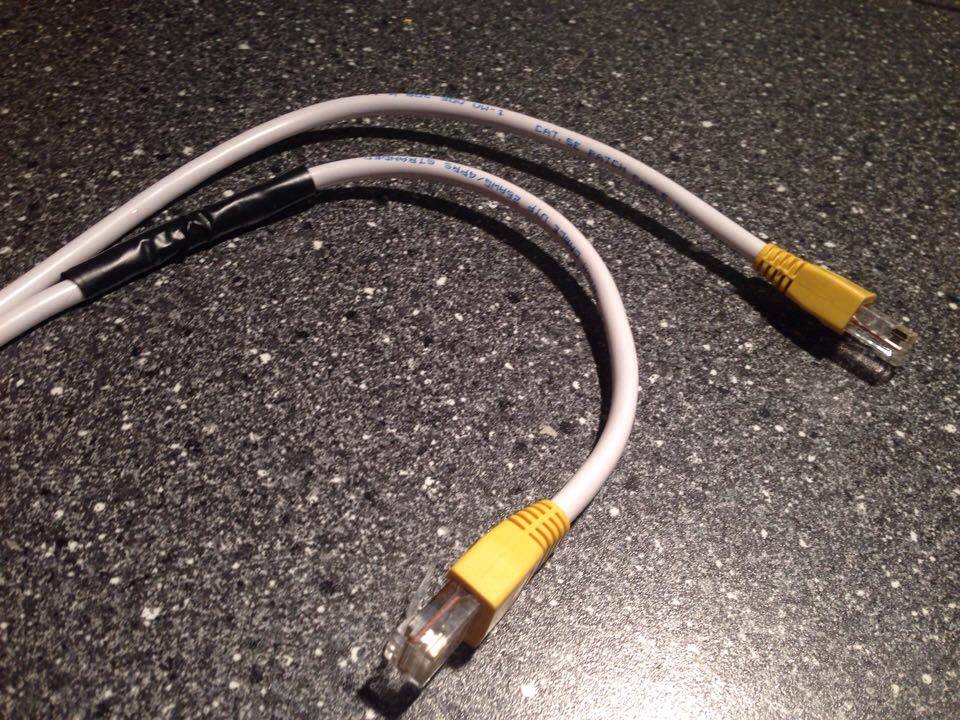

Ethernet Crossover Cable From a Straight-through Ethernet Cable

Make an ethernet crossover cable from a straight-through ethernet cable
Things You Will Need

- Ethernet cable
- Soldering iron
- Solder
-
shrinkable tubing
-
cable cutting plier
-
Tape
Remove a Small ​part of the Tubing




Remove a small part of the tubing
Soldering the Cable





- Cut the green, orange, striped green and striped orange wires
- Remove end ef the tubing of the wires
- Solder the wires as shown on the schematic
Finishing the Cable


Put the wires inside the tubing and tape it together
