Esp32-Ubidots-Wireless-long-range Temperature-And-Humidity

In this tutorial, we will measure different temperature and humidity data using Temp and humidity sensor. You will also learn how to send this data to Ubidots. So that you can analyze it from anywhere for different applications.

Hardware and Software Required

Hardware Required:

Software Required:

Arduino IDE
LabView Utility
Ubidots

Library Used:

PubSubClient Library
Wire.h

Steps to Send Data to LabVIEW Temperature and Humidity Platform Using IoT Long Range Wireless Temperature and Humidity Sensor and Long Range Wireless Mesh Modem With USB Interface-

First, we need a Labview utility application which is ncd.io Wireless Temperature And Humidity Sensor.exe file on which data can be viewed.
This Labview software will work with ncd.io wireless Temperature sensor only
To use this UI, you will need to install following drivers Install run time engine from here 64bit
32 bit
Install NI Visa Driver
Install LabVIEW Run-Time Engine and NI-Serial Runtime
Getting started guide for this product.

Uploading the Code to ESP32 Using Arduino IDE:

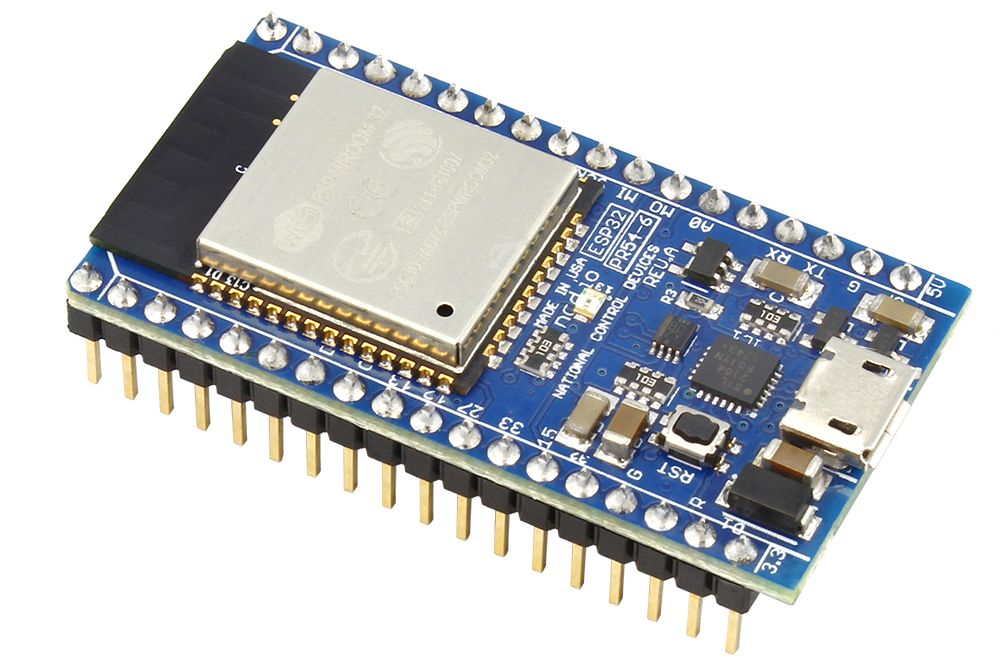

As esp32 is an important part to publish your vibration and temperature data to Ubidots.

Download and include the PubSubClient Library and Wire.h Library.

#include <WiFi.h>
#include <PubSubClient.h>
#include <Wire.h>
#include <HardwareSerial.h>

You must assign your unique Ubidots TOKEN, MQTTCLIENTNAME, SSID (WiFi Name) and Password of the available network.

#define WIFISSID "xyz" // Put your WifiSSID here

#define PASSWORD "xyz" // Put your wifi password here

#define TOKEN "xyz" // Put your Ubidots' TOKEN

#define MQTT_CLIENT_NAME "xyz" // MQTT client Name

Define variable and device name on which the data will send to Ubidots.

#define VARIABLE_LABEL "Temperature" // Assing the variable label

#define VARIABLE_LABEL2 "Battery"

#define VARIABLE_LABEL3 "Humidity"

#define DEVICE_LABEL "esp32" // Assig the device label

Space to store values to send:

char payload[100];

char topic[150];

char topic2[150];

char topic3[150];// Space to store values to send

char str_Temp[10];

char str_sensorbat[10];

char str_humidity[10];

Code to publish data to Ubidots:

sprintf(topic, "%s", ""); // Cleans the topic content

sprintf(topic, "%s%s", "/v1.6/devices/", DEVICE_LABEL);

sprintf(payload, "%s", ""); // Cleans the payload content

sprintf(payload, "{\"%s\":", VARIABLE_LABEL); // Adds the variable label

sprintf(payload, "%s {\"value\": %s", payload, str_Temp); // Adds the value

sprintf(payload, "%s } }", payload); // Closes the dictionary brackets

client.publish(topic, payload);

Compile and upload the temp_humidity.ino code.
To verify the connectivity of the device and the data sent, open the serial monitor. If no response is seen, try unplugging your ESP32 and then plugging it again. Make sure the baud rate of the Serial monitor is set to the same one specified in your code 115200.

Downloads

temp_humidity.ino

Serial Monitor Output.

Making the Ubidot Work:

Create the account on Ubidots.
Go to my profile and note down the token key which is a unique key for every account and paste it to your ESP32 code before uploading.
Add a new device to your Ubidots dashboard name esp32.

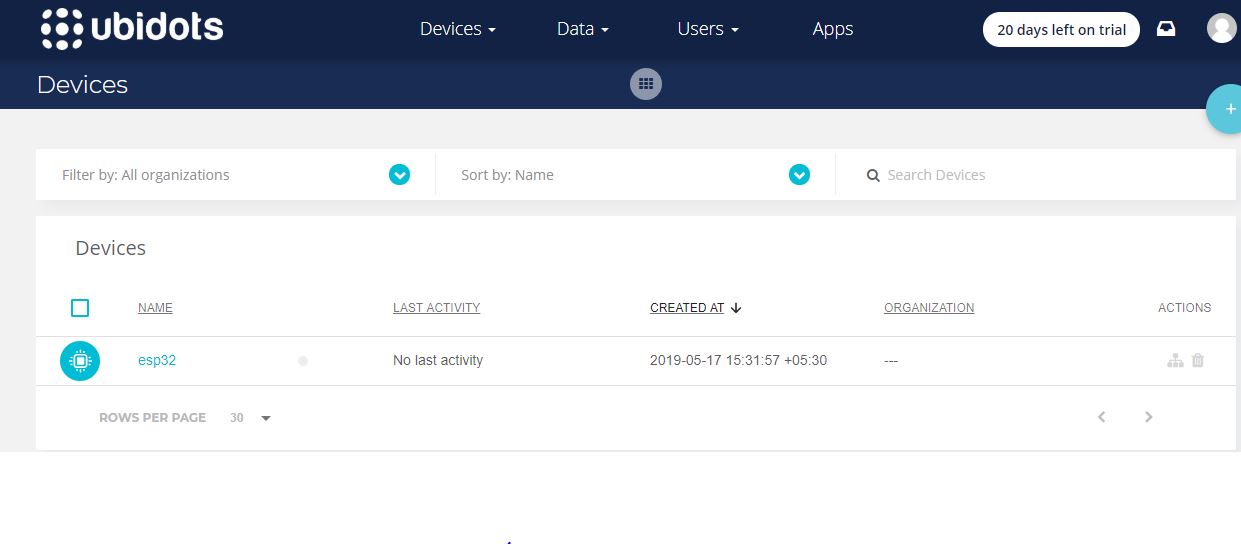

Click on devices and select devices in Ubidots.

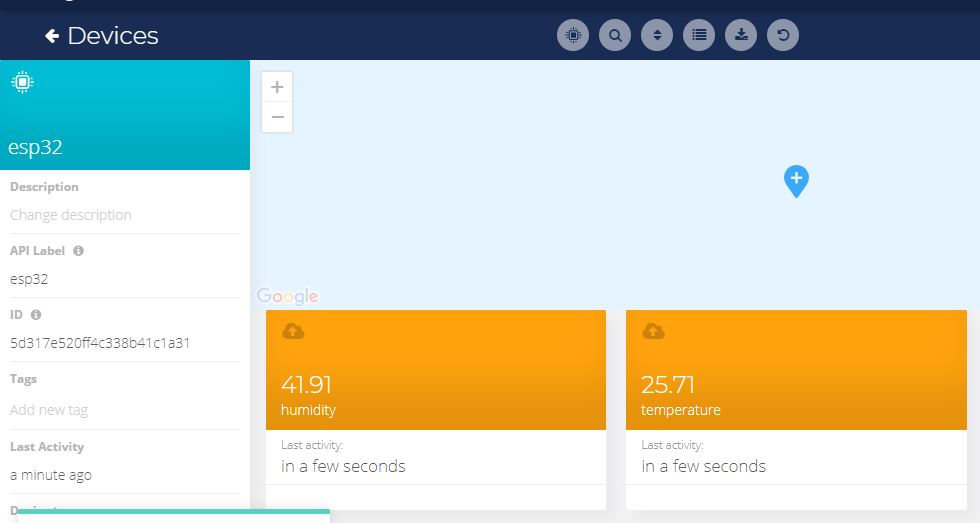

Now you should see the published data in your Ubidots account, inside the device called "ESP32".
Inside the device create a new variable name sensor in which your temperature reading will be shown.

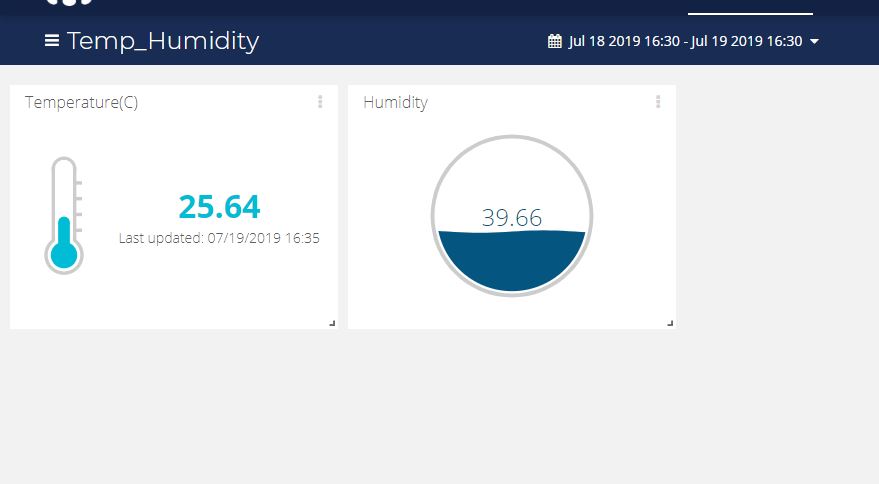

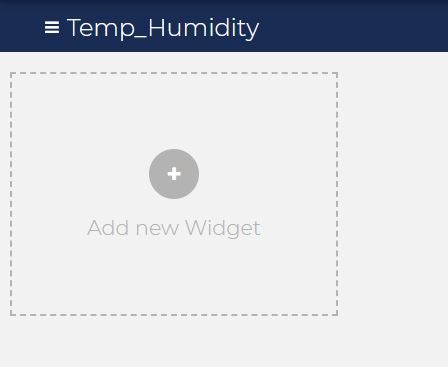

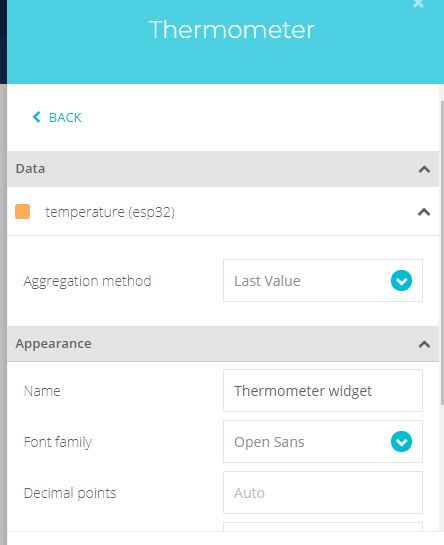

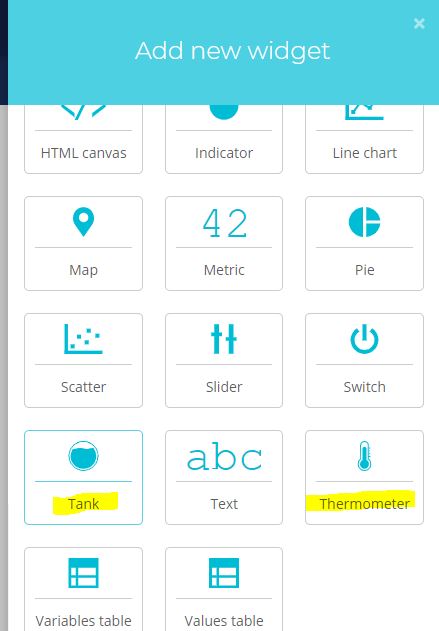

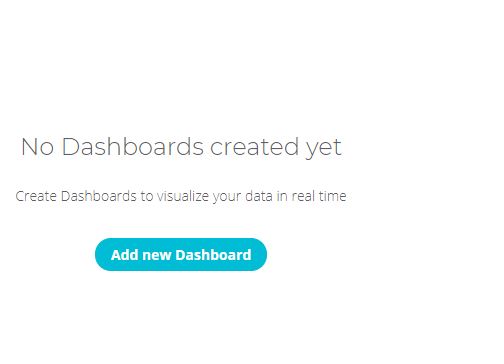

Now you are able to view the Temperature and other sensors data which was previously viewed in the serial monitor. This happened because the value of different sensor reading is passed as a string and store in a variable and publish to a variable inside device esp32.

Esp32-Ubidots-Wireless-long-range Temperature-And-Humidity
